Floor heating controllers

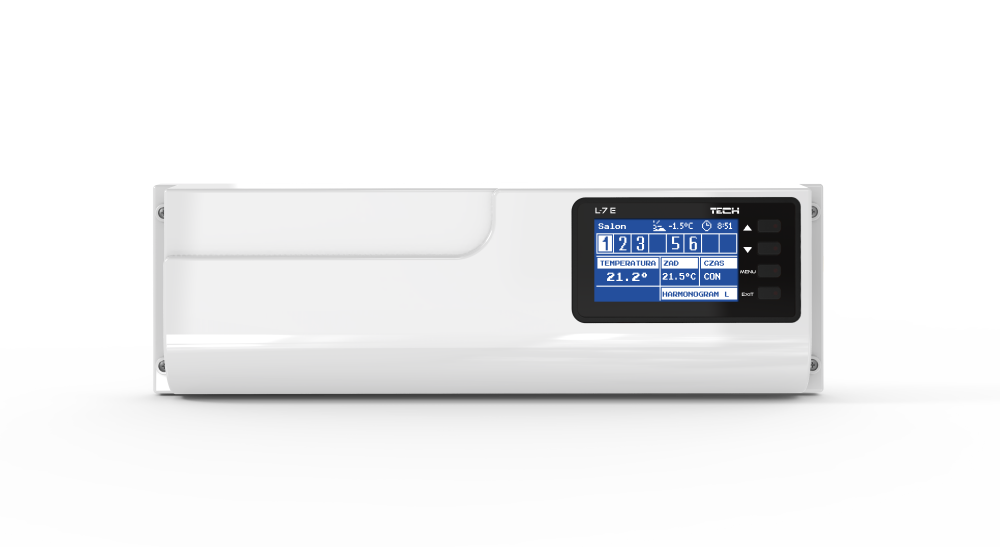

EU-L-7e

WIRED CONTROLLER FOR THERMOSTATIC ACTUATORS (8 SECTIONS)

Product description

Functions:

  • Controlling up to 50 thermoelectric actuators with the use of 22 outputs, via EU-C-7p wired room
    temperature sensors
    – 3 outputs may support 12 actuators (the max. of 4 actuators per one output)
    or each output load of max. 0,3A (~70W)
    – 5 outputs may support 10 actuators (the max. of 2 actuators per one output)
    or each output load of max. 0,3A (~70W)
  • one 230V output for a pump
  • voltage-free relay (to control an additional heating device)
  • possibility of connecting EU-M-7 control panel (wire connection)
  • possibility of connecting EU-505 Ethernet or EU-WiFi RS for controlling the installation via the Internet
  • possibility of connecting EU-i-1 or EU-i-1m valve module
  • software update via USB

Product parameters

Specification Unit
Power supply 230V 50Hz
Pump output load 0,5 A
Outputs 1 - 8 load 0,3 A
Voltage-free relay • / 1 A
Communications Wired
Dimensions [mm] 335 x 105 x 75

Expansion of the

Controllers and sensors powered powered from main controller
