Floor heating controllers

EU-L-5s

Wired controller for thermostatic actuators (8 sections).

Product description

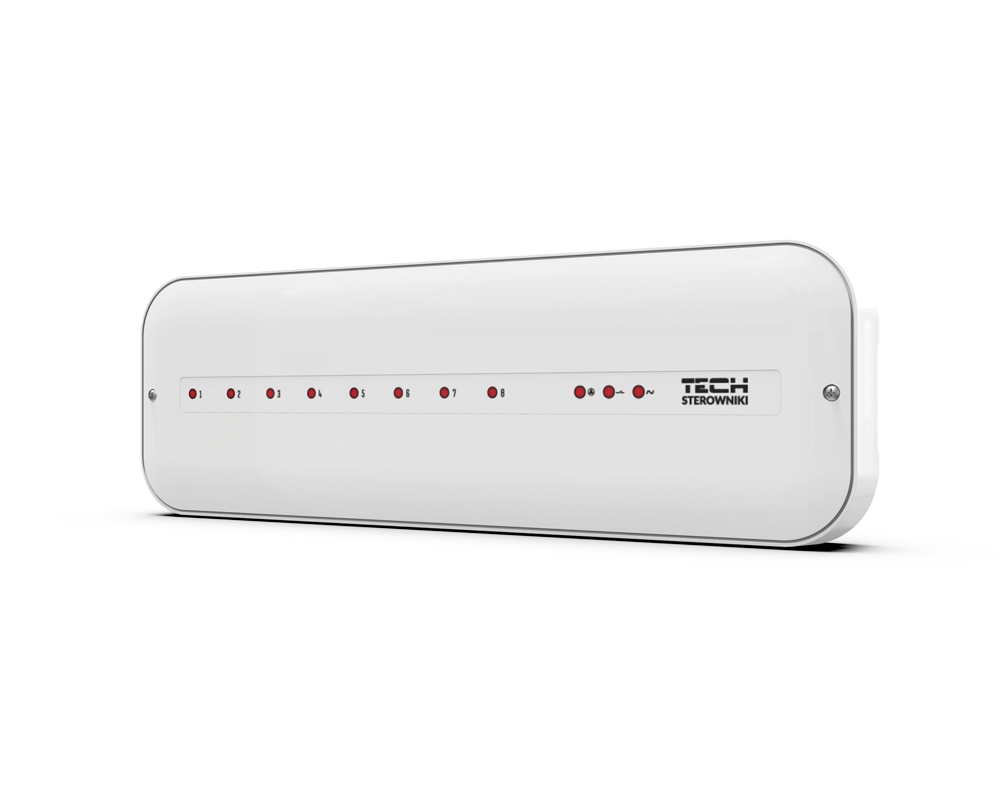

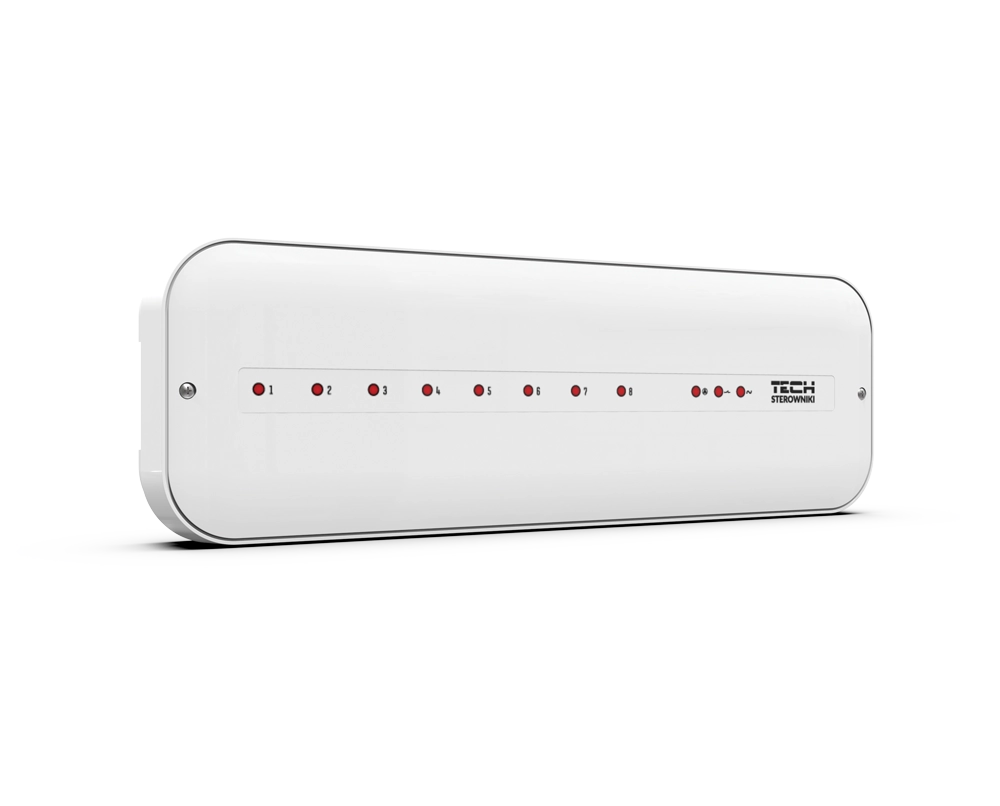

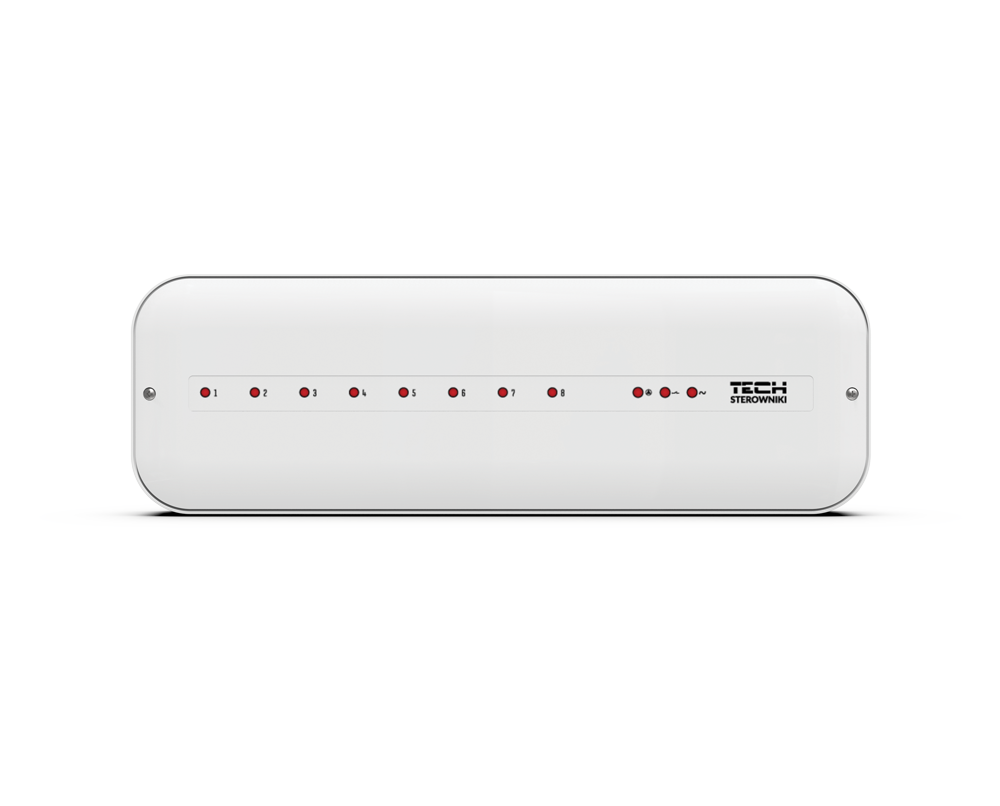

Wired controller for thermostatic actuators

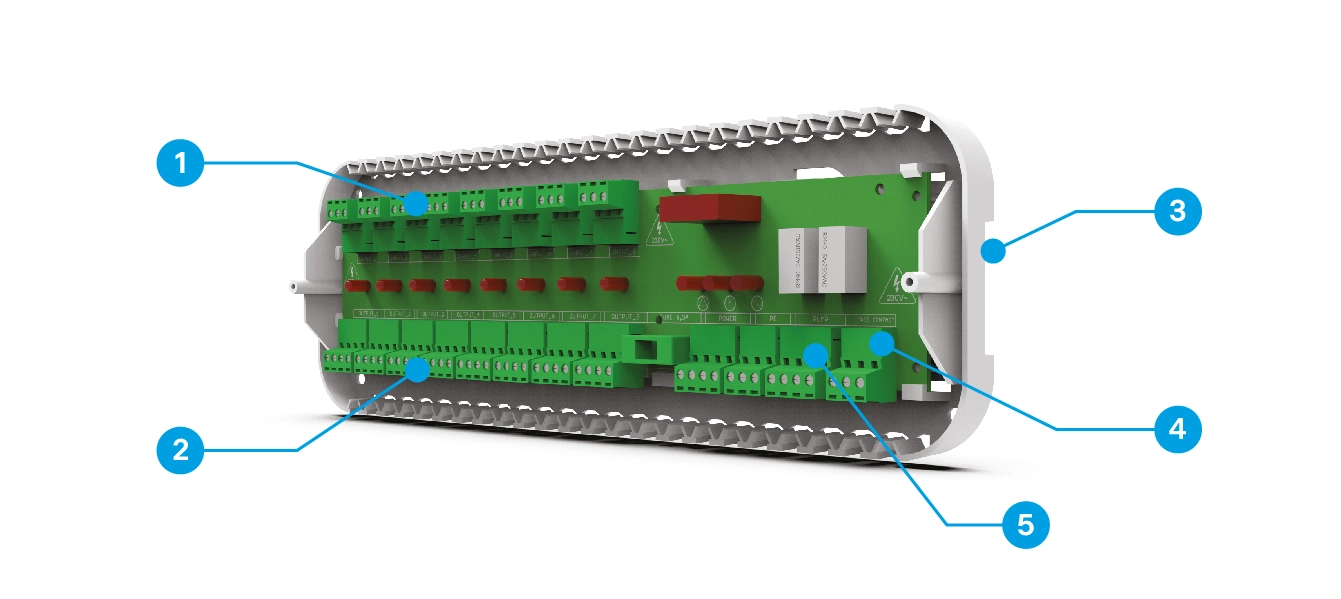

Main functions of controller:

• capability to manage max. 50 thermostatic actuators with 8 room thermostats
• 16 voltage outputs 230V (2 for each zone) or load of each zone up to 0.3A (~ 70W), dedicated for thermostatic actuators
• one common to all zones 230V pump dedicated output
• non voltage relay (to control additional heating device)

Expansion of the
