Radiator heating controllers

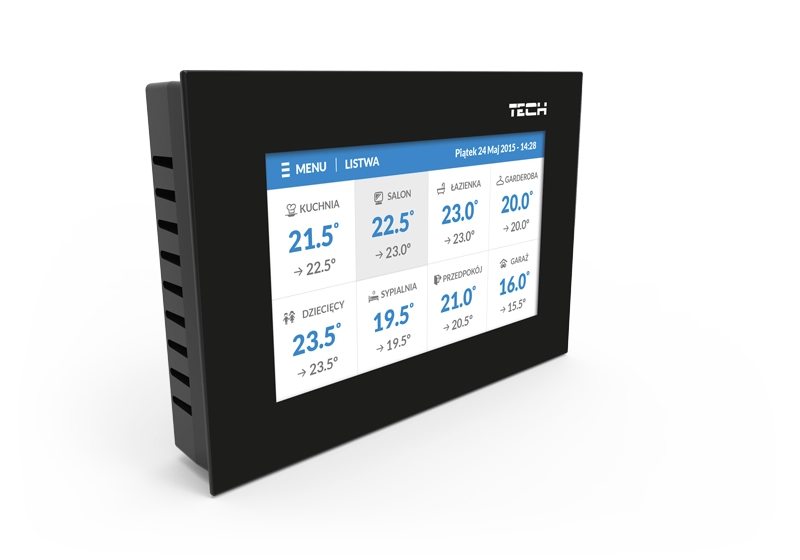

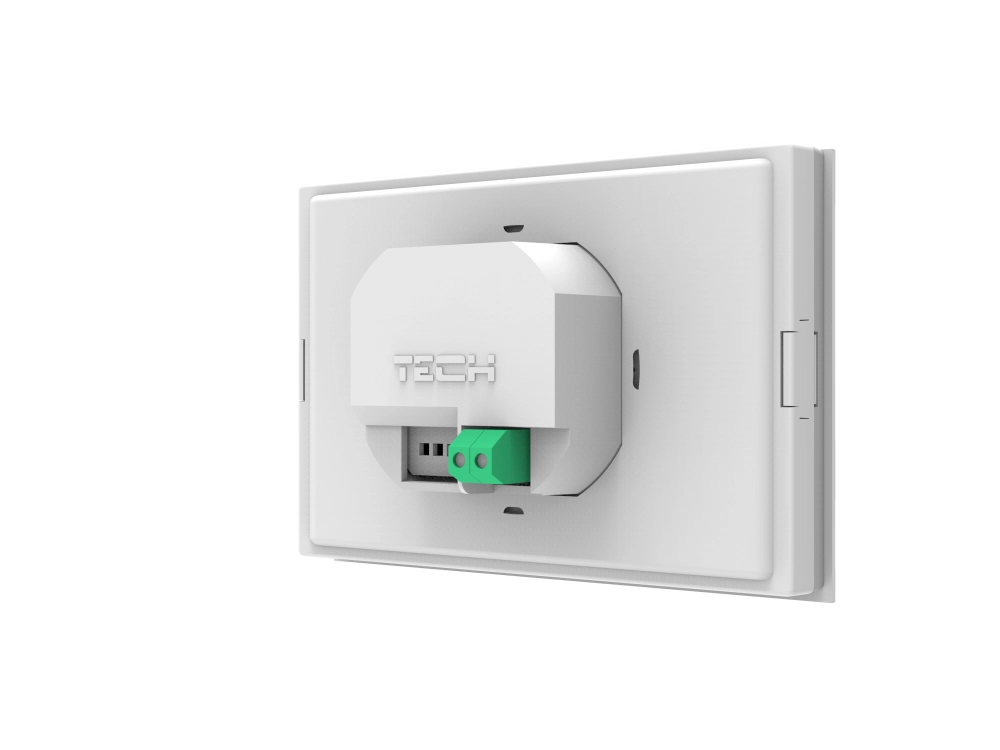

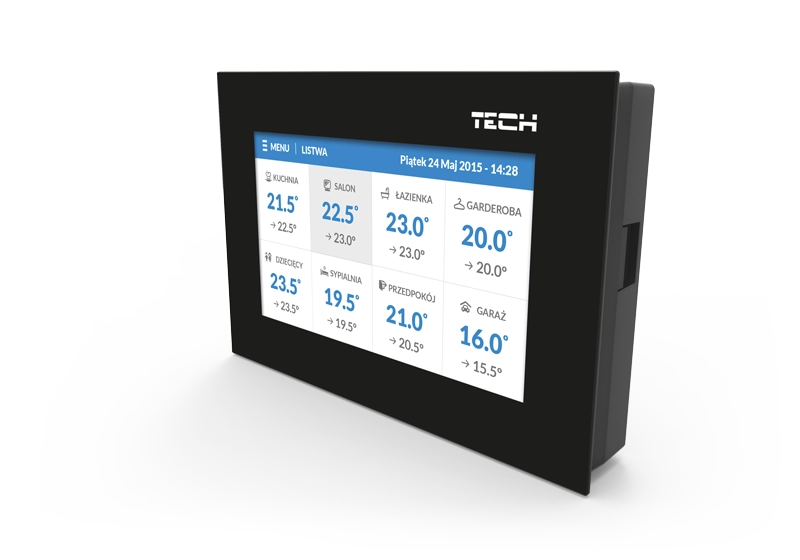

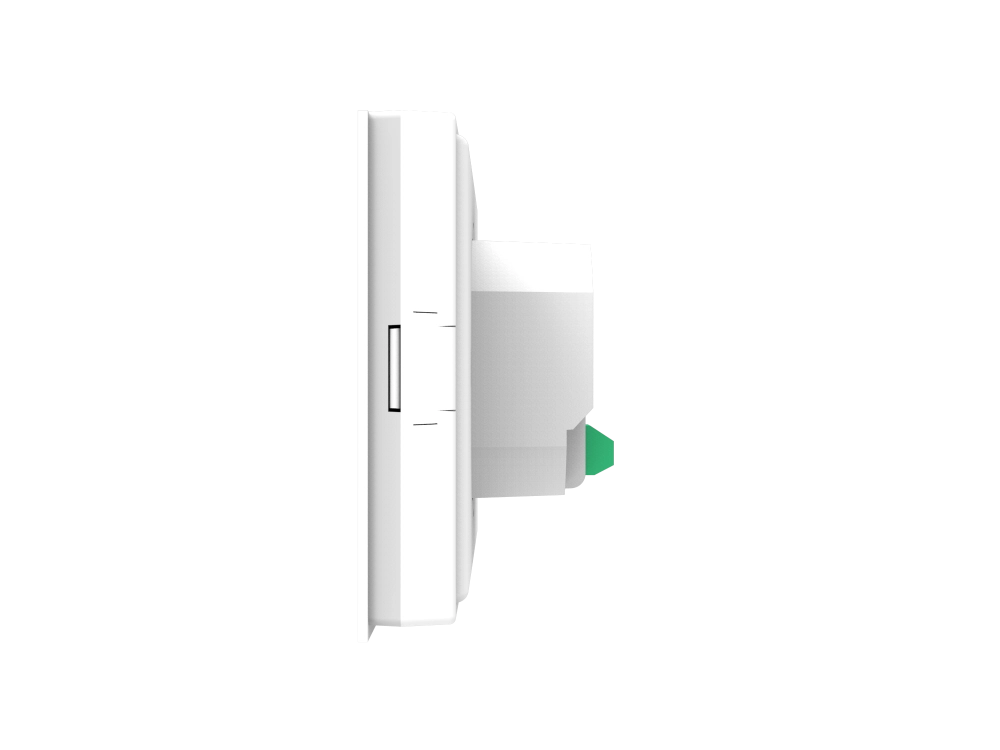

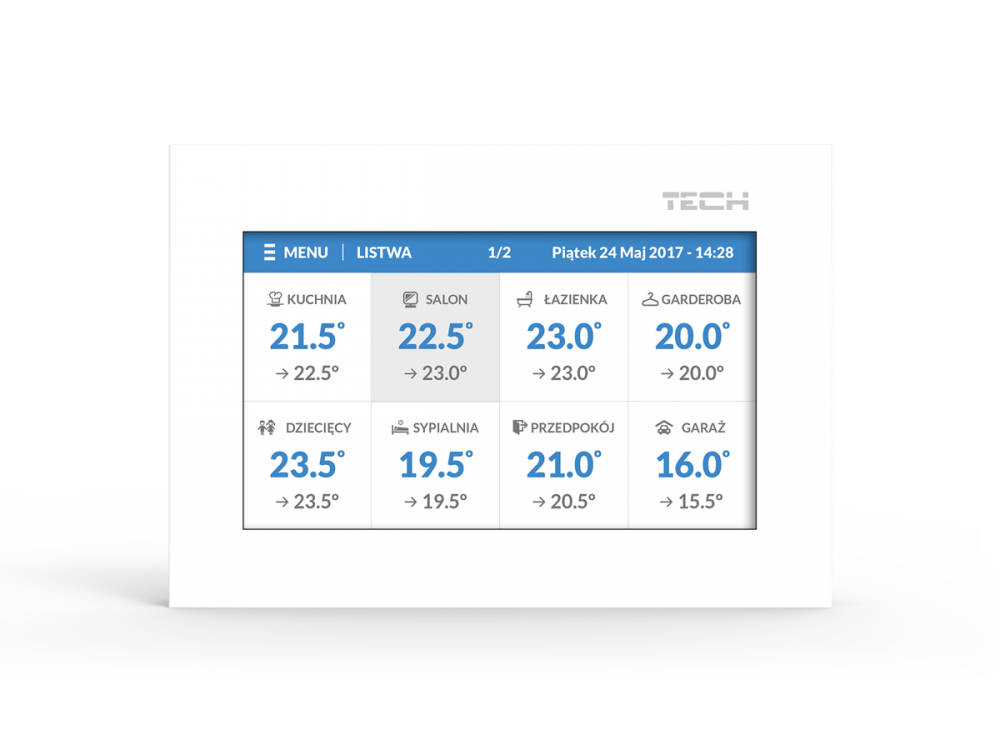

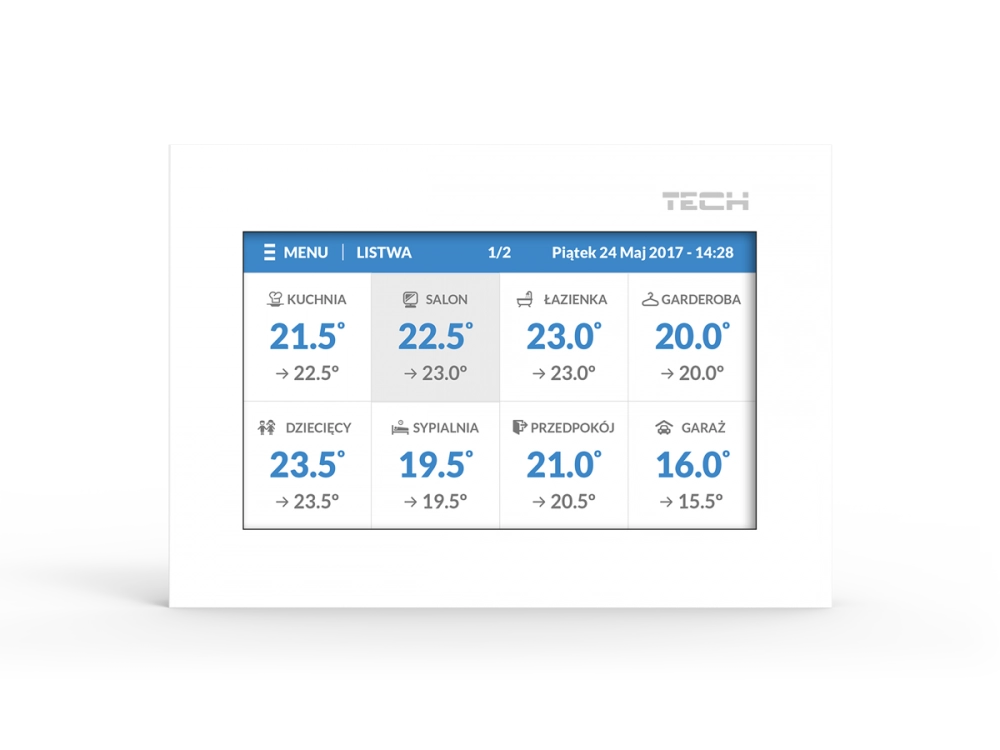

EU-16S WiFi

Room regulator for controlling electric actuators (16 zones)

Product description

Functions:
• controlling up to 16 different zones with the use of:
- built-in temperature sensor
- possibility of connecting up to 16 wireless sensors EU-C-mini, EU-C-8r or room regulators EU-R-8b, EU-R-8z
• possibility of connecting up to 6 wireless electric actuators STT-868/STT-869 in each zone
• possibility of connecting up to 6 modules EU-MW-1 / EU-MW-1 230
• possibility of installing up to 6 wireless window opening sensors EU-C-2
• displaying settings: temperature, date, time, alarm clock
• possibility of updating the software via USB port
• each zone may by assigned an individual operation mode (stable temperature, time limit or 6 operation schedules)
• control via mobile app www.emodul.eu

Equippment
• front panel made of 2mm glass
• wireless communication
• large, easy-to-read colour touch screen
• built-in temperature sensor
• flush-mountable

Available in black or white casing, flush-mounted

Expansion of the

Regulators powered by 230V-wireless

EU-F-8z
WIRELESS ROOM REGULATOR WITH HUMIDITY SENSOR
EU-F-8z

Regulators and temperature sensors-wireless, battery

EU-C-8r
WIRELESS ROOM TEMPERATURE SENSOR
EU-C-8r
EU-C-mini
WIRELESS ROOM TEMPERATURE SENSOR
EU-C-mini
EU-CL-mini
WIRELESS ROOM TEMPERATURE SENSOR IN HERMETIC CASING IP64
EU-CL-mini
EU-R-8b
WIRELESS ROOM REGULATOR
EU-R-8b
EU-R-8bw
WIRELESS ROOM REGULATOR WITH HUMIDITY SENSOR
EU-R-8bw
EU-R-8b PLUS
WIRELESS ROOM REGULATOR WITH HUMIDITY SENSOR
EU-R-8b PLUS
EU-R-8s PLUS
WIRELESS ROOM REGULATOR WITH HUMIDITY SENSOR
EU-R-8s PLUS
EU-R-8pb PLUS
WIRELESS ROOM REGULATOR WITH HUMIDITY SENSOR
EU-R-8pb PLUS

Actuators

STT-869
WIRELESS ELECTRIC ACTUATOR
STT-869
STT-868
WIRELESS ELECTRIC ACTUATOR
STT-868

Additional accessories

EU-C-2n
WIRELESS WINDOW OPENING SENSOR
EU-C-2n
EU-C-8zr
WIRELESS OUTSIDE TEMPERATURE SENSOR
EU-C-8zr
EU-MW-1
WIRELESS EXECUTIVE MODULE
EU-MW-1
EU-MW-1-230V
WIRELESS EXECUTIVE MODULE
EU-MW-1-230V
EU-RP-3
SIGNAL REPEATER
EU-RP-3
EU-RP-4
SIGNAL REPEATER
EU-RP-4

Files to download

Manuals
