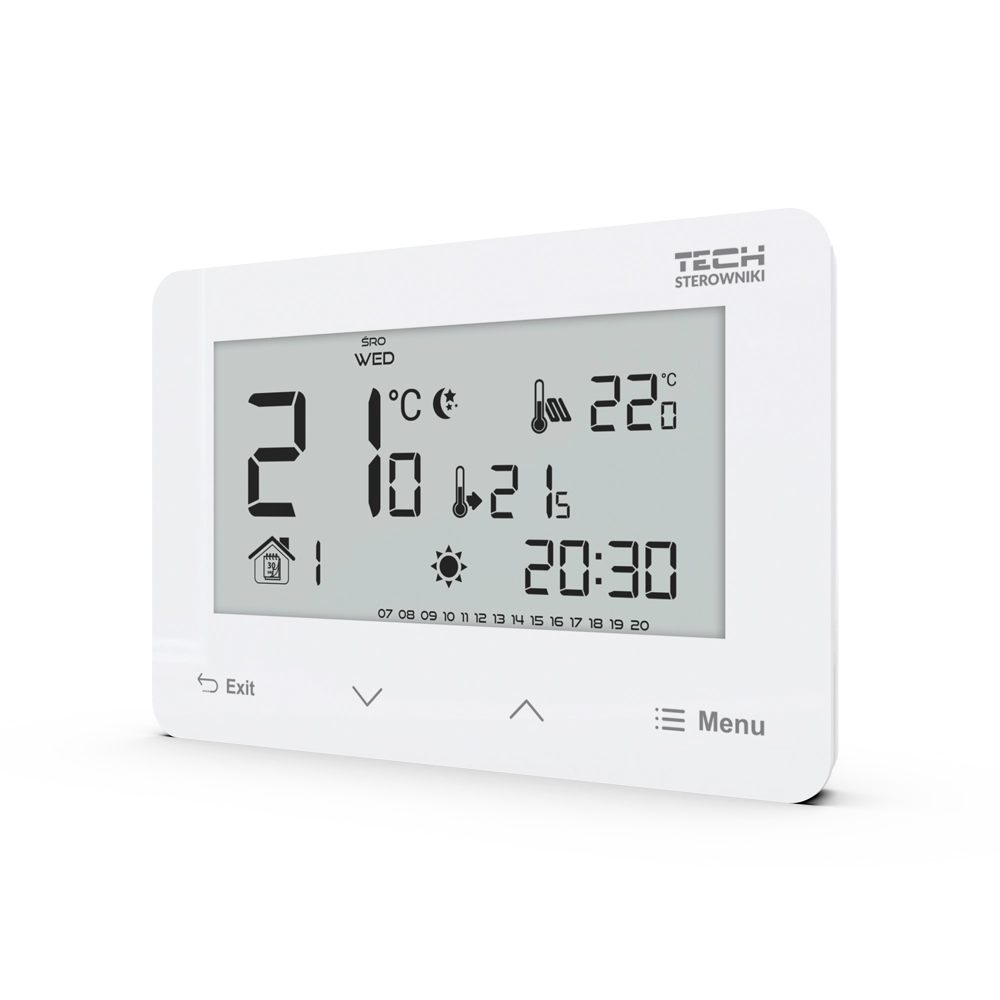

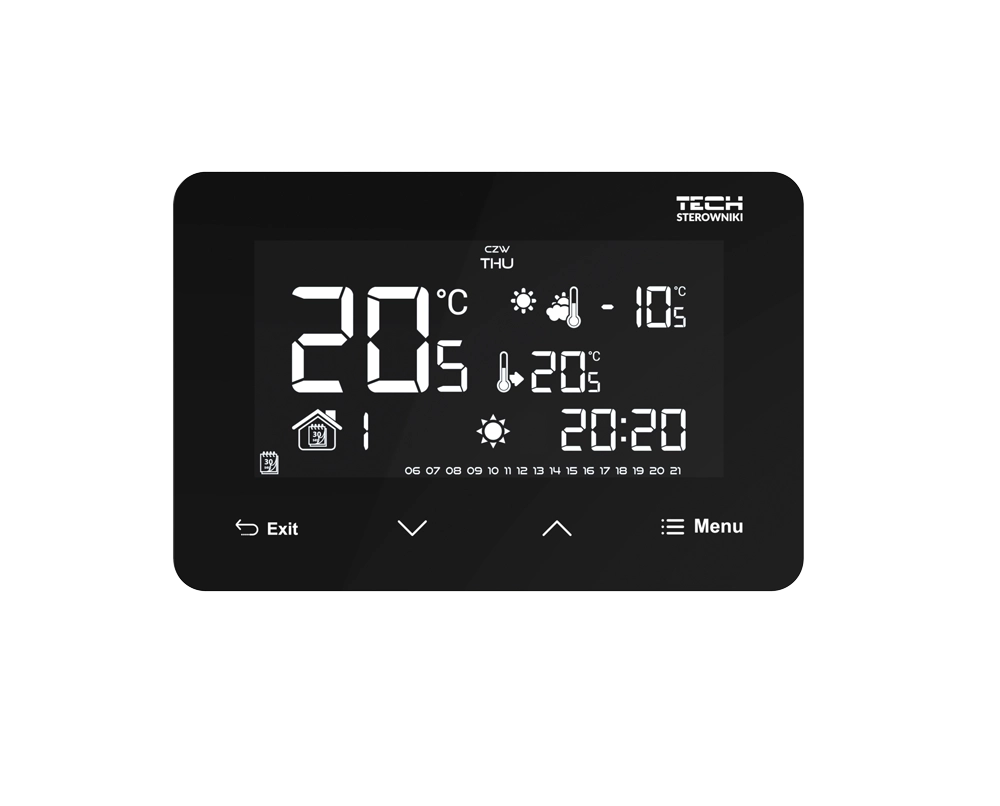

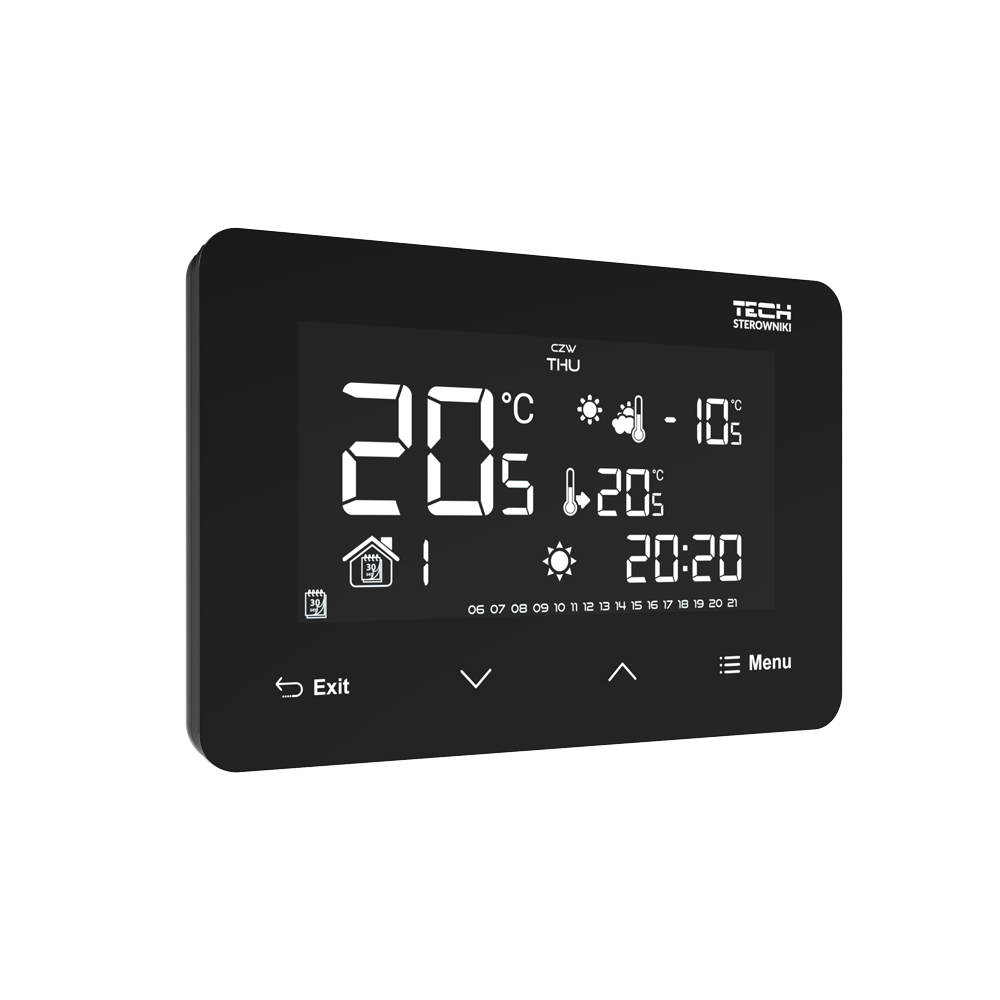

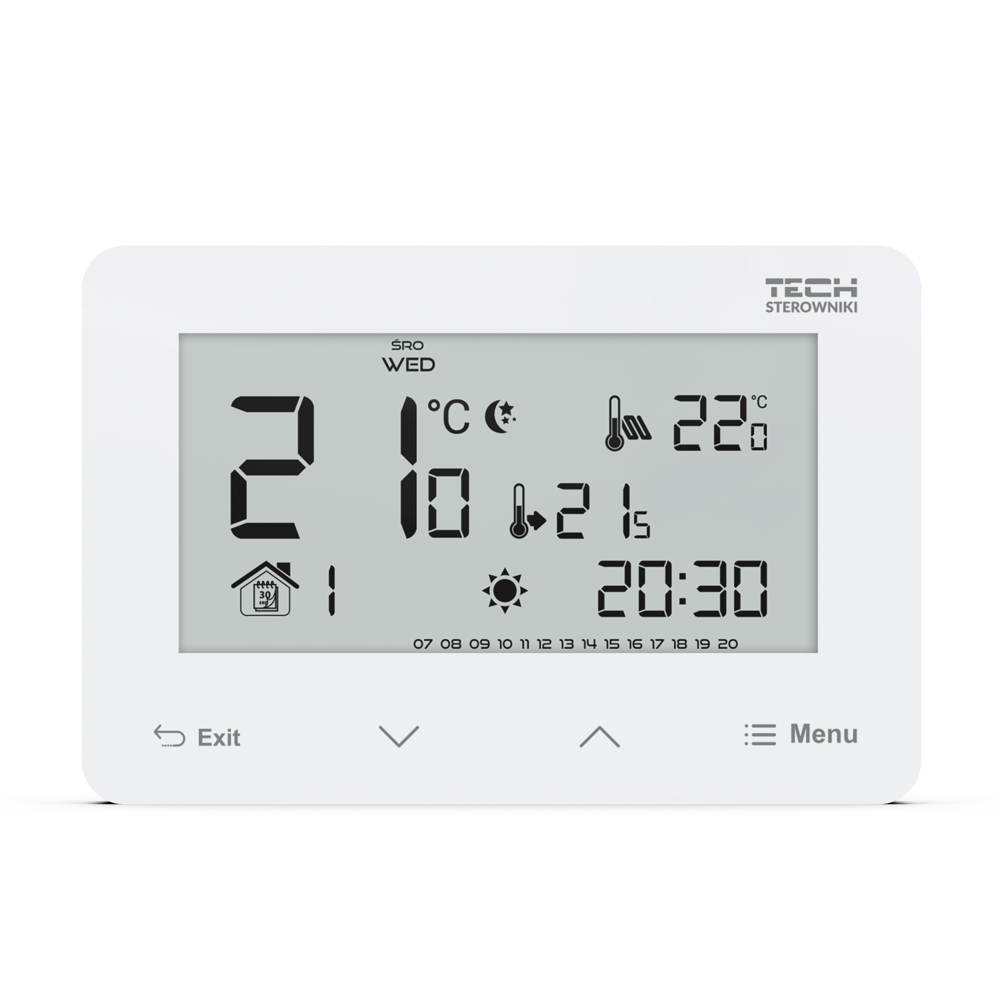

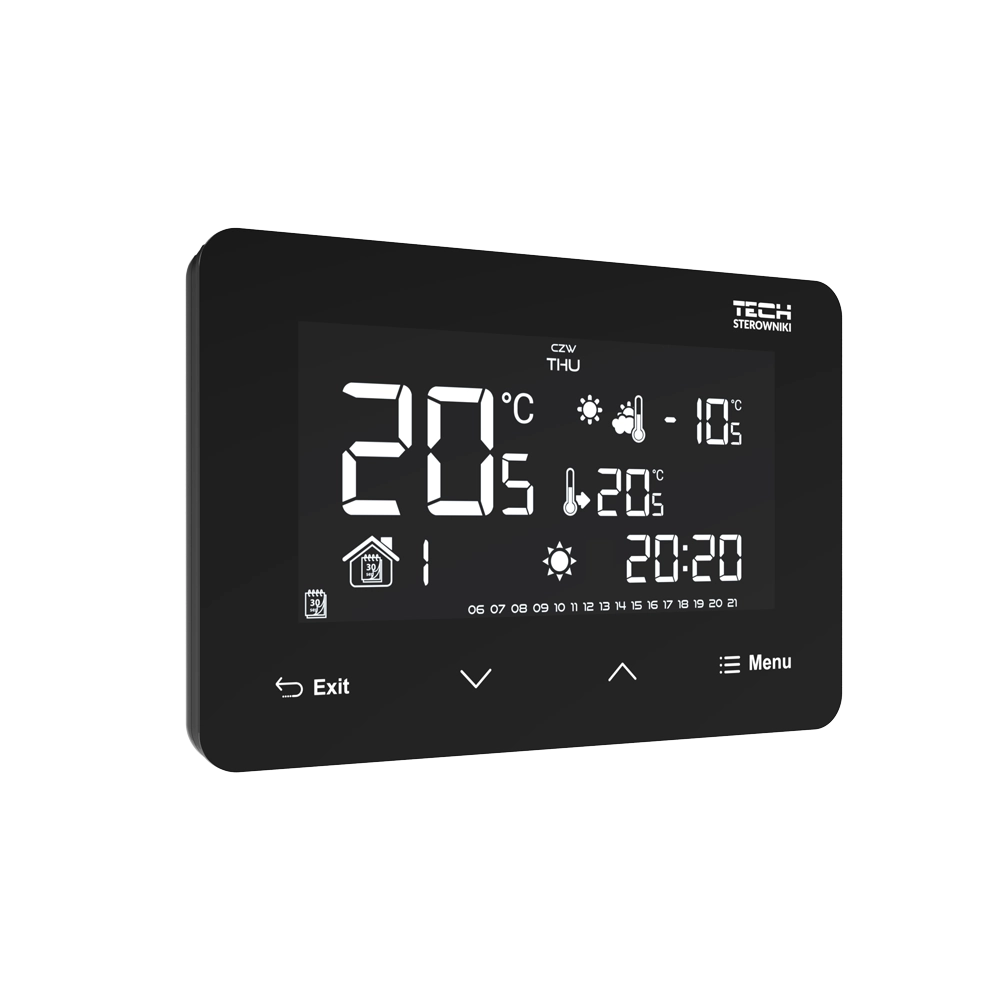

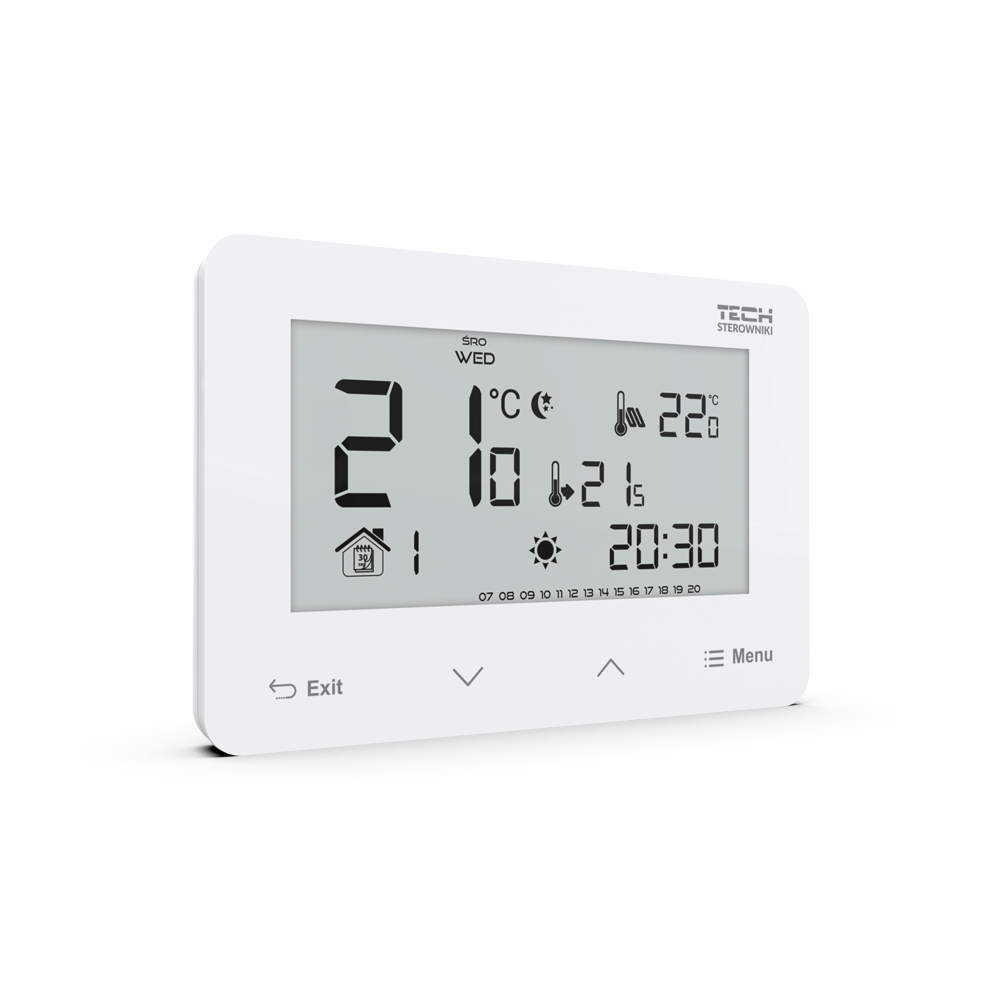

EU-293z v3

WIRED TWO-STATE ROOM REGULATOR (flush mounted) 230V powered Available soon!

Product description

WIRED TWO-STATE ROOM REGULATOR (flush mounted) 230V powered

Available soon!

Functions performed by the controller:
  • room temperature control +/- with an accuracy of 0.1 ° C
  • hysteresis in the range from 0.2 to 8 °C
  • weekly heating program
  • manual program
  • day / night program
  • temporary illumination of the display
  • additional control based on floor temperature (if wired NTC floor sensor is used)
  • Optimum Start function
  • heating / cooling function
  • non-voltage No/Com/Nc relay (max. 1A/230V/AC)
  • wired communication
Controller equipment:
  • built-in room sensor
  • Power supply: 230V 50Hz

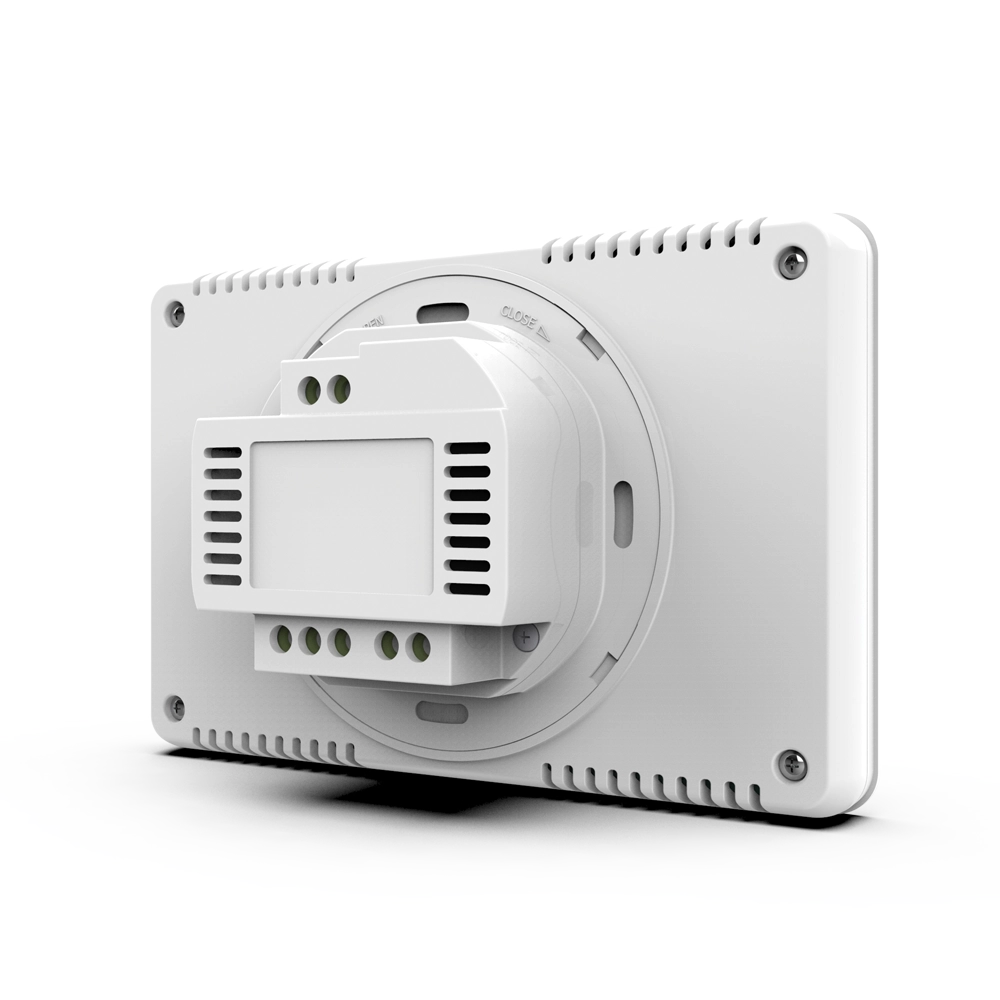

  • flush mountable in a 60mm box

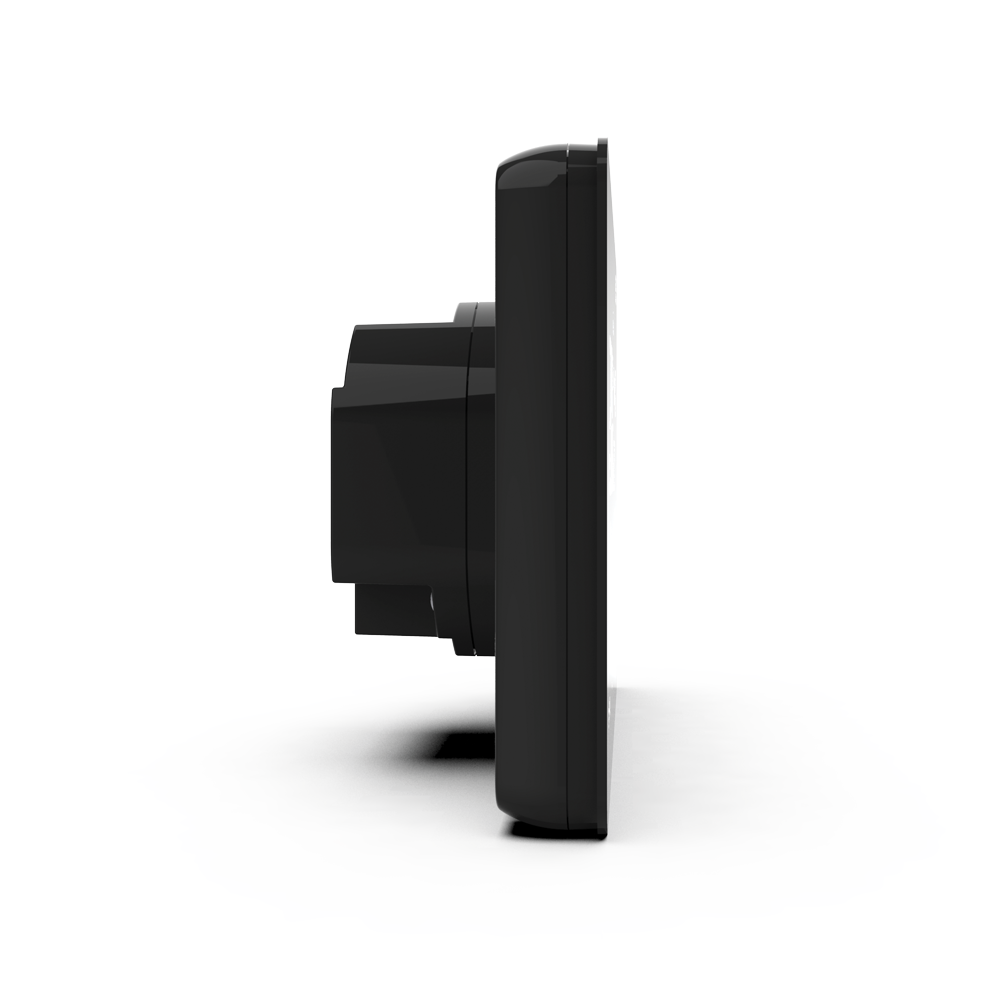

Dimension: 125x83x14 mm


This function enables intelligent control of the heating device, increases efficiency and provides better thermal comfort. The room regulator, learning by itself, will select the optimal boiler activation time in order to achieve thermal comfort, so that the room is heated to the set temperature for a pre-set time.


grzanie-chlodzenie_ico_web Heating / Cooling mode:

This function allows you to control devices used for heating, such as cooling devices or air conditioners. In order to configure the operation, select the function in the menu that you want the regulator to perform (heating or cooling).


czujnik-temp-pod_ico_webFLOOR TEMPERATURE sensor:

When using an additional floor temperature sensor, the room regulator will control the room temperature taking into account the floor temperature (set the minimum and maximum floor temperature). Among other things, we can prevent the floor from cooling down in well-sunny rooms.
