CP-04 Wi-Fi

Device Description

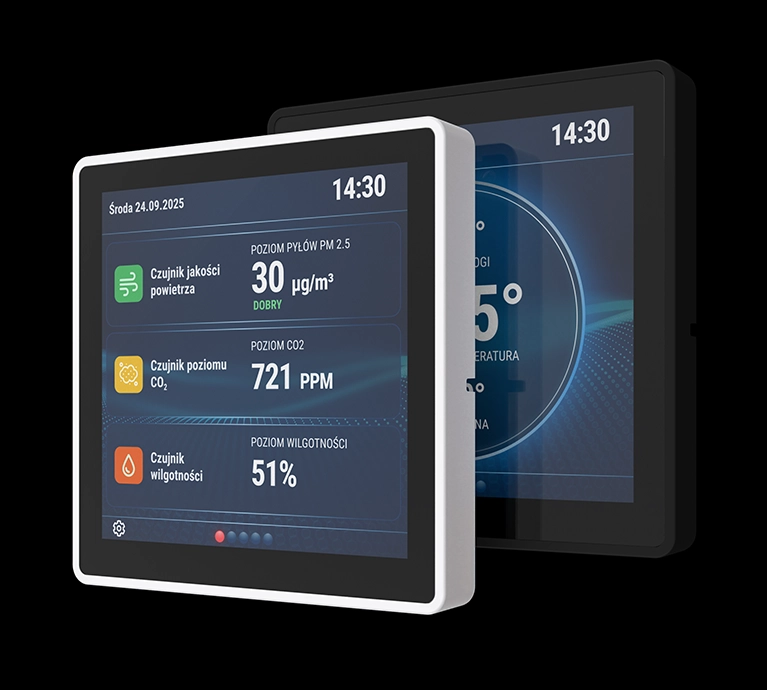

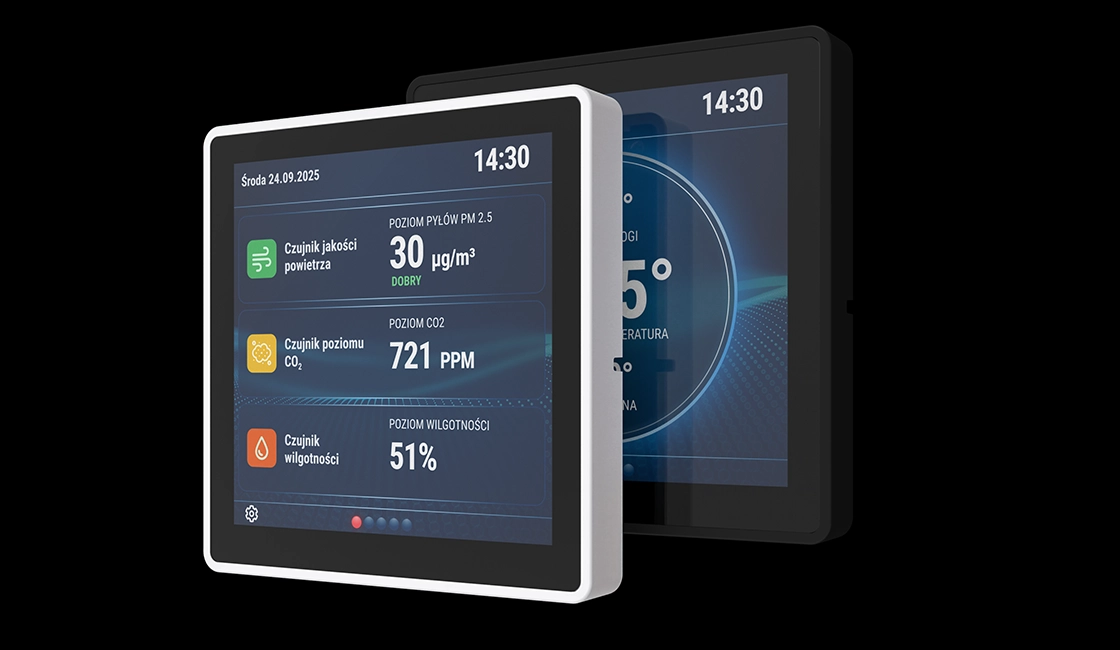

• 4" full-color touchscreen display
• Control of selected scenes (e.g., opening blinds, driveway gate, etc.)
• Weather forecast display for a specified location
• Built-in temperature controller function
• Ability to control selected lighting switches
• Ability to view data from external sensors
• Customizable shortcut screen with favorite scenes
• Option to connect an air temperature sensor (wired/wireless)
• Option to connect a floor temperature sensor
• Interchangeable frames (white or black) included as standard
• Flush-mounted installation
• Wireless Wi-Fi connectivity: IEEE 802.11b/g/n (2.4 GHz)

Full Functionality

The CP-04 panel extends the functionality of the Sinum Control Unit, offering direct interaction with the system in a given room.

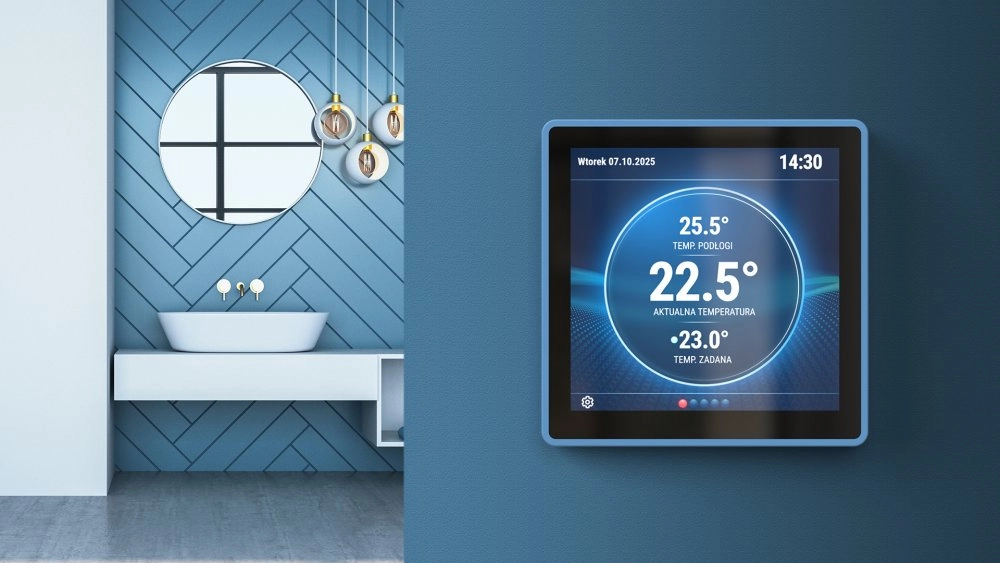

• Heating zone management: Full control of the set temperature with the ability to define hysteresis and limits (min/max). Supports calibration of the built-in room sensor and an external floor sensor (NTC).

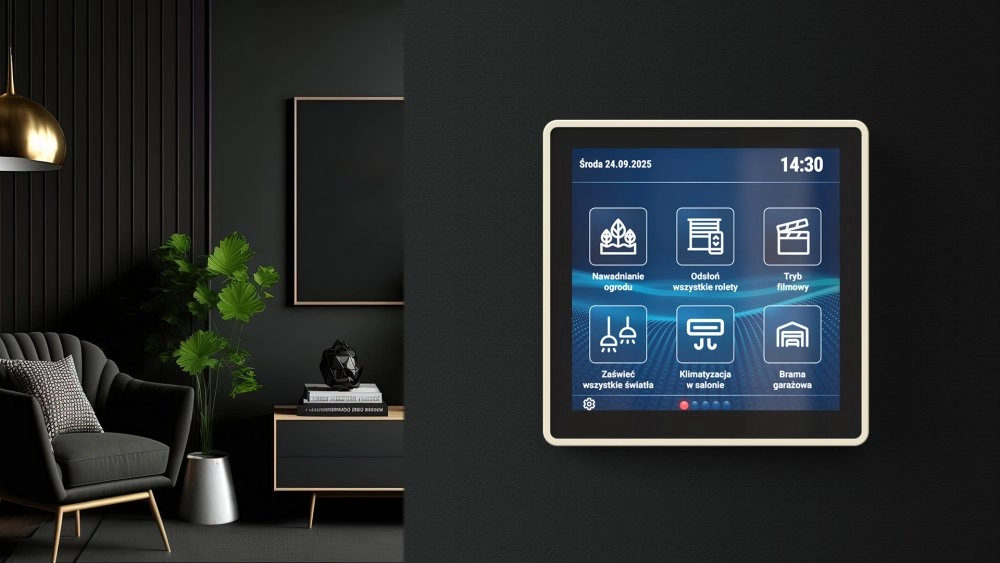

• Scene control: Ability to create and trigger shortcuts to favorite scenes configured in the Sinum Control Unit (e.g., “Leave Home”, “Relax”).

• Parameter monitoring: Displays current system data, including weather forecast retrieved by the Control Unit.

• Interface customization: Configuration of display settings (brightness, timeout, themes) and access protection via PIN code (auto-lock).

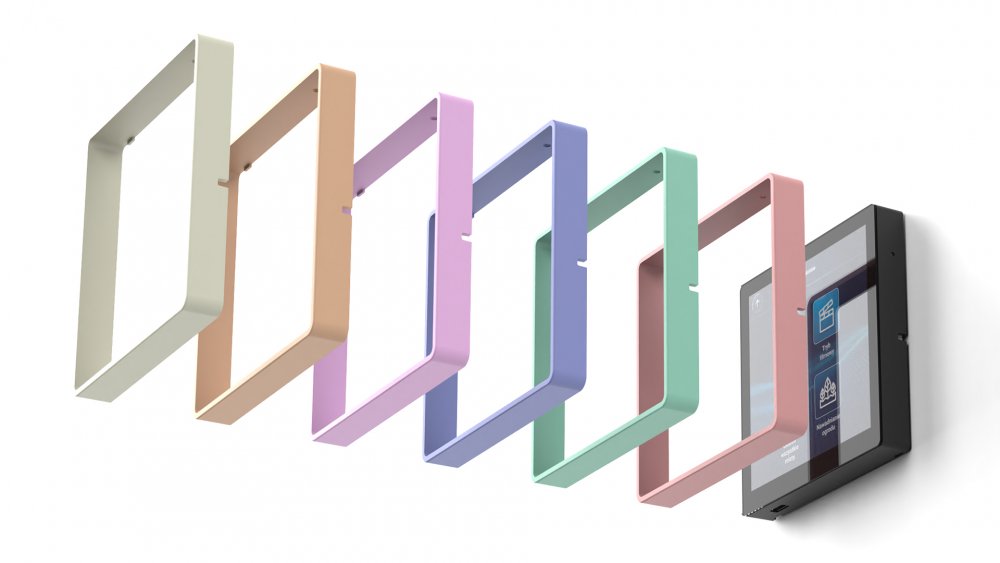

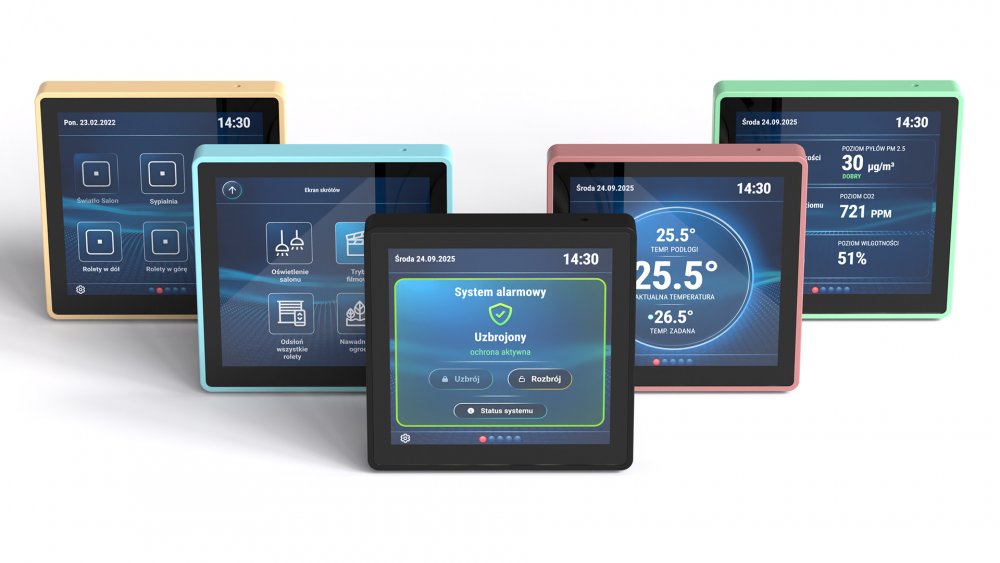

Choose the Perfect Color

We offer a carefully selected RAL color palette, allowing you to match the frame to any interior style. Choose from subtle beiges, modern greens, elegant navy tones, and deep shades of red.

Each color is described with a name that reflects its character, making your selection easier:

• Ivory (RAL 1013) – light, delicate, and timeless
• Warm Cashmere (RAL 7032) – harmonious beige with a soft finish
• Grey Beige (RAL 1019) – universal, natural shade
• Warm Graphite (RAL 7006) – elegant and expressive
• Pistachio (RAL 6019) – fresh and subtly pastel green
• Sage (RAL 6021) – soft, plant-inspired green tone
• Navy Blue (RAL 5000) – classic, deep blue shade
• Muted Peach (RAL 3012) – warm, understated pink
• Emerald (RAL 6004) – dark, jewel-like green
• Dark Sage (RAL 6011) – elegant, subdued green
• Bordeaux (RAL 3004) – deep, classic red
• Wine (RAL 4004) – rich, expressive burgundy

Precise Temperature Measurement

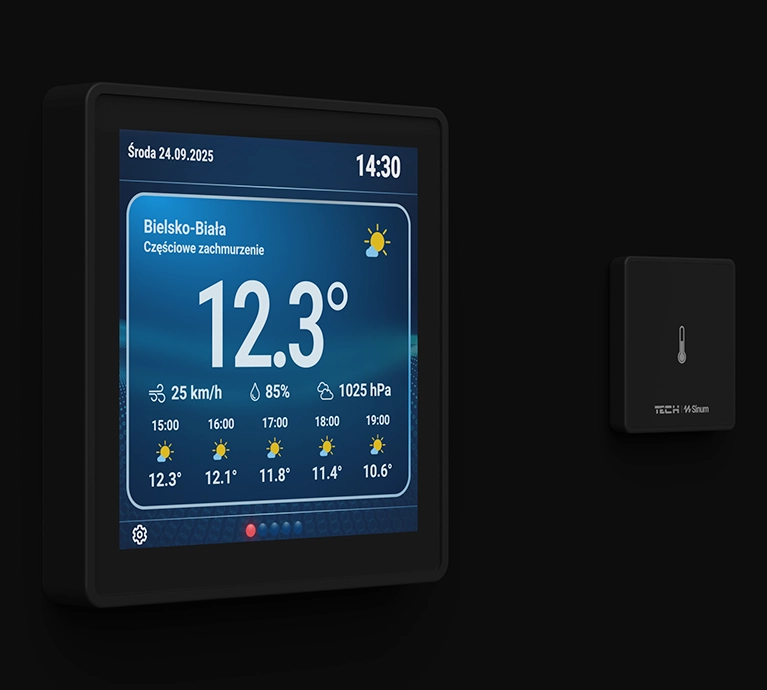

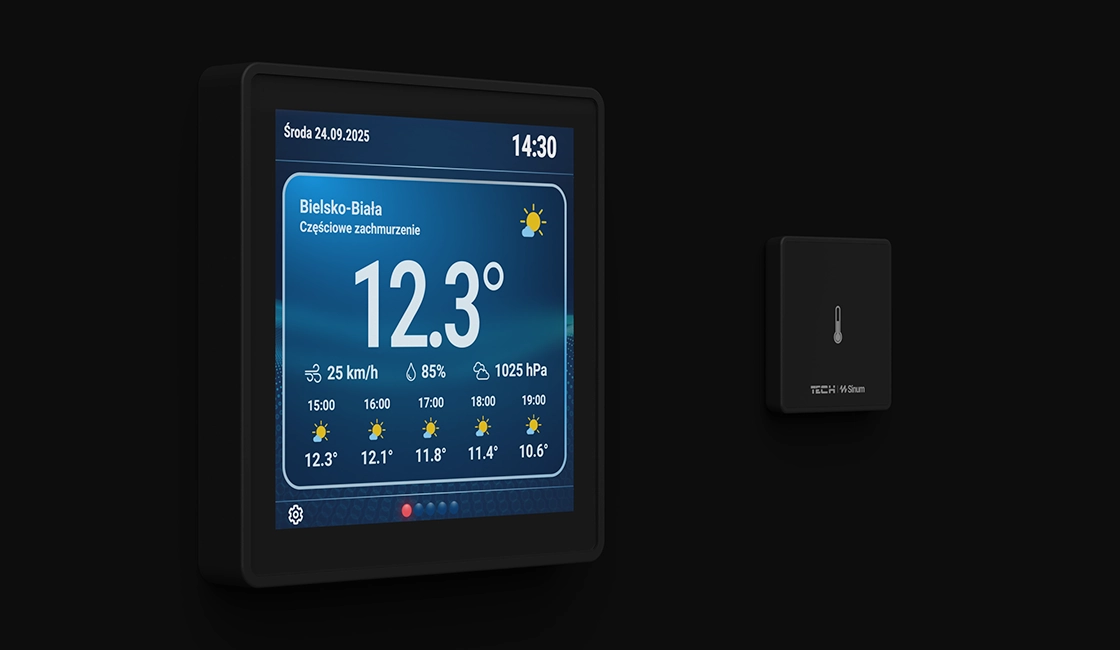

The CP-04 control panel has been designed for immediate and efficient temperature management in your home. To ensure the highest level of accuracy, the CP-04 is supplied with a dedicated wired mini temperature sensor – C-S1p. With the included C-S1p sensor, you gain:

• Accurate temperature reading: The C-S1p enables precise air temperature measurement, allowing the Sinum system to efficiently manage your heating.
• Discreet design: The sensor (36 × 36 × 5 mm) is extremely compact and flush-mounted (installation box included), ensuring it blends seamlessly into the interior with minimal visibility.

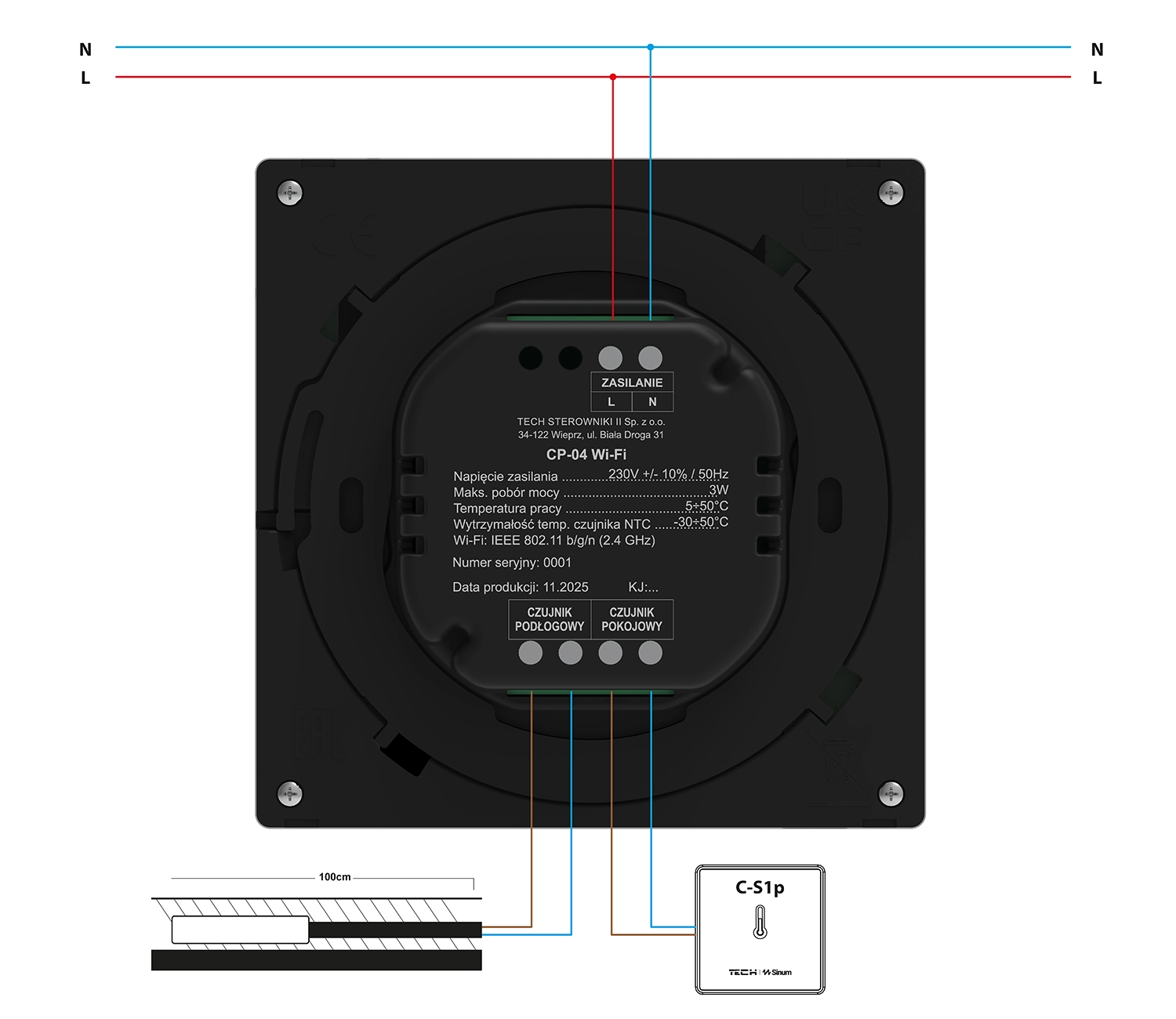

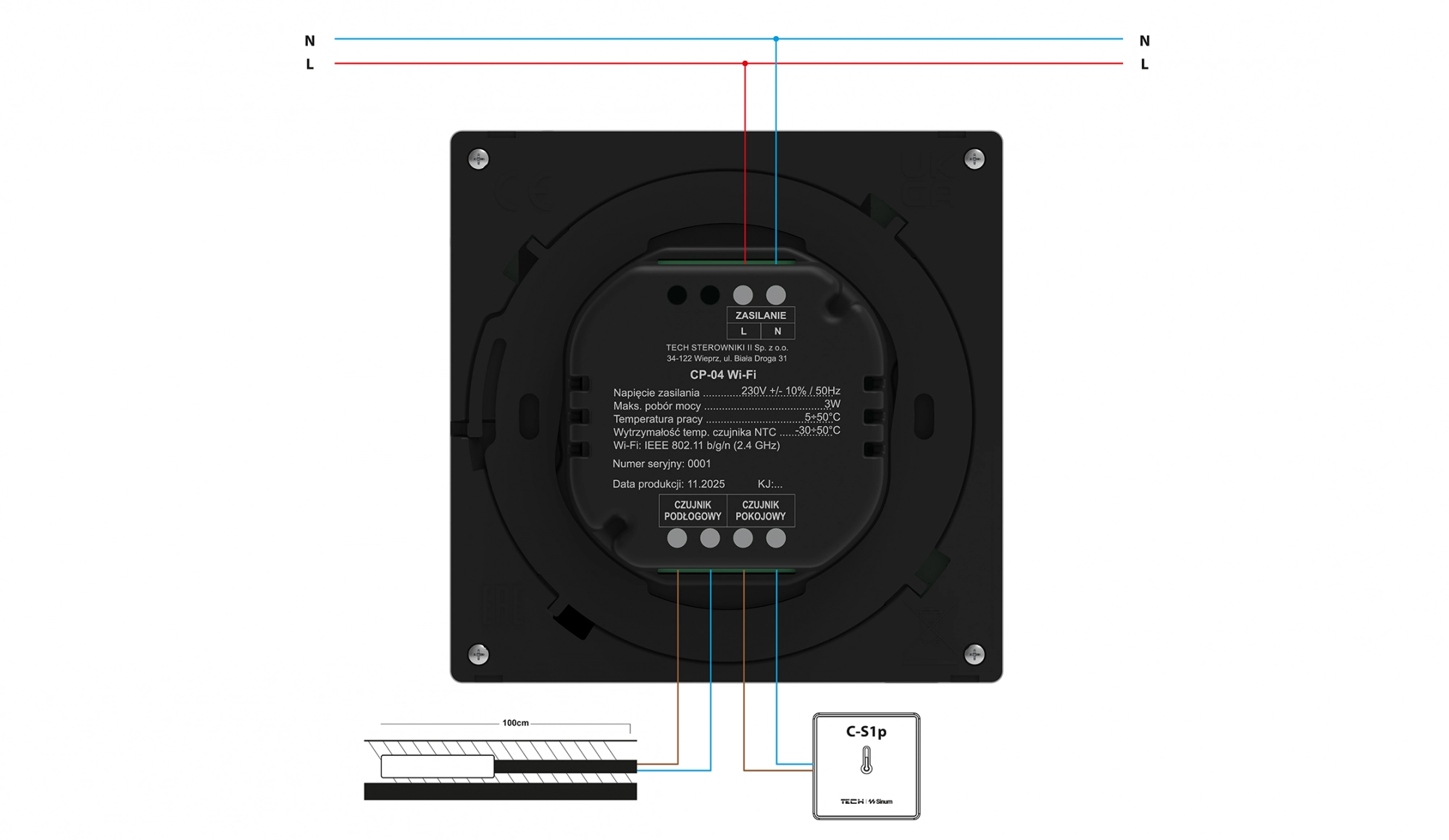

• Stable operation: The 2-wire wired communication ensures reliable and continuous data transmission to the control panel, guaranteeing efficient heating system performance.

* It is also possible to connect a wireless room temperature sensor (e.g., CL-mini, MC-01, C-8r) via the SINUM control unit.

Pełny opis czujnika C-S1p

Elegant Finish and Modern Design

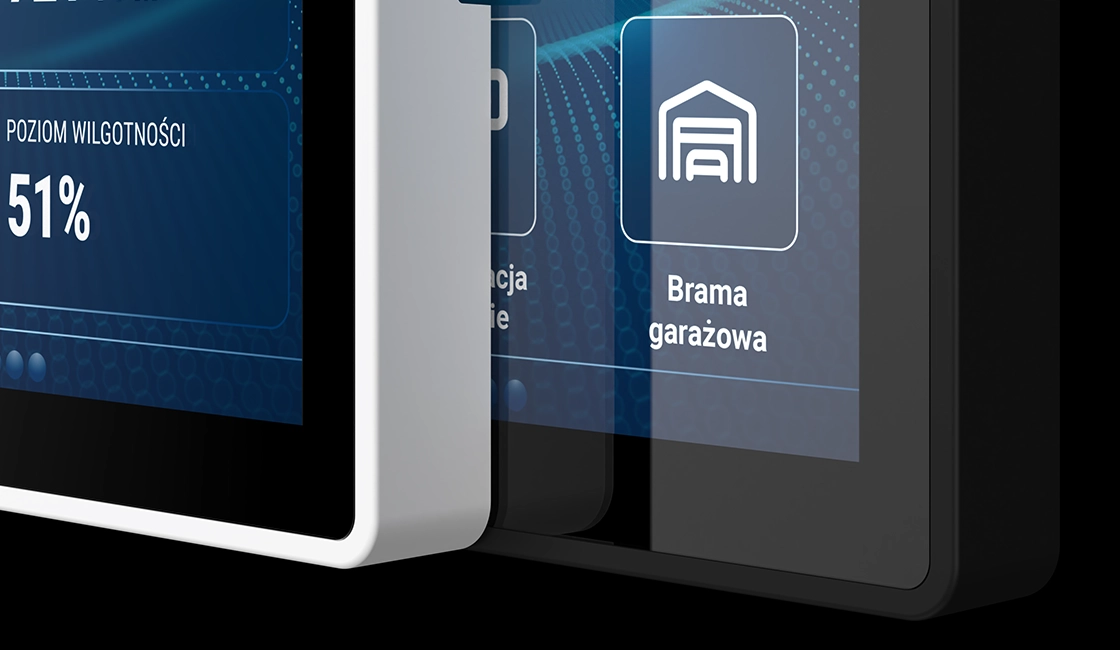

The front of the device features a glass, full-color touchscreen that gives it a modern and minimalist appearance. The smooth glass surface seamlessly blends with the solid housing, resulting in a refined and aesthetically pleasing finish.

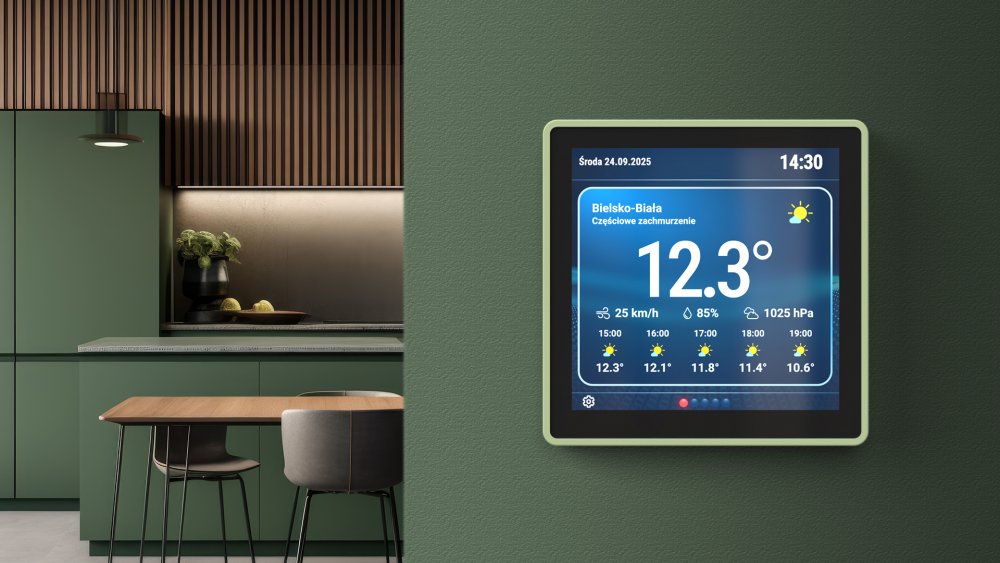

Rounded edges and carefully crafted details make the device look light and stylish. It fits perfectly into both residential interiors, as well as modern offices and commercial spaces.

The glass front emphasizes the contemporary character of the device, turning it into an elegant element of any interior.
