MC-01

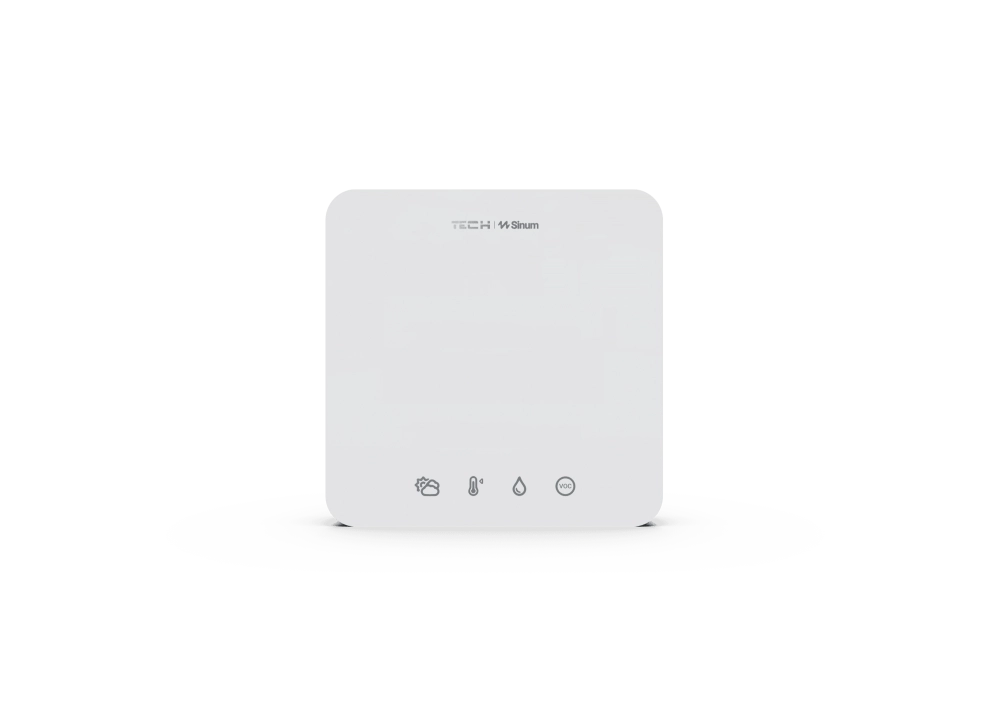

Wireless multisensor MC-01

Device Description

The MC-01 Multisensor is equipped with four sensors:

  • Atmospheric pressure
  • Current temperature
  • Current air humidity
  • Air quality and volatile compounds

Embrace Modernity

Embrace Modernity

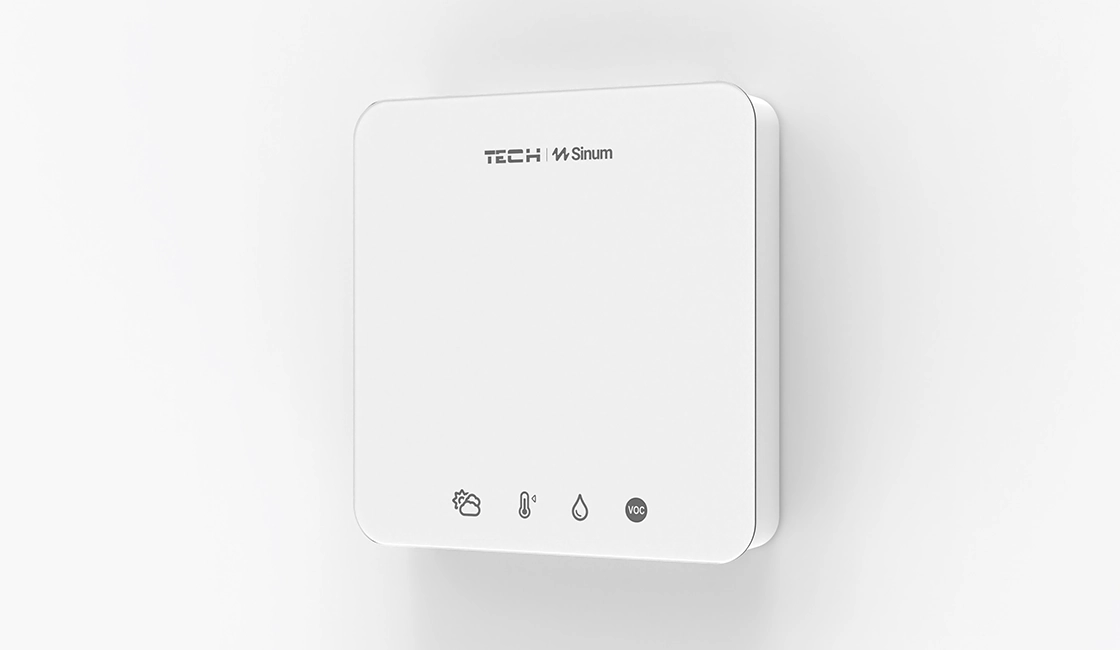

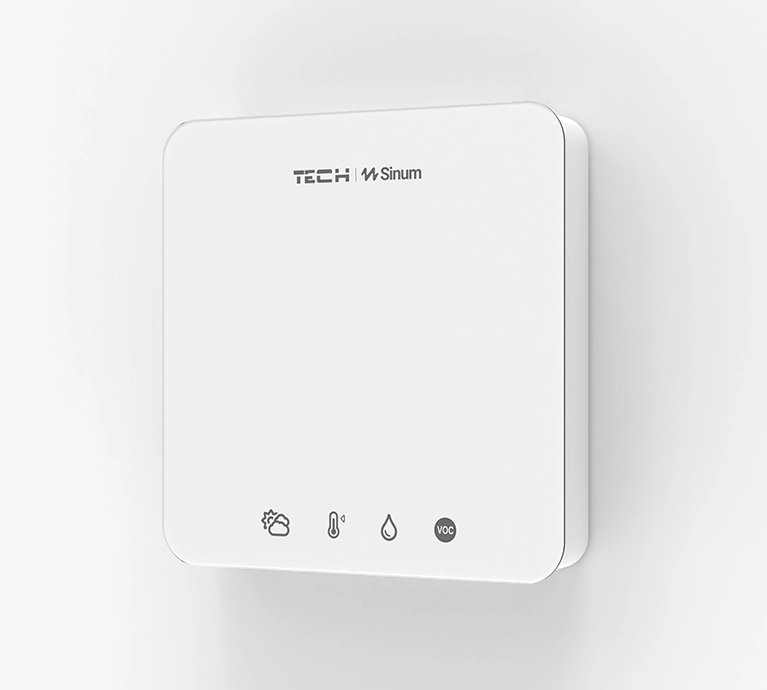

Our glass devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an elegant appearance but also resistance to scratches and damage. Thanks to simple installation and compatibility with standard electrical systems, setup is quick and effortless. Additionally, the device can be placed on the included stand, allowing flexible positioning, for example, on a desk or dresser.

Choose our glass devices to add a unique style and a touch of modernity to your interior.

Connection and Communication

Connection and Communication

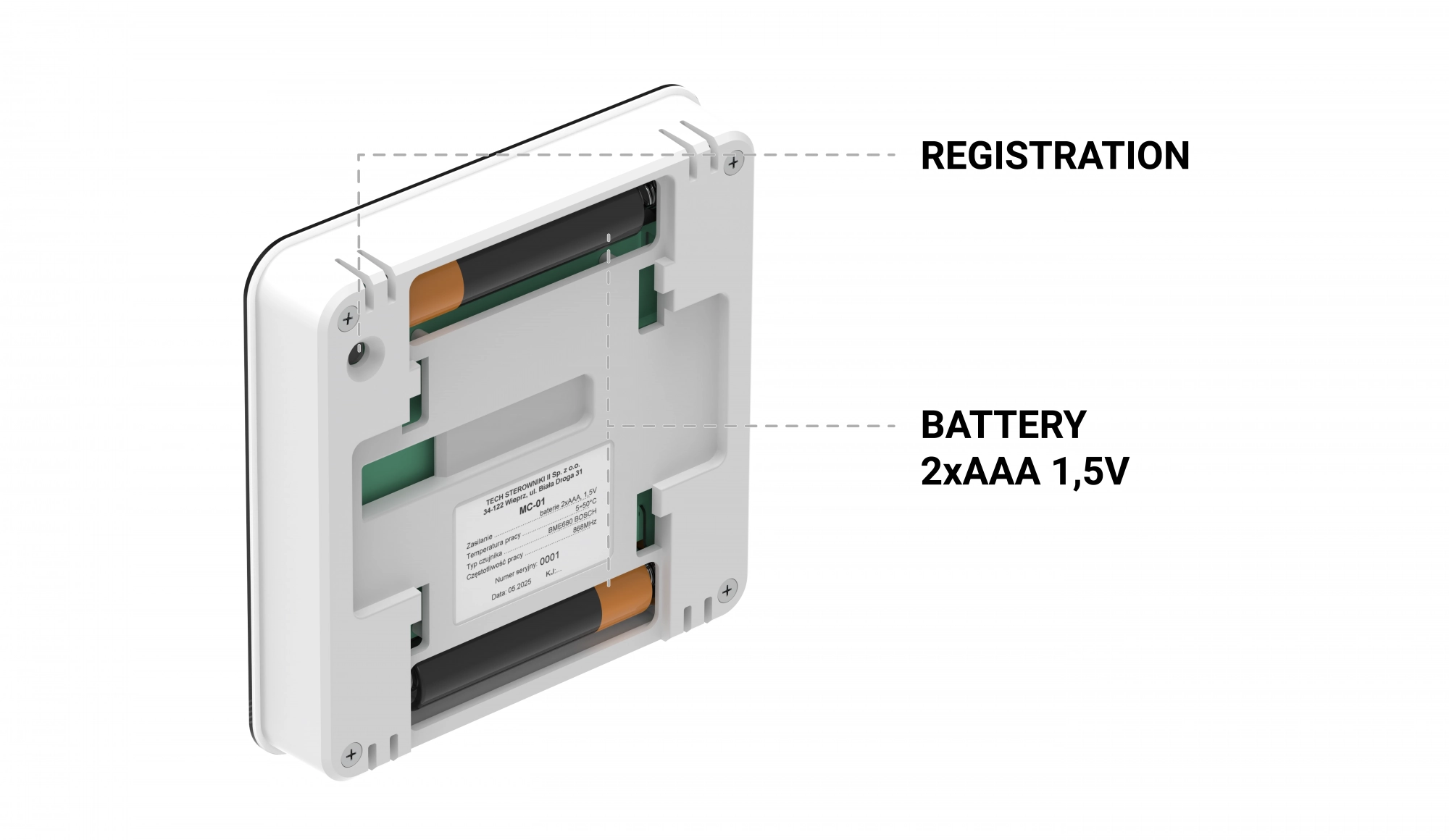

Registration – The button located on the back of the device is used to register the sensor in the system. Pressing it initiates the pairing process with the central unit. After successful registration, the appropriate message will appear on the device display.

Power Supply – 2×AAA 1.5V batteries

Installation

Installation

Our devices are designed for easy installation. They can be installed either flush-mounted in a 60mm diameter box, giving an elegant look and discreet integration into the wall, or used as freestanding units.

  • Mounting type: surface-mounted or freestanding
  • Required box: 60mm diameter

Thanks to the precisely designed structure, installation is quick and easy, and the devices blend perfectly with any interior. The simple installation process ensures you can enjoy modern design and functionality without unnecessary complications.

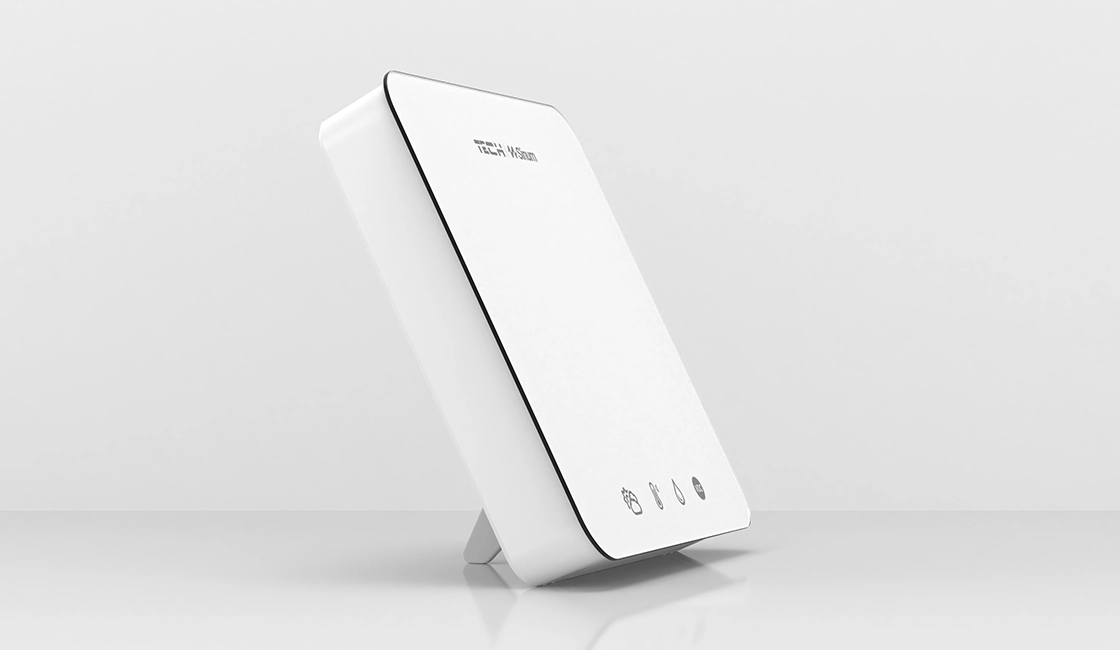

Additionally, the set includes a stand, allowing the device to be placed anywhere, increasing flexibility of use.

Device Dimensions

Device Dimensions

The MC-01 multisensor has been designed to be compact. Thanks to its carefully selected dimensions, the device fits perfectly into standard mounting boxes, ensuring an elegant finish and seamless integration.

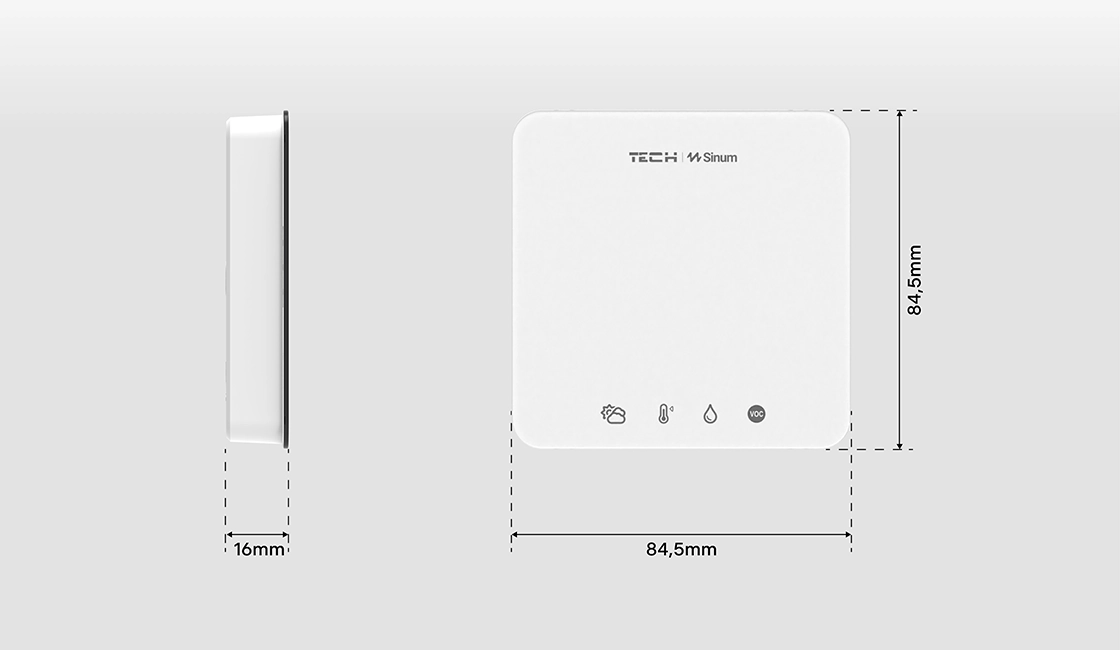

  • Dimensions: 84.5×84.5×16mm
    Mounting type: flush-mounted in a 60mm diameter box

Remote Control

Remote Control

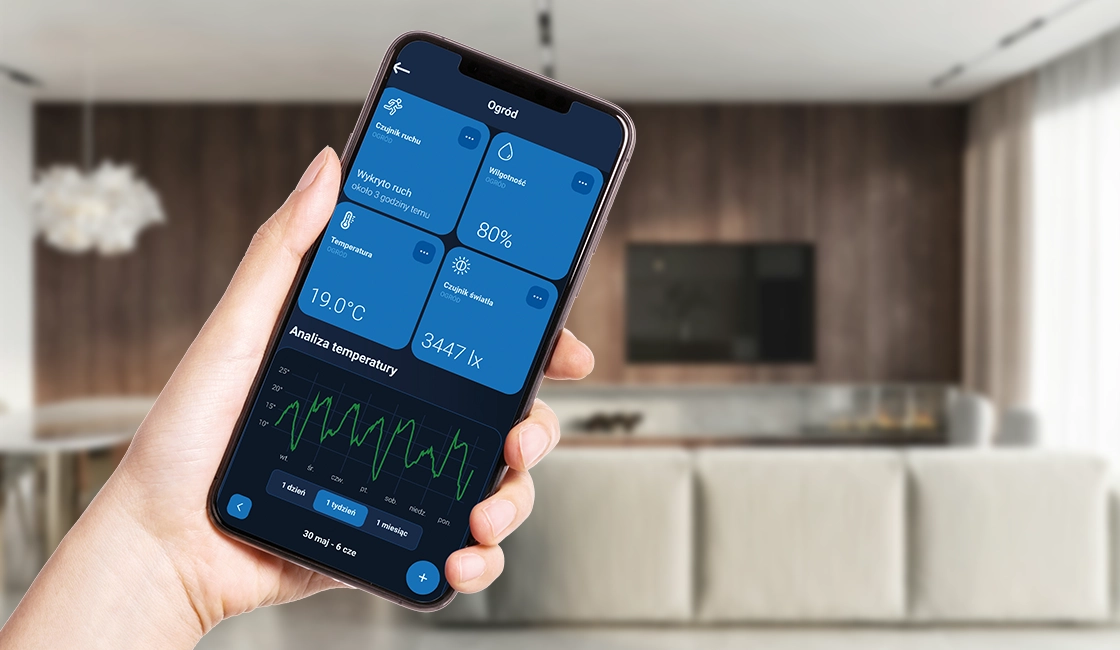

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other smart home devices, offering convenience and energy savings. Its intuitive interface allows you to easily create schedules, scenarios, and monitor energy consumption. Additionally, the Sinum app delivers real-time notifications and alerts, ensuring complete safety and comfort while using your system.

Product parameters

Specification Value
Communication Wireless 868MHz
Height 84 mm
Width 84 mm
Depth 16 mm
Power Supply 2xAAA 1.5V DC
Operating Temperature 5°C - 50°C
