EU-C-8r

WIRELESS ROOM TEMPERATURE SENSOR

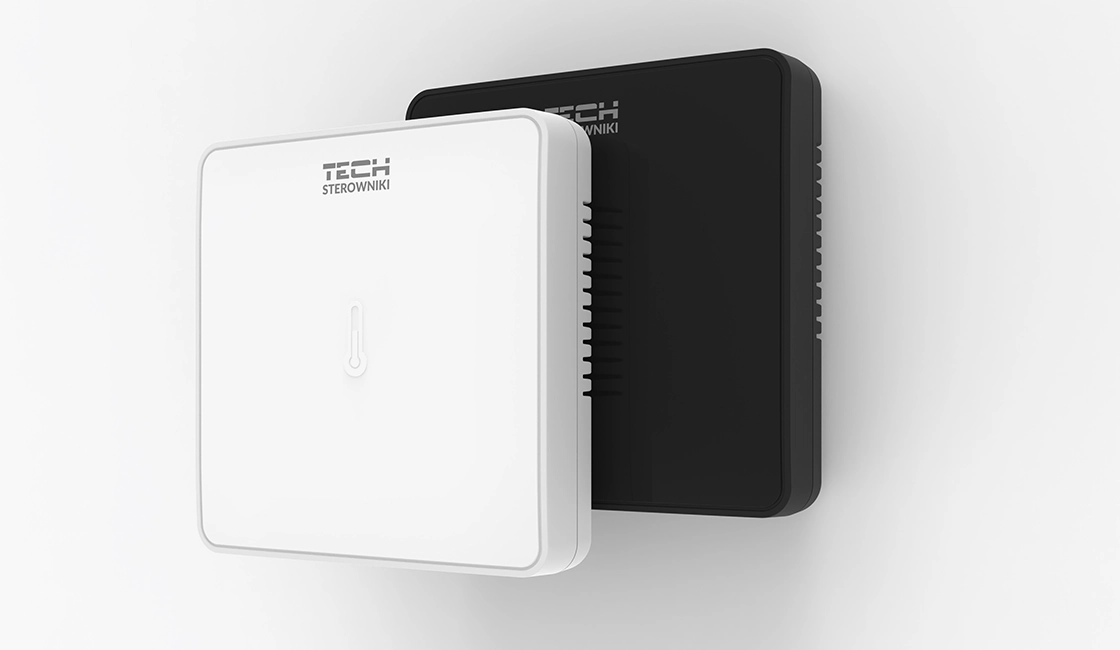

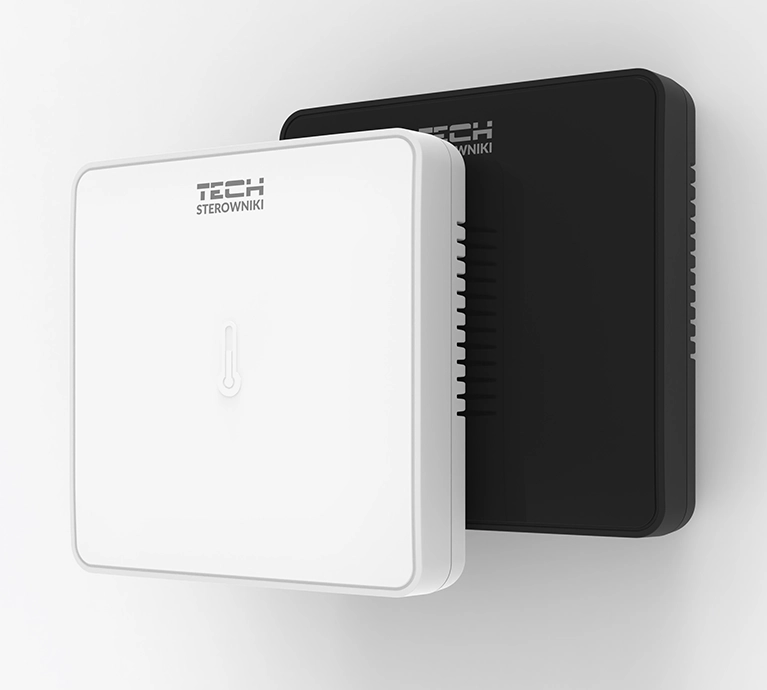

The C-8r wireless room temperature sensor is a compact and stylish device designed to measure the temperature in rooms equipped with underfloor or radiator heating. The sensor is a dedicated solution for all wireless heating control systems as well as for the Sinum system.

Choose Modernity

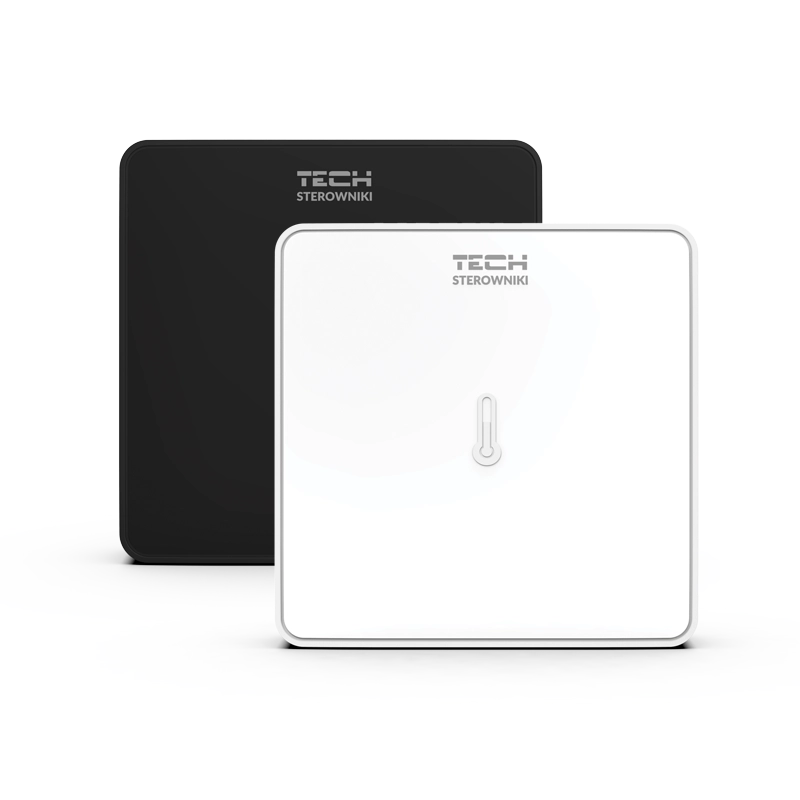

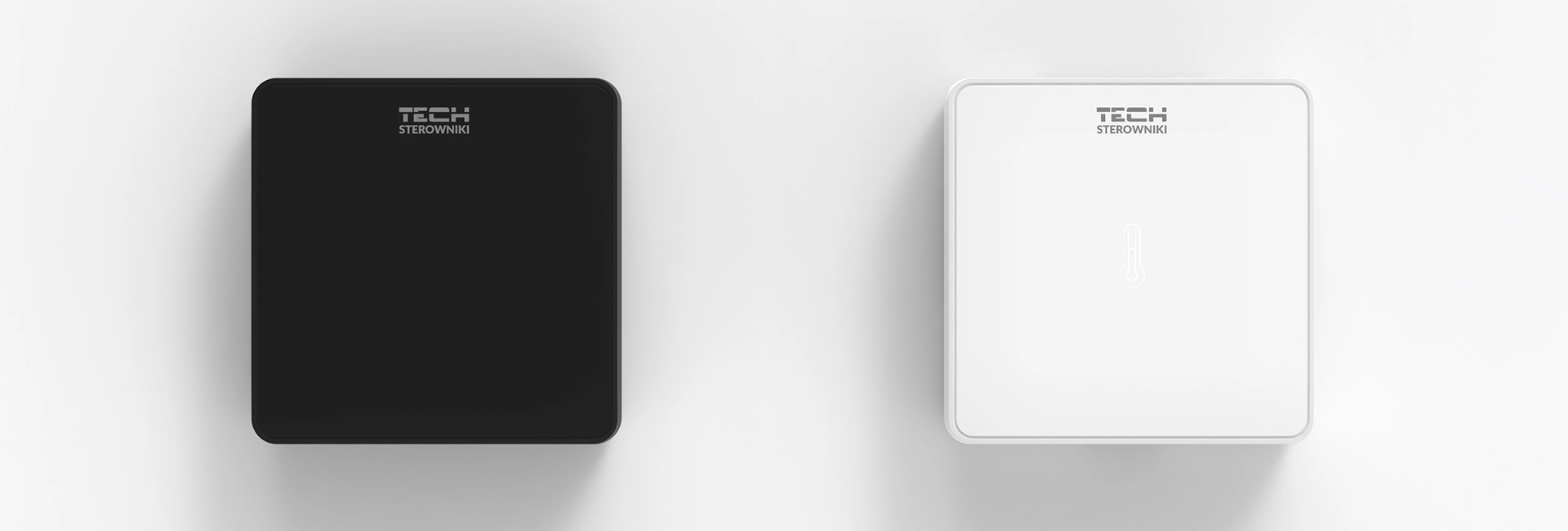

Select elegant devices that bring a contemporary touch to any interior. Choose from the available colors:

White: Perfect for bright and minimalist arrangements, adding elegance and freshness.
Black: Ideal for modern and expressive spaces, bringing an elegant and luxurious accent.

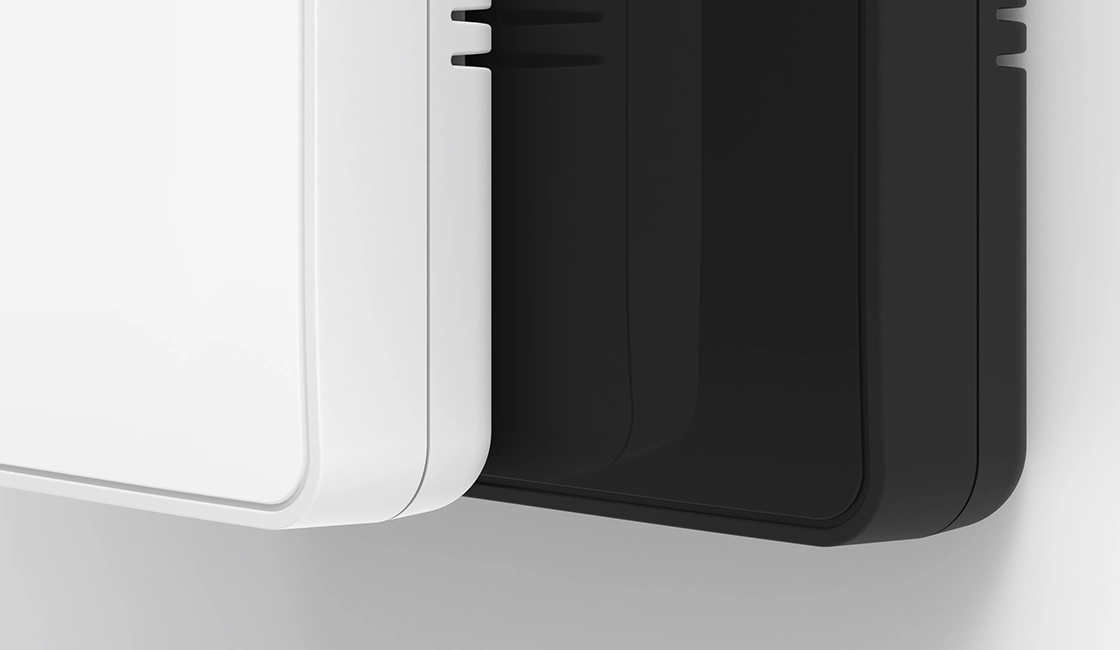

Our devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an aesthetic appearance but also resistance to scratches and damage. Thanks to the simple installation process and compatibility with standard electrical systems, setup is quick and hassle-free.

Surface Mounting

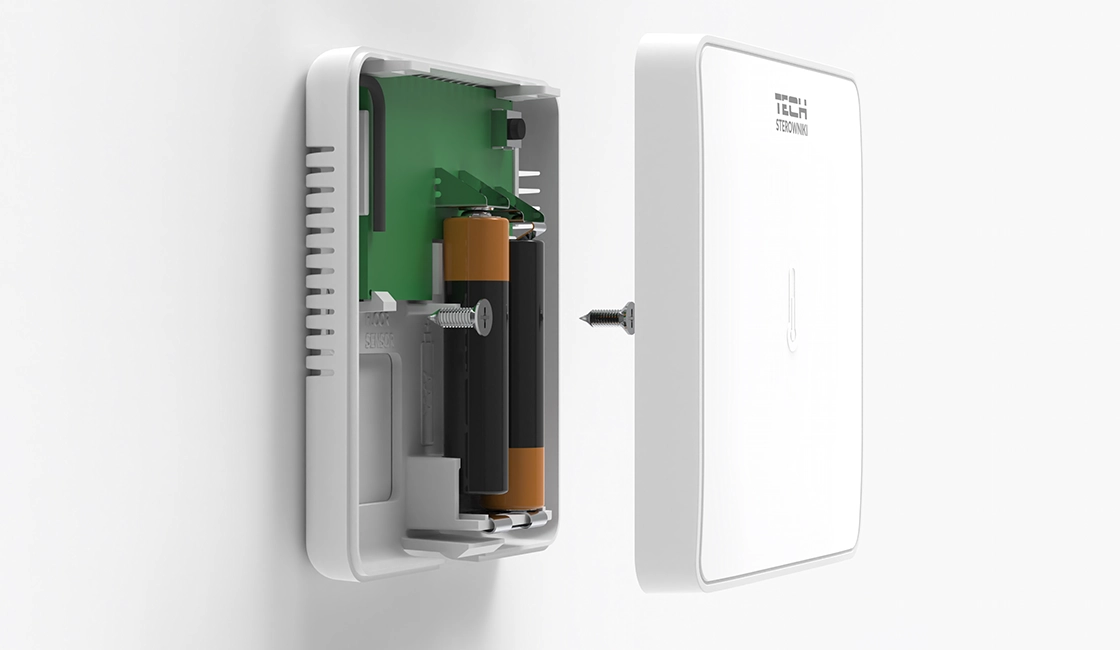

The C-8r sensor has been designed for convenient and secure surface installation. Its specially designed housing allows for mounting either with wall plugs or directly onto an electrical box.

Connection and Power Supply

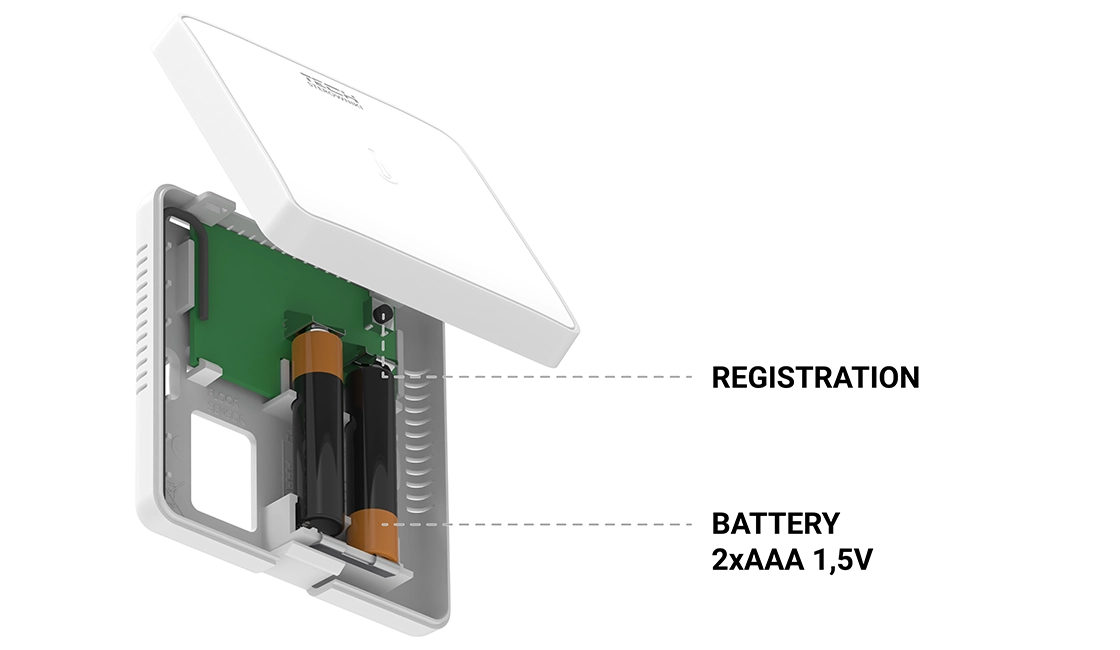

Registration – The button located inside the device is used to register the sensor in the system. Pressing it initiates the pairing process with the control unit. Once registration is successfully completed, an appropriate message will appear on the sensor’s screen.

Power Supply – 2× AAA 1.5V batteries

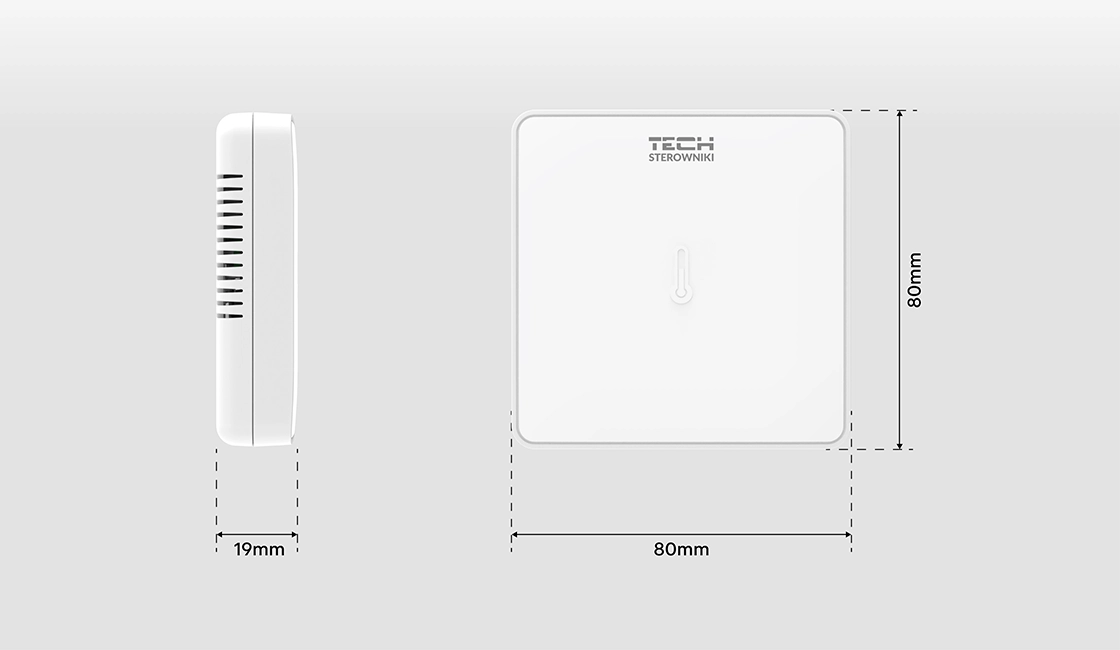

Device Dimensions

The C-8r sensor has been designed in a compact form to ensure an elegant appearance and perfect integration with any interior. Its slim housing, only 19mm thick, gives it a modern and discreet look when mounted on the wall.

Dimension Details

Dimensions: 80×80×19mm
Mounting type: Surface-mounted

Remote Control

The devices can be integrated with systems that provide remote access via the eModule app or the new Sinum app. This allows users to have full control over the system from anywhere, using a smartphone or tablet.

The remote control function becomes available after expanding the system with a main controller, which enables device communication with the app and offers even greater convenience in managing the building’s system.
