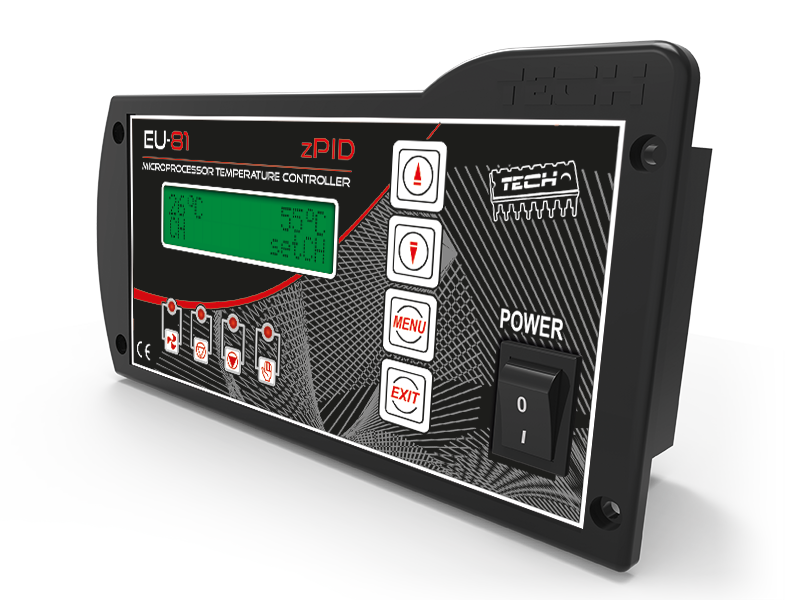

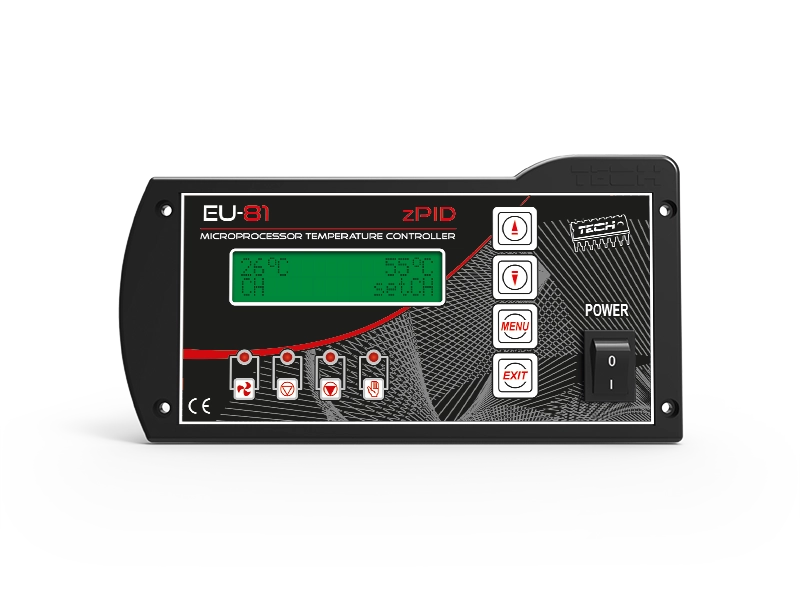

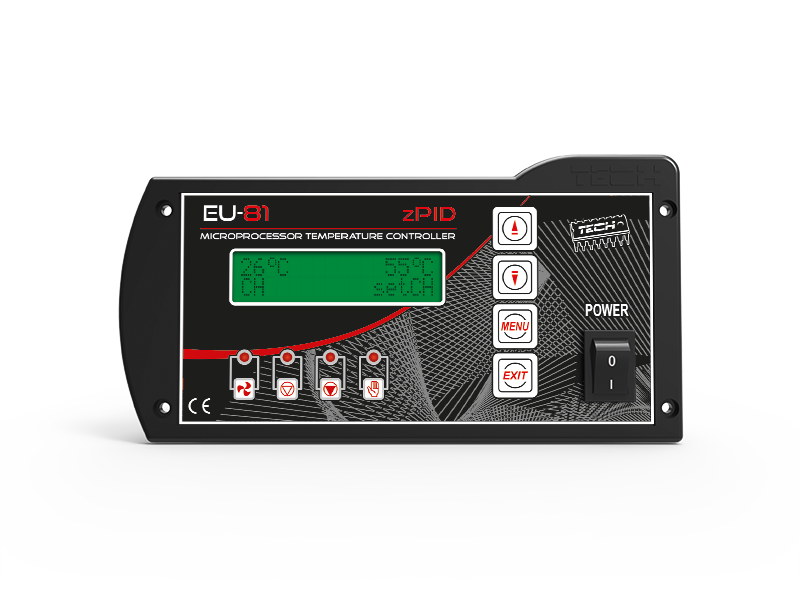

Eu-81 zPID

Functions performed by the controller: Automatic control of the exhaust fan Control of the CH and DHW pump
  • Product description
  • Product parameters


Controllers for Boilers for Wood Gasification



Functions performed by the controller:

  • Automatic control of the exhaust fan
  • CH pump control
  • DHW pump control
  • zPID software



Controller’s equipment:

  • LCD display
  • CH temperature sensor
  • DHW temperature sensor
  • Flue gas outlet temperature sensor
  • Thermal protection
  • A panel casing for the boiler’s installation or in a metal casing
Specification Unit
Power supply V 230V/50Hz +/-10%
Maximum power consumption W 5
Ambient temperature °C 5÷50
CH pump max. output load A
Fan output load A 0,6
Measurement accuracy °C
Temperature adjustment range °C 45÷80
Sensor thermal resistance °C -25÷90
Fuse A 2 x 3,15
Temperature measurement range °C 0÷90
Pumps max. output load A 0,5
Flue gas sensor thermal resistance °C 30÷480
