T-P2.1z

Wired Two-State Room Thermostat

Device Description

A reliable and easy-to-use 230 V room thermostat with an LCD display. Equipped with a built-in air temperature sensor, it provides precise room temperature control for enhanced comfort. The desired temperature can be conveniently adjusted using the rotary knob within a range of 5°C to 30°C.

230 V Two-State Room Thermostat

Features:

Heating / cooling mode selector
LCD display without backlight
Temperature adjustment: 5–30°C
Adjustable hysteresis: 0.5°C or 1°C
230 V power supply
Surface-mounted installation

Ideal for use in homes, offices, and other residential or commercial environments.

Installation

Our devices are designed for simple and convenient installation. For a clean appearance and a seamless fit against the wall, installation in a Ø 60 mm wall box is recommended.

Recommended wall box: Ø 60 mm

Thanks to its precisely engineered design, installation is quick and straightforward, allowing the device to blend perfectly into any interior. The simple installation process ensures you can enjoy modern design and reliable functionality without unnecessary complexity.

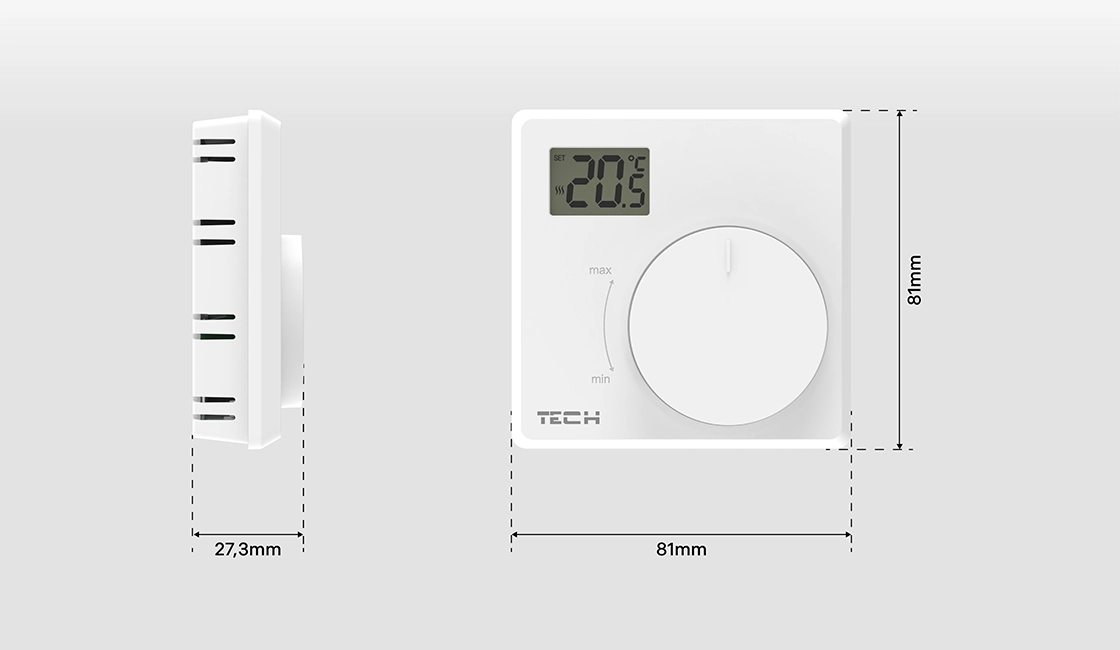

Device Dimensions

The T-P2.1z thermostat features a compact design that provides a clean appearance and blends seamlessly into any interior. Its slim housing gives the device a modern and discreet look when mounted on the wall.

Dimensions

Dimensions: 81 × 81 × 27.3 mm
Mounting type: wall-mounted, compatible with Ø 60 mm wall boxes (recommended for easier installation)

Product parameters

Specification	T-P2.1z
Power supply	230 V AC
Power consumption	< 1 W
Operating temperature	5–50 °C
Permissible relative ambient humidity	< 80% RH
Output type	230 V switched output
Device type	Two-state
Built-in sensors	Air temperature sensor
Floor temperature sensor support	No
Display	LCD without backlight
Controls	Rotary knob (no buttons)
Rated 230 V output load	AC 1 A (AC1)* AC1 load category: Single-phase resistive or slightly inductive AC load.
Dimensions (W × H × D)	81 × 81 × 27.3 mm
