T-P2.1bz

Wired Two-Position Room Thermostat

Device Description

A reliable and easy-to-use temperature controller with an LCD display, powered by 230 V and equipped with a potential-free contact. Featuring a built-in air temperature sensor, it ensures precise temperature control and optimal thermal comfort in the room. The desired temperature can be conveniently adjusted using a rotary dial within a range of 5°C to 30°C.

230 V Two-Position Temperature Controller

Features:

Operating Mode Switch: Heating / Cooling
Display: LCD without backlight
Temperature Adjustment Range: 5–30°C
Adjustable Hysteresis: 0.5°C or 1°C
Power Supply: 230 V
Mounting Type: Surface-mounted

Ideal for use in residential buildings, offices, and other indoor spaces.

Installation

Our devices have been designed with ease of installation in mind. For an elegant appearance and a discreet fit against the wall, installation using a 60mm diameter electrical installation box is recommended.

Recommended Installation Box: 60mm diameter

Thanks to their precisely engineered design, installation is quick and easy, allowing our devices to blend seamlessly into any interior. The straightforward installation process ensures that you can enjoy modern design and functionality without unnecessary complications.

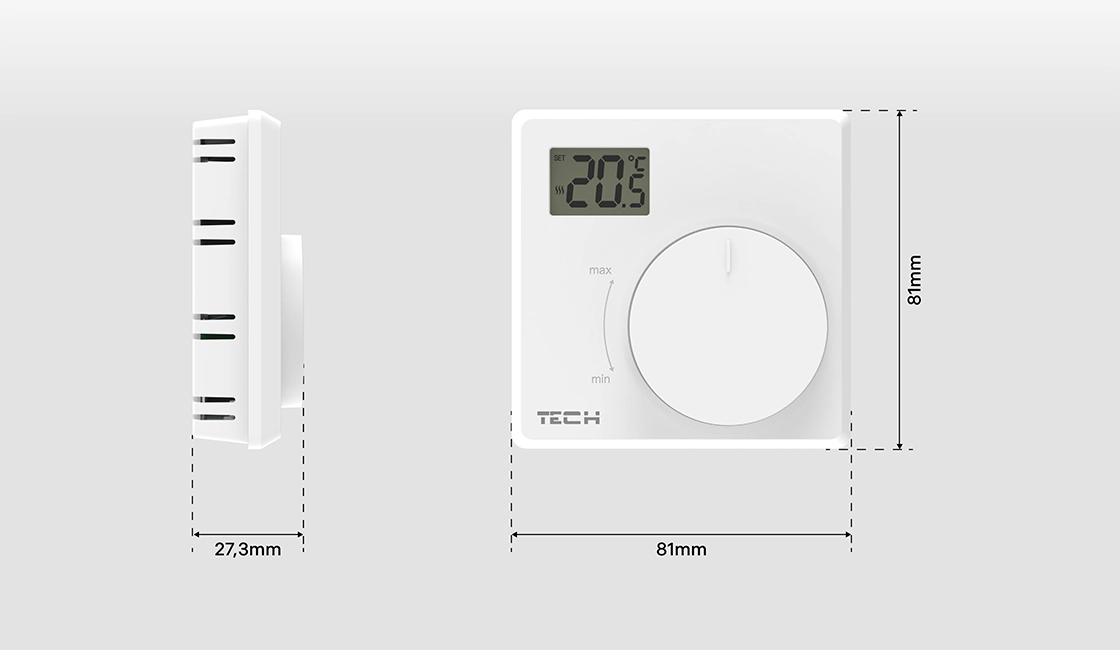

Device Dimensions

The T-P2.1z temperature controller features a compact design, ensuring an elegant appearance and seamless integration into any interior. Thanks to its slim housing, the device offers a modern and discreet look when mounted on the wall.

Dimension Details

Dimensions: 81×81×27.3mm
Mounting Type: Wall-mounted, compatible with 60 mm diameter electrical installation boxes (recommended for easier installation).

Product parameters

Specification	T-P2.1bz
Power Supply	230V AC
Power Consumption	< 1W
Operating Temperature	5 ÷ 50°C
Permissible Ambient Relative Humidity	< 80% RH
Output Type	Potential-free contact
Device Type	Two-position (ON/OFF)
Built-in Sensors	Air temperature sensor
External Floor Temperature Sensor Connection	No
Display	LCD without backlight
Controls	Rotary dial (no buttons)
Rated Output Load	AC 1A (AC1) * * AC-1 utilization category: single-phase, resistive or slightly inductive AC loads.
Dimensions (W × H × D)	81 x 81 x 27,3
