T-P1.1z

Device Description

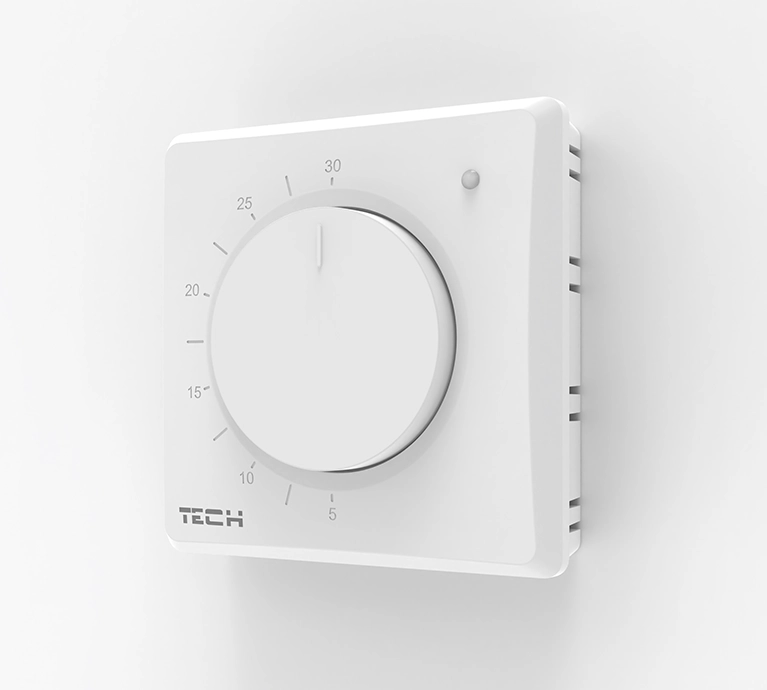

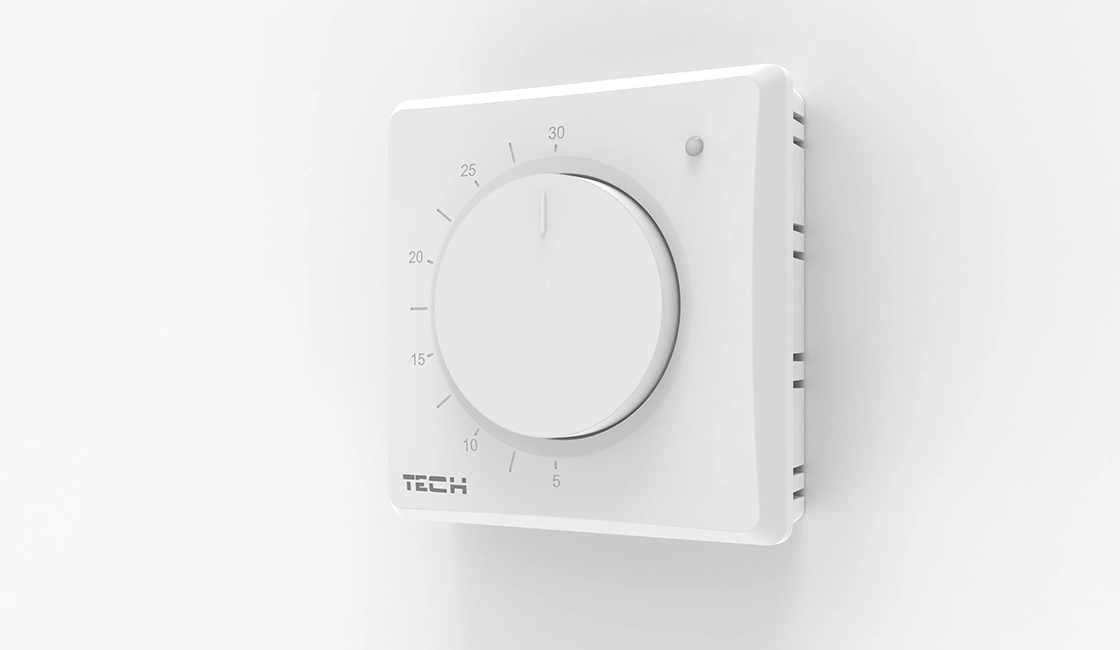

A reliable and easy-to-use temperature controller powered by 230V. Equipped with an air temperature sensor, it ensures precise maintenance of thermal comfort in the room. Temperature adjustment is made using a convenient dial, with a range from 5°C to 30°C.

230V Two-State Temperature Controller

Functions:

• Mode switch: heating / cooling
• Temperature adjustment range: 5–30°C

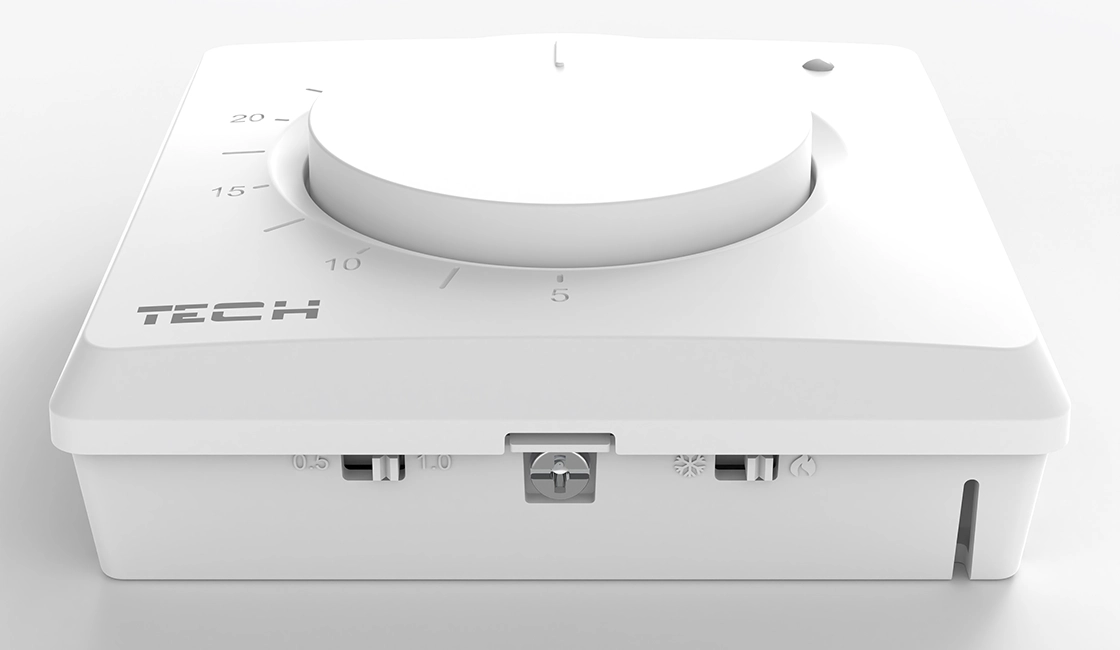

• Adjustable hysteresis: 0.5°C or 1°C
• Power supply: 230V
• Mounting type: surface-mounted

Perfect for use in apartments, offices, and other utility rooms.



Installation

Our devices are designed for ease of installation. For an elegant appearance and discreet wall integration, it is recommended to install the unit in a 60 mm mounting box.

• Recommended box: 60 mm diameter

Thanks to its precisely fitted construction, installation is quick and simple, and the device blends seamlessly into any interior design. The straightforward installation process ensures you can enjoy modern design and functionality without unnecessary complications.

Device Dimensions

The T-P1.1z temperature controller is designed in a compact and elegant form, ensuring a clean finish and perfect integration with any interior. Its slim housing gives it a modern and discreet appearance on the wall.

Detailed dimensions:

• Dimensions: 81×81×27,3mm
• Mounting type: Wall-mounted, compatible with 60mm junction boxes (recommended for easier installation)
