T-9.2
Wireless two-state room thermostat
The wireless room thermostat is designed to control a heating or cooling device according to pre-programmed time and temperature settings. Its task is to maintain the desired room temperature (economy or comfort mode) by sending a signal to the heating/cooling unit indicating whether the room should be heated or cooled to reach the required temperature.
The thermostat features:
• Weekly scheduling
• 9 control programs
• Heating/cooling mode
• Manual mode

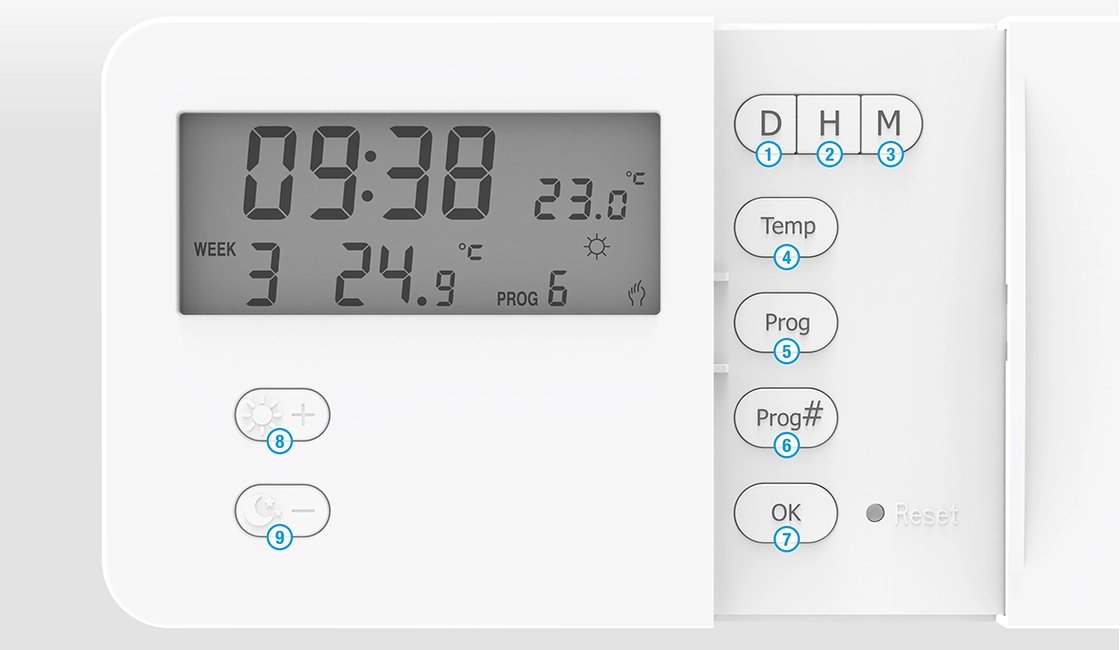

Intuitive buttons
Intuitive buttons
- Change the current day
- Change the current hour
- Change the current minute
- Adjust the set temperature for the currently selected mode
- Start schedule programming, select the day to be programmed
- Select program
- Confirm data
- Increase temperature
- Decrease temperature

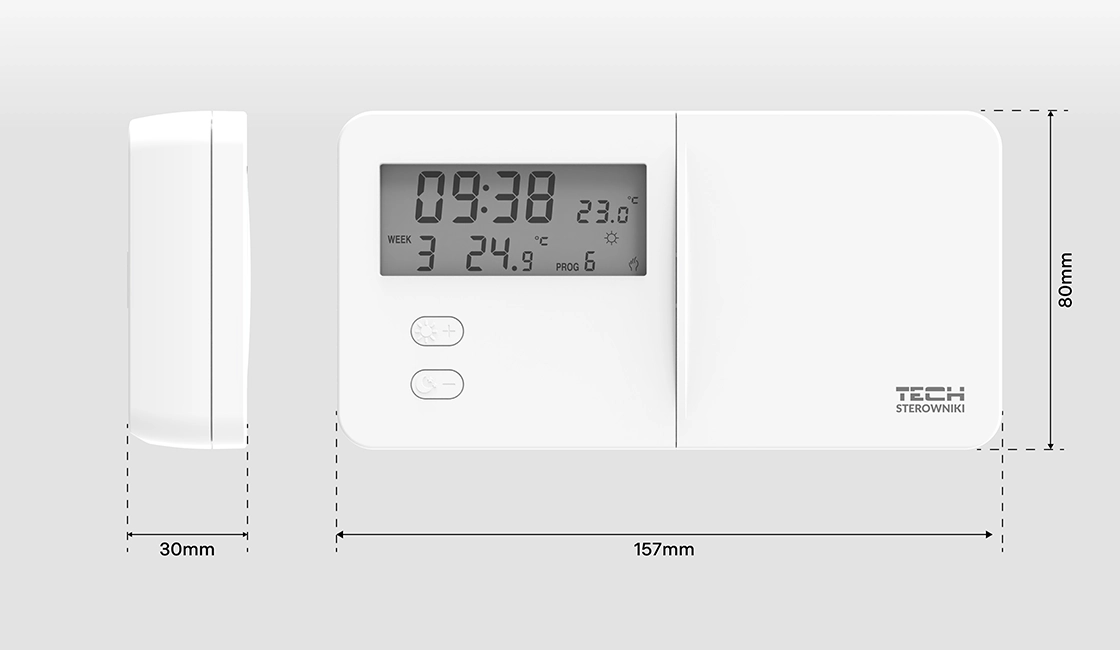

Device dimensions
Device dimensions
The T-9.2 thermostat has been designed in a compact form.
- Dimensions: 157×80×30mm
Made in Poland
Devices designed and manufactured in Poland
Made in Poland
Devices designed and manufactured in Poland
Product parameters
| Model | T-9.2 |
| Power supply | 2× AAA 1.5V DC (thermostat), 230V AC 50Hz (module) |
| Power consumption | < 1W |
| Operating temperature | 5 ÷ 50°C |
| Permissible ambient relative humidity | < 80% RH |
| Communication | wireless, two-state |
| Relay | volt-free relay in the wireless module |
| Built-in sensors | air temperature |
| Floor temperature sensor support | NO |
| Display | LCD with temporary backlight |
| Buttons | mechanical |
| Max relay load | 0.5A |
| Dimensions (W × H × D) [mm] | 157 × 80 × 30 |
