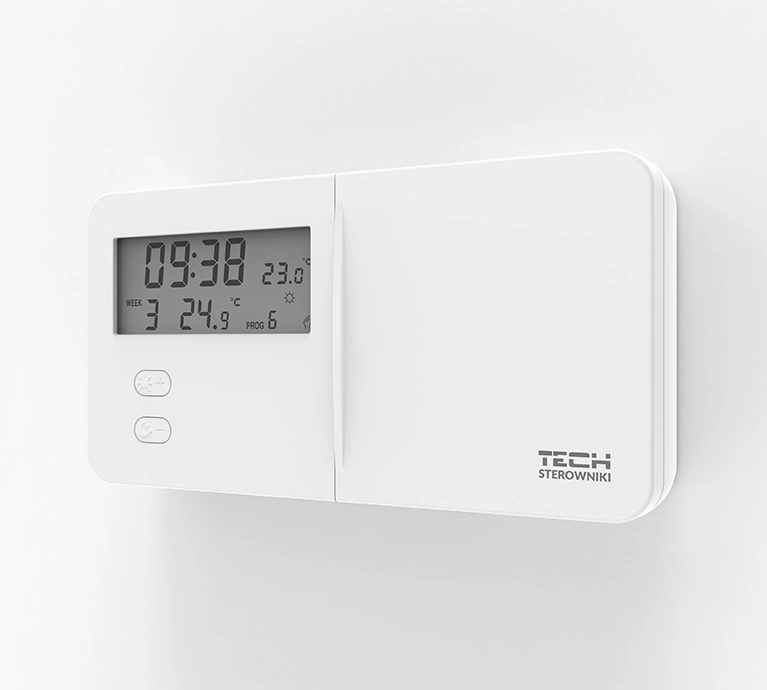

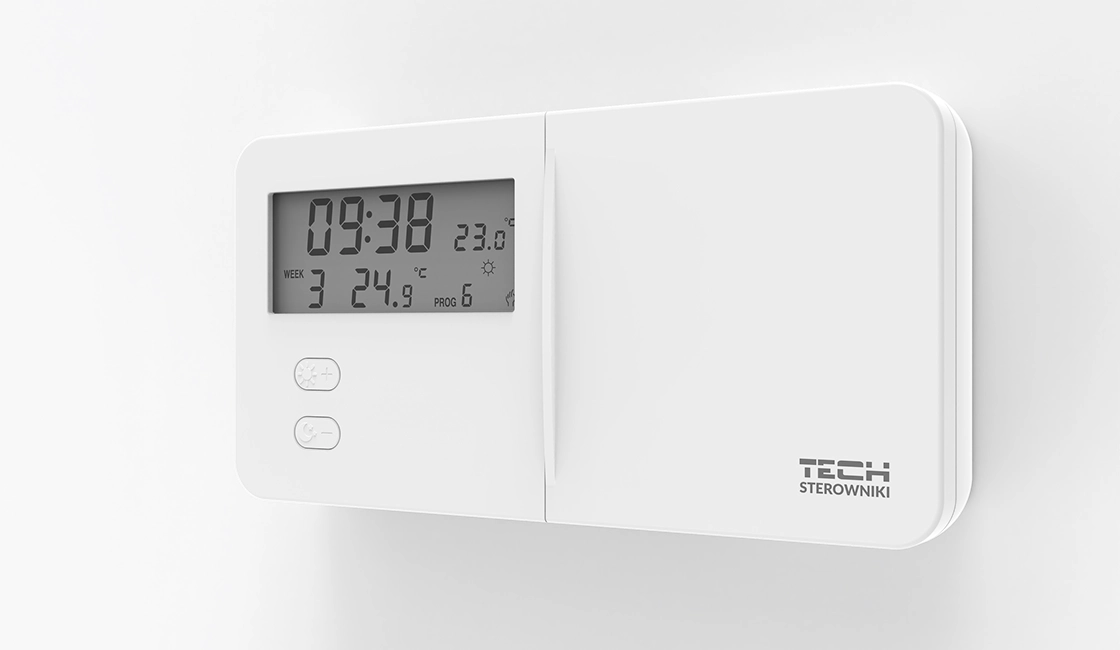

T-9.1

The wired room thermostat is designed to control a heating or cooling device according to pre-programmed time and temperature settings. The thermostat’s task is to maintain the desired room temperature (economical or comfort mode) by sending a signal to the heating/cooling unit indicating whether the room should be heated or cooled to reach the required temperature.

The thermostat features:
• Weekly scheduling
• 9 control programs
• Heating/cooling mode
• Manual mode

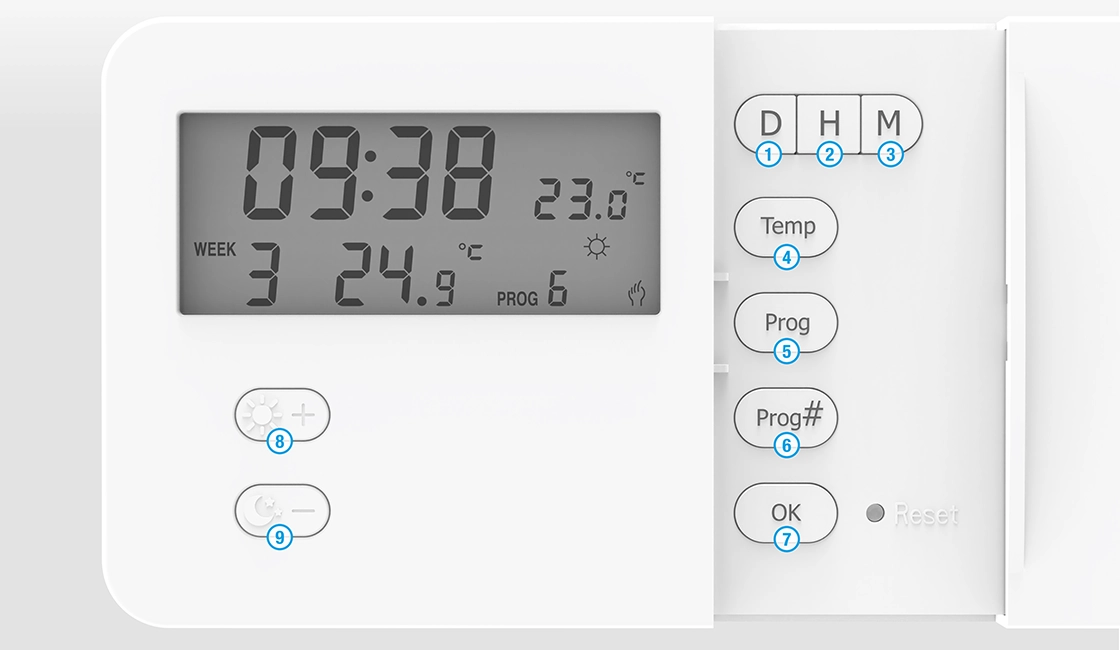

Intuitive buttons

1. Changing the current day
2. Changing the current hour
3. Changing the current minute
4. Adjusting the set temperature for the currently selected mode
5. Starting schedule programming, selecting the day to be programmed
6. Program selection
7. Confirming data
8. Increasing the temperature
9. Decreasing the temperature

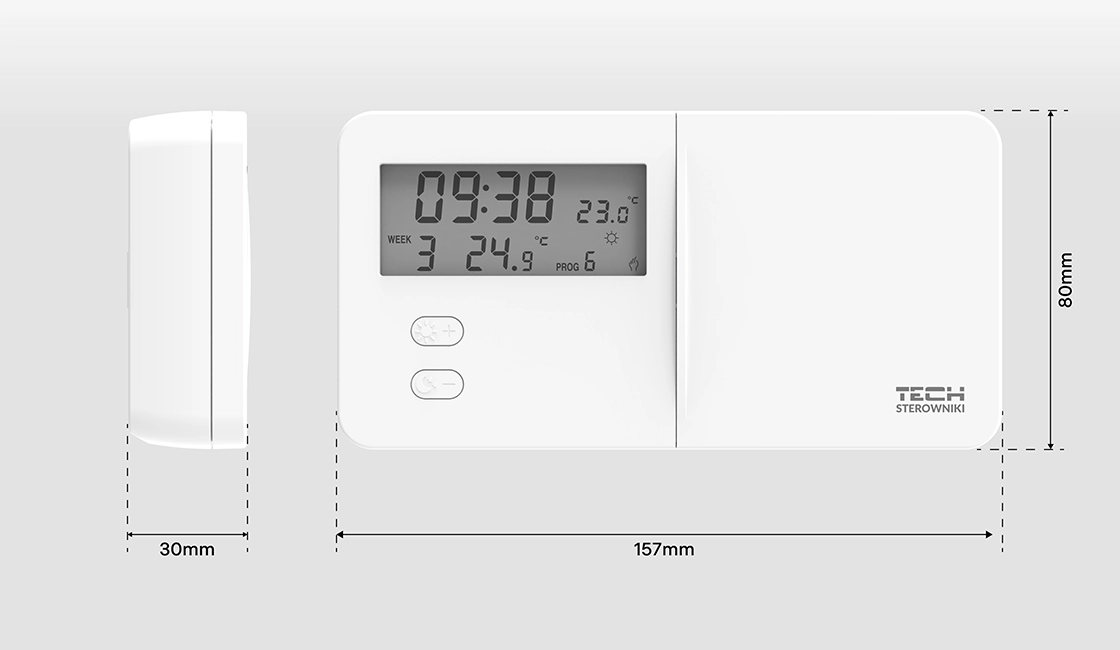

Device dimensions

The T-9.1 thermostat has been designed in a compact form.

• Dimensions: 157×80×30mm
