RI-1 Plus
Device Description
The RI-1 Plus room controller is designed to operate with the I-2, I-2 Plus, I-3, and I-3 Plus controllers.
The controller is intended to maintain the set room or floor temperature by sending a signal to the main controller indicating the need to heat the room or floor to the required temperature.
RI-1 Plus Controller Functions:
- Maintaining the set room/floor temperature
- Manual mode
- Day/Night program
- Constant program
Equipment:
- Glass front panel
- Built-in air temperature and humidity sensor
- Option to connect a floor temperature sensor
- Sample RS cable included, terminated with a connector on one side

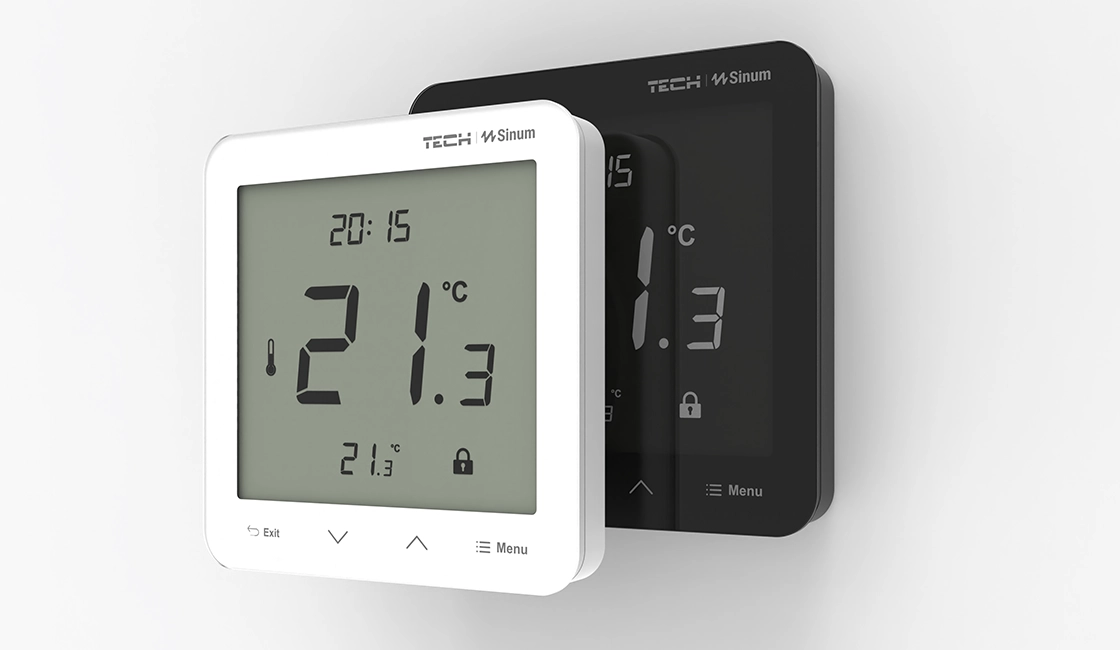

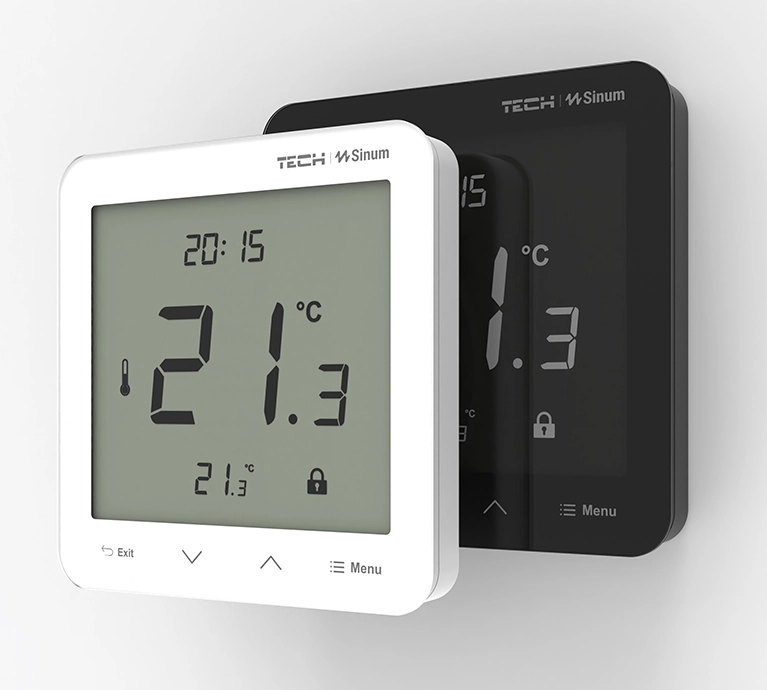

Choose Modern Design
Choose Modern Design
Opt for elegant glass devices that bring a modern touch to any interior. Choose from the available colors:
- White: ideal for bright and minimalist interiors, adding elegance and freshness.
- Black: perfect for modern and expressive spaces, introducing a refined and luxurious accent.
Our glass devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an aesthetic appearance but also resistance to scratches and damage. Thanks to simple installation and compatibility with standard electrical systems, setup is quick and hassle-free.
Choose our glass devices to add distinctive style and modern elegance to your interior.

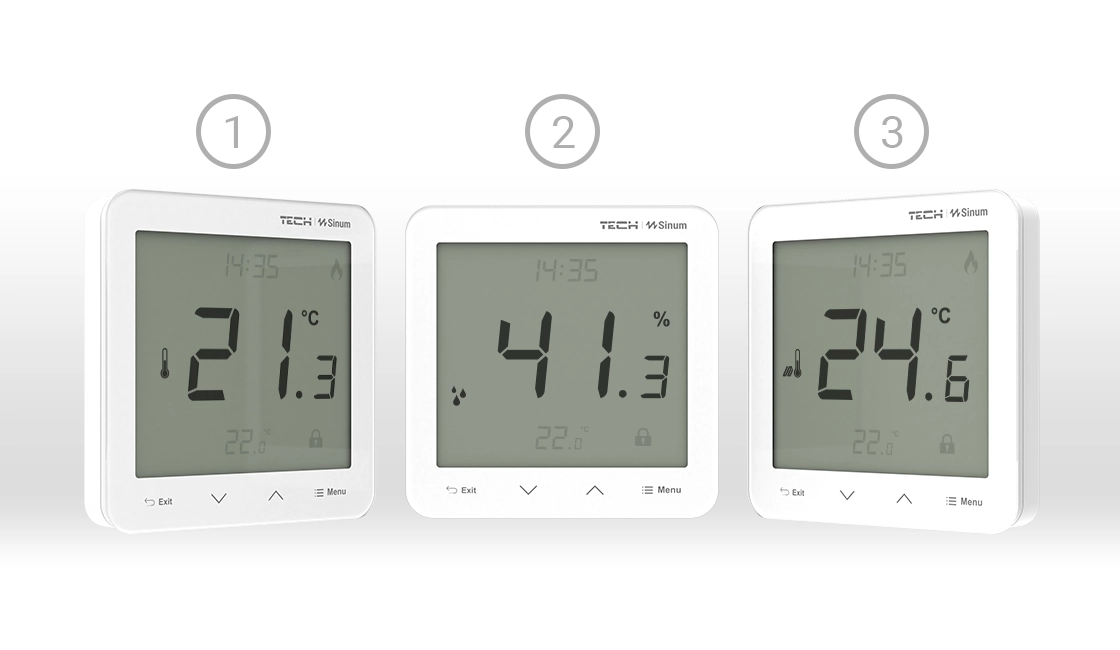

Clear and Easy-to-Read Display
Clear and Easy-to-Read Display
The large screen ensures comfortable readability, while the backlight option allows convenient use in all lighting conditions.
Key information displayed on the screen:
- Air temperature – current measurement for full control of indoor comfort.
- Air humidity – monitoring of humidity levels.
- Floor temperature – precise indication of underfloor heating temperature.

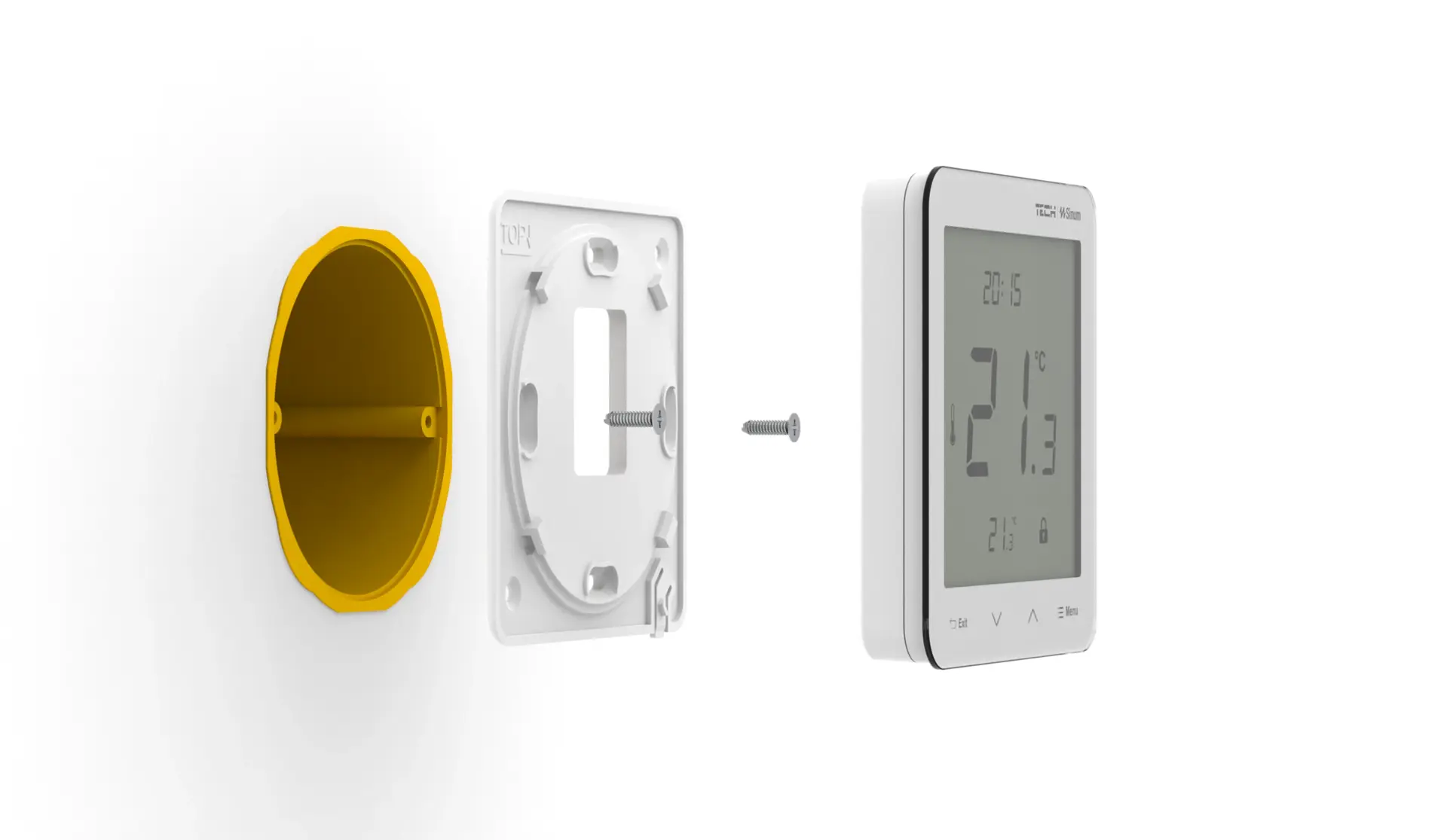

Wall Mounting
Wall Mounting
The controller is designed for wall installation and should be installed by a qualified professional.
- Mounting type: surface-mounted or flush-mounted
- Recommended wall box: diameter 60 mm
Thanks to its precisely engineered design, the device can be installed either directly on the wall for an aesthetic surface-mounted finish or in a flush-mounted wall box. Installation in both variants is quick and simple, and the device blends perfectly with any interior design. The well-designed mounting process ensures modern design and functionality without unnecessary complications.

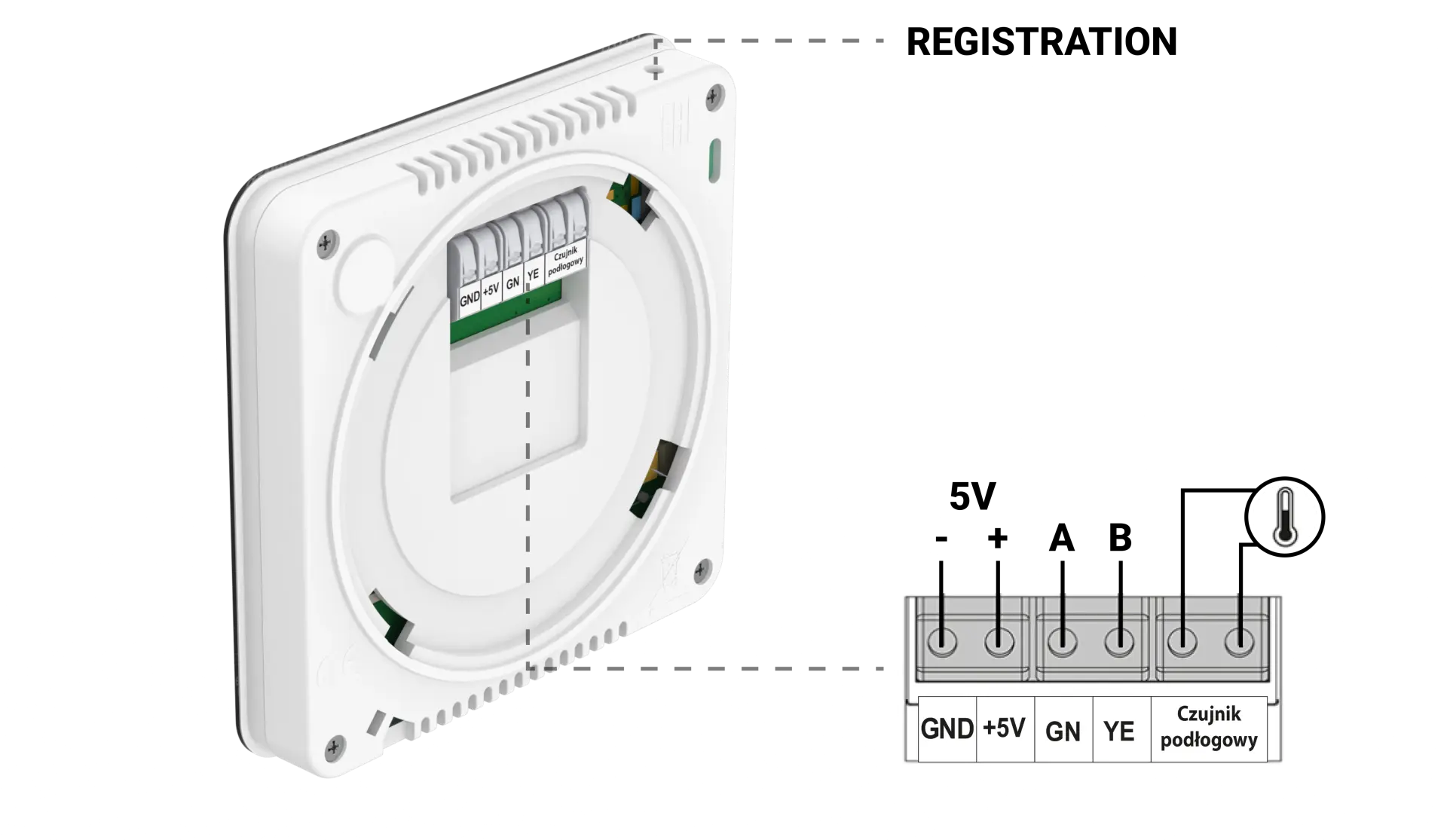

Connection and Communication
Connection and Communication
The controller should be connected to the heating device using a four-core cable (a sample RS cable terminated on one side is included in the set).
Power Supply and Communication – A connector located on the rear side of the controller is used for connecting:
5V power supply – required for proper device operation,
SBUS communication (A, B) – enabling connection with the system’s main control unit,
Floor sensor – used for measuring floor temperature.

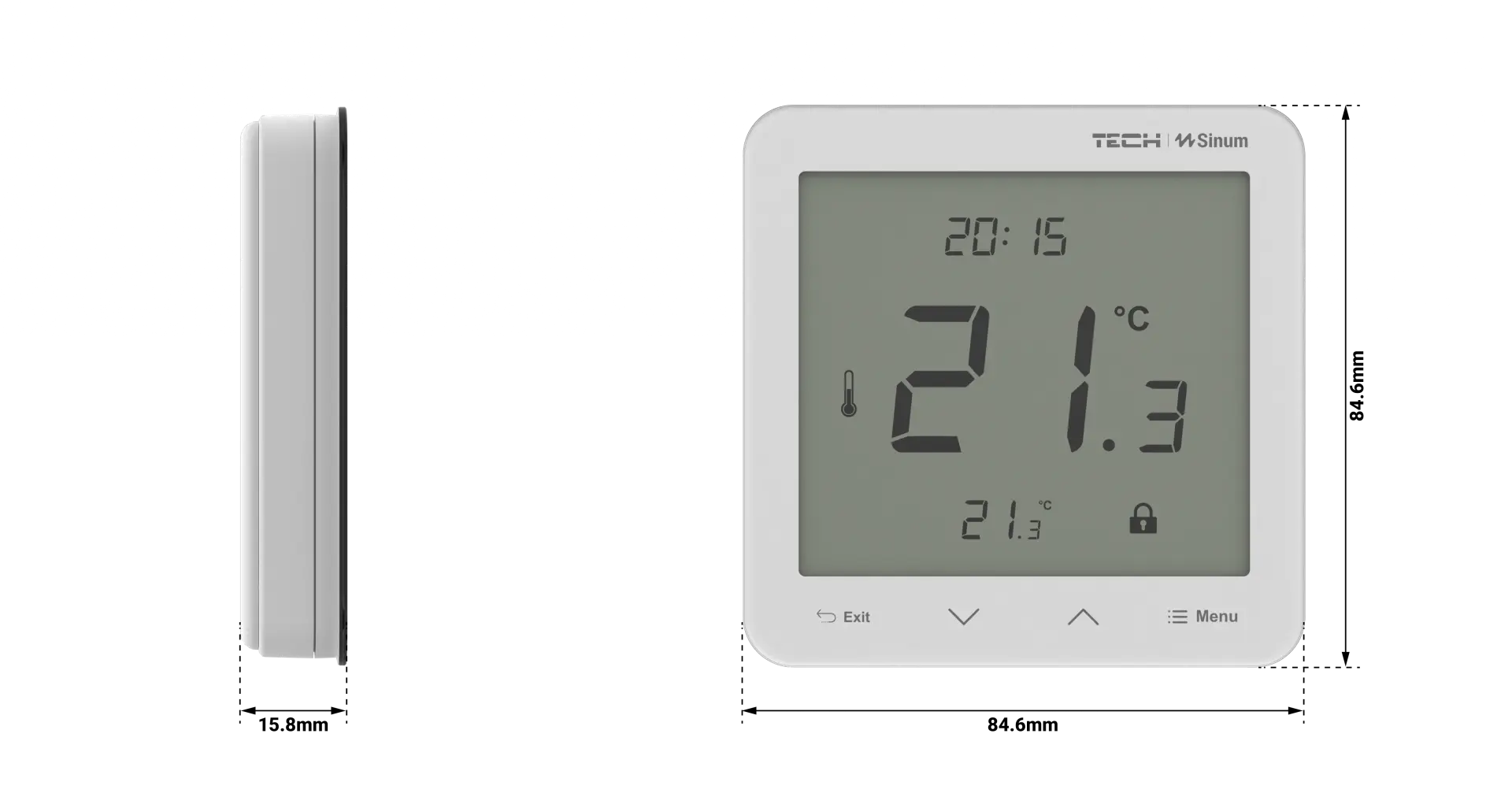

Device Dimensions
Device Dimensions
The glass devices from the Single series are designed to be compact, perfectly fitting a single glass front. Thanks to their carefully selected dimensions, the devices fit seamlessly into standard mounting boxes, ensuring an aesthetic finish and perfect alignment.
Dimension Details:
- Dimensions: 84.6×84.6×15.8mm
- Mounting type: surface-mounted (with the option for installation in a 60mm wall box)
Remote Control
Remote Control
With the Sinum app, you can manage your system wherever you are and whenever you want. The app provides full control over lighting, temperature, blinds, and other home devices, offering convenience and energy savings. Its intuitive interface allows for easy creation of schedules, scenes, and energy consumption monitoring. Additionally, the Sinum app delivers real-time notifications and alerts, ensuring complete safety and comfort.
Product parameters
| Specification | Value | Unit |
| Dimensions | 84,6x84,6x15,8 | mm |
