OP-1622

Actuator Module Enclosure

A stylish and functional enclosure designed for the safe and aesthetically pleasing installation of the actuator module. It is the perfect solution for installations where, in addition to reliability, design and neatness are also important.

Enclosure Purpose

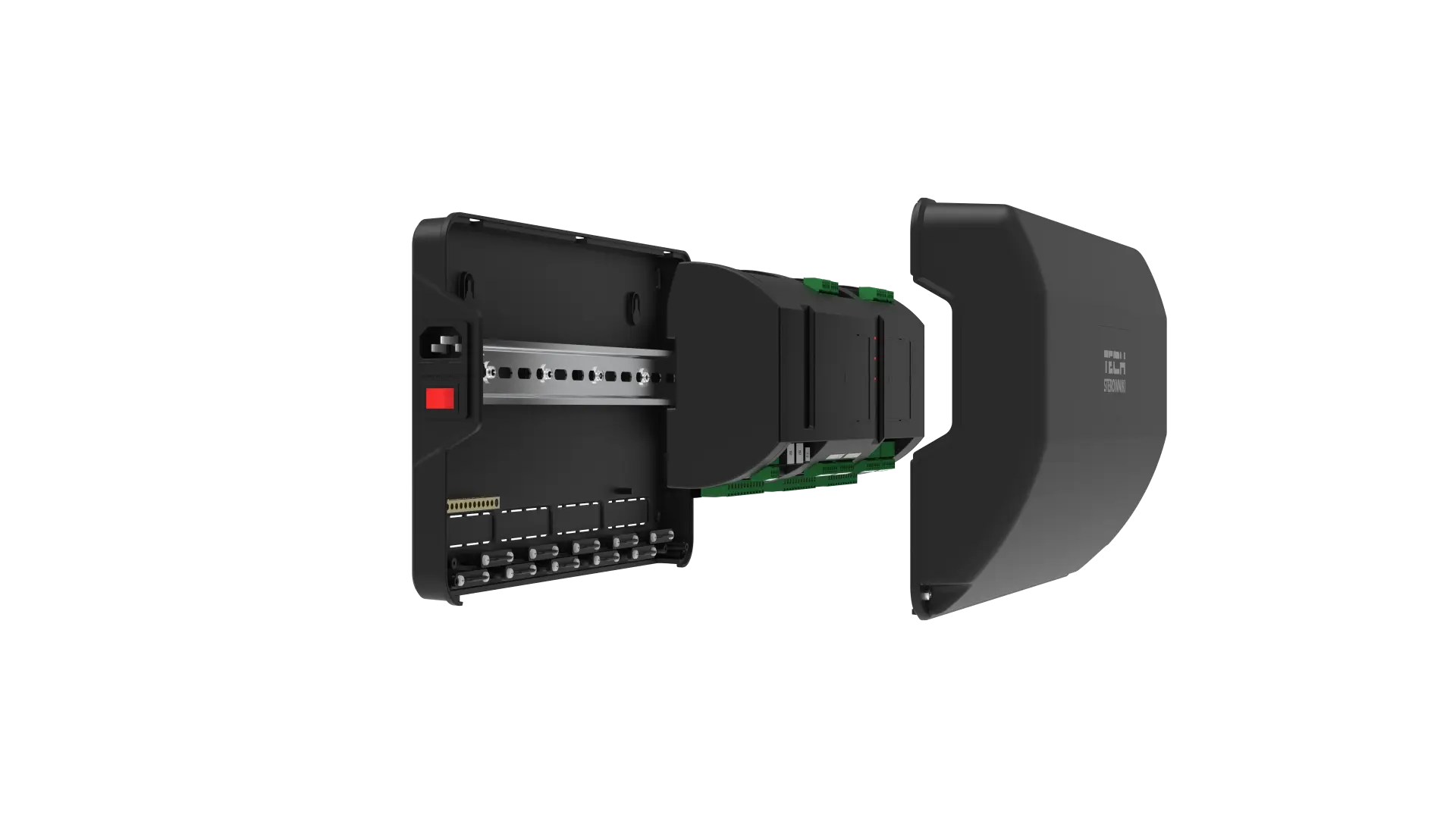

The enclosure has been designed with both functionality and aesthetics in mind – providing an elegant cover for the actuator module while protecting its components. Inside, a standard DIN rail allows for easy and compliant mounting of the device.

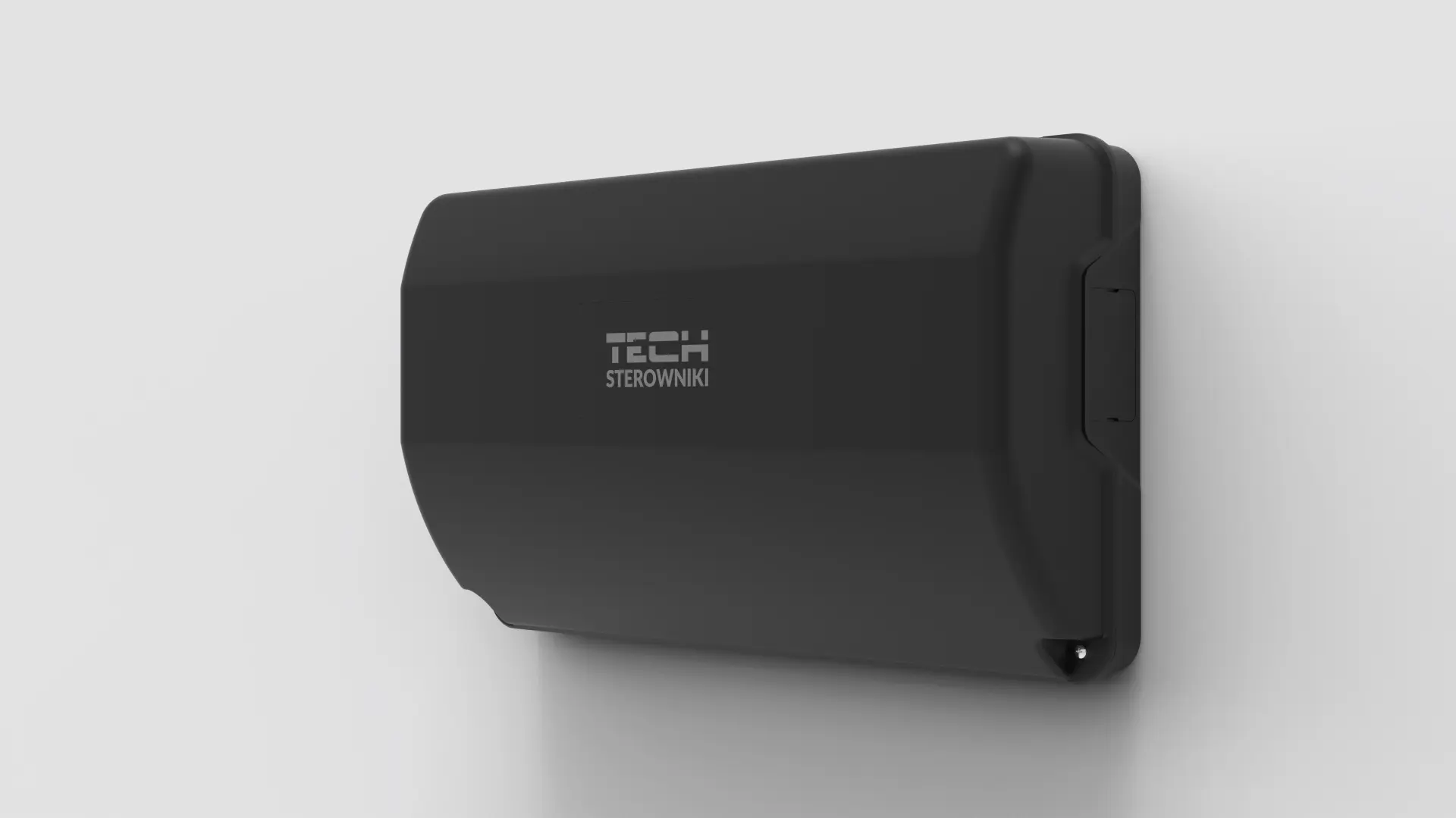

The enclosure features precisely positioned mounting holes, ensuring stable attachment to the wall. This allows for smooth installation, giving the device a solid base and proper operating conditions.

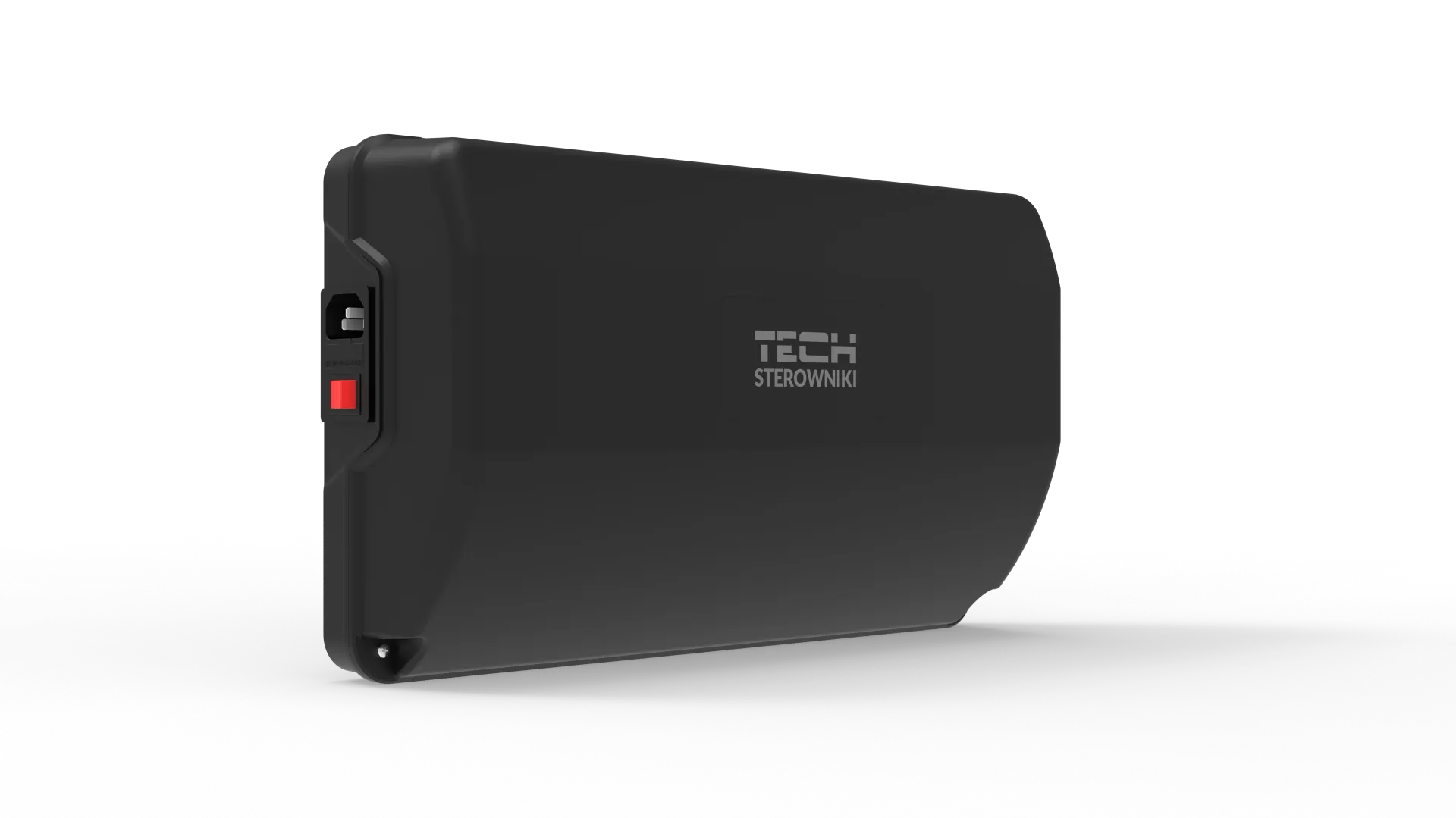

The enclosure is also designed for flexible installation of a power socket integrated with a switch and fuse insert – on either the left or right side, depending on installation requirements.

Installation

The enclosure features mounting holes that allow it to be securely attached to the wall. Inside, a standard DIN rail is provided for installing the actuator module. This ensures that the installation complies with current technical standards while maintaining a sleek exterior appearance.

Thanks to built-in anti-pull protections, the enclosure effectively eliminates the risk of cable damage during intensive use or accidental pulling.

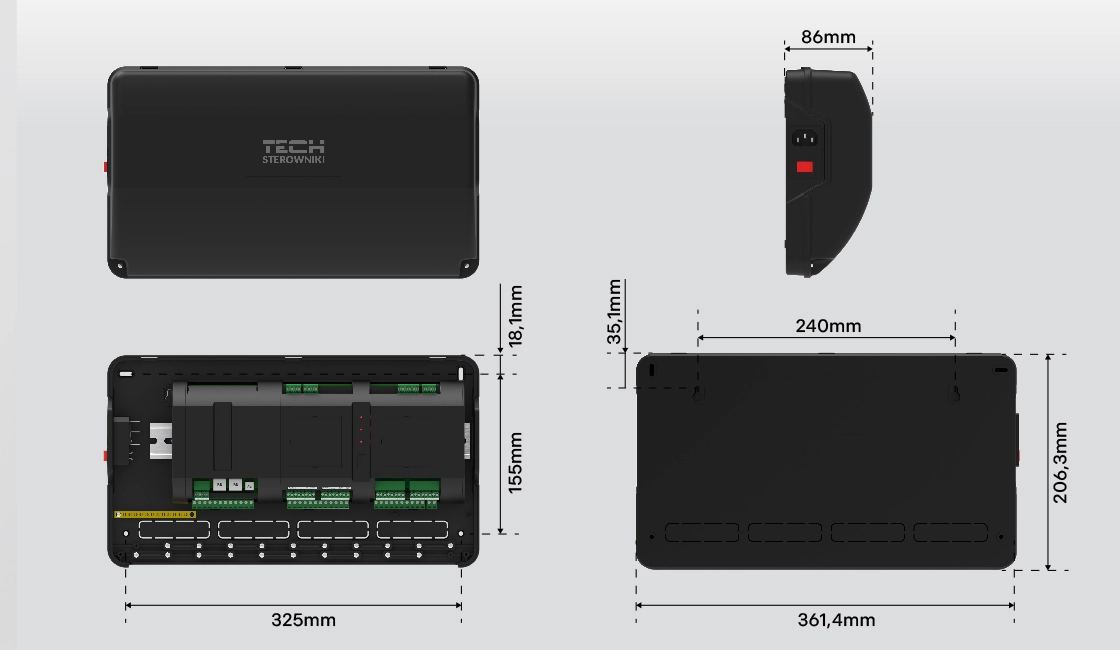

Enclosure Dimensions

The modern design of the enclosure emphasizes both functionality and aesthetics. Its minimalist, neutral appearance fits seamlessly into most utility and technical spaces.

Dimension details:

• Dimensions of the external enclosure: 361,4×206,3x86mm
• DIN rail standard: 35mm
• DIN rail mounting length inside: 380mm (usable width)
• Mounting type: Wall-mounted

Optional Feature

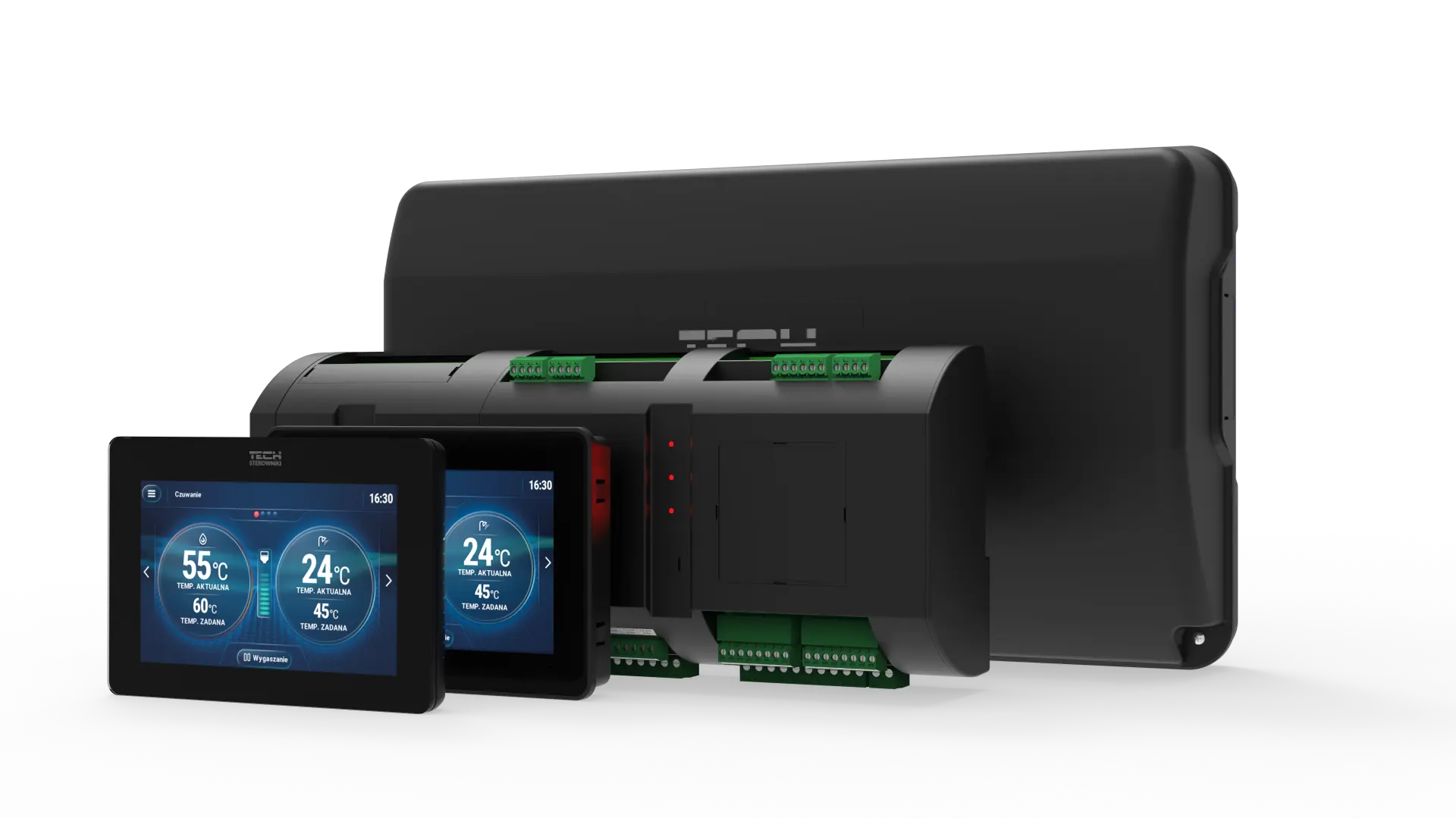

The enclosure is an optional addition to the pellet system control kit. It provides users with a complete, aesthetically pleasing, and safe mounting system ready for immediate installation. It can be used in both technical and utility rooms.
