M-12t

Functions of the Heating Control Panel

The M-12t panel serves as a master device, enabling easy monitoring and editing of heating parameters across up to 40 zones. With the control panel, users can define schedules, set individual temperature setpoints, and turn zones on or off directly from the panel.

Additional features on the panel display include:

• Date and time settings
• Screen saver
• Alarm clock
• Screen lock programming

Installation and Registration

The universal heating controller panel is designed for surface mounting. Incorrect wiring can damage the controller, so installation should be performed by a qualified professional.

The controller must be registered with the L-12 manifold, which can be done either wired (TECH SBUS) or wirelessly (WTP).

Using the Heating Control Panel

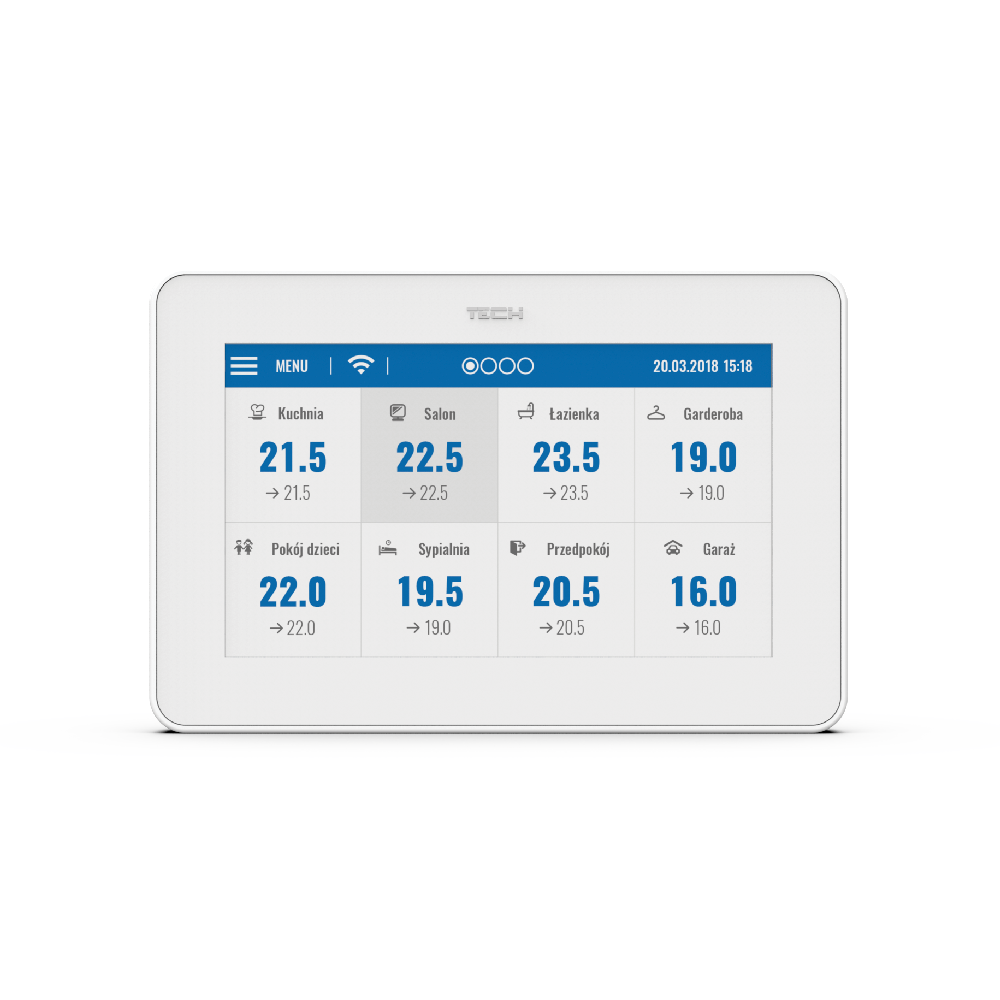

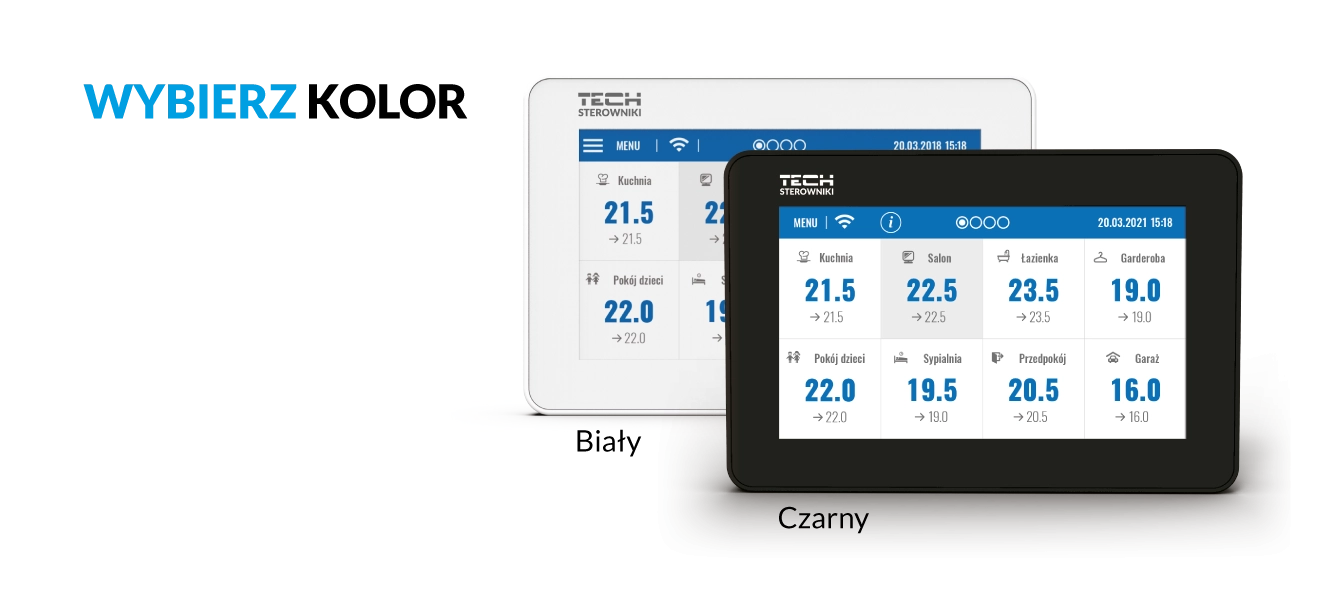

The clear, touch-sensitive panel allows simple management of subordinate devices. To adjust settings for a subordinate zone, simply tap the corresponding area on the screen. The display layout can be customized, including options for the screen saver (clock or date), color scheme, and enabling or disabling sound notifications.
