KB-SBUS 300m

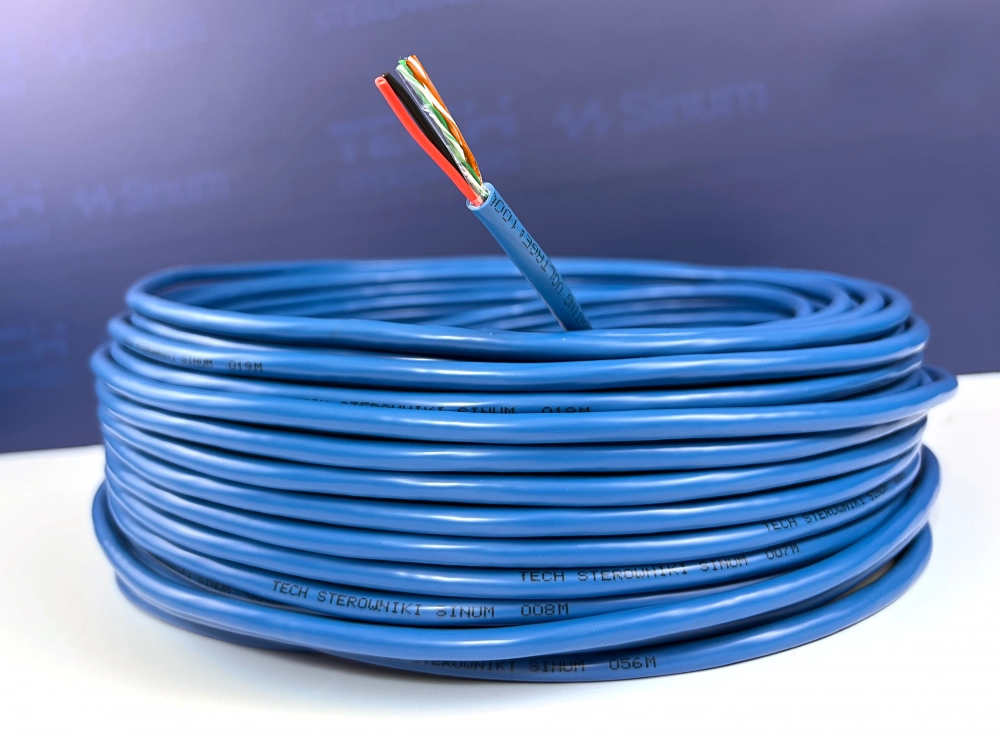

The KB-SBUS communication cable (2×0.75mm + 2×2×0.5mm) is a dedicated cable for building automation installations.
Thanks to its specialized design, the KB-SBUS cable is the recommended solution for creating smart building installations based on the Sinum system.

The cable ensures optimal operating conditions for Sinum modules and devices. The power conductors, with carefully selected cross-sections, provide stable and efficient power supply. Made of copper, it guarantees excellent electrical properties and high durability, ensuring reliability across the entire installation.

Product details:

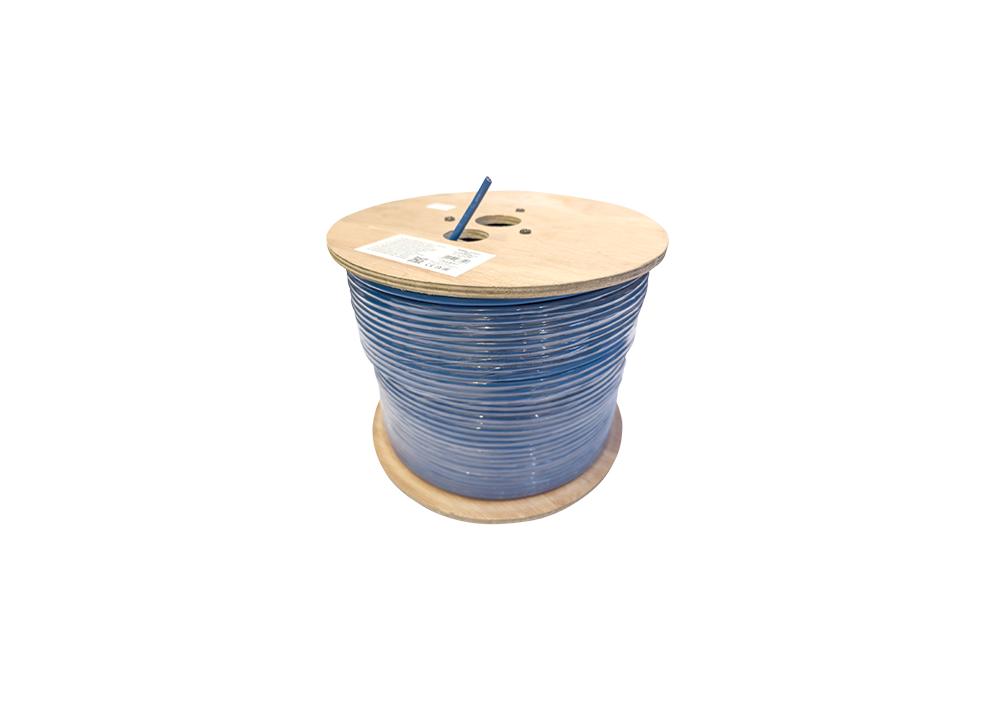

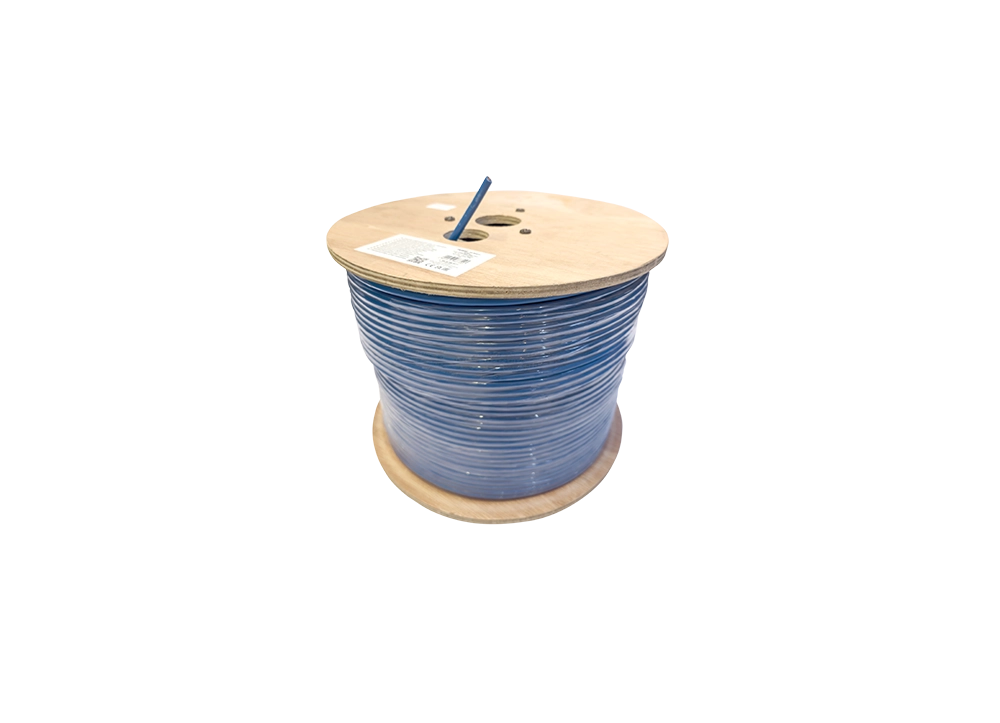

• Cable sold on a 300 m reel
• Control wire impedance: 100Ω ± 20
• Control wire capacitance: 50 nF/km
• Operating voltage: 100V
• Test voltage: 700V

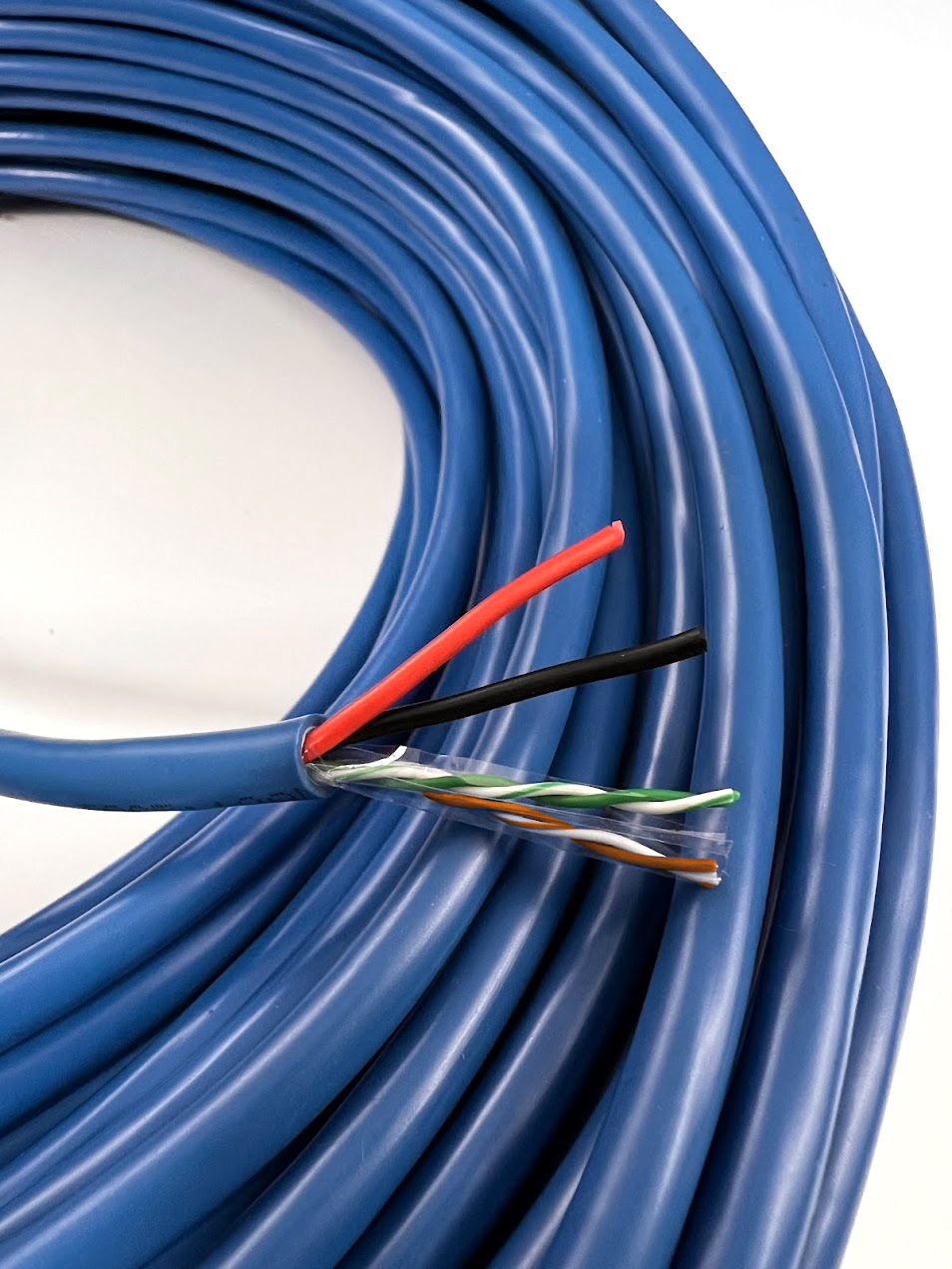

• Cable structure: 2×0.75 mm + 2×2×0.5mm

Maximum of 32 devices per branch (per wire), with a distance of up to 300m.
