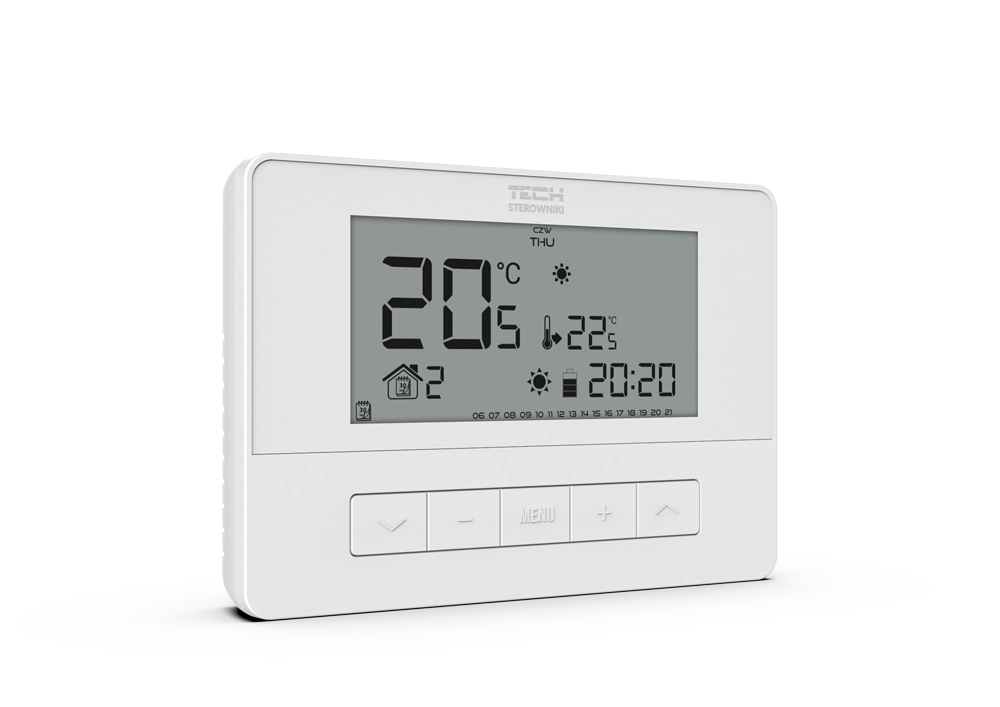

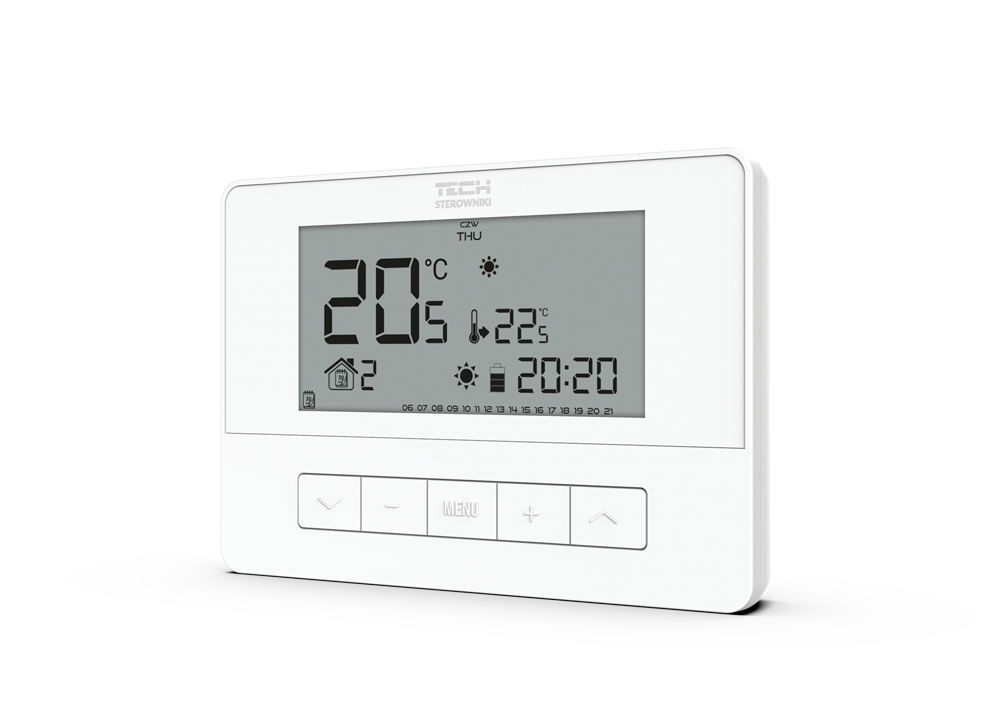

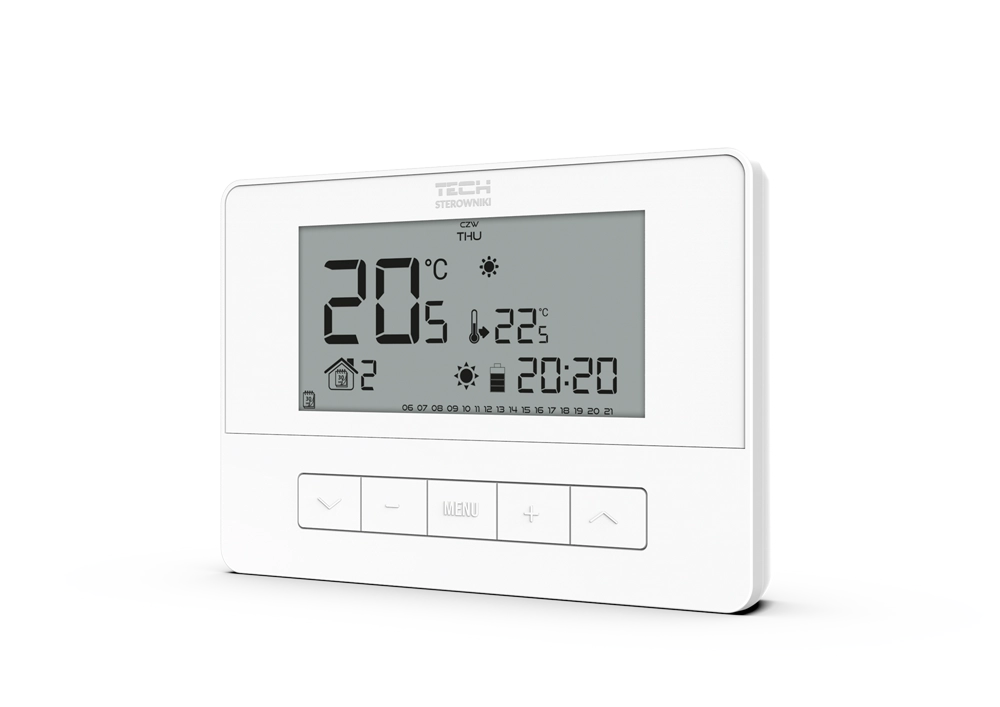

WIRELESS TWO-STATE ROOM REGULATOR

Product description

Functions:

Wireless communication
Controlling room temperature +/- with 0,1 deg. C accuracy
Histeresis range 0,2- 8 deg. C
Weekly heating/cooling program
Day/night program
Manual program
Optimum Start function
2-wire connection from receiver
Non-voltage No/Com/Nc relay (max. 1A/230V/AC)
Optional outside sensor can be registered to room thermostat to show outside temperature on display

Controller’s Equipment:

Built-in room sensor
Temporary illumination of the display
Mechanical buttons

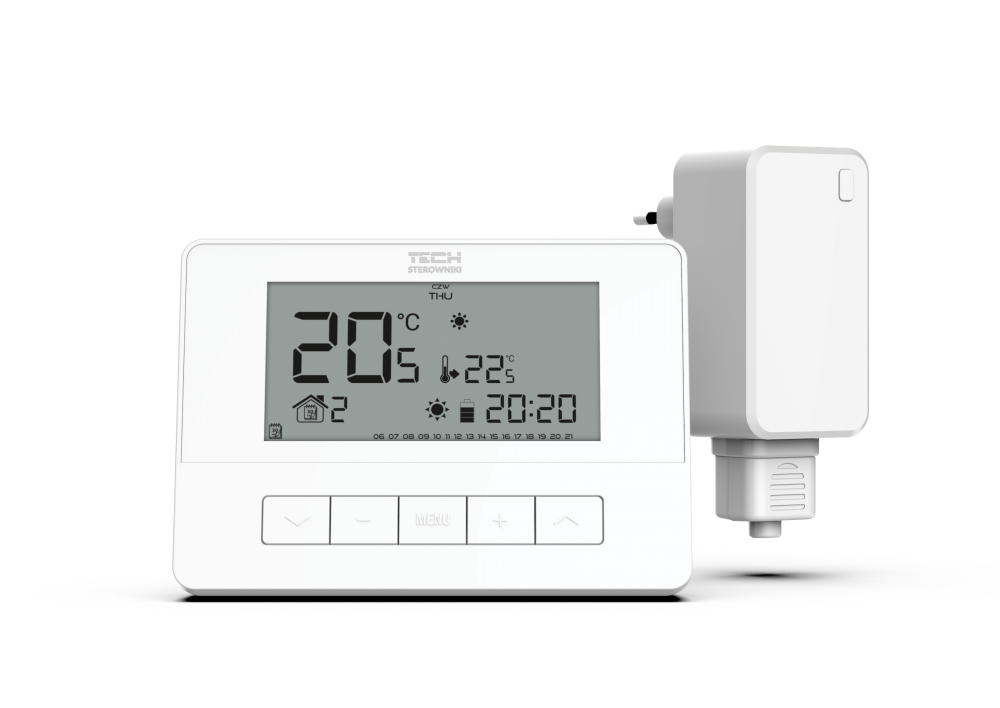

Power adapter (signal receiver) with No/Com/Nc relay (max. 1A/230V/AC)
