EU-R-8z

WIRELESS ROOM REGULATOR

Device description

Room temperature control
Heating schedule program
Power supply: 230V 50Hz
Dedicated LCD display

Embrace modernity

Choose elegant devices that will introduce a modern touch to any interior. Choose from the available colors:

Biały: idealny do jasnych i minimalistycznych aranżacji, dodaje elegancji i świeżości.
Czarny: doskonały do nowoczesnych i wyrazistych przestrzeni, wnoszący elegancki i luksusowy akcent.

Our glass devices combine contemporary design with high-quality craftsmanship. The use of durable materials ensures not only an aesthetic appearance but also resistance to scratches and damage. With easy installation and compatibility with standard electrical systems, setup is quick and hassle-free.

Connection and communication

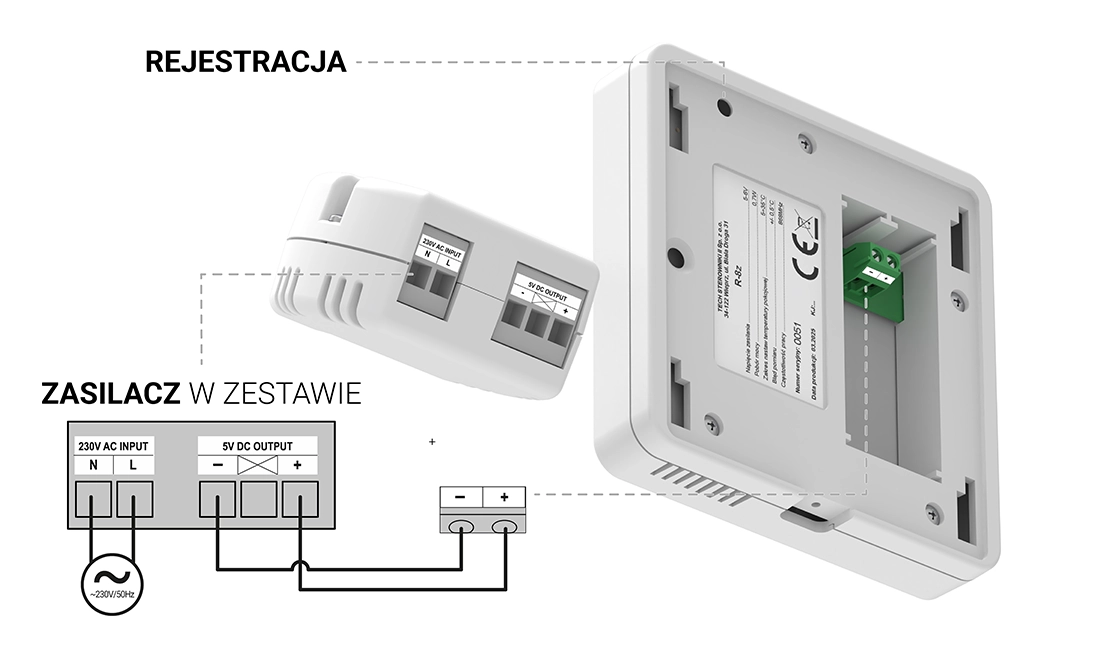

Registration – The button located at the top of the device is used to register the regulator in the system. Pressing it initiates the pairing process with the central unit. Once the registration is successfully completed, an appropriate message will appear on the regulator's screen.

Power supply – 5V adapter

Installation

Our devices have been designed with ease of installation in mind. They require flush-mounted installation in a 60mm diameter box, ensuring an elegant appearance and discreet integration with the wall.

Mounting type: Surface-mounted
Required box: 60mm diameter

Thanks to a precisely fitted design, installation is quick and straightforward, allowing our devices to blend perfectly into any interior. The simple installation process ensures that you can enjoy modern design and functionality without unnecessary complications.

Device dimensions

Our devices have been designed with ease of installation in mind. They require flush-mounted installation in a 60mm diameter box, ensuring an elegant appearance and seamless integration with the wall.

Dimensions and installation details

Dimensions: 80x80x16mm
Mounting Type: Flush-mounted in a 60mm diameter box

Wireless communication

Our wireless communication devices utilize a stable 868 MHz radio connection, ensuring reliable and efficient data transmission.

Thanks to universal technology, all wireless devices can seamlessly integrate with both traditional TECH Controllers zoned heating systems for radiators and underfloor heating, as well as the modern Sinum system, connecting directly to the EH-01 or EH-01 Lite control unit.

This solution enables flexible temperature control, allowing users to customize their heating system to their individual needs while ensuring easy integration with existing installations.

Remote control

Our devices are compatible with systems that enable remote access via the eModule app or the new Sinum app. This allows users to have full control over the system from anywhere using a smartphone or tablet.

The remote control function becomes available after expanding the system with a main controller, which facilitates communication between the devices and the app, providing even greater convenience in managing the building’s system.
