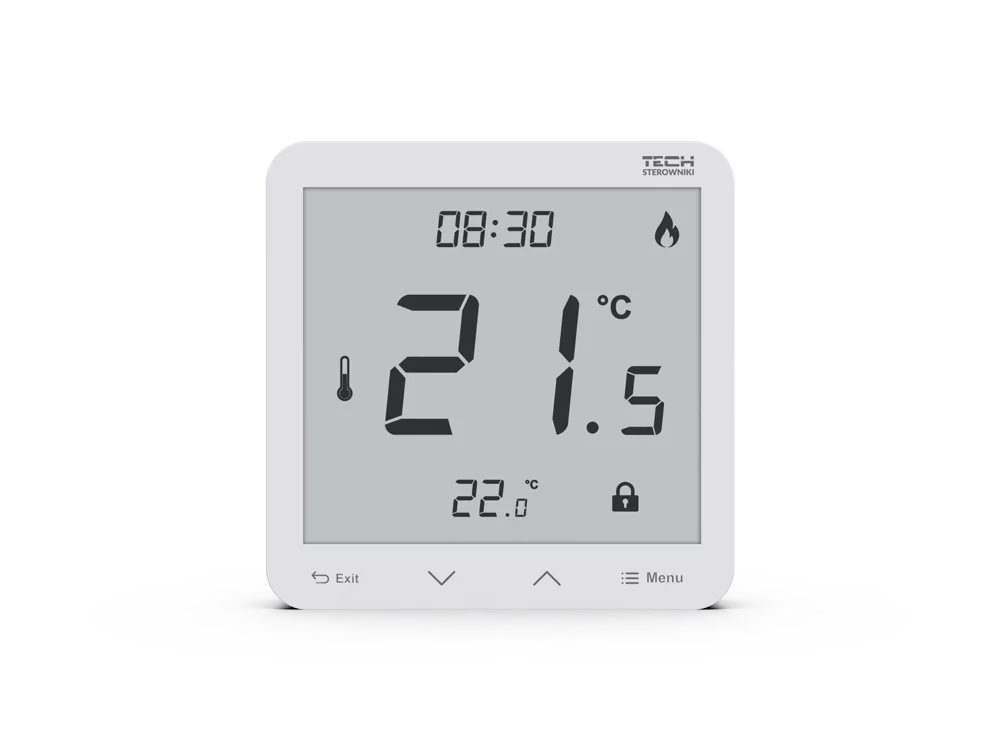

EU-R-12s

DEDICATED WIRED ROOM REGULATOR FOR EU-L-X WiFi, EU-L-12, EU-ML-12 SERIES

Device Description

Room temperature control
Air humidity measurement
Timed heating program
Floor temperature-based control (when using a floor sensor)
Glass front
Touch buttons
Dedicated LCD display with temporary backlight
Wired TECH SBUS communication

The R-12s room controller is designed for systems based on wired TECH SBUS communication: L-4x Wi-Fi, L-X Wi-Fi, and L-12.

Embrace Modernity

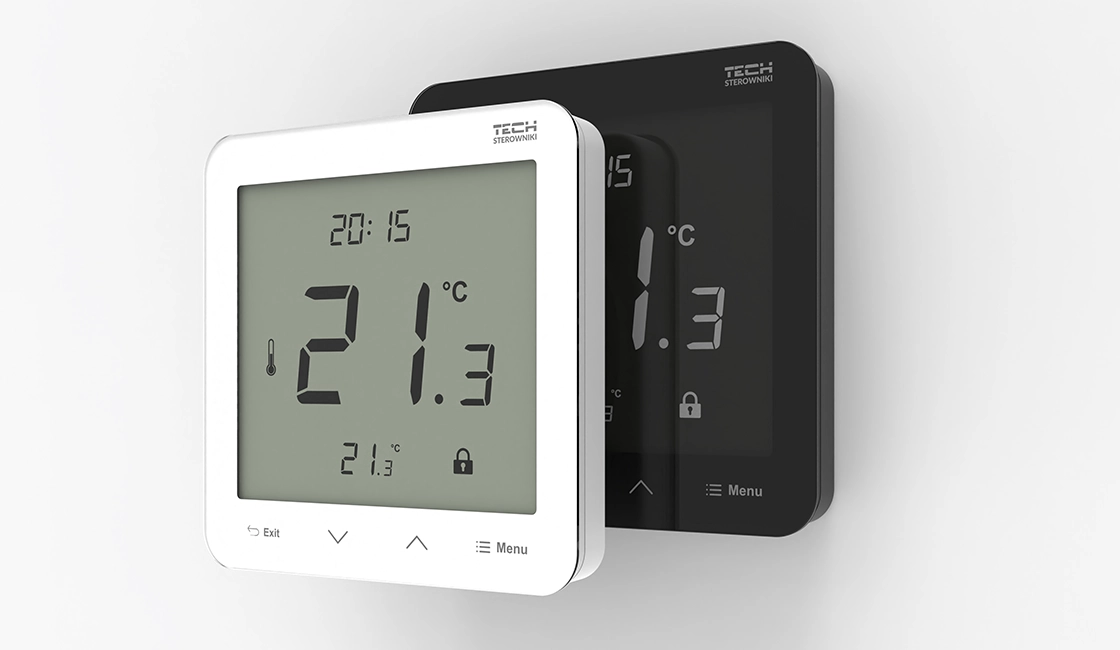

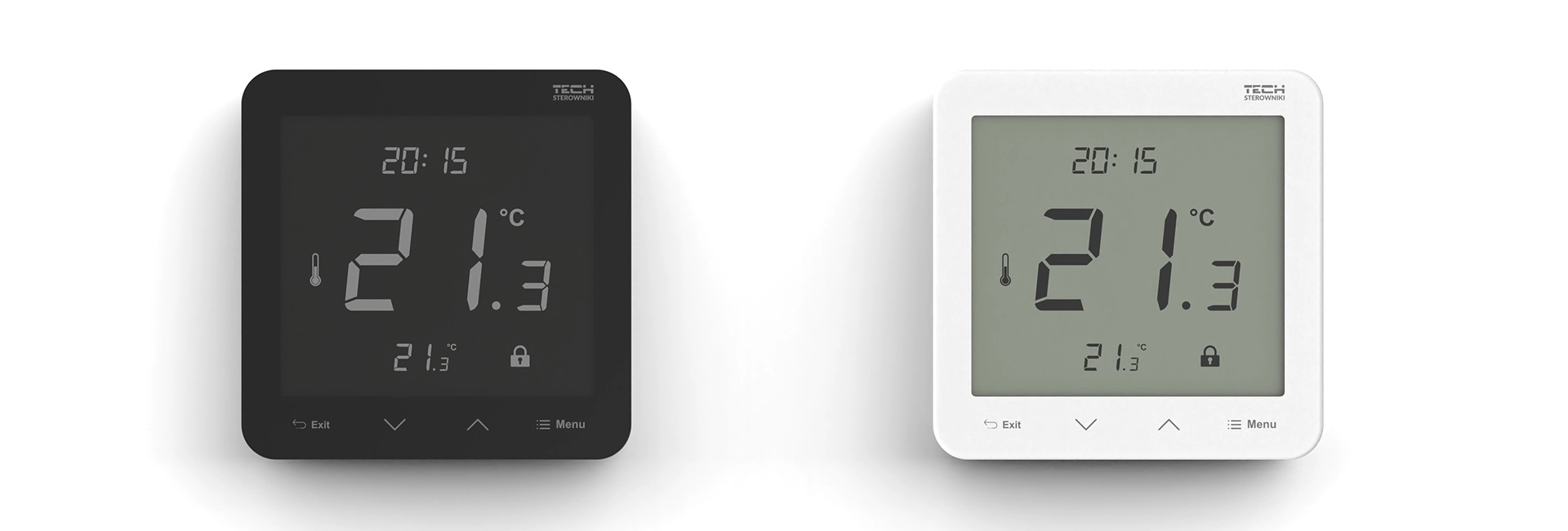

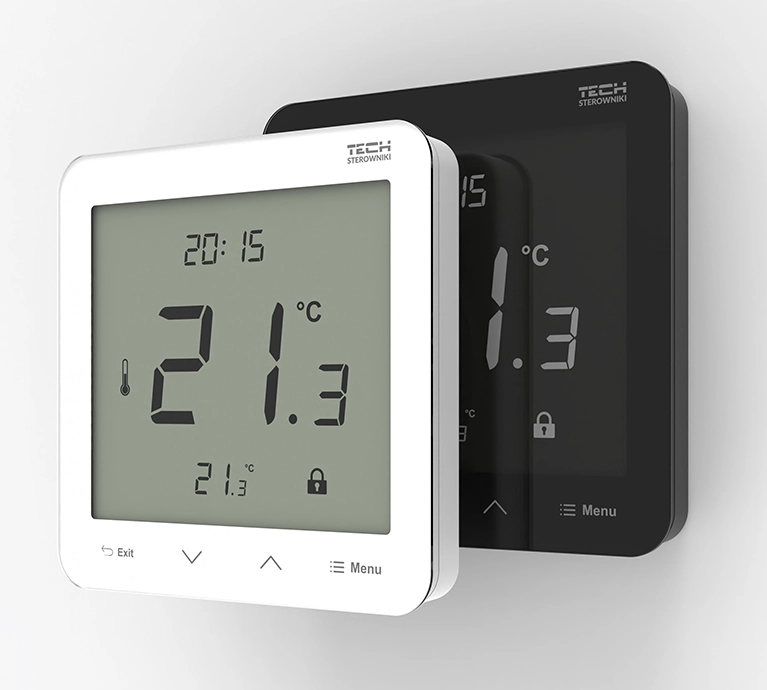

Choose elegant glass devices that add a modern touch to any interior. Available colors:

White: perfect for bright, minimalist spaces; adds elegance and freshness.
Black: ideal for modern, striking interiors; brings a sophisticated and luxurious accent.

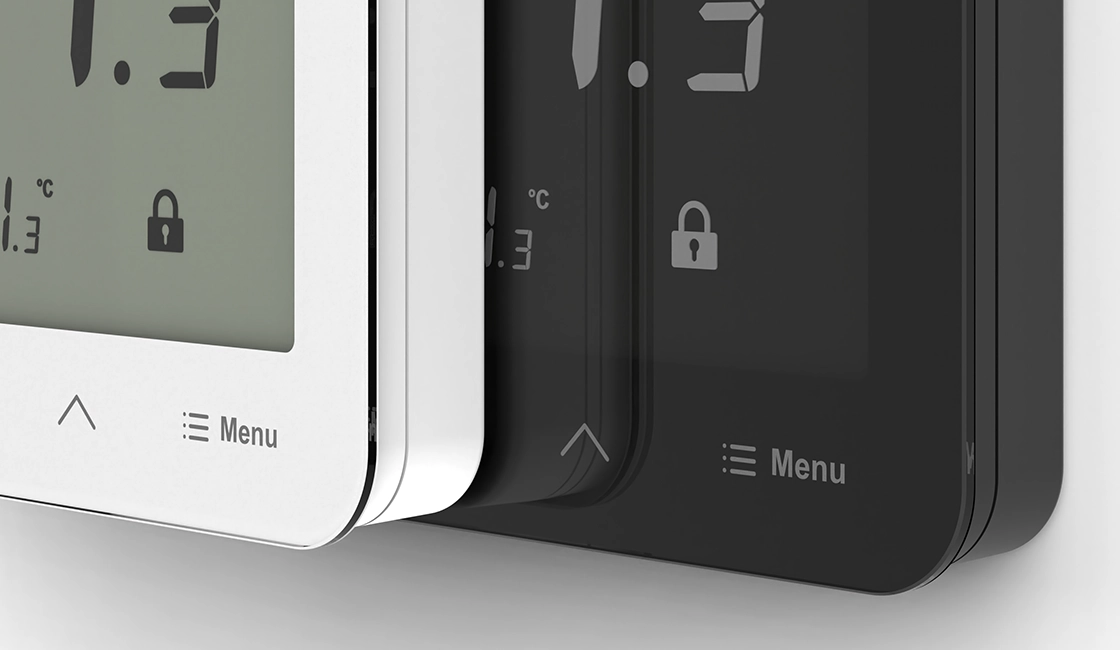

Our glass devices combine modern design with high-quality craftsmanship. The use of durable materials ensures not only an aesthetic appearance but also resistance to scratches and damage. With easy installation and compatibility with standard electrical setups, the installation process is quick and effortless.

Choose our glass devices to bring unique style and modernity to your space.

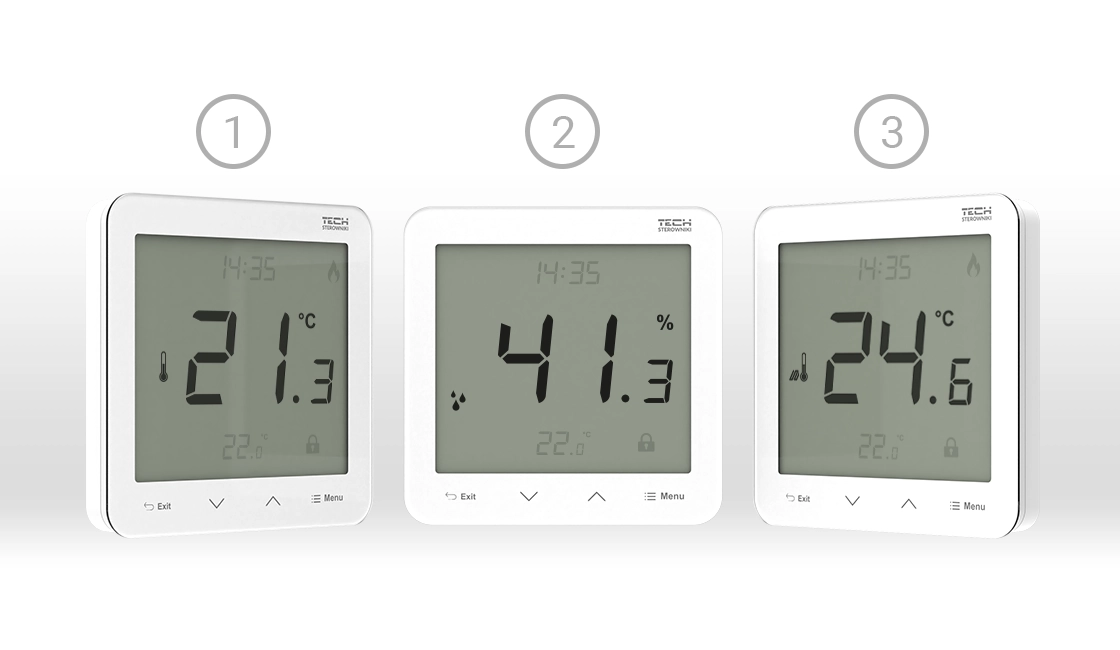

Clear and Intuitive Display

The large screen ensures easy readability, while the backlight option allows use in any lighting conditions.

Key information displayed:

Air Temperature – current measurement for full control over comfort.
Air Humidity – monitor the humidity level.
Floor Temperature – precise indication of underfloor heating temperature.

Floor Sensor Installation

The sensor should be installed in the top layer of the screed—directly under panels or tiles. For easier installation and maintenance, it is recommended to place it inside a protective conduit.

To ensure accurate measurement and avoid thermal bridges, the sensor should be installed approximately 100cm from the wall. The sensor maintains floor comfort and protects it from overheating—regardless of the room temperature.

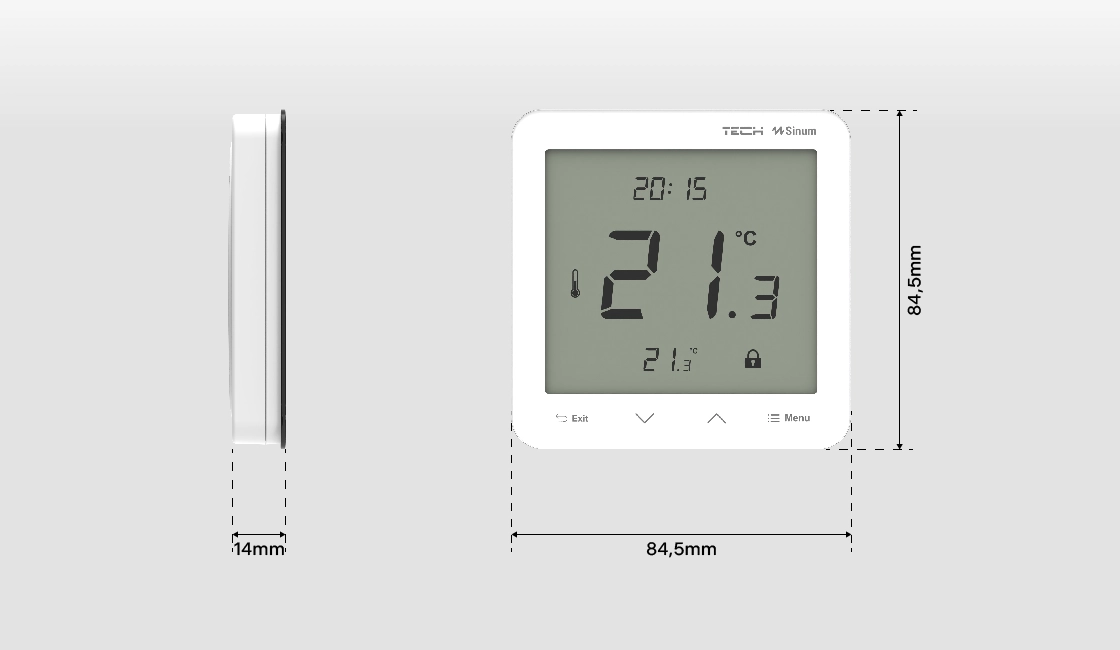

Device Dimensions

The R-12s controllers are designed to be compact, perfectly fitting a single glass front. Thanks to their carefully selected dimensions, the devices fit seamlessly into standard mounting boxes, ensuring a neat finish and ideal integration.
