Wired controll panel + WiFi module (wall mountable)

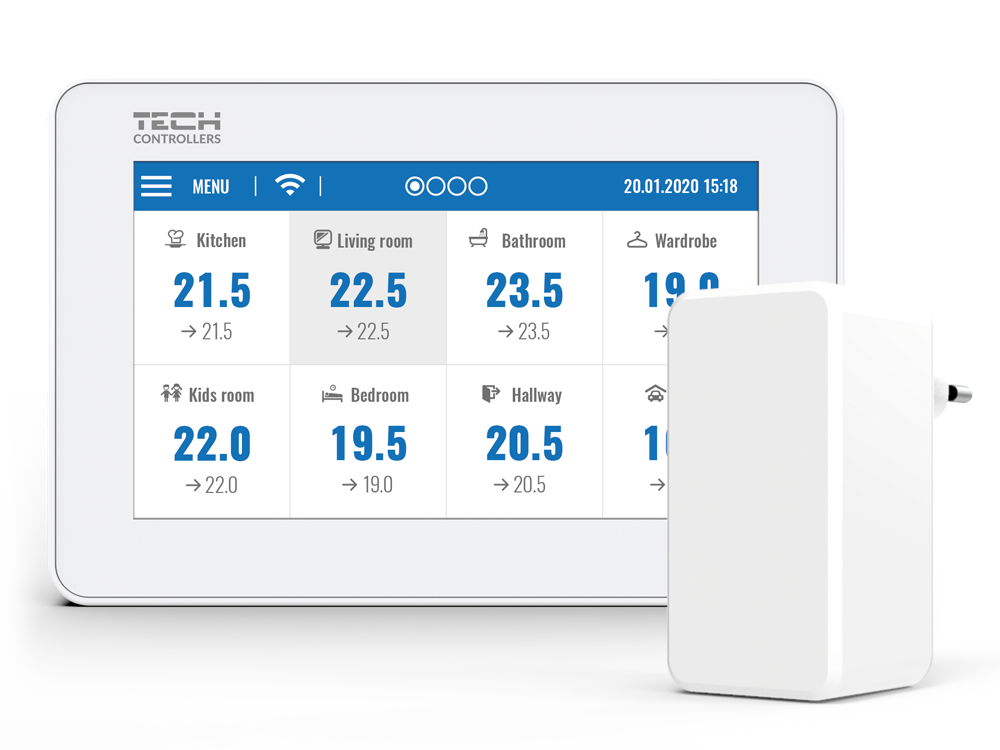

Wired control panel dedicated to L-9 R controller The wired control panel M-9t is a device that improves temperature management in rooms with a 9-series floor heating system installed. It is a dedicated solution for cooperation with the L-9 R controller and prepared in such a way as to enable convenient control of subordinate room regulators in the system.
Functions of the control panel
The M-9t panel is the master device. It allows you to conveniently control and edit heating operating parameters in up to 32 zones. With the control panel of L-9R controllers, it is possible to conveniently define work schedules, as well as separately set the value of the set temperature. Additionally, individual zones can be turned on and off from the panel. On the display of the panel, you can also use additional options such as setting the date and time, screen saver, alarm clock, program a screen lock.
Installation and registration of the device
The wired control panel for heating controllers is designed for flush mounting. It is worth remembering that incorrect connection of the wires may damage the controller, so it is worth having the installation carried out by a person with appropriate qualifications. Each L-9R controller must be registered to the M-9r. To do this, at the beginning, you need to select the registration option on the M-9t device. Up to 4 L-9 R controllers can be registered to the central panel. Registration should be made sequentially, because simultaneous registration in several zones fails.
How to use the control panel
A clear, touch panel enables easy management of secondary devices. In order to make settings in a subordinate zone controllers, it is enough to click on the area of the screen with information about its status. The display of the heating controllers' control panel can be adapted to your needs using the screen setting function. You can, among others set the screen saver in the form of a clock or date. Additionally, the user can choose the theme of the controller screen and turn the key sound on or off.
Remote system control
The built in WiFi module enables convenient, remote control of the system. The user can monitor the status of all devices working in the system on an ongoing basis on the screen of his computer, tablet or smartphone. After enabling the internet module and selecting the DHCP option, the driver automatically downloads parameters from the local network, such as IP address, IP mask, gateway address or DNS address.
No integrated temperature sensor.
