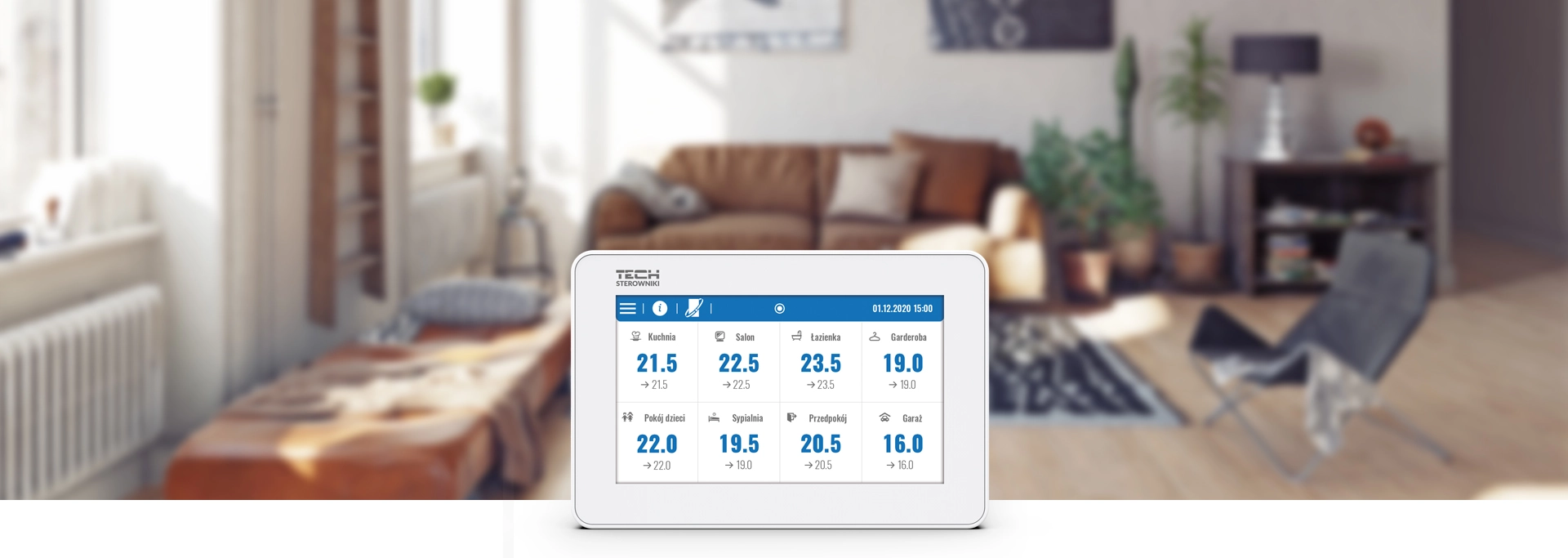

EU-M-12

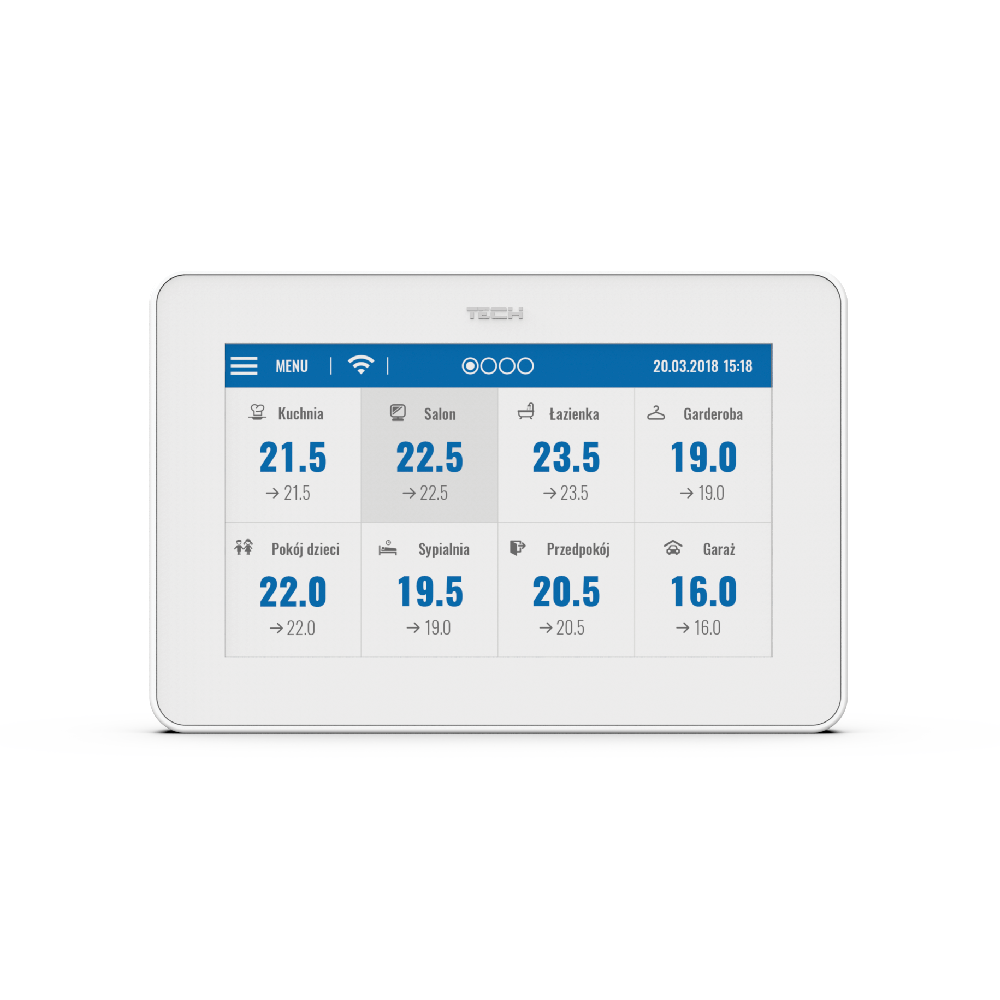

The M-12 panel is a master control unit that allows convenient monitoring and adjustment of heating parameters in up to 40 zones. Using the heating control panel, users can easily define operating schedules and set individual target temperatures for each zone. Additionally, zones can be switched on or off directly from the panel.

The panel’s display also provides access to additional features such as setting the date and time, screen saver, alarm clock, and screen lock programming.

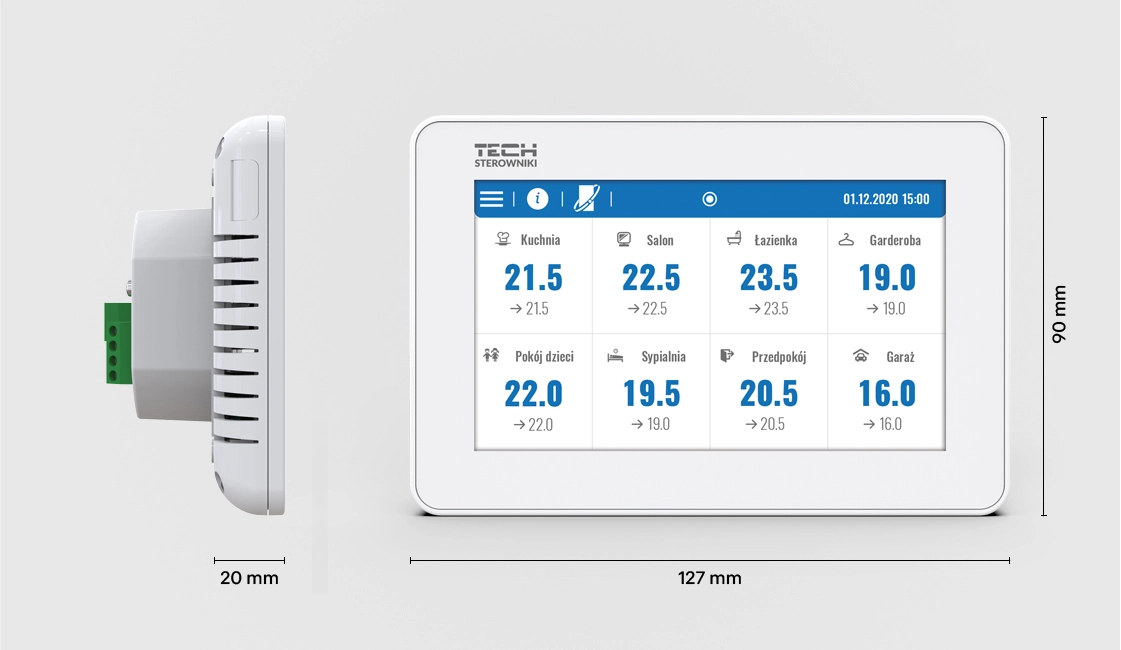

The universal heating controller panel is designed for flush mounting in an electrical wall box. It is important to note that incorrect wiring may damage the controller, so installation should be carried out by a qualified professional.

The controller must be registered with the L-12 control unit, which can be done either via a wired connection (TECH SBUS) or wirelessly (WTP).

The clear, touch-sensitive panel allows for easy management of subordinate devices. To adjust settings in a zone controlled by the main unit, simply tap the area of the screen displaying its status.

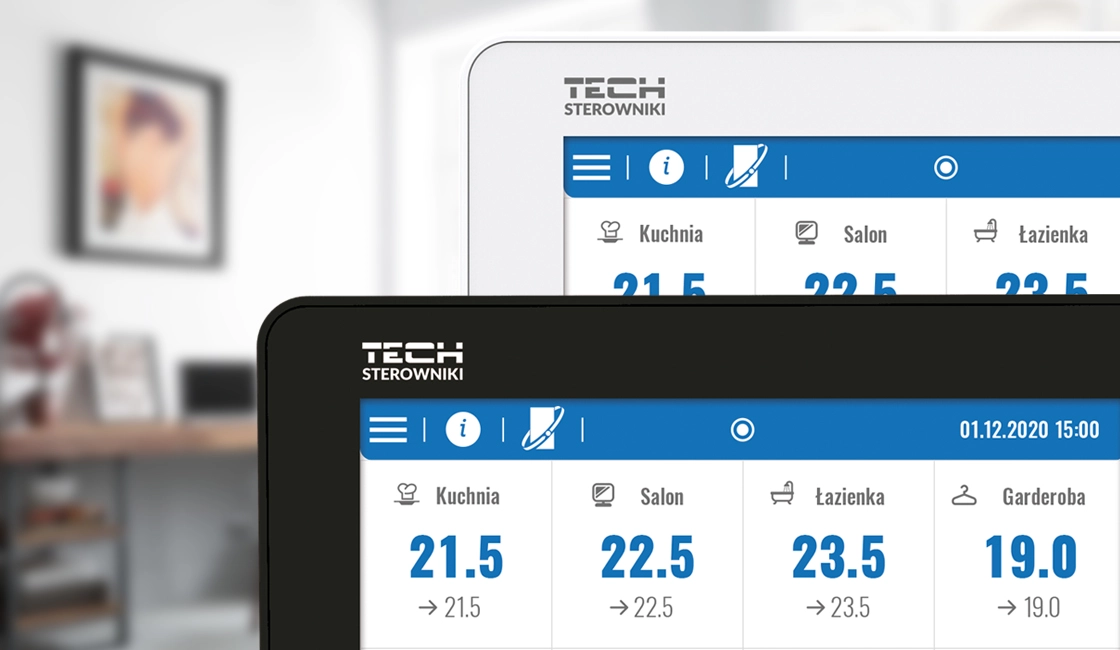

The appearance of the heating controller panel display can be customized to suit individual preferences using the screen settings function. Users can, for example, set a screen saver in the form of a clock or date. Additionally, the controller’s color theme and sound notifications can be easily enabled or disabled.
