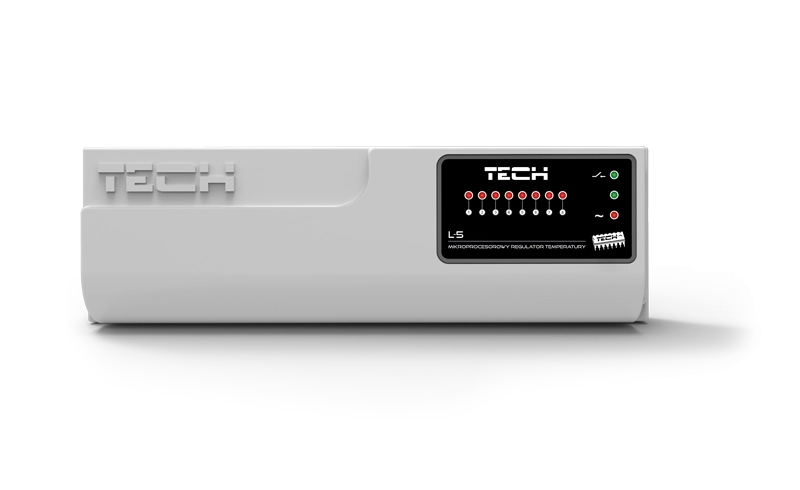

EU-L-5

WIRED CONTROLLER FOR THERMOSTATIC ACTUATORS (8 SECTIONS)

Product description

Functions:


Controlling up to 50 thermoelectric actuators with the use of 22 outputs, via two-state room regulators
– 3 outputs may support 12 actuators (the max. of 4 actuators per one output) or each output load of max. 0,3A
(~70W)
– 5 outputs may support 10 actuators (the max. of 2 actuators per one output) or each output load of max. 0,3A
(~70W)
• one 230V output for a pump
• voltage-free relay (e.g. to control an additional heating device)

Technical data:

max outputs 1-8 load- 0,3A/output
max pump load- 0,5A
non-voltage No/Com/Nc relay (max. 1A/230V/AC)
