TECH SterownikiHome ControllersRoom regulatorsRoom regulators for frame systemsEU-F-4z v1

EU-F-4z v1

WIRED TWO-STATE ROOM REGULATOR FOR 55x55mm FRAME SYSTEMS
Room regulators for frame systems - EU-F-4z v1
Room regulators for frame systems - EU-F-4z v1 - 2

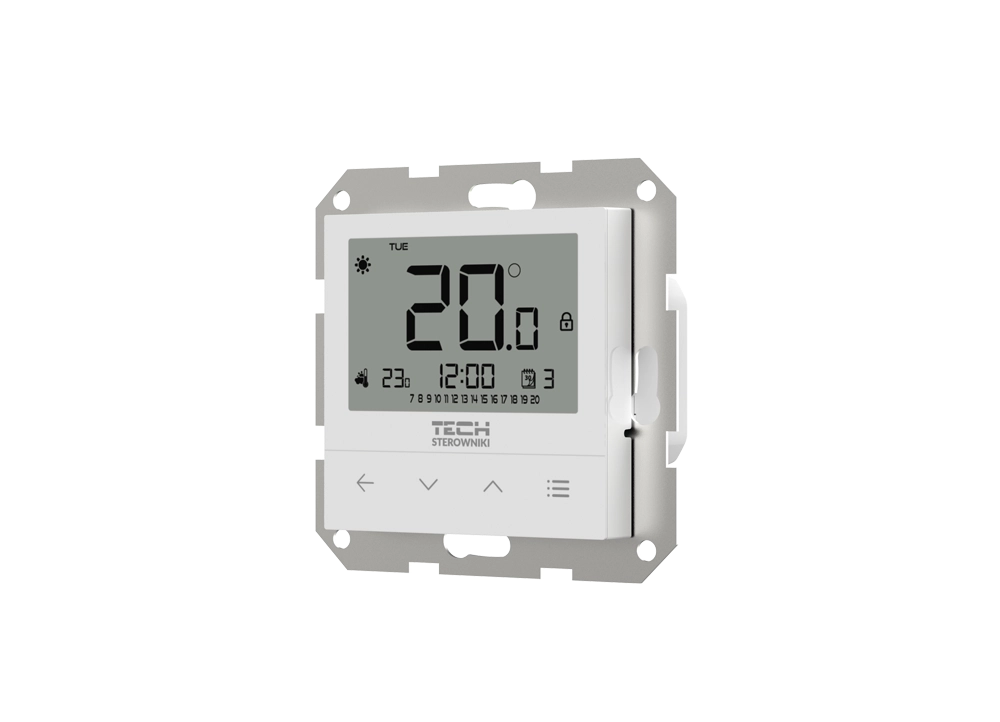

Room regulators for frame systems - EU-F-4z v1 - 3

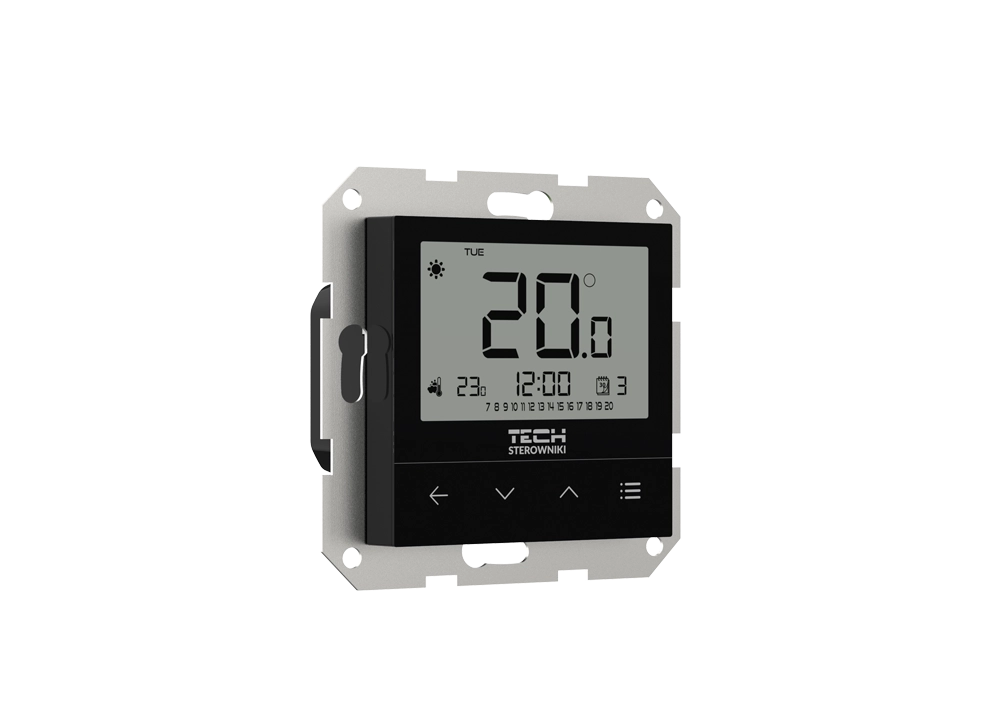

Room regulators for frame systems - EU-F-4z v1 - 4

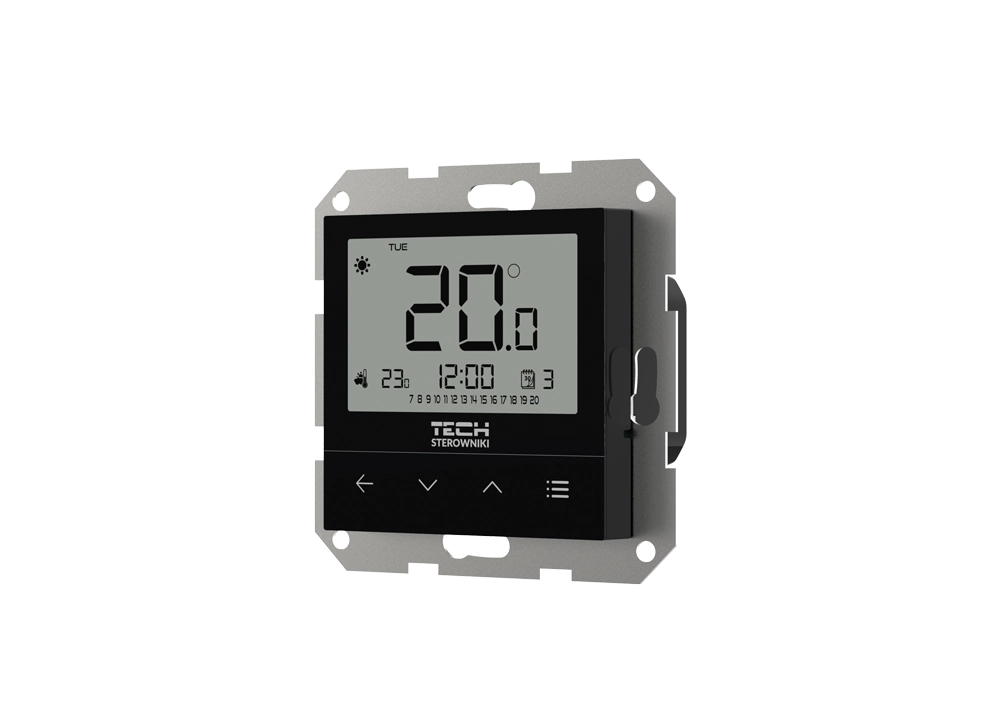

Room regulators for frame systems - EU-F-4z v1 - 5

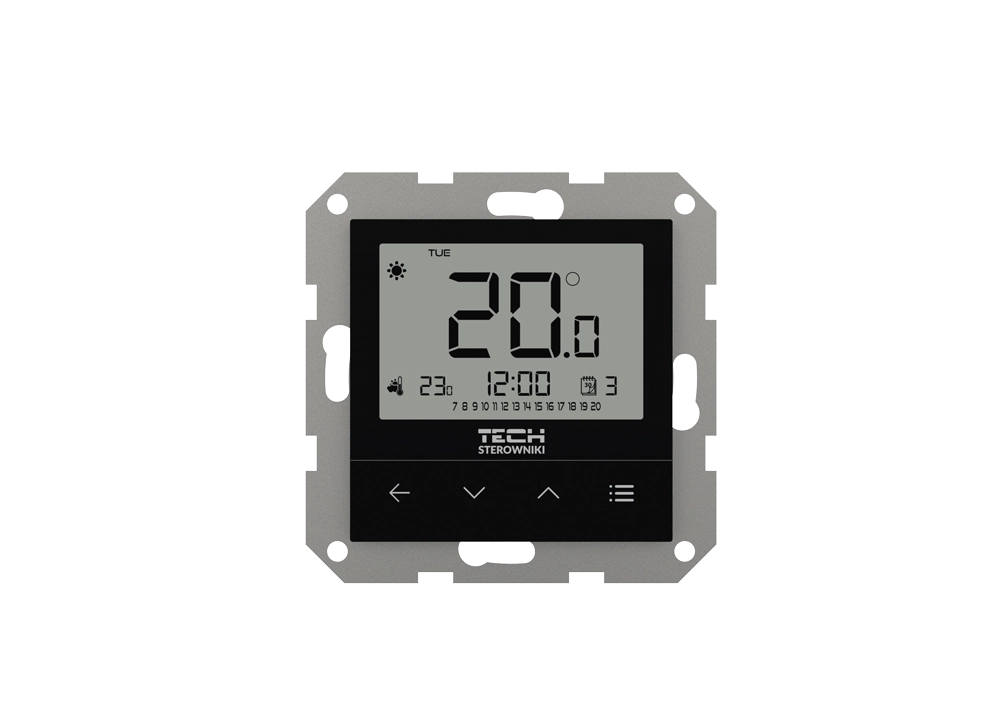

Room regulators for frame systems - EU-F-4z v1 - 6

Product description

WIRED TWO-STATE ROOM REGULATOR FOR 55x55mm FRAME SYSTEMS

*white or black casing

Functions:

  • room temperature control +/- with an accuracy of 0.1 ° C
  • hysteresis in the range from 0.2 to 4 °C
  • weekly heating program
  • day / night program
  • manual program
  • temporary illumination of the display
  • additional control based on floor temperature (if wired NTC floor sensor is used)
  • Optimum Start function
  • heating / cooling function
  • non-voltage No/Com/Nc relay (max. 1A/230V/AC)
  • wired communication

Controller equipment:

  • built-in room sensor
  • Power supply: 230V 50Hz
  • flush mountable in a 60mm box

Examples of compatible frame systems:

  • Ospel - Sonata
  • Berker - S.1, B.1, B.3, B.7
  • Jung - AS, A500, A PLUS, A CREATION
  • Gira- STANDART 55, E2, EVENT, ESPRINT, PROFIL55, E22,
  • SIEMENS - DELTA LINE, DELTA VITA, DELTA MIRO
  • SCHNEIDER - SYSTEM M-PLAN, SYSTEM M-ELEGANCE, M-PURE, M-SMART

Expansion of the

The primary controllers
EU-L-5s
Wired controller for thermostatic actuators (8 sections)
EU-L-5s
EU-L-10
WIRED CONTROLLER FOR THERMOSTATIC ACTUATORS (10 SECTIONS)
EU-L-10

Files to download

Manuals

Warranty card

Photos
