EU-900 Panel SM

Surface-Mounted 5'' Control Panel for Pellet controller

As an intuitive control center for the heating system, it combines functionality with elegant design. It allows convenient management of all key boiler parameters, presenting data in a clear and easy-to-read manner. The TFT display, responsive touchscreen, and logical menu make daily operation fast, simple, and user-friendly.

Surface-mounted control panel

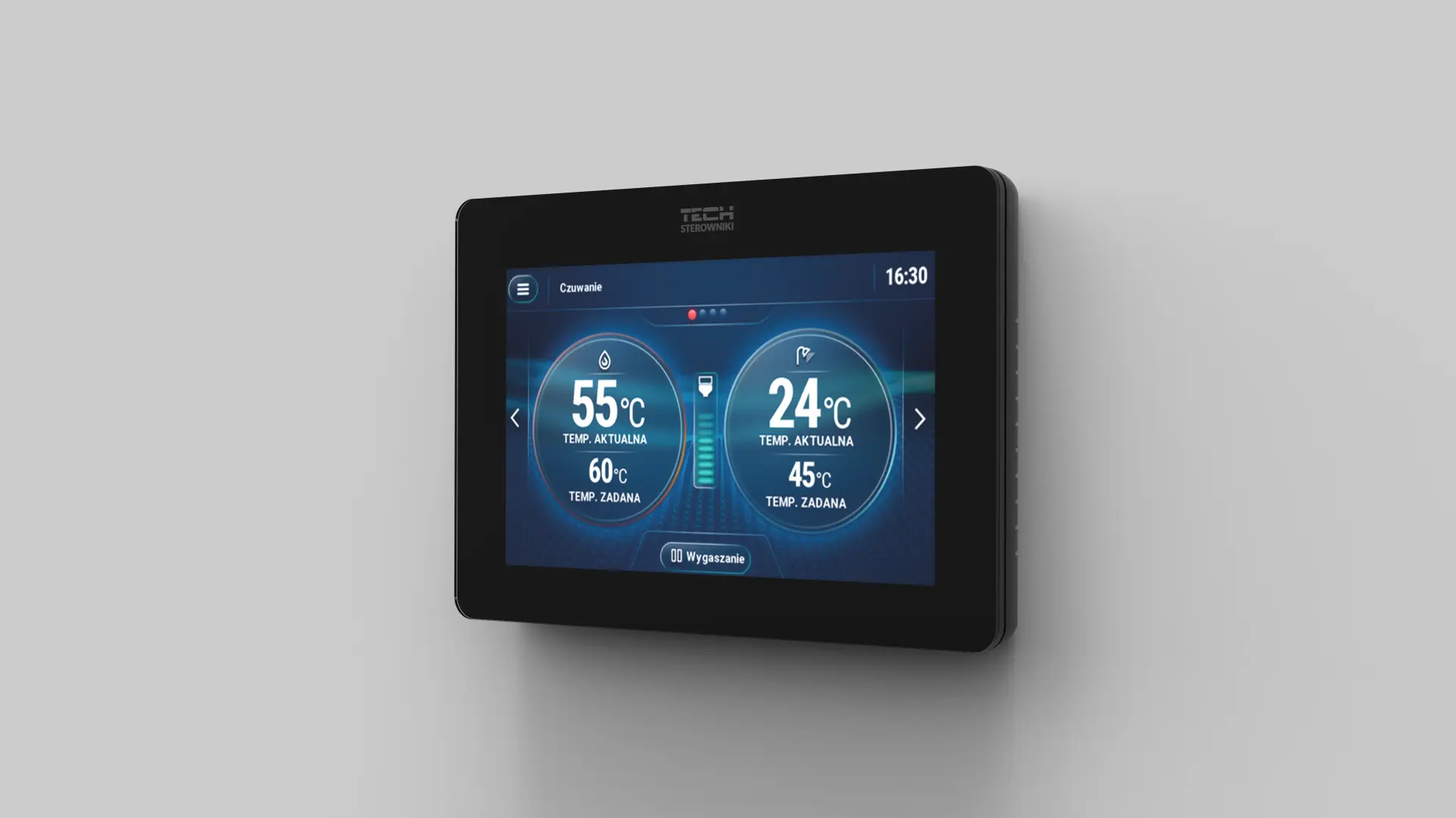

The surface-mounted version of the control panel is designed for quick and easy installation without the need to alter the wall structure. Equipped with a modern 5'' TFT touchscreen, it allows intuitive control of the entire heating system.

The user interface is designed to be clear and functional. The main standby screen displays the current and set temperatures for both the boiler and domestic hot water (DHW), providing a quick overview of the most important parameters. Additional views are available for specific areas of the installation, such as the home heating screen, return protection valve, boiler control, and settings screen, where system parameters can be adjusted to individual needs. With its modern and stylish casing, the surface-mounted version is ideal for both technical and living spaces.

Connection and Communication

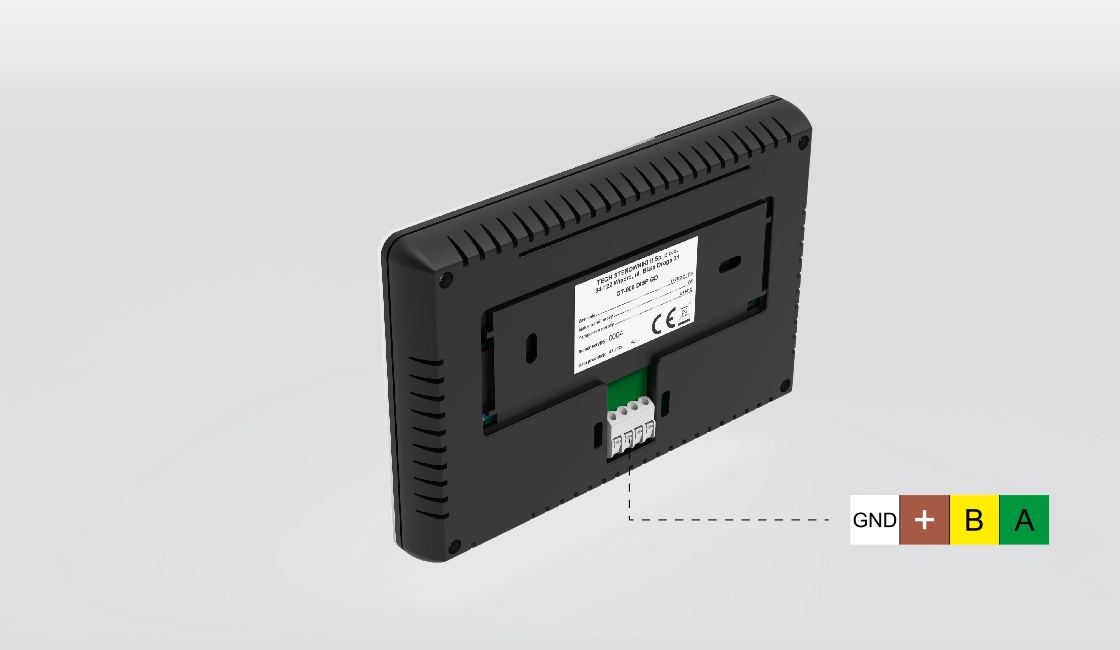

The panel communicates with the executive module via a wired RS connection, ensuring stable and fast data exchange. The connector is located on the back of the device, allowing for easy routing of the cable within the wall. Installation does not require an additional power supply – both communication and power are provided through a single, shared connection.

Installation

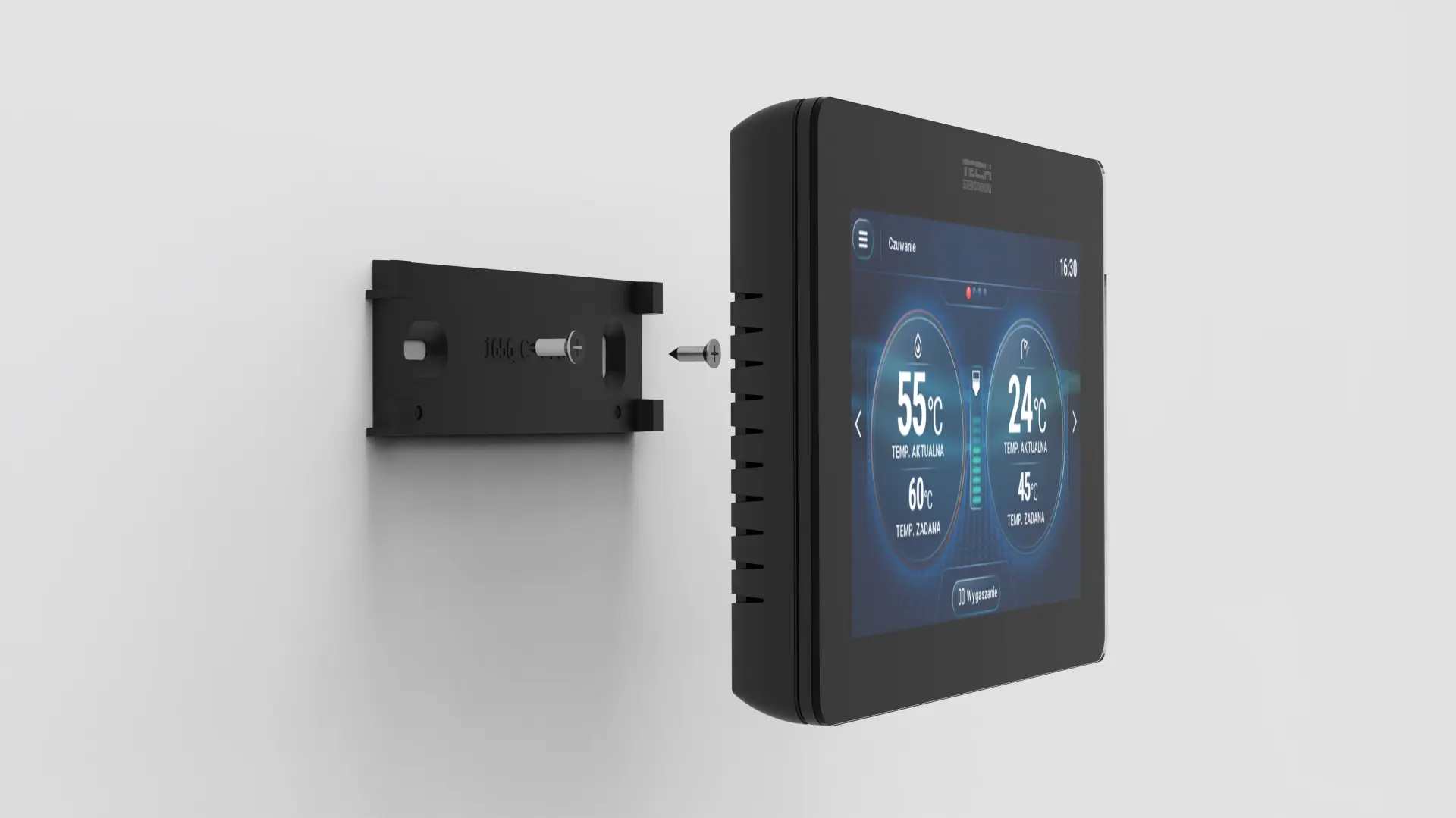

The surface-mounted control panel is designed for quick installation without the need to modify the wall. The device is mounted directly onto the wall using a dedicated bracket or support. This mounting method ensures easy service access, and the installation does not require any specialized tools or the preparation of openings in the wall structure.

Device Dimensions

The control panel has been designed with compactness and user convenience in mind. Its carefully considered proportions make it suitable for both new and renovated interiors.

Dimension Details:

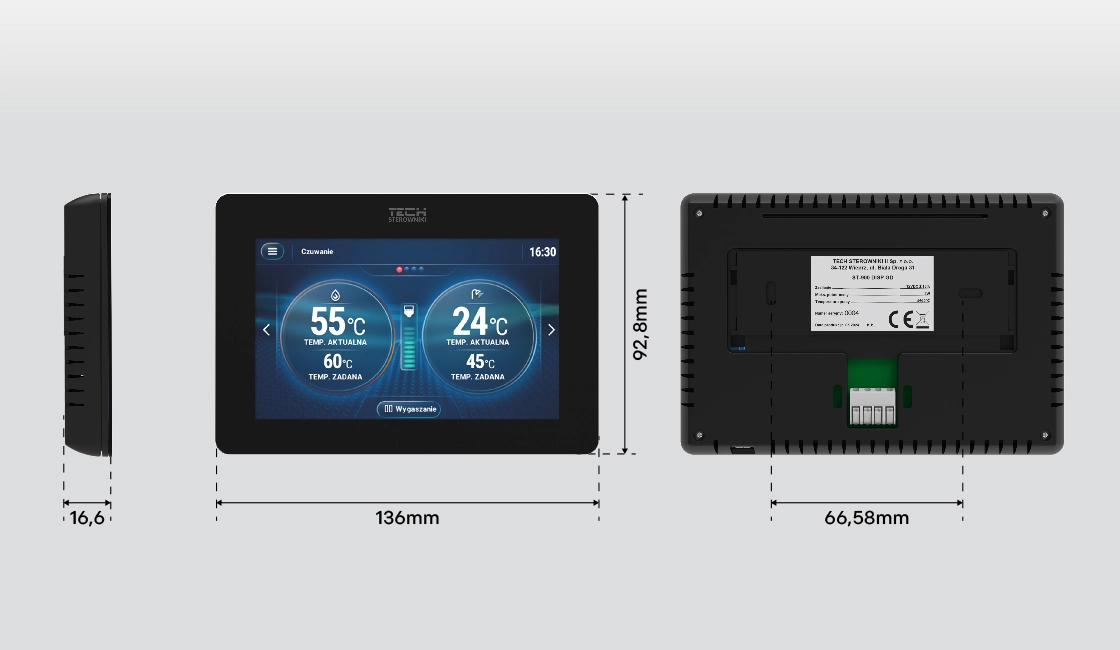

• Dimensions: 136×92,8×16,6mm
• Screw spacing: 66,58 mm
• Mounting type: surface-mounted

Additional Options

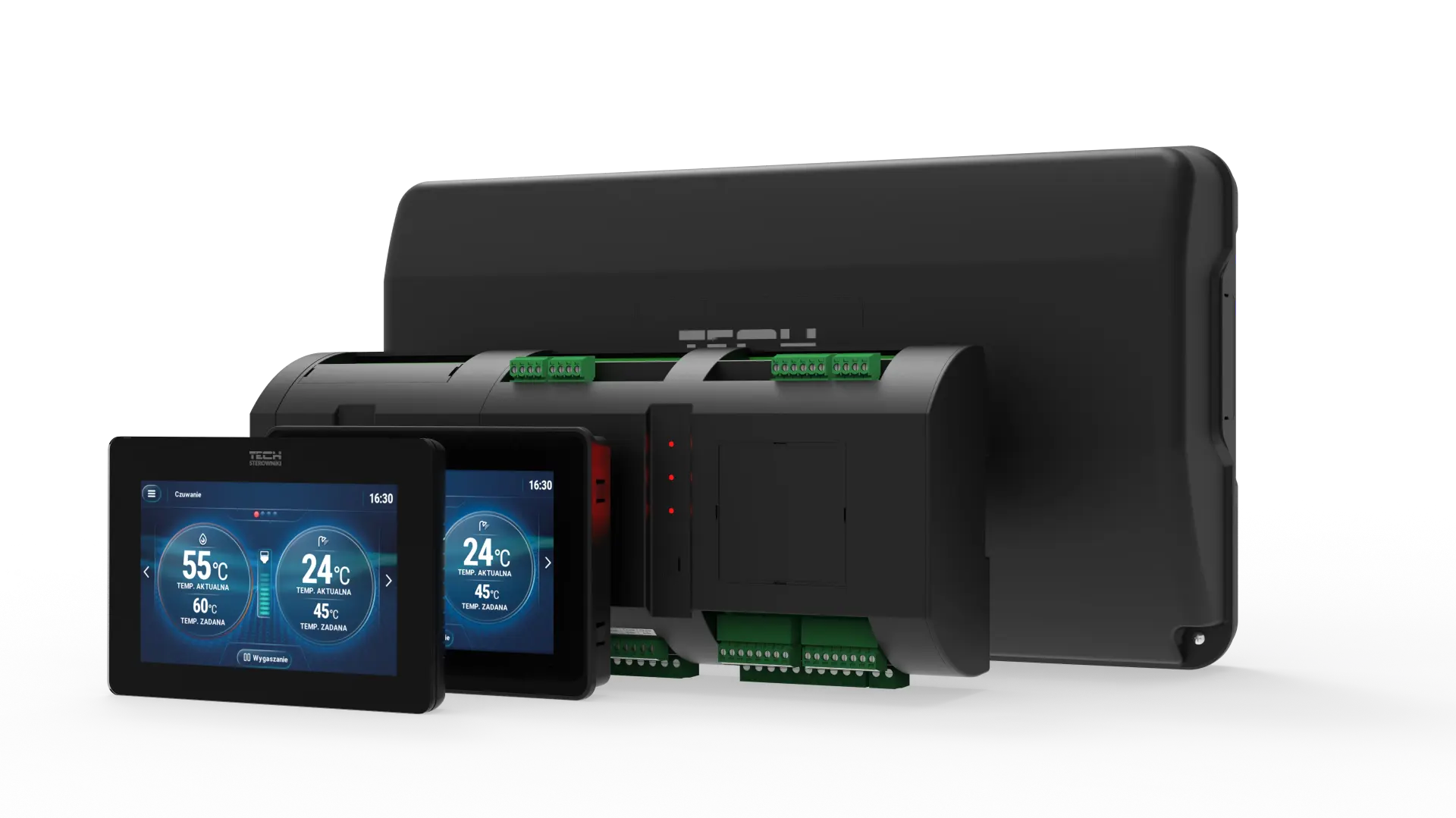

The actuator module comes with a control panel, which can be selected as a flush-mounted or surface-mounted version, depending on mounting preferences and installation conditions. Additionally, the user can equip the set with a dedicated enclosure for the actuator module, allowing for aesthetic and safe placement of the device in a control cabinet or on a wall.
