EU-48

Functions performed by the controller: Control of the fan and feeding screw or piston feeder Control of the CH, DHW, floor and circulation pump

Product description

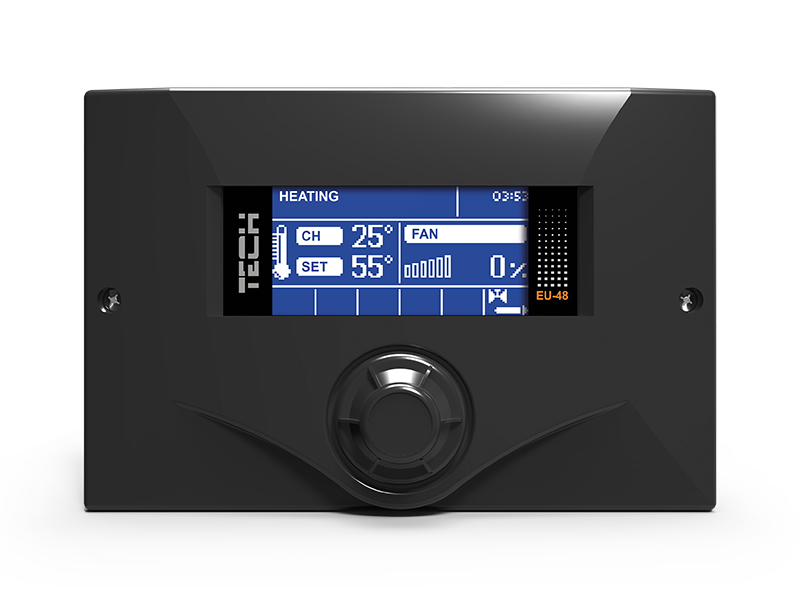

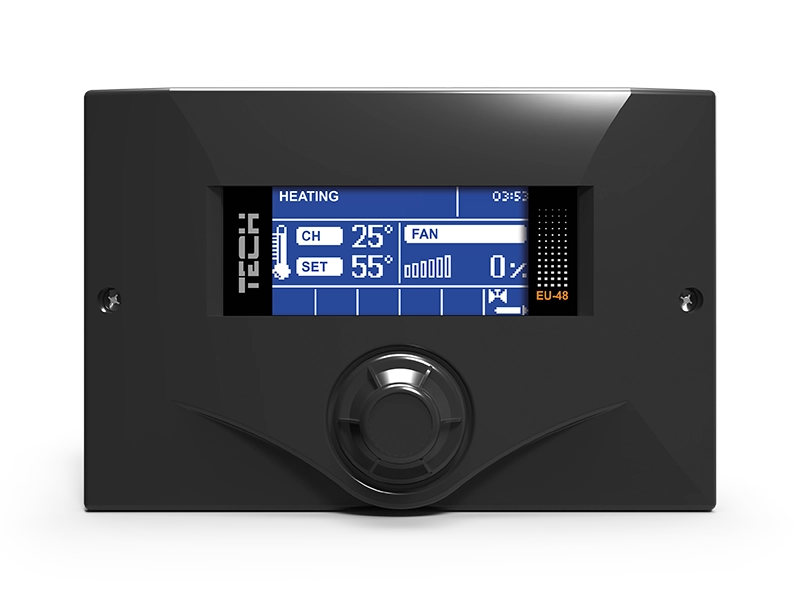

Controller for Boilers with Feeders



Functions performed by the controller:

  • Control of the fan and feeding screw or piston feeder
  • CH pump control
  • DHW pump control
  • Control of the floor pump
  • Control of the circulation pump
  • The possibility to connect a room regulator with RS or traditional communication
  • The possibility to connect the EU-65 GSM module
  • The possibility to connect the EU-505 ETHERNET module
  • The possibility to control two valves with the use of additional EU-61v4 or EU-431n modules



Controller’s equipment:

  • Large graphic display facilitating the controller’s operation
  • Pulsator knob
  • CH temperature sensor
  • DHW temperature sensor
  • Floor temperature sensor
  • Thermal protection
  • Feeding screw temperature sensor (protection)
  • Single-module panel casing for the boiler’s installation or in a metal casing

Product parameters

Specification Unit
Power supply V 230V/50Hz +/-10%
Maximum power consumption W 11
Ambient temperature °C 5÷50
CH max. pump output load A 0,5
DHW max. pump output load A 0,5
Measurement accuracy °C 1
Fuse A 6,3
Temperature measurement range °C 0÷85
Feeder output load A 2
Max. floor pump output load A 0,5
Max. circulation pump output load A 0,5
Max. fan output load A 0,6
