EU-340 ADVANCE N

ADVANCE 5'' Surface-Mount Heat Recovery Controller Panel

The system is designed for comprehensive management of heat recovery ventilation in residential and commercial buildings. Thanks to the advanced controller, precise control of air supply and exhaust, temperature regulation, schedule management, and filter status monitoring are all possible. The kit ensures full integration with the ventilation system, enhancing both the building’s energy efficiency and user comfort.

Control Panel – Surface-Mount Version

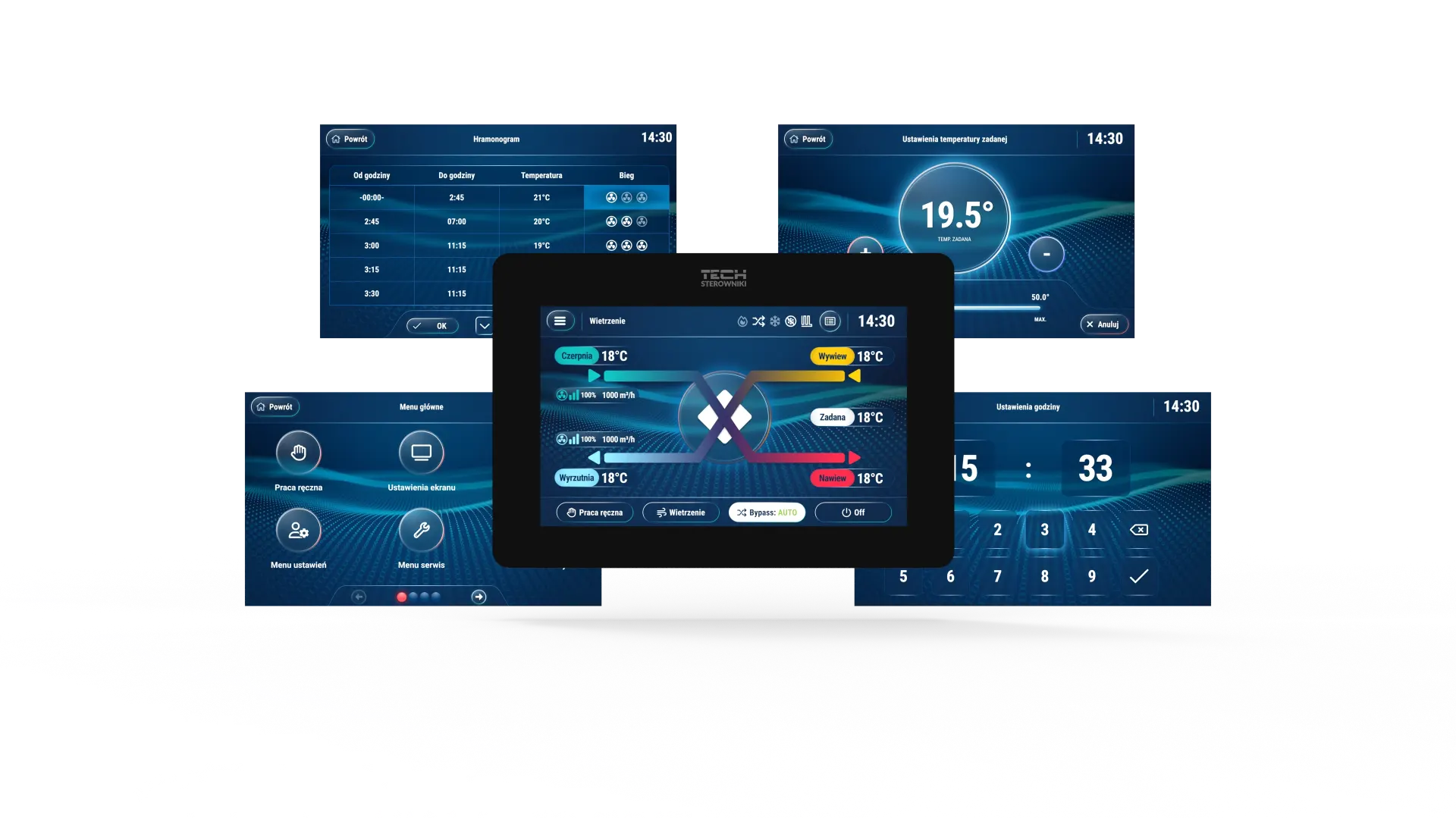

The modern touch-screen panel offers an intuitive menu designed to meet the needs of both users and installers. Thanks to its clear interface, it allows real-time monitoring of device parameters and quick adjustments of settings.

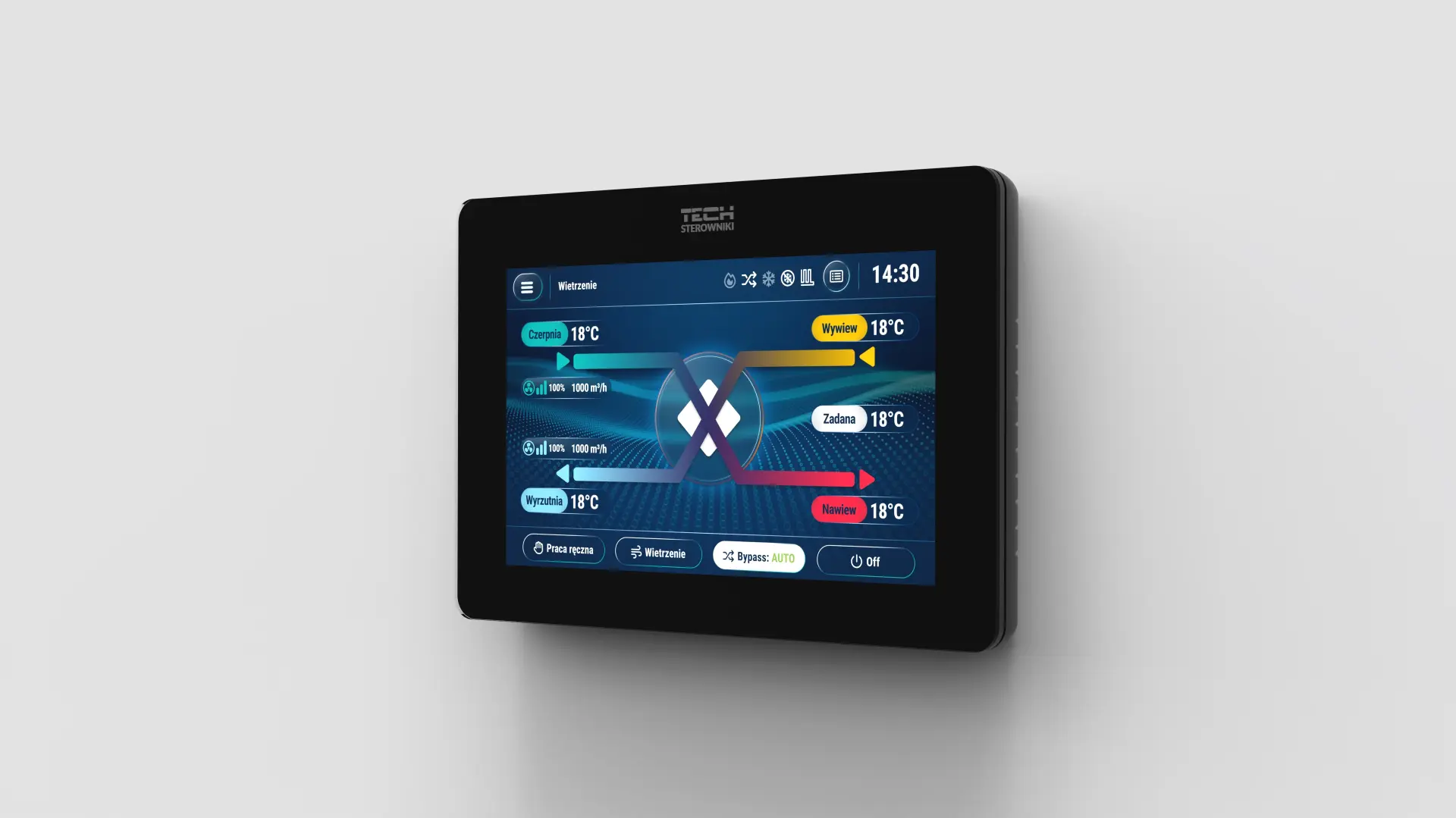

The surface-mount version of the control panel has been designed for easy and quick installation without the need to modify the wall structure. Equipped with a modern 5'' TFT touch display, it enables intuitive control of the entire heating system.

Functions:

• Display and edit the current date and time
• Display and edit operating mode
• Display and edit target temperature
• Change unit operating parameters
• Screen saver
• Visual graphical interface
• Customizable on-screen menu
• Ability to personalize graphics
• Software update capability
• Optionally mountable built-in radio and/or WiFi module

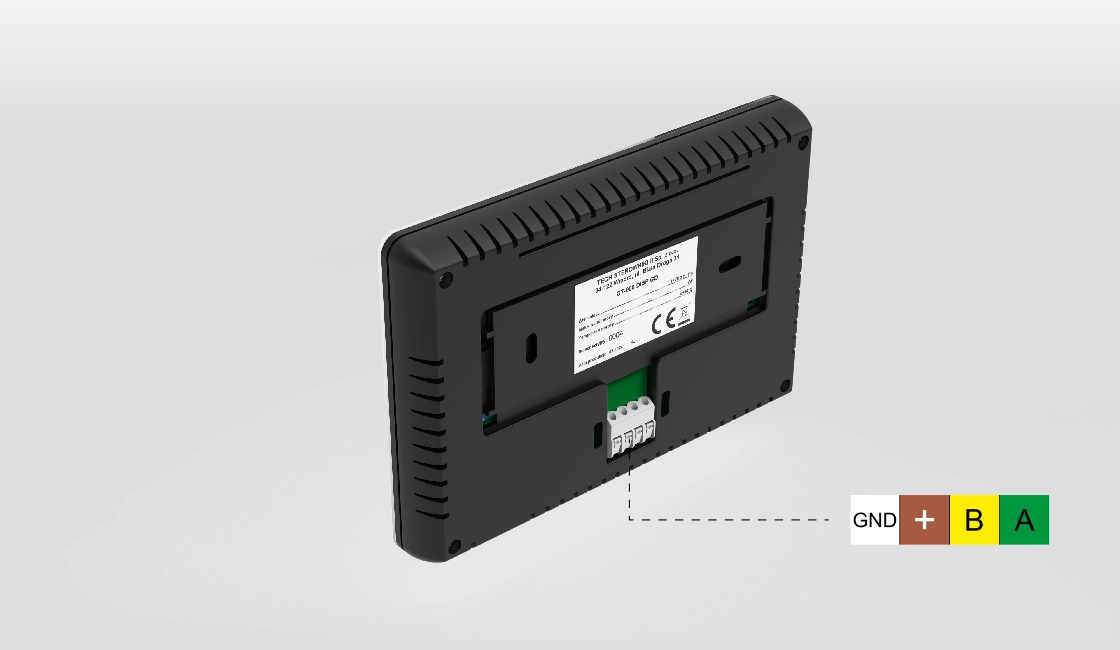

Connection and Communication

The panel communicates with the actuator module via a wired RS connection, ensuring stable and fast data exchange. The connector is located on the back of the device, allowing easy routing of the cable inside the wall. Installation does not require additional power – both communication and power are provided through a single shared connection.

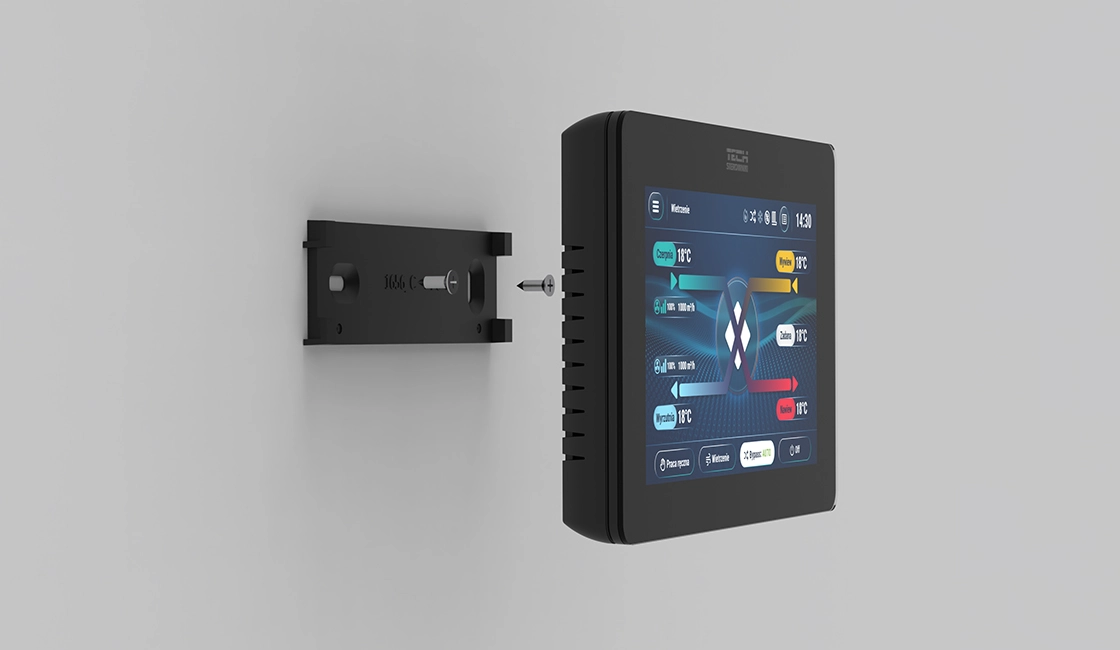

Installation

The surface-mount control panel is designed for quick installation without the need to modify the wall. The device is mounted directly onto the wall surface using a dedicated bracket or support. This installation method ensures easy access for servicing and does not require specialized tools or creating an opening in the wall structure.

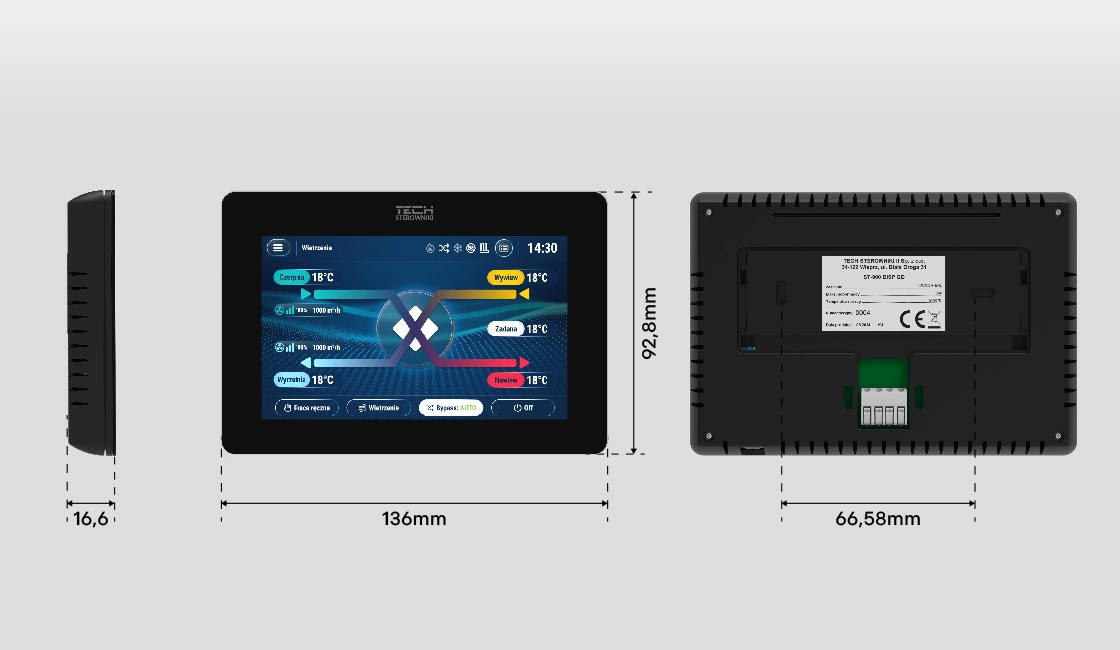

Device Dimensions

The control panel has been designed for compactness and user convenience. Its carefully considered proportions make it suitable for both new and renovated interiors.

Dimension details:

• Dimensions: 136×92,8×16,6mm
• Screw spacing: 66,58mm
• Display size: 108×65mm
• Mounting type: Surface-mount

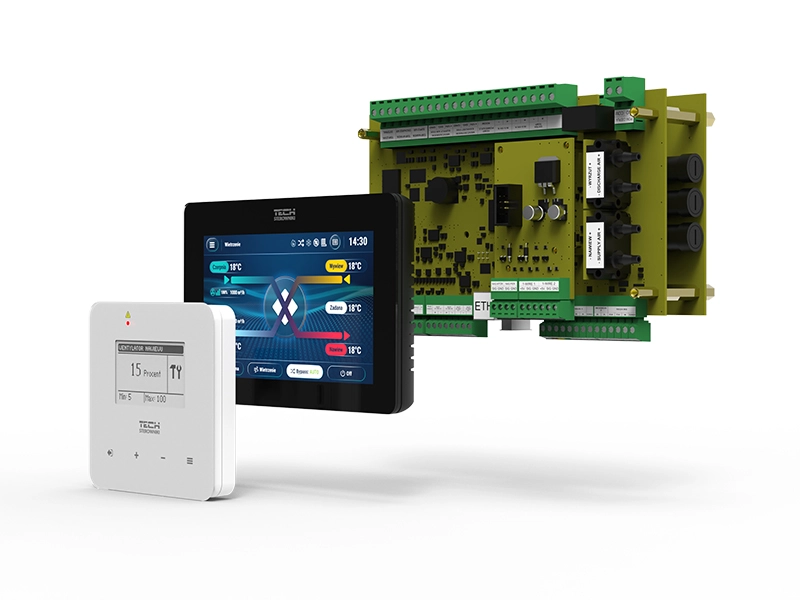

Optional Executive modules

The control panel is available as part of a kit with one of two actuator modules, tailored to different installation needs. The available options are Simple and Extra, which differ in the range of supported sensors, number of outputs, and functionality.

Each kit can be paired with either the BASIC or ADVANCE panel, depending on the chosen mounting type. The kit also includes the necessary cabling and sensors, allowing for quick and convenient system setup.
