EU-340 ADVANCE D

ADVANCE 5'' Flush-Mount Heat Recovery Controller Panel

The flush-mount control panel is a modern and minimalist solution designed for user convenience and seamless integration with interior design. Featuring a glass surface with an intuitive touch interface, the panel allows quick and precise control of the ventilation system. The integrated display shows the current operating parameters of the device, while the entire unit has been designed with durability, ease of use, and aesthetics in mind.

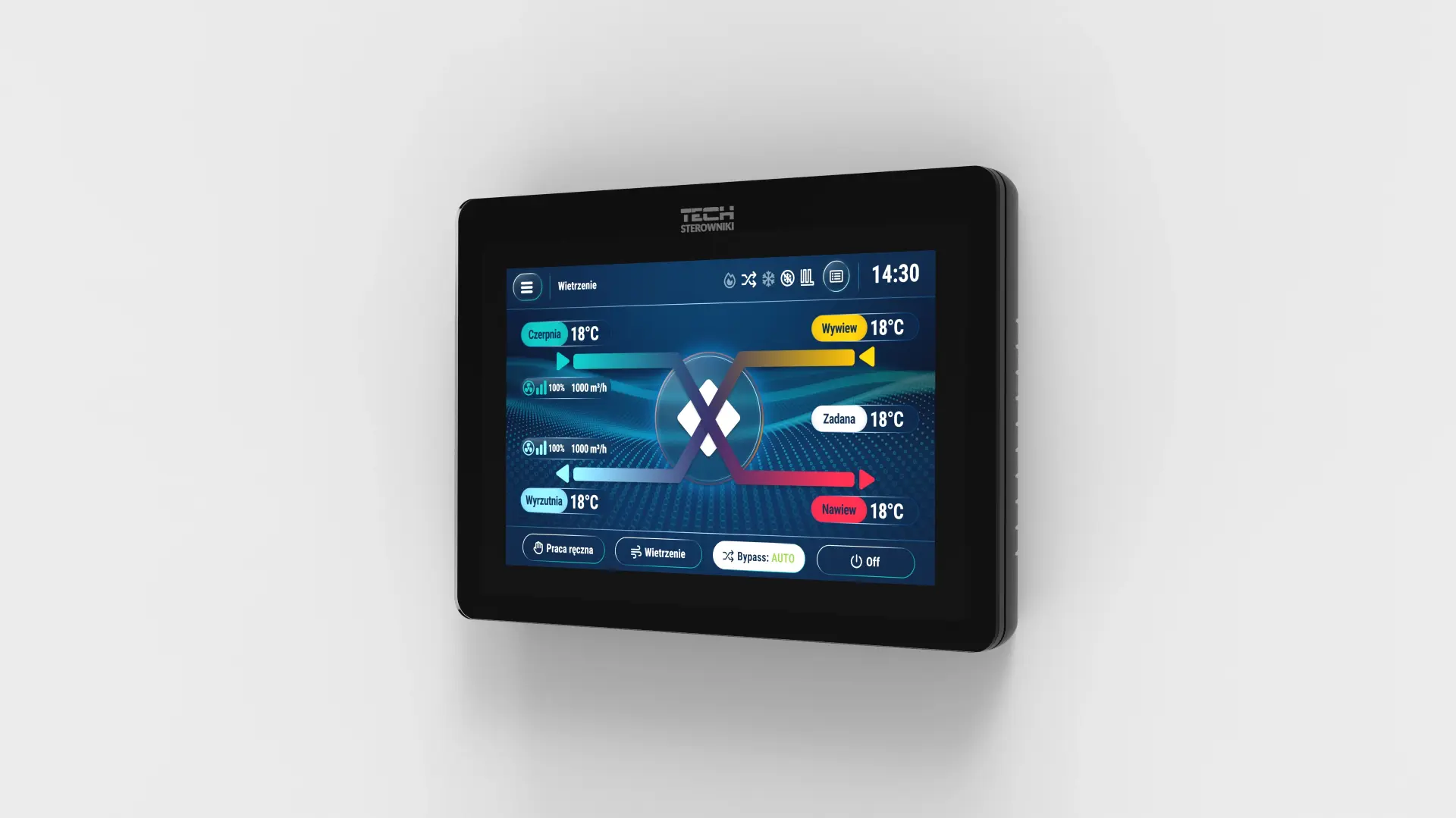

Control Panel – ADVANCE Flush-Mount Version

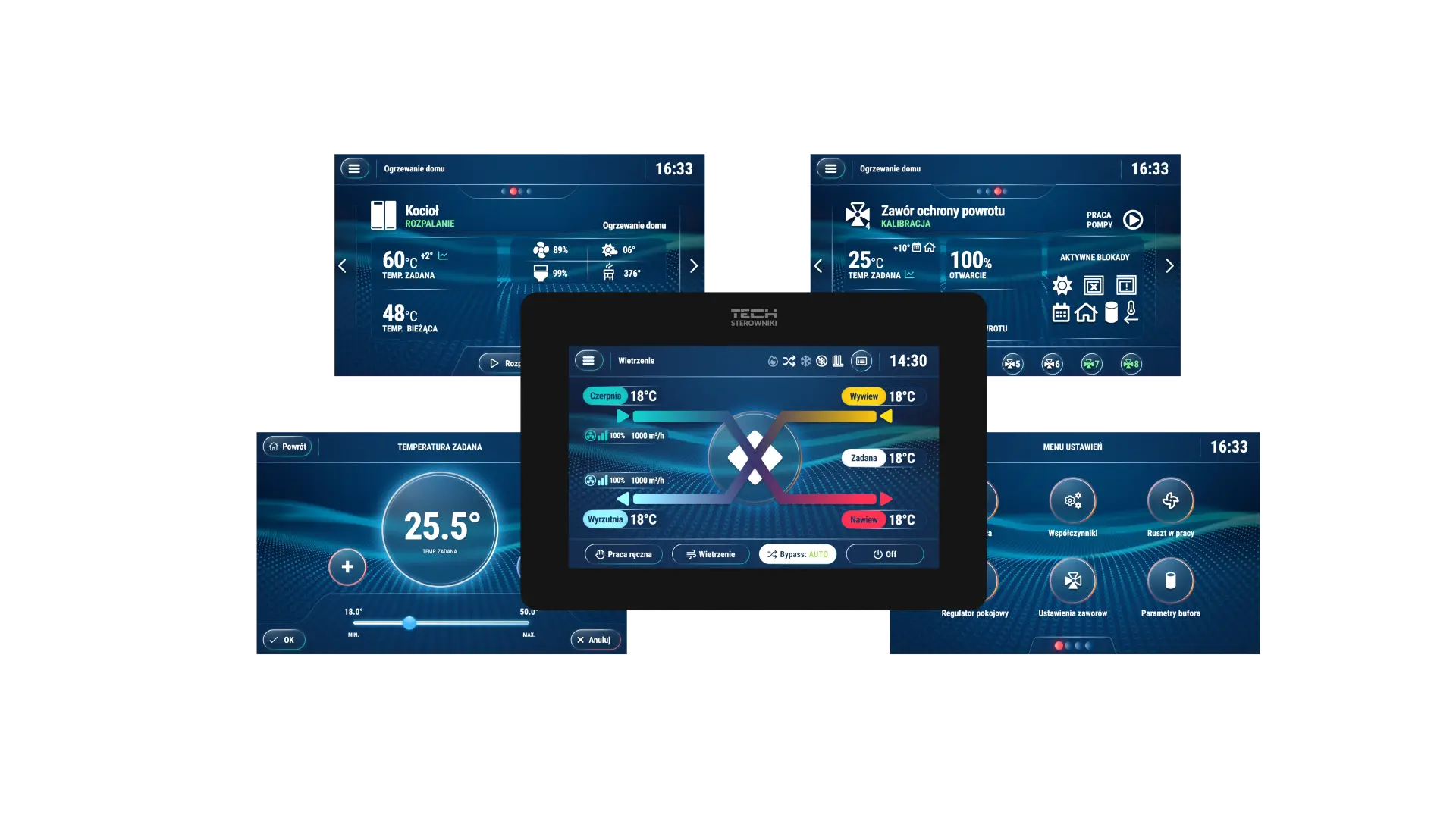

The modern touch-screen panel offers an intuitive menu tailored to both user and installer needs. Thanks to its clear interface, it enables real-time monitoring of device parameters and quick adjustment of settings.

The flush-mount version is designed for installation in a wall recess up to 1 mm thick, allowing the device to be elegantly and discreetly integrated into the wall. The glass panel with a 5'' TFT touch display is the only visible element, ensuring a modern look and comfortable operation.

Functions:

• Display and edit current date and time
• Display and edit operating mode
• Display and edit set temperature
• Change device operating parameters
• Screen saver
• Visual graphic interface
• Individually customized on-screen menu
• Option for personalized graphics
• Software update capability
• Possibility to install an additional built-in radio and/or WiFi module

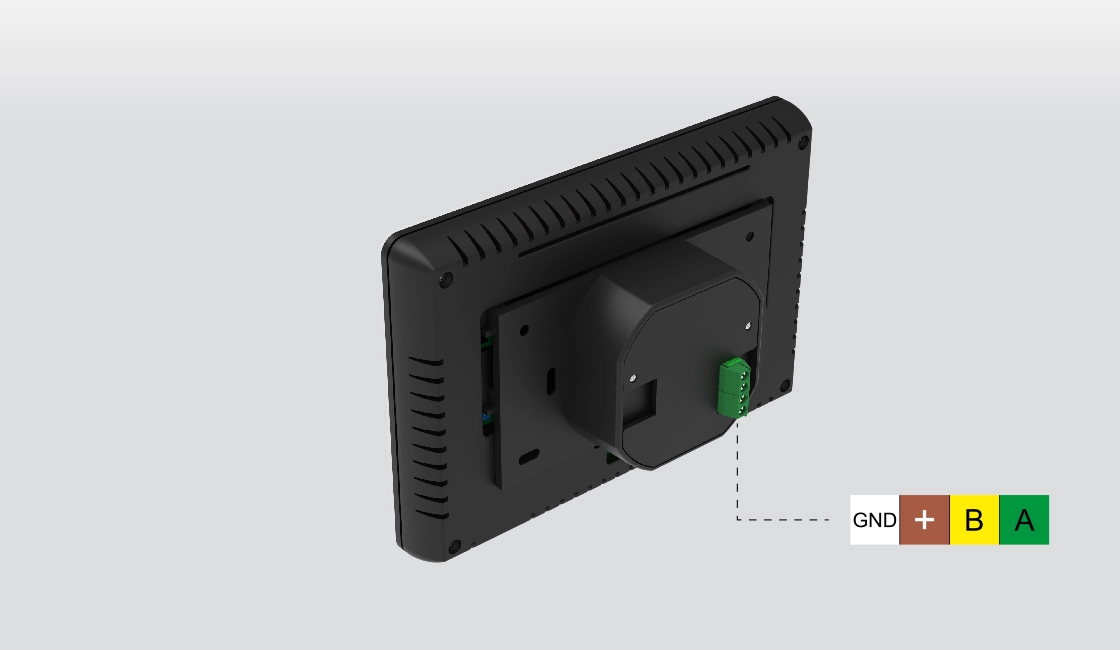

Connection and Communication

The panel communicates with the control module via a wired RS connection, ensuring stable and fast data exchange. The connector is located at the back of the device, allowing easy routing of the cable inside the wall. No additional power supply is required – both communication and power are provided through a single shared connection.

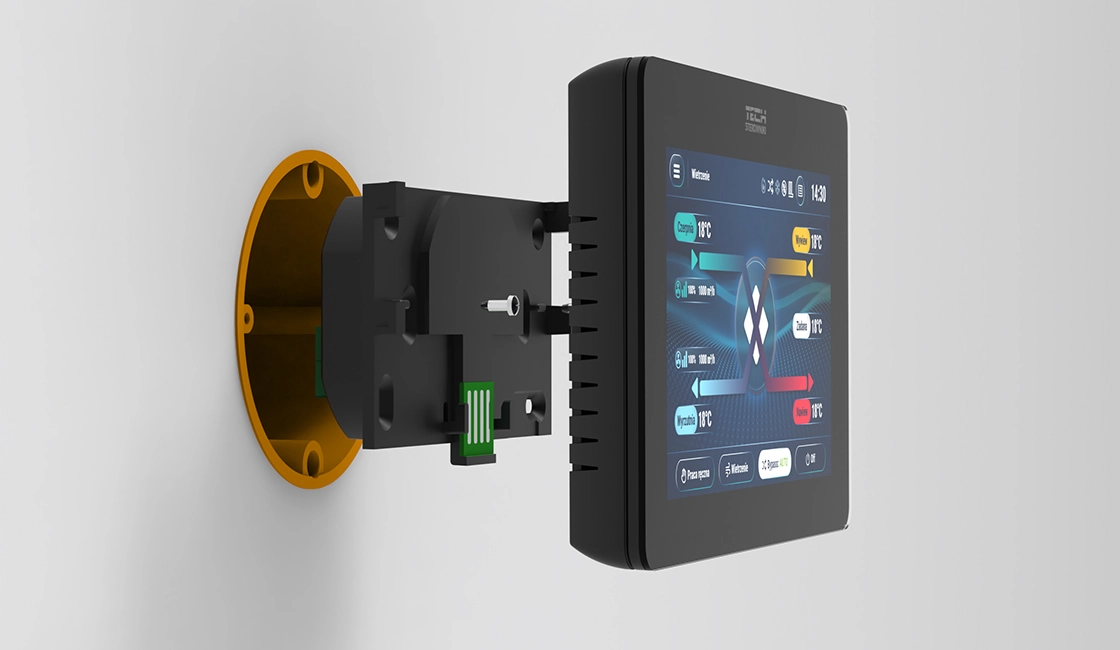

Installation

The Advance flush-mounted control panel features an installation section placed inside the mounting box, while the front of the device remains visible on the outside, forming a modern and elegant control surface. This design ensures a quick and clean installation, with the panel stylishly integrated into the wall — without any visible cables or additional components.

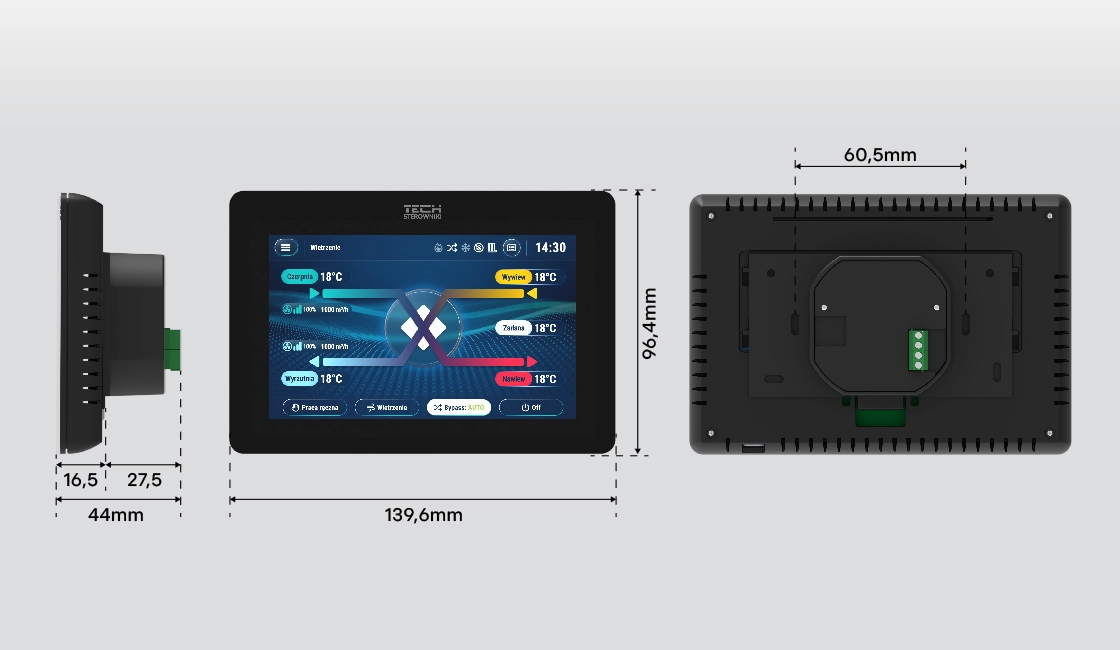

Device Dimensions

The flush-mounted control panel has been designed with compact dimensions, allowing for convenient installation and a seamless fit into any interior space.

Dimension details:

• Dimensions: 139,6x96,4x16,6mm
• Mounting section: 135,86x90,66mm
• Display size: 108x65mm
• Mounting type: flush-mounted

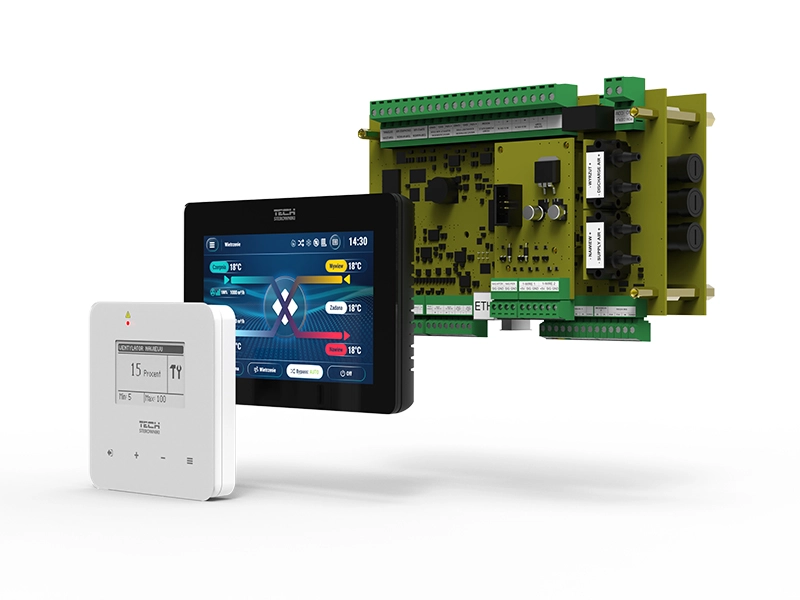

Optional Executive modules

The control panel is available as a set with one of two actuator module variants, tailored to different installation needs. You can choose between the Simple and Extra versions – each offering different sensor support, output count, and functionality.

Every set can be configured with either the BASIC or ADVANCE control panel, depending on the preferred installation type.
The kit also includes all necessary wiring and sensors, ensuring a quick and convenient system start-up.
