EU-292 v2

Wireless Two-State Room Regulator

(glass front panel 3mm)

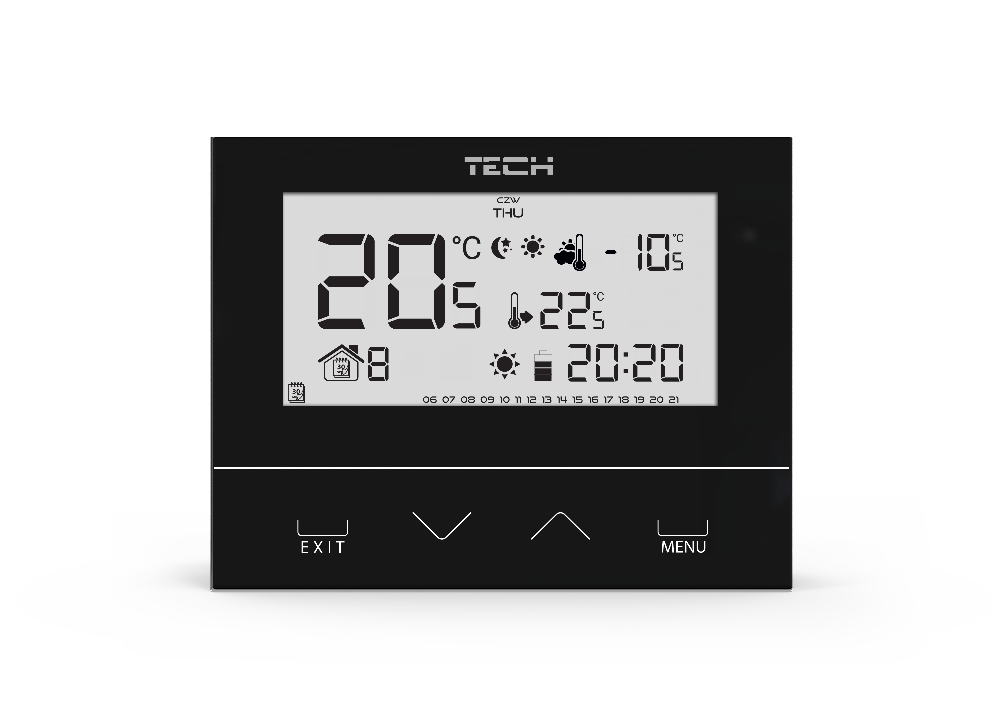

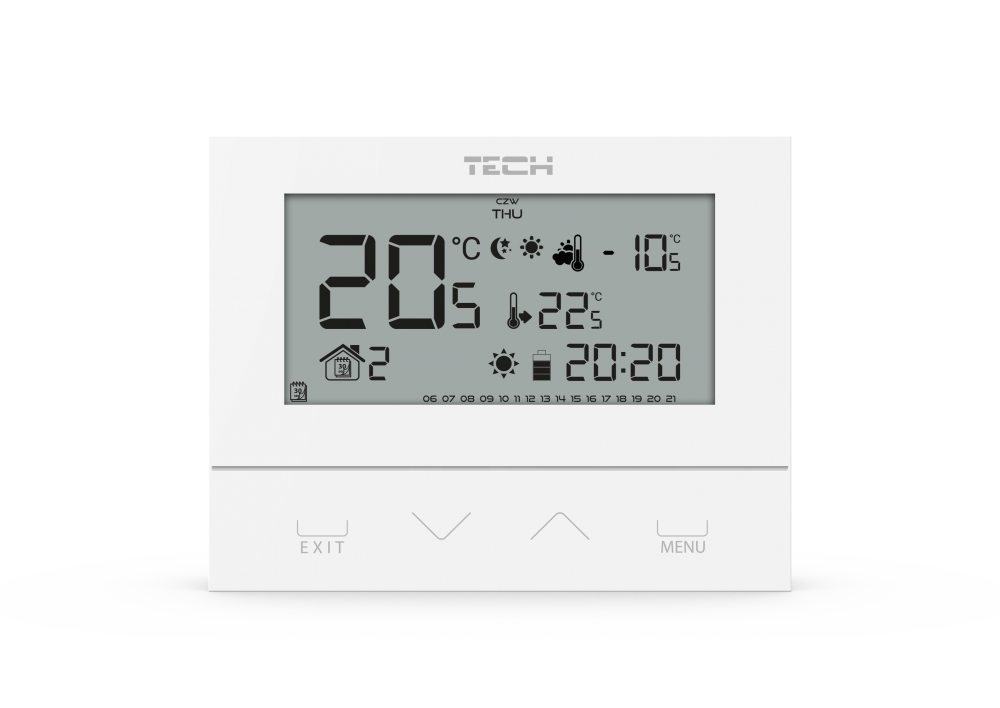

* white or black, temporary display backlit

The type EU-292 room regulator is intended to control a heating device (e.g. a gas furnace, an oil furnace, an electrical furnace or the boiler’s controller). This regulator is designed to maintain the set temperature in the apartment by sending a signal to the heating device (opening contact) with information about heating up the room to the required temperature.

Functions Performed by the Controller:

• Wireless communication
• Controlling room temperature +/- with 0,1 deg. C accuracy
• Histeresis range 0,2- 8 deg. C
• Weekly heating program
• Day/night program
• Manual program
• Optimum Start function
• 2-wire connection from receiver
• Non-voltage No/Com/Nc relay (max. 1A/230V/AC)
• Additional control based on floor temperature (if wired NTC floor sensor is used)
• Optional outside sensor can be registered to room thermostat to show outside temperature on display

Controller’s Equipment:

• Temporary illumination of the display
• Built-in room sensor
• Glass front panel 3mm
• Capacitive buttons
• Power adapter (signal receiver) with No/Com/Nc relay (max. 1A/230V/AC)

OPTIMUM START function:

This function enables intelligent control of the heating device, increases efficiency and provides better thermal comfort. The room regulator, learning by itself, will select the optimal boiler activation time in order to achieve thermal comfort, so that the room is heated to the set temperature for a pre-set time.

HEATING / COOLING mode:

This function allows you to control devices used for heating, such as cooling devices or air conditioners. In order to configure the operation, select the function in the menu that you want the regulator to perform (heating or cooling).

FLOOR TEMPERATURE sensor:

When using an additional floor temperature sensor, the room regulator will control the room temperature taking into account the floor temperature (set the minimum and maximum floor temperature). Among other things, we can prevent the floor from cooling down in well-sunny rooms.
