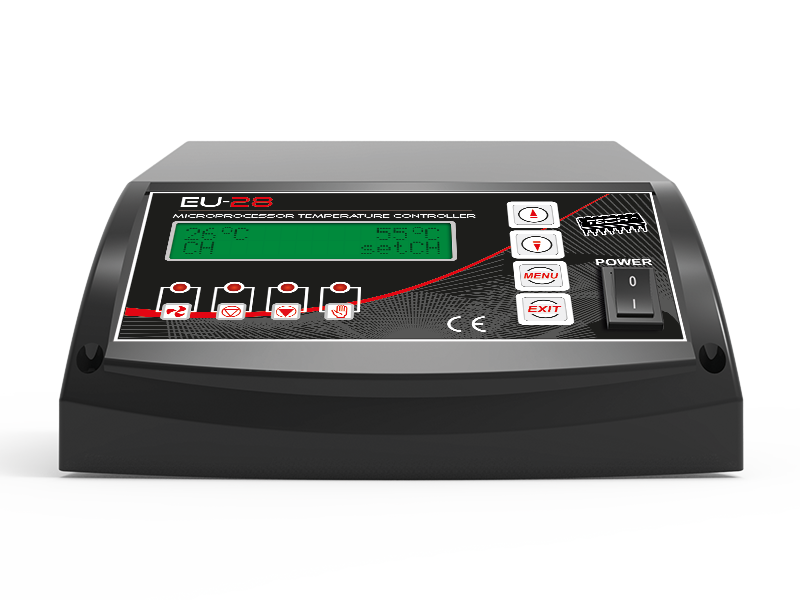

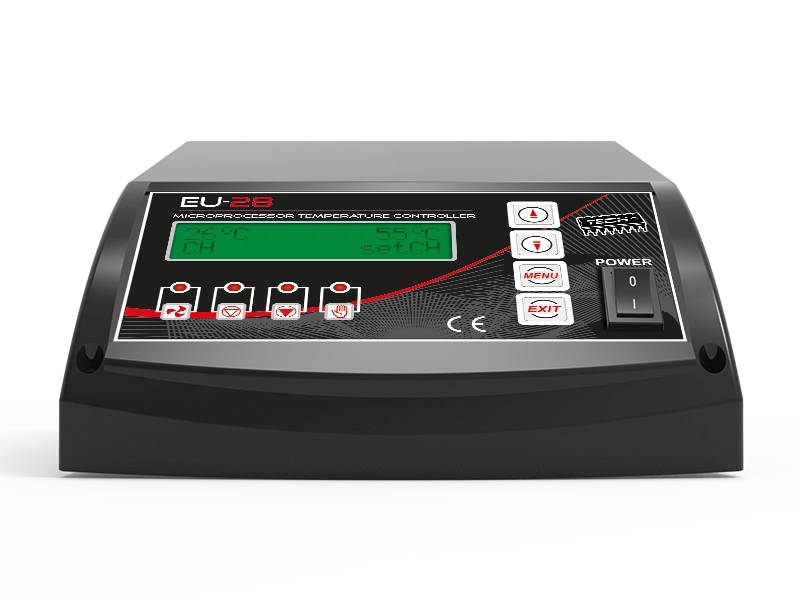

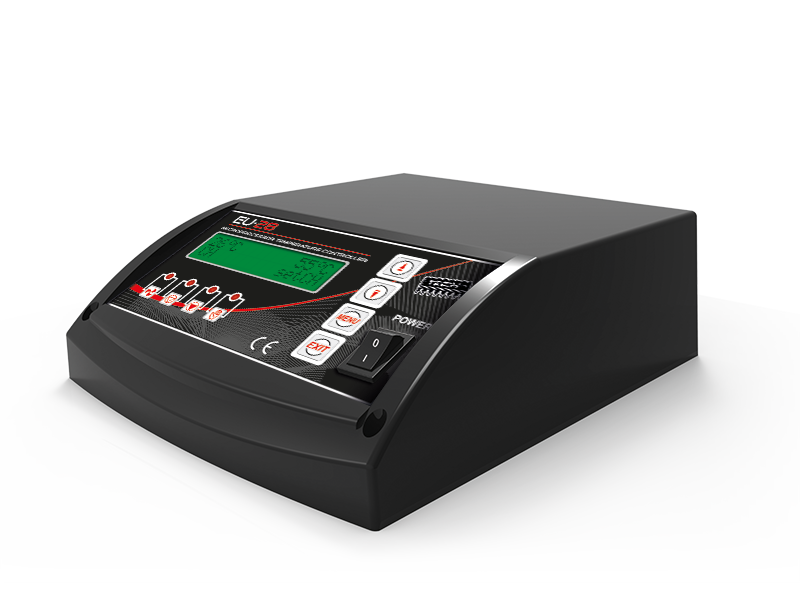

EU-28



Controller for Charging Boilers

The EU –28 temperature regulator is intended for CH charging boilers. It controls the water circulation pump, the DHW pump and the fan. There are four optional modes of the pump’s operation: house heating, boiler priority, parallel pumps and summer mode. The controller’s casing is adapted for installation on the boiler.

Functions performed by the controller:

• Fan control
• CH pump control
• DHW pump control
• The possibility to connect a room regulator

Controller’s equipment:

• LED display
• CH temperature sensor
• Thermal protection
• A casing intended for assembly on the boiler
