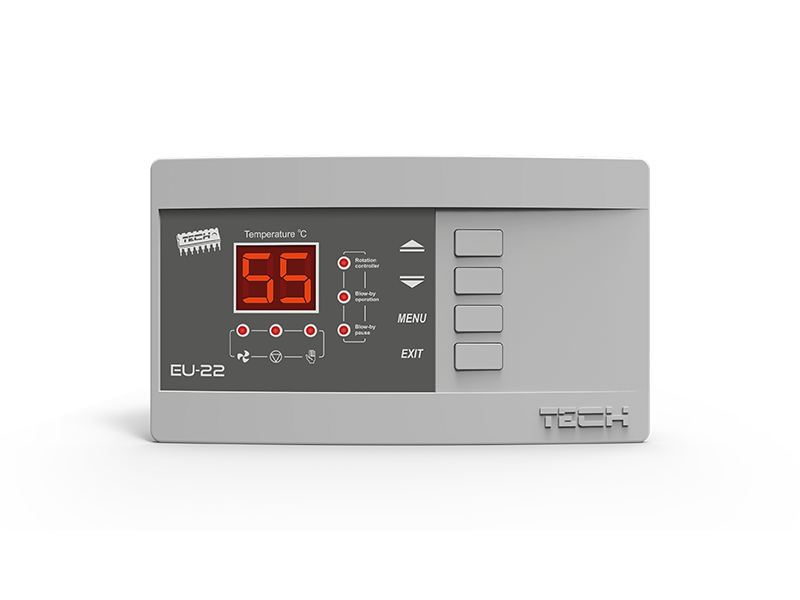

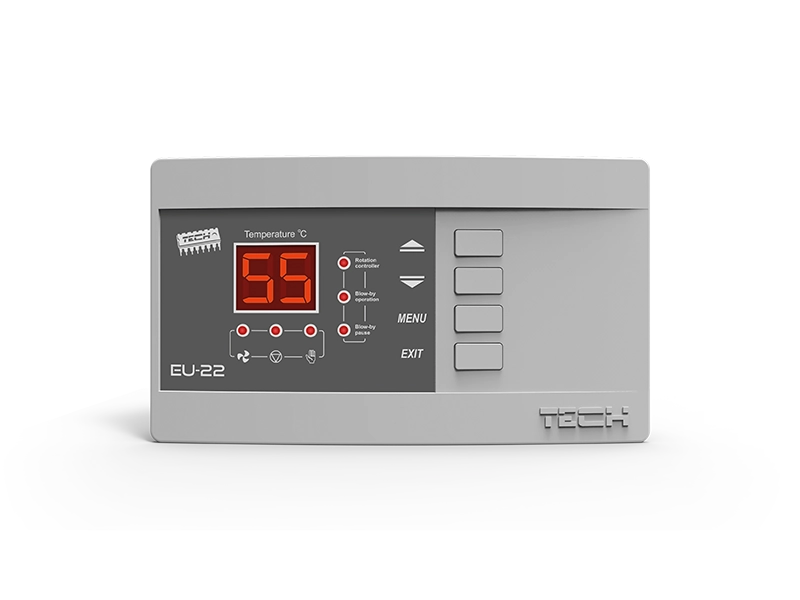

EU-22n

The controller is intended to operate with a CH charging boiler equipped with a fan and a CO water circulation pump. Its task is to maintain the set temperature via the use of a fan. The controller’s casing is adapted for installation with the boiler.

Product description



Controller for Charging Boilers

Functions performed by the controller:

  • Fan control
  • CH pump control



Controller’s equipment:

  • LED display
  • CH temperature sensor
  • Thermal protection
  • Additional support enabling easy assembly on the boiler
  • A casing made from high-quality materials resistant to high and low temperatures

Product parameters

Specification Unit
Power supply V 230V/50Hz +/-10%
Maximum power consumption W 4
Ambient temperature °C 5÷50
CH pump max. output load A 0.5
Fan output load A 0.6
DHW pump max. output load A 0÷85
Measurement accuracy °C 1
Temperature adjustment range °C 40÷80
Sensor thermal resistance °C -25÷90
Fuse A 1,6
