EH-01

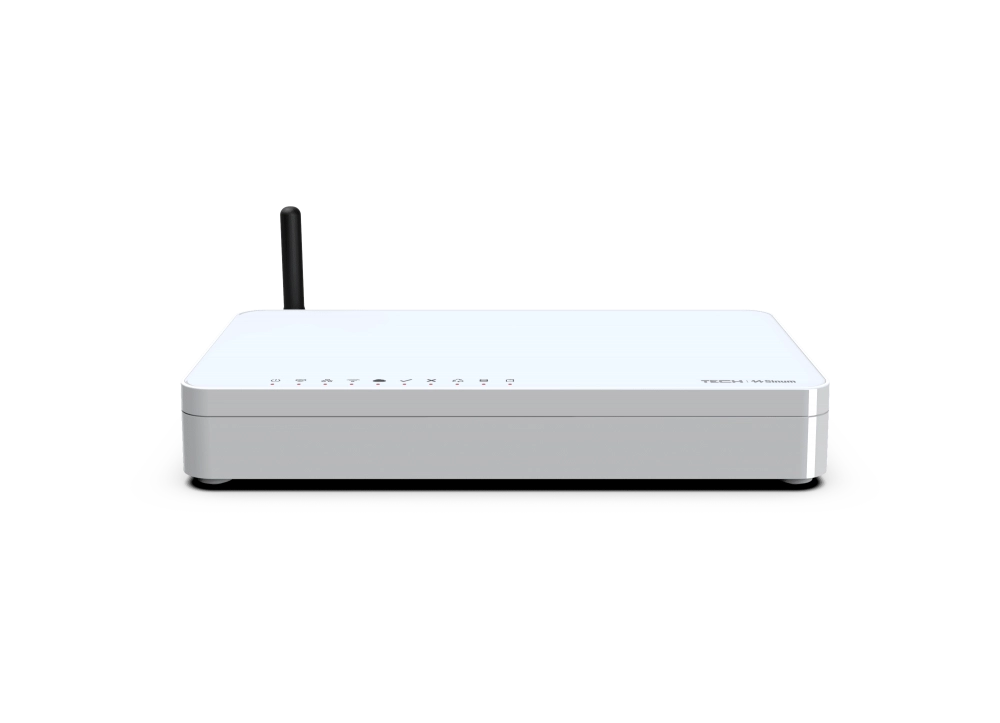

Sinum central device EH-01
Create your dream smart home with the EH-01 central device and the Sinum system.
The EH-01 control unit collects and processes data from external devices and actuator modules, allowing you to monitor and change their operating status both within the home network and via CLOUD access.
The unit allows you to create automation based on connected devices as well as the data they provide. It also allows for the setup of scenes and schedules.
With the EH-01 at the core, your home is managed with full comfort and safety—24 hours a day, 7 days a week.

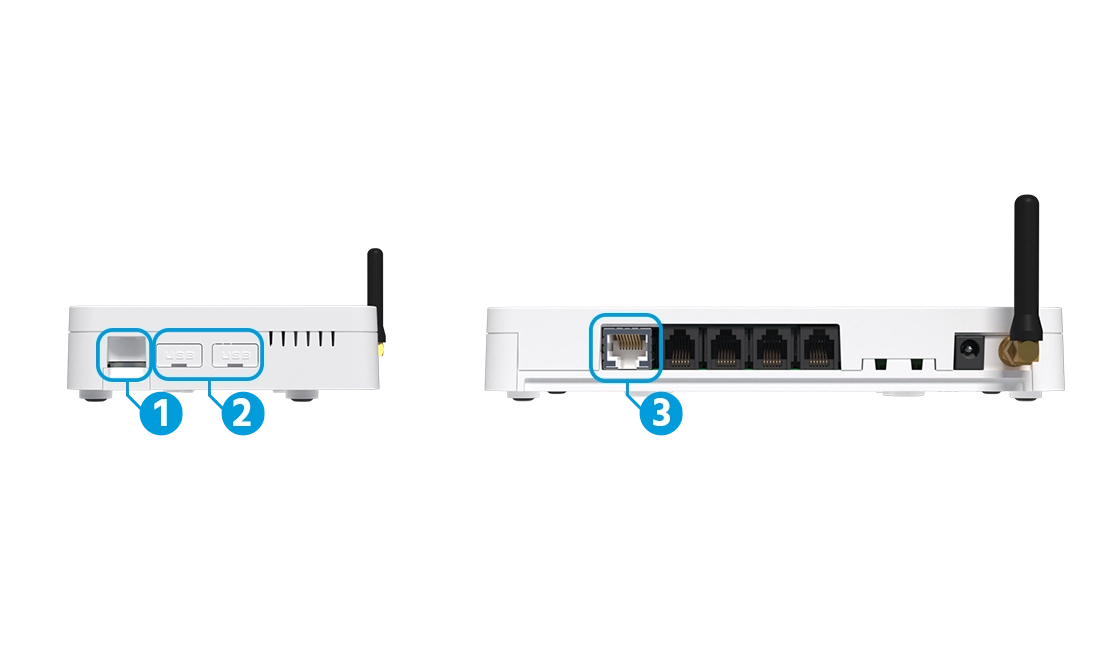

The EH-01 control unit is equipped with 2 additional RS485 inputs (Sinum SBUS and MODBUS RTU) for controlling external devices, 2 USB ports, and 1 micro SD card slot, allowing you to save your settings and download device operation logs.
With an Ethernet port or WiFi connection, the EH-01 can be connected to the Internet, enabling you to control your entire home via smartphone, tablet, or computer from anywhere in the world. In the event of no Internet connection, your smart home will still function and watch over you, as the EH-01 operates within the local LAN network.

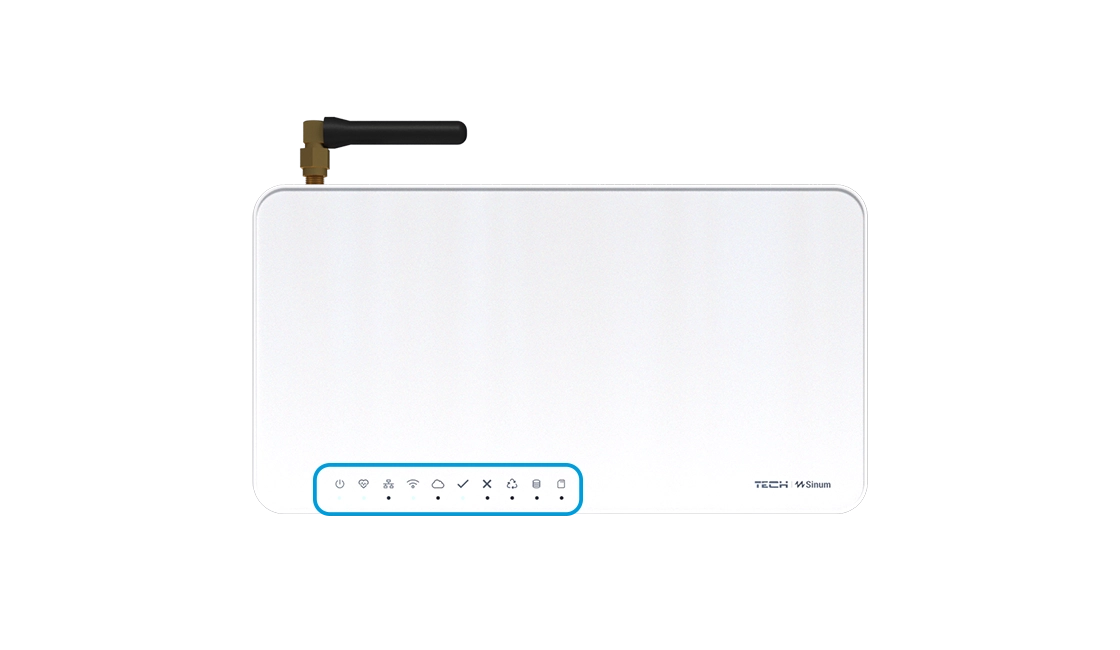

The EH-01 control unit is equipped with LED indicators located on its top panel. These LEDs provide information about the current operating status of the device, making it easy to check what is happening with the unit and the status of its network connection. This allows the user to conveniently monitor the operation of the control unit and quickly obtain information about its current state.
Communication between devices can take place either wired or wirelessly. The unit is equipped with four RS ports, enabling communication with other TECH Controllers devices such as underfloor heating manifolds, installation controllers, heat recovery units, or heat pumps. This ensures versatility and flexibility in managing a wide range of installation components.

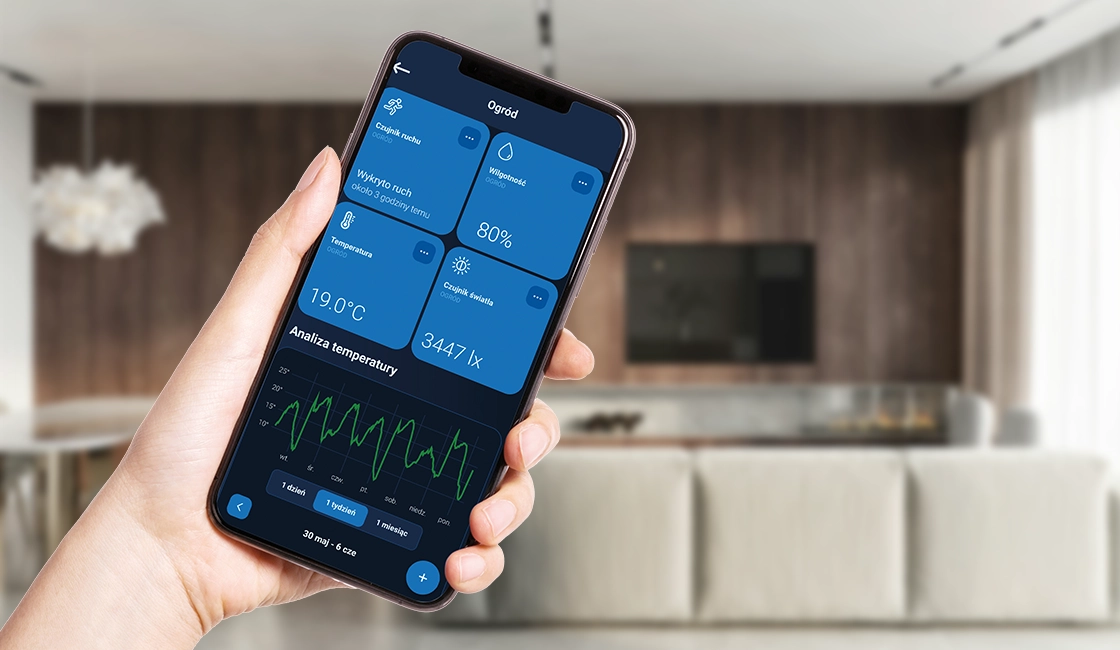

With the Sinum app, you can manage your system anytime and anywhere. The application provides full control over lighting, temperature, blinds, and other household devices, ensuring convenience and energy savings. Its intuitive interface makes it easy to create schedules, scenarios, and monitor energy consumption. Additionally, the Sinum app offers real-time notifications and alerts, guaranteeing complete safety and user comfort.
We invite you to watch our instructional videos, which clearly and simply show you how to configure the Sinum system. With our materials, you will quickly master all the features and ensure your system works exactly the way you need it to!
Why watch?
Like the video – your support motivates us to create more content!
Subscribe to our channel – stay up to date with new materials.
Click the bell – never miss an update.
With Sinum, configuration has never been easier!
| Technical parameters | Value |
| Width | 190,7 mm |
| Height | 30,2 mm |
| Depth | 162,3 mm |
| Power supply | 9-30 V |
| Power consumption | 3W |
| Work temperature | 5° - 50° °C |
| Communications | Ethernet, WiFi, 868Mhz, 4xTECH RS, 2x RS 485 MODBUS |
