2-gang touch glass roller shutter switch WZ-02

Product description


  • operating roller shutter up/down
  • the ability to change the backlit colour and display mode
  • the ability to change the brightness level 0-100%
  • mode of automatic adjustment of the brightness of the backlit to the lighting conditions of the room

Replace the traditional wall switches with glass and stylish ones from the SINGLE series in order to control both the lighting, and any device connected to the SINUM smart home system. 2-gang touch switch equipped with 2 relays and 2 sensor fields, allows you to operate the roller shutter up and down connected to the switch directly from the place of installation.

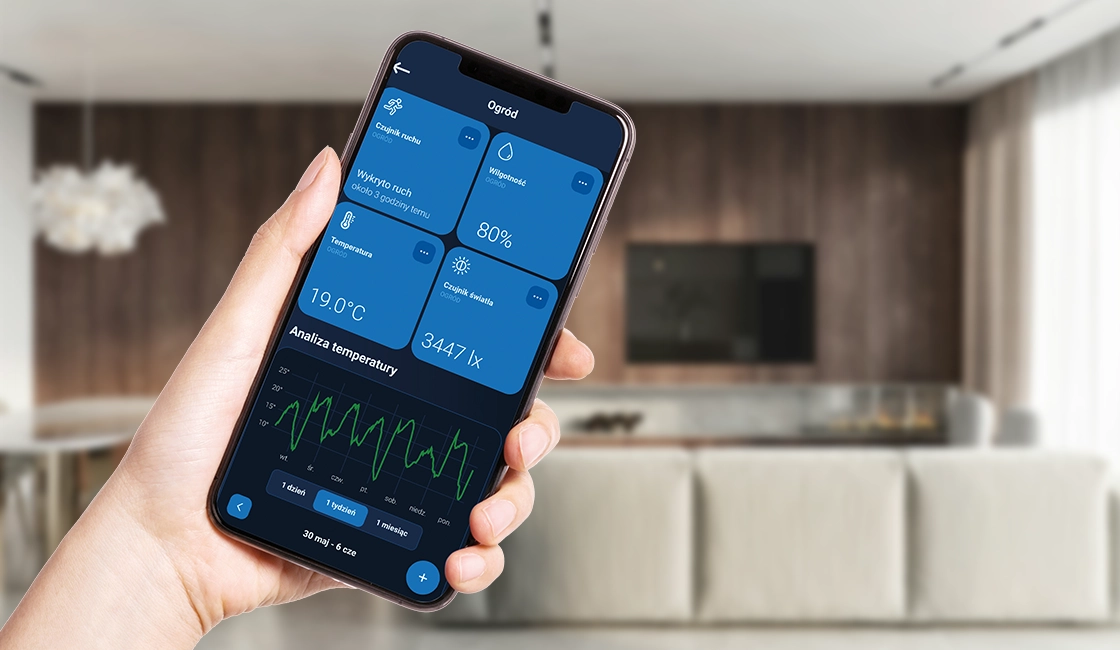

After adding and programming the WS switch in the EH-01 central device, it allows for remote control as well as adding scenes and actions. The switch has a built-in LED indicating the device status (on / off). The user may adjust the backlit colour and brightness using the SINUM application.

Communication with the EH-01 central device is wireless.

Product parameters

Specification Value
Communication Wireless WTP 868MHz
Height 84.7 mm
Width 84.7 mm
Depth 37.2 mm
Power Supply 230 V AC
Power Consumption 1 W
Operating Temperature 5°C - 50°C
Number of Relay Outputs 2
Max Relay Load 0.5 A
