WP-04

Multifunctional 4 gang touch button WP-04

Device Description

  • 4 programmable buttons
  • No relays
  • Long battery life
  • Scene triggering capability

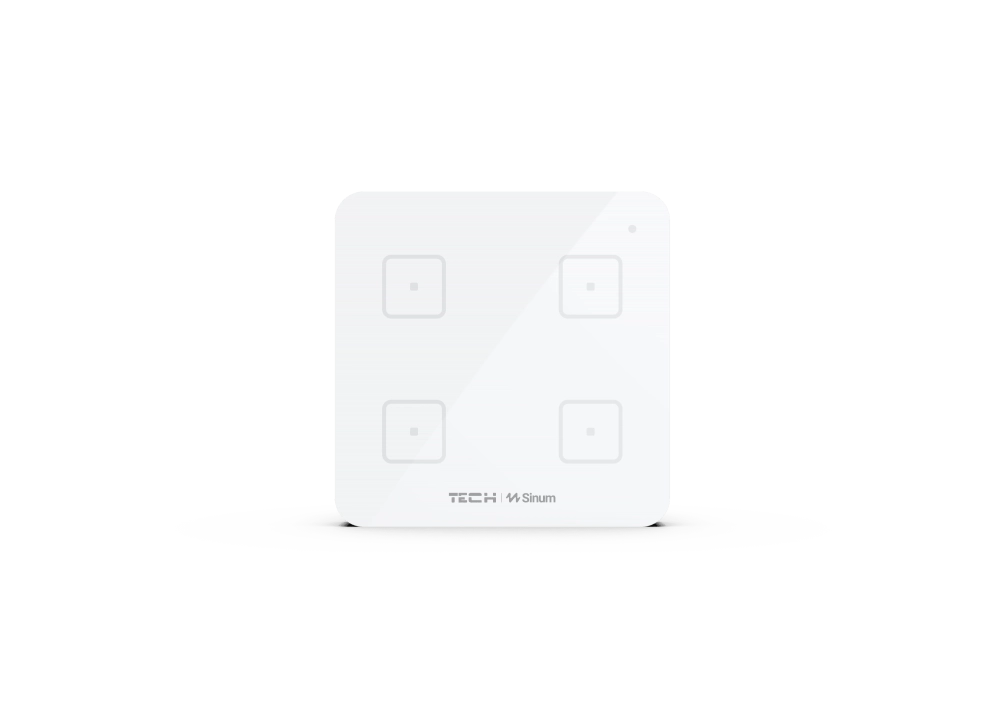

The WP-04 is a multifunctional wireless device whose functions are defined directly from the application. It features four buttons, each capable of triggering a predefined action or activating a specific device. Every button sequence can be assigned a different function — making it possible to control individual devices, groups, or entire scenes.

The installation process is straightforward and intuitive. When a button is pressed, it sends a signal to the Sinum central unit, which decodes the button sequence and executes the corresponding automation or scene assigned in advance.

When combined with other Sinum system devices, the WP-04 allows you to perform actions such as turning off all the lights in your home, closing blinds, or opening the gate — all with a single touch.

Discover how simple it can be — and experience true comfort in your home!

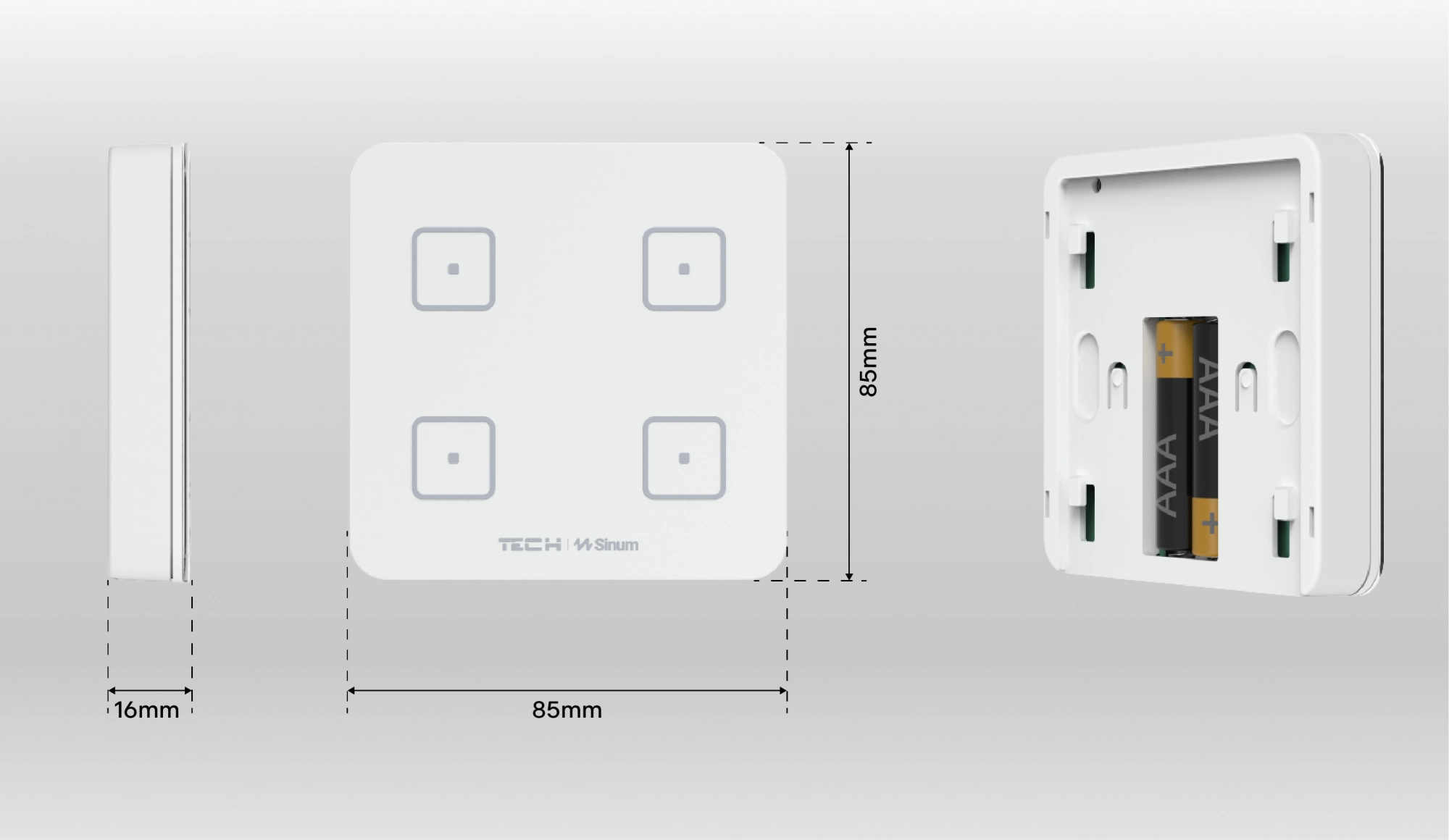

Device Dimensions

Device Dimensions

The glass devices from the Single series have been designed in a compact form, perfectly matching a single glass front panel. Their sleek design ensures an elegant look and seamless integration with any interior style.

Dimension Details

  • Dimensions: 85x85x16mm
  • Mounting type: Surface-mounted

Product parameters

Specification Value
Height 84 mm
Width 84 mm
Depth 16 mm
Power Supply (variable voltage) 2x AAA 1,5V DC
Operating Temperature 5°C - 50°C
Communication Wireless WTP (868 MHz)

Files to download

Warranty card
