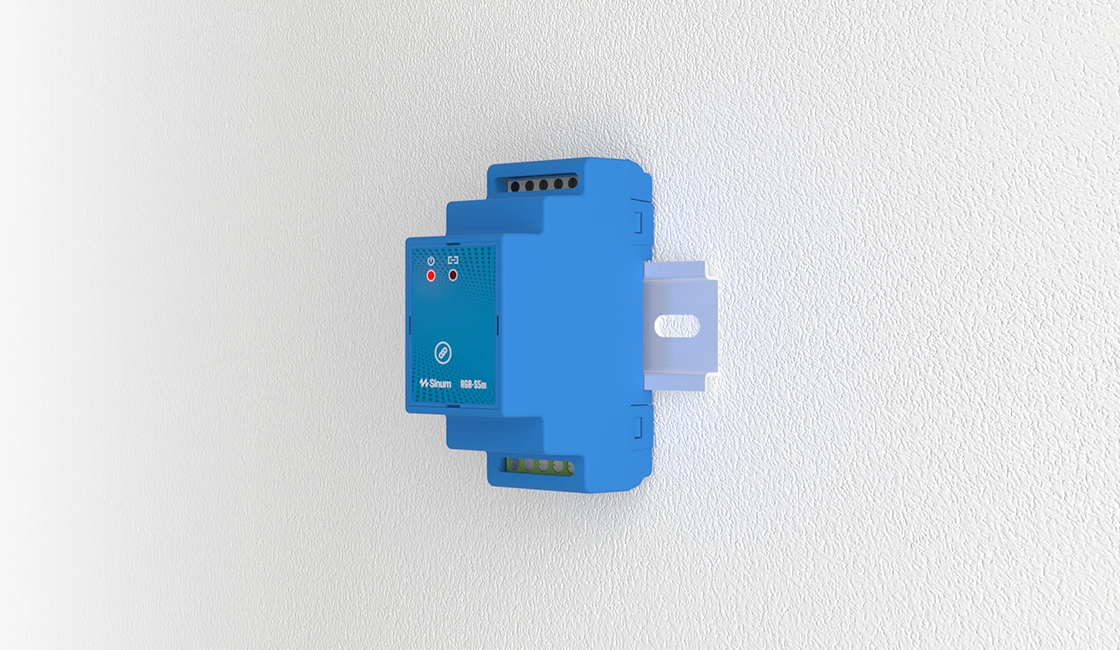

RGB-S5m

Device Description

• LED RGBWW control, 5 channels
• Wired communication via Sinum SBUS
• DIN TH35 rail mounting

The RGB modules are used to power and control RGB LED strips. With the module, you can manage the color, light intensity, and temperature, depending on the selected scene, automation, or manually.
The module is powered by 12–24V DC. Each channel has a load capacity of 3A.
Communication with the Sinum central unit is conducted via a wired connection using the Sinum SBUS protocol.

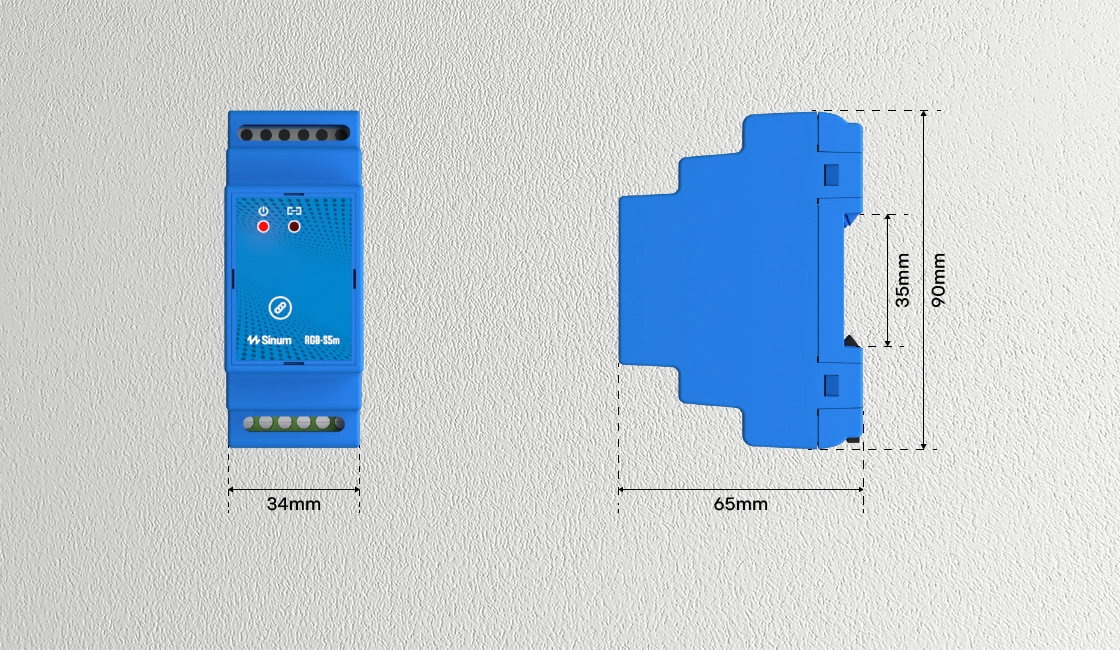

Device Dimensions

The relay modules are designed to be compact, making them ideal for mounting on a DIN rail in distribution cabinets. Thanks to these precise dimensions, the devices fit perfectly in standard distribution cabinets, ensuring an aesthetic finish and a seamless fit.

Detailed Dimensions

• Dimensions: 34x90x65mm
• Installation type: DIN rail (35mm) mounting in distribution cabinets

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, automation scenarios, and monitor energy consumption.

Additionally, the Sinum app offers real-time notifications and alerts, providing complete security and comfort in everyday use.
