RGB-P4

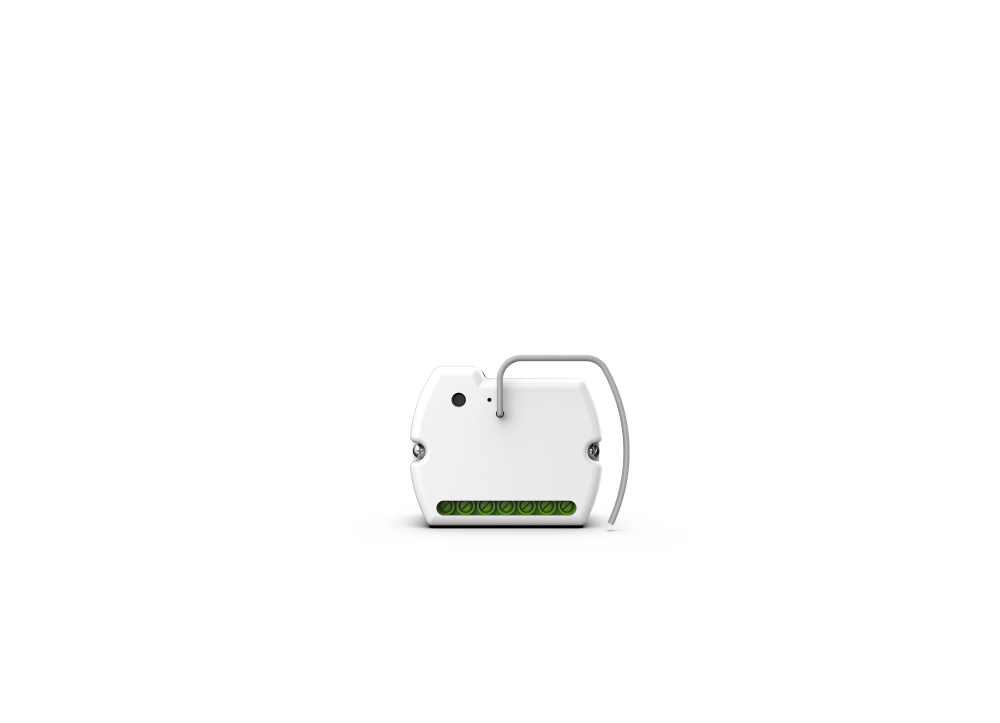

RGB module to LED strips RGB-P4

Product description

Features:

  • Control of RGBW LED, 4 channels
  • Wireless communication
  • installation in an electrical box

RGB modules are used for powering and controlling RGB LED strips. With the use of this module, you'll be able to manage both the color and light intensity, as well as temperature. All of this can be done based on your selected scene, automation, or manual settings. The module operates on a voltage of 12-24V DC, with a load capacity of 3A for each channel.

Product parameters

Specification Value
Communication Wireless WTP 868MHz
Height 89 mm
Width 35 mm
Depth 65 mm
Power Supply 24 V DC
Operating Temperature 5°C - 50°C
