R-S1

Device description

• Room temperature measurement and regulation
• Air humidity measurement
• LCD display without backlight
• Floor temperature measurement (using an NTC floor sensor)
• Mechanical buttons
• Sinum SBUS communication

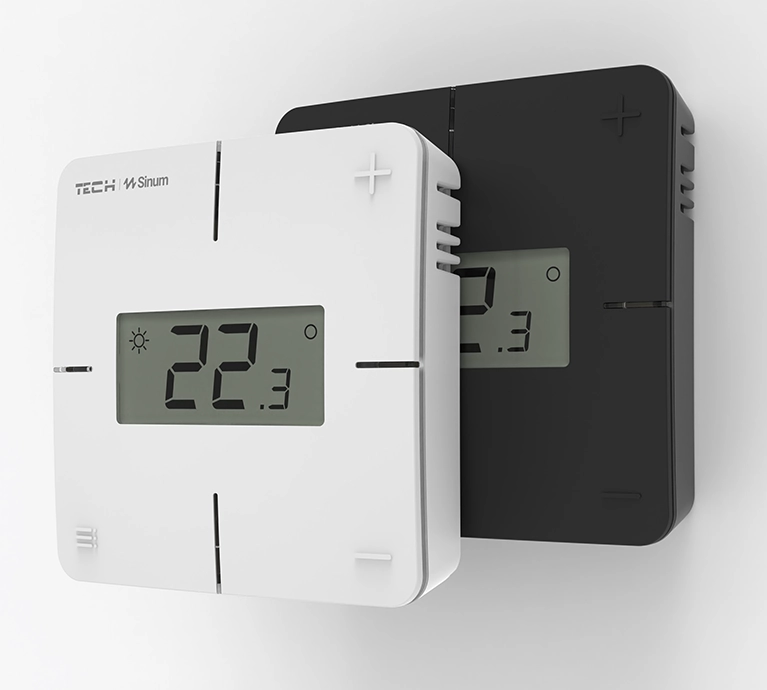

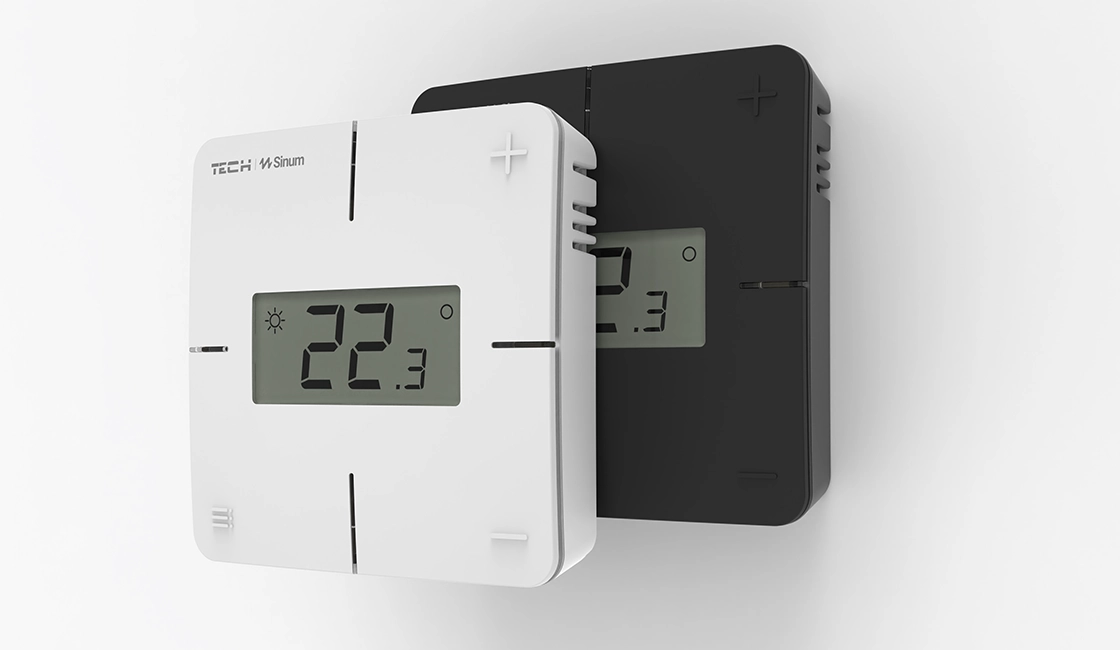

The R-S1 controller is equipped with a clear display and mechanical buttons. It features a humidity sensor and allows for floor temperature measurement using an NTC sensor.

It sends the current temperature to the Sinum central unit, which compares it with the set value and controls heating or cooling. Thanks to the heating/cooling mode, you always have the perfect temperature.

Once integrated with the Sinum central unit, you can remotely control the temperature, set schedules, and create smart scenarios. Comfort in your home has never been this simple!

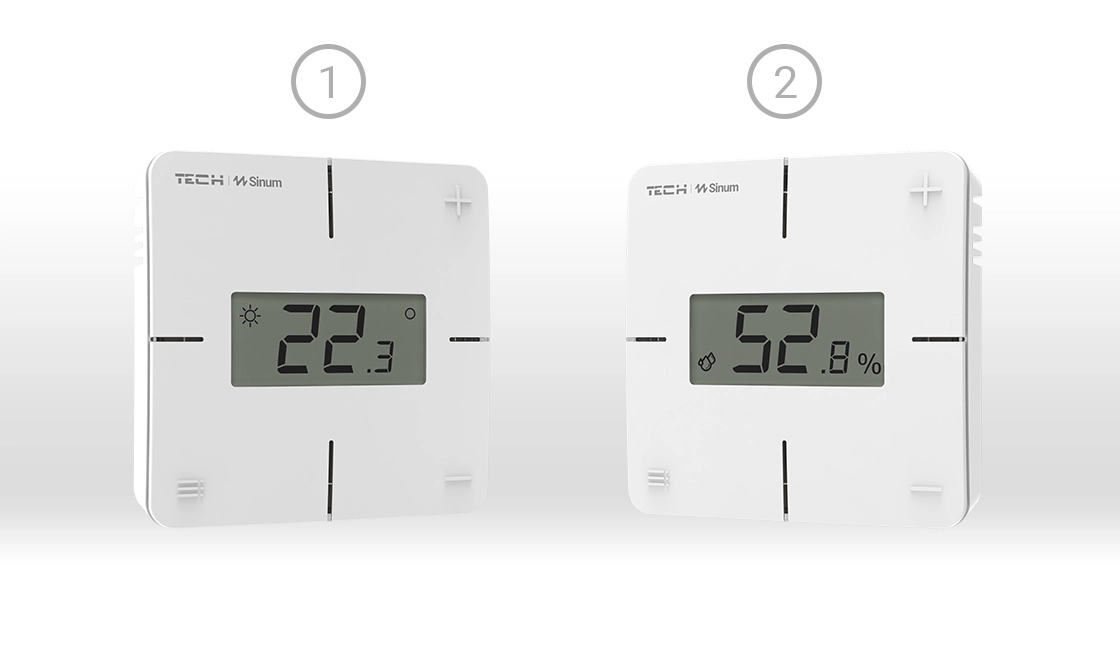

Clear and intuitive display

The large screen ensures convenient reading of parameters.

Key Information Displayed:

1. Air Temperature – real-time measurement for full comfort control.
2. Air Humidity – monitoring humidity levels.

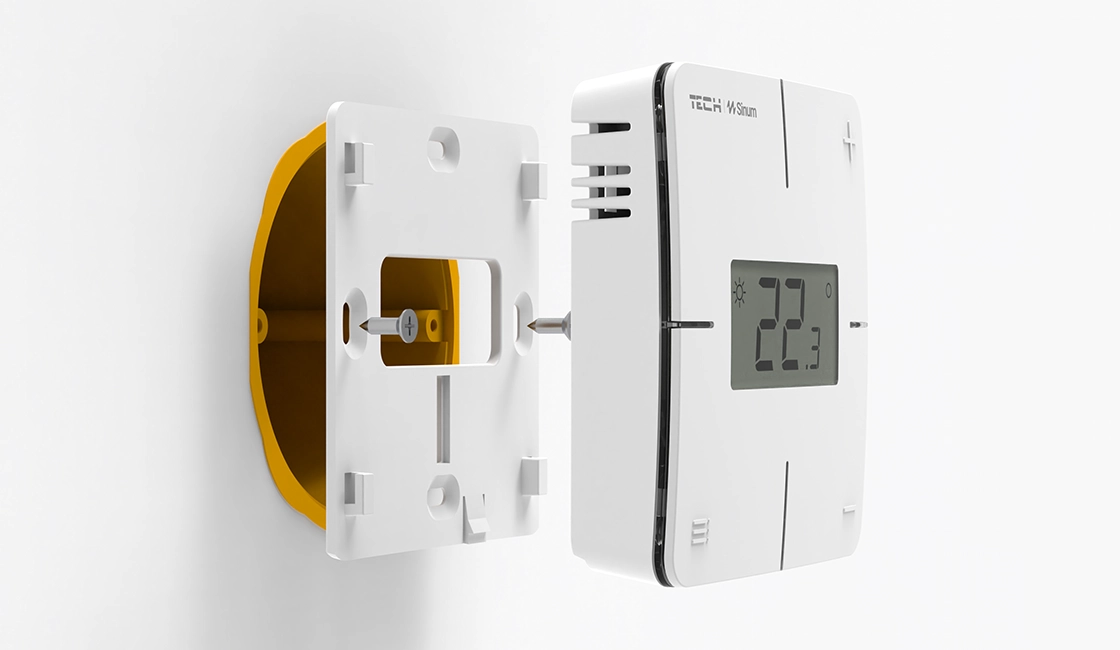

Flush mounting

Our devices are designed for easy installation. They require flush mounting in a 60mm diameter electrical box, ensuring an elegant appearance and seamless integration with the wall.

• Mounting type: Flush-mounted
• Required box: 60mm diameter

Thanks to a precisely fitted design, installation is quick and straightforward, allowing our devices to blend perfectly into any interior. The simple installation process ensures that you can enjoy modern design and functionality without unnecessary complications.

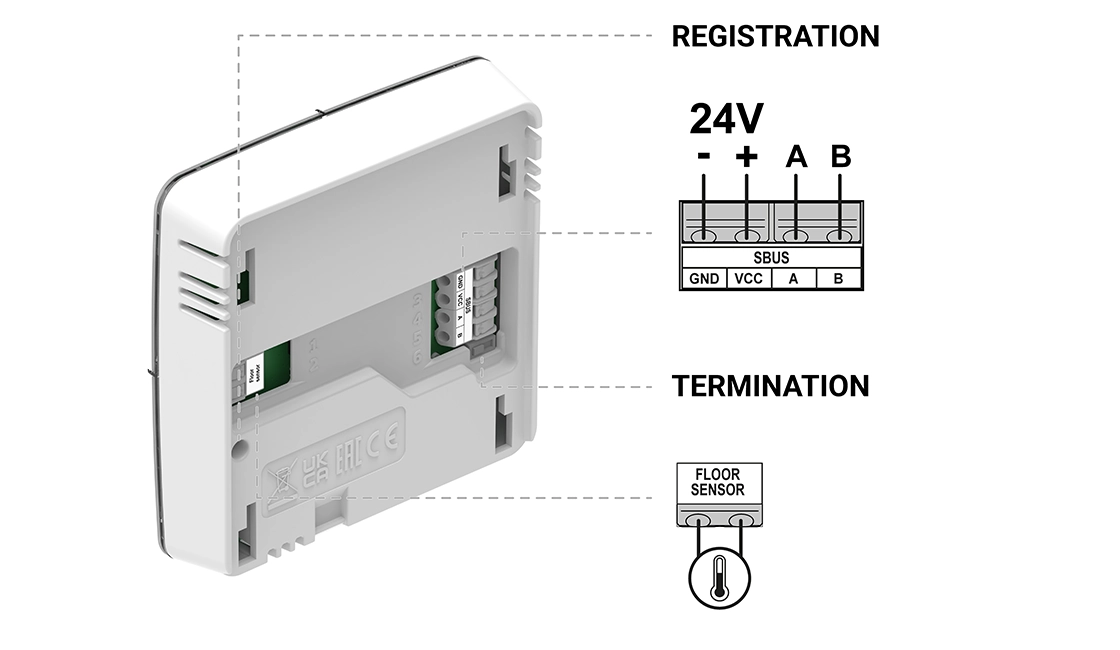

Connection and communication

Registration – The button located at the top of the device is used to register the regulator in the system. Pressing it initiates the pairing process with the central unit. Once the registration is successfully completed, an appropriate message will appear on the regulator's screen.

Termination – The termination switch allows you to determine the regulator's position in the system's transmission line. Depending on the device's placement, it should be set to the appropriate position:
ON – if the regulator is at the end of the line.
1 – if the regulator is in the middle of the line.

Power Supply and Communication – On the back of the regulator, there is a connector for:
24V power supply – necessary for the proper operation of the device.
SBUS communication (A, B) – enabling connection to the system's central unit.
Floor sensor – used for measuring floor temperature.

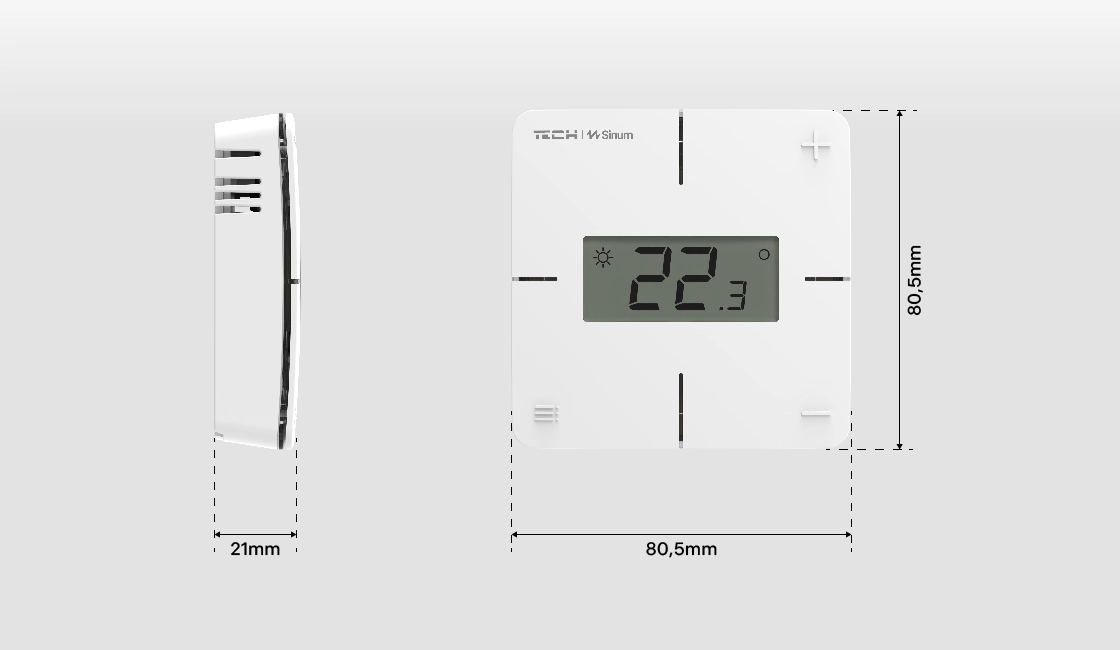

Device dimensions

Dimensions and installation details

• Dimensions: 80,5x80,5x21mm
• Mounting Type: Flush-mounted in a 60mm diameter box

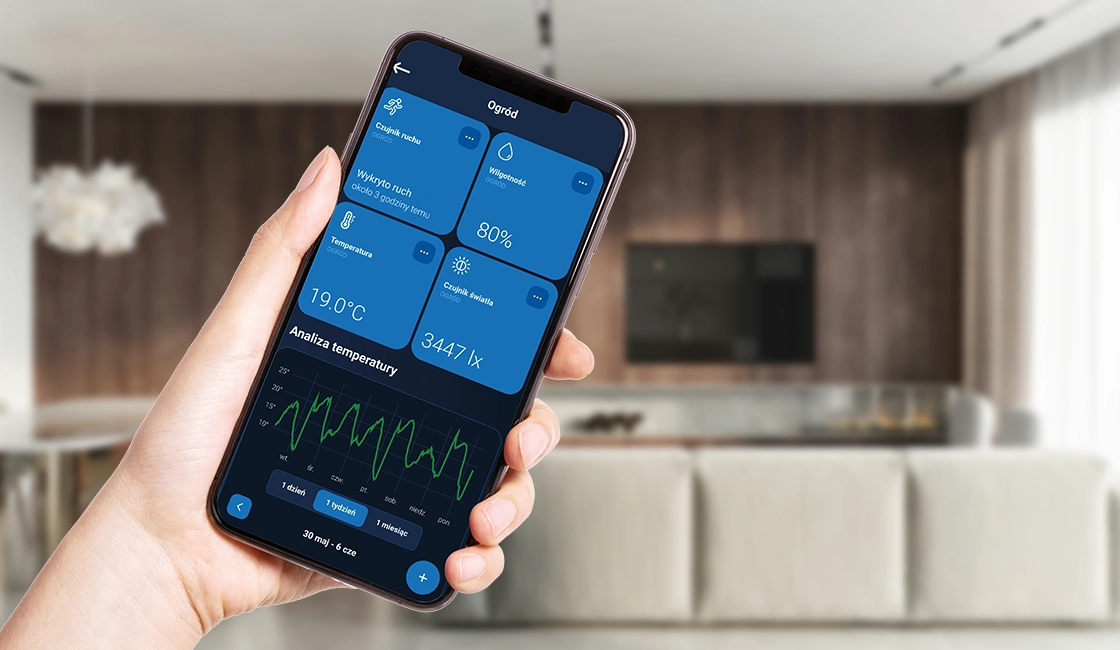

Remote control

With the Sinum app, you can manage your system anytime, anywhere. The app provides full control over lighting, temperature, blinds, and other household devices, ensuring convenience and energy efficiency. Its intuitive interface allows for easy scheduling, creating scenarios, and monitoring energy consumption. Additionally, the Sinum app offers real-time notifications and alerts, ensuring maximum security and user comfort.
