PSZ-02

Relay for DIN rail to control roller shutters PSZ-02

Product description

Features:

  • 2 relays to control the directions of lifting and lowering the roller shutters
  • wireless communication

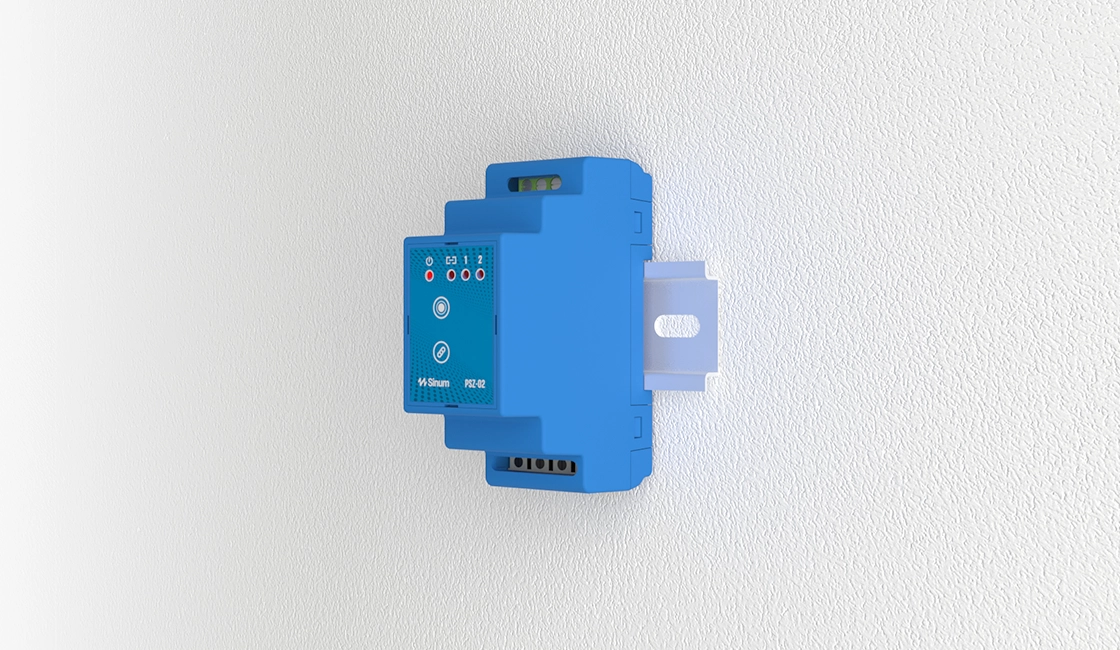

  • mounting on a DIN rail

The PSZ-02 is a device dedicated to all those who like to have everything organized in one place – e.g. in a switch cabinet.

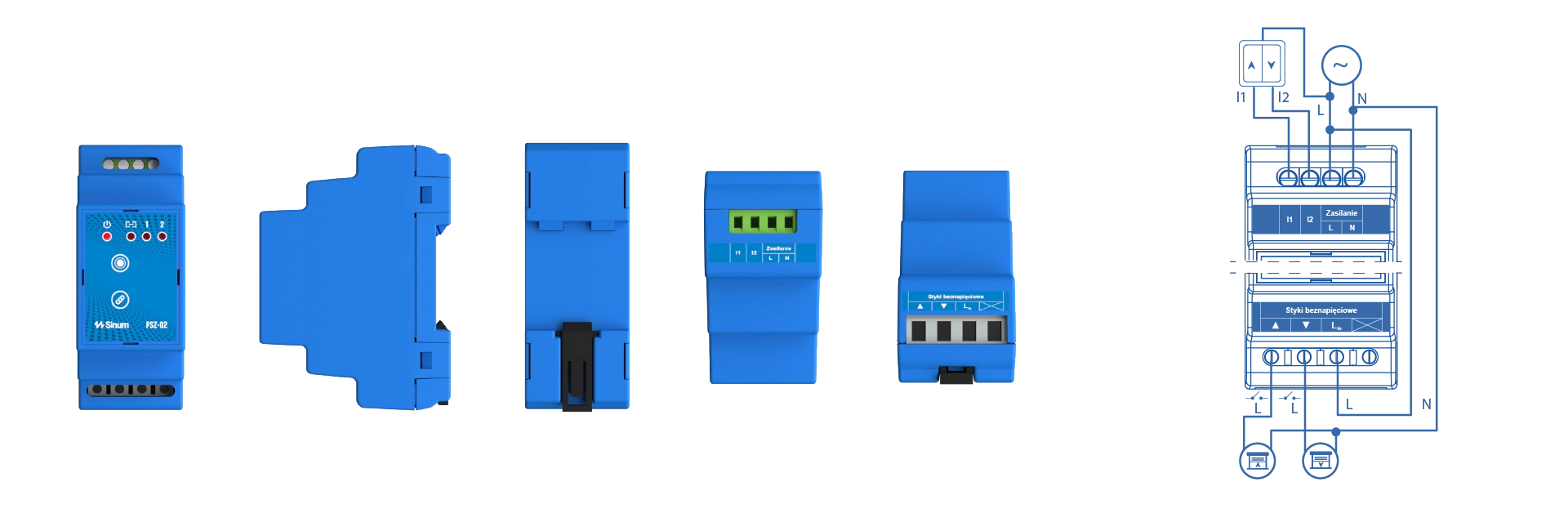

PSZ-02 has 2 relays outputs and it is mounted on a TH35 rail, and dedicated place to connect the roller shutters. It is also possible to connect the control signal from the roller shutters wall switch to it. PSZ-02 communicates wirelessly with the EH-01 central device.

After connecting the PSZ-02, we will be able to independently control roller shutters, both via the mobile application and manually via the wall switch. After adding and programming the PSZ-02 in the EH-01 central device, it allows the remote control as well as set schedules, adding scenes and actions.

Product parameters

Specification Value
Communication Wireless WTP 868MHz

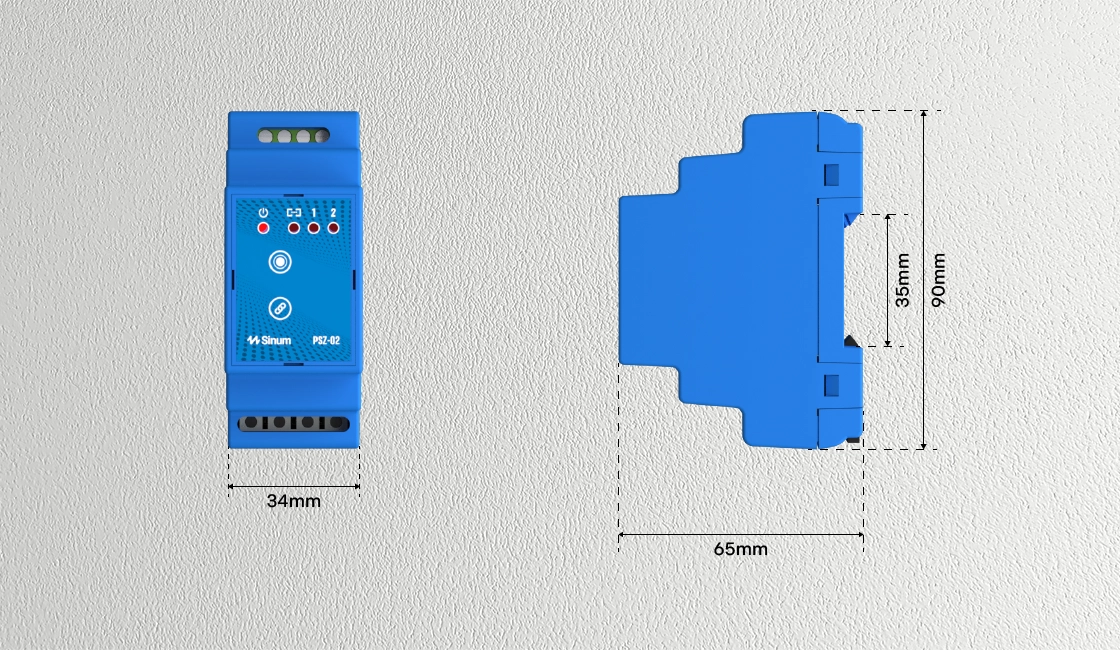

Height 89 mm
Width 35 mm
Depth 65 mm
Power Supply 230 V AC
Power Consumption 1 W
Operating Temperature 5°C - 50°C
Number of Relay Outputs 2
Max Relay Load 0.5 A
