PS-10m 230

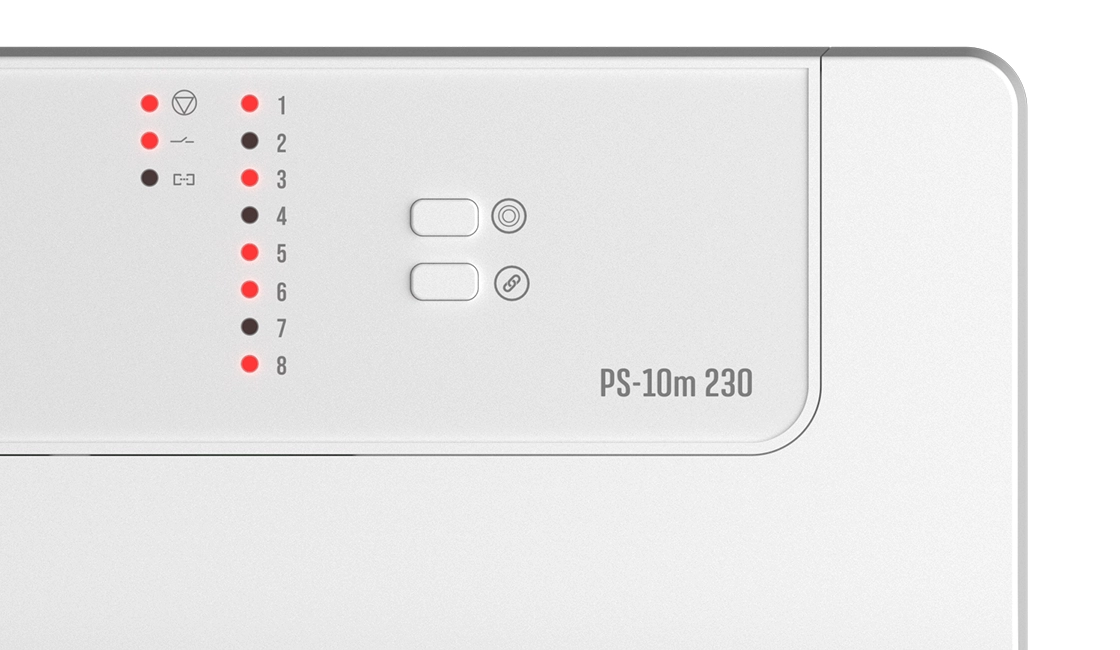

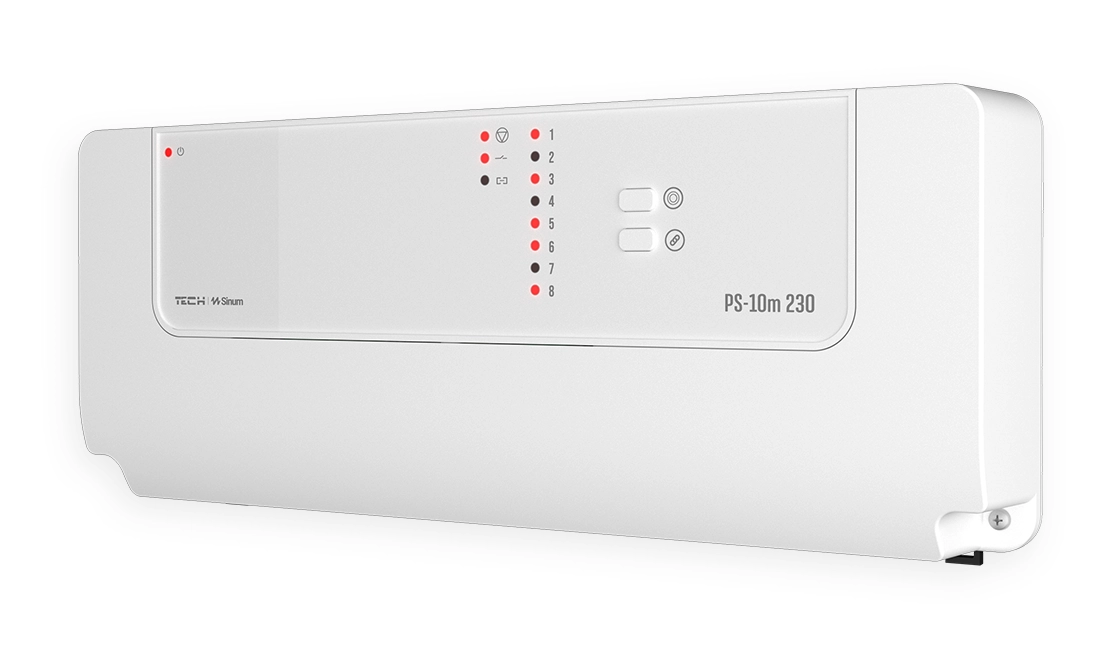

Wired thermostatic actuator controller PS-10m 230

Product description


Features:

  • 8 voltage relay outputs
  • 1 dedicated voltage output for pump control
  • 1 NO-COM-NC voltage-free output dedicated to heating device control
  • 2 two-state inputs
  • Wired communication
  • DIN rail mounting on TH35 rail

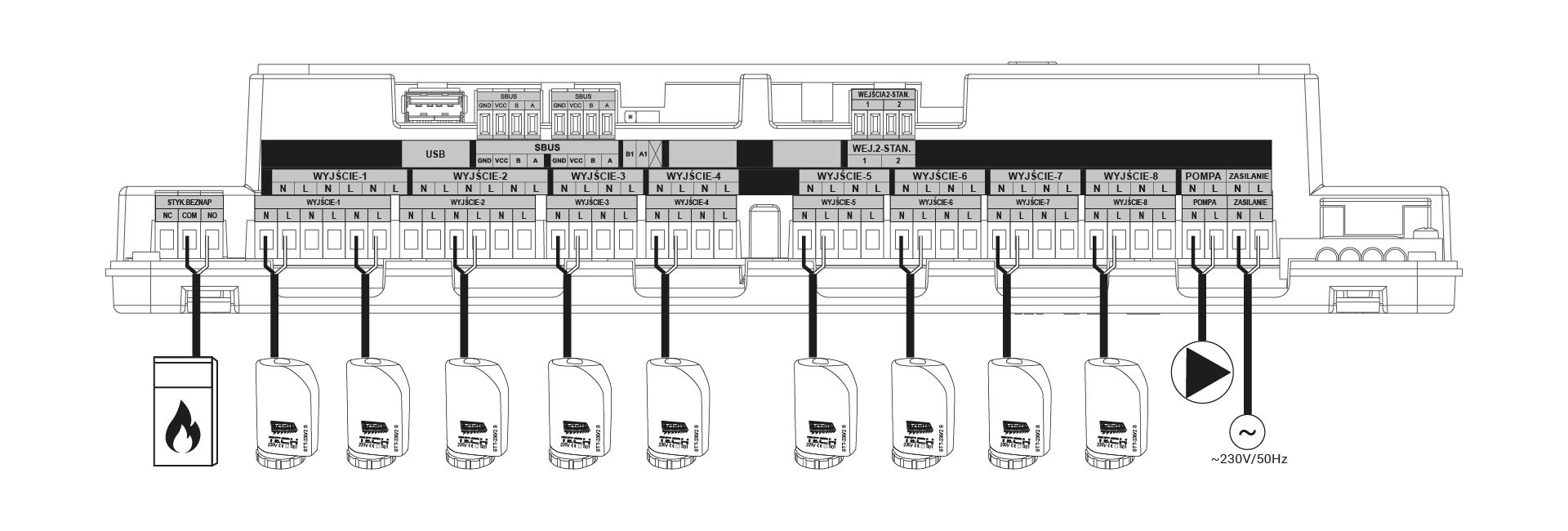

SINUM dedicated controller for thermostatic actuators for underfloor heating. It combines the simplicity and security of connection with the unlimited possibilities of the system. It has 8 voltage outputs to support up to 50 thermostatic actuators, 1 dedicated voltage output dedicated as pump and 1 voltage-free contact. Both are additionally equipped with 2x 2-state inputs.
Each output is programmable separately, so they can be used both for the operation of underfloor heating actuators and assigned to operate circulation pumps, and in the case of a voltage-free signal as a signal to the heating device.

Product parameters

Specification Value
Communication Wired TECH SBUS

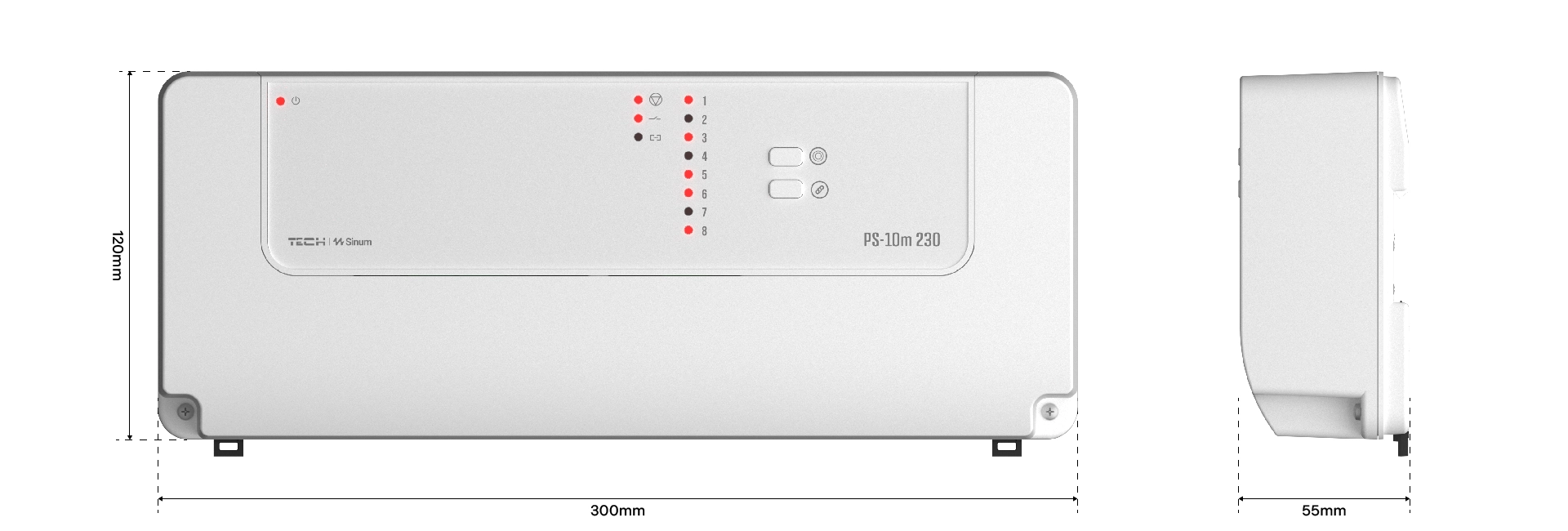

Height 120 mm
Width 296 mm
Depth 56 mm
Power Supply 230 V AC
Power Consumption 4 W
Operating Temperature 5°C - 50°C
Number of Relay Outputs 10
Max Relay Load 0.3 A
