PS-08m 230
Wired module relay for DIN rail PS-08 230m

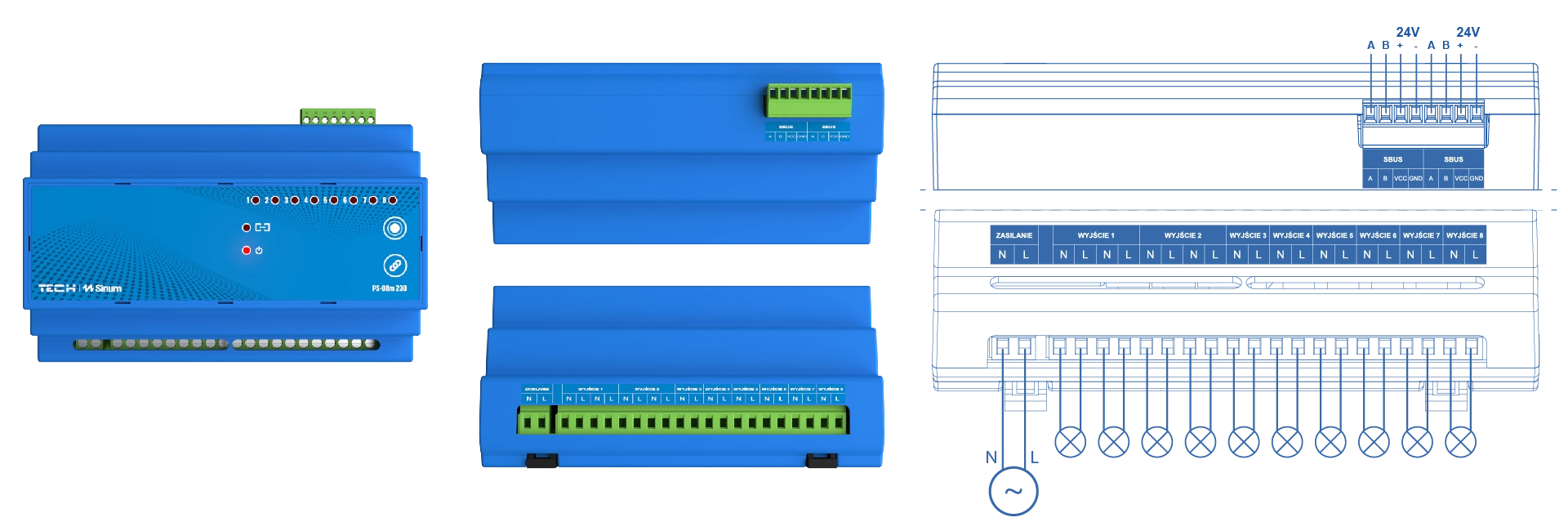

The PS-08m 230 is designed for those who like to keep everything organized in one place, such as a distribution cabinet. The PS-08m 230 has 8 relays – 230V output channels – and is mounted on a TH35 DIN rail, connecting circuits or devices directly behind the circuit breaker outputs. It allows connection of up to 8 devices.
The PS-08m 230 communicates with the Sinum central unit via the TECH SBUS wired bus. Once connected, it enables independent control of each power/lighting point both through the mobile app and manually via a wall switch.
After adding and programming the PS-08m 230 in the Sinum central unit, remote control, scene creation, actions, and scheduling become available.

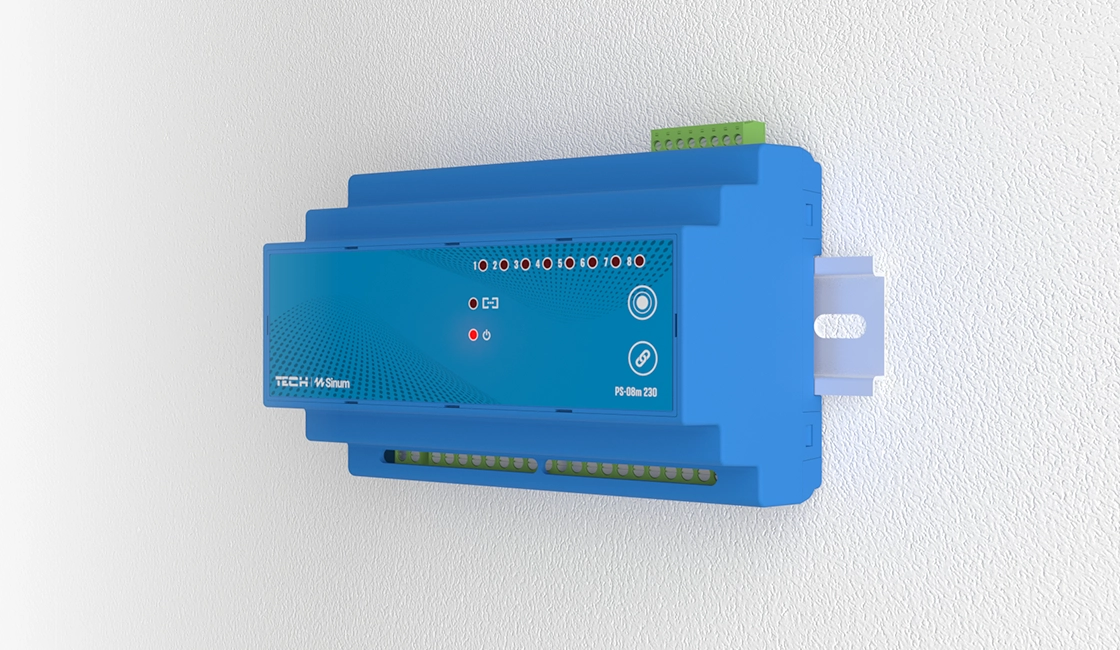

The relay modules have been designed compactly to perfectly fit DIN rail mounting in distribution cabinets. Thanks to precisely chosen dimensions, the devices fit standard distribution cabinets, ensuring a neat finish and perfect alignment.

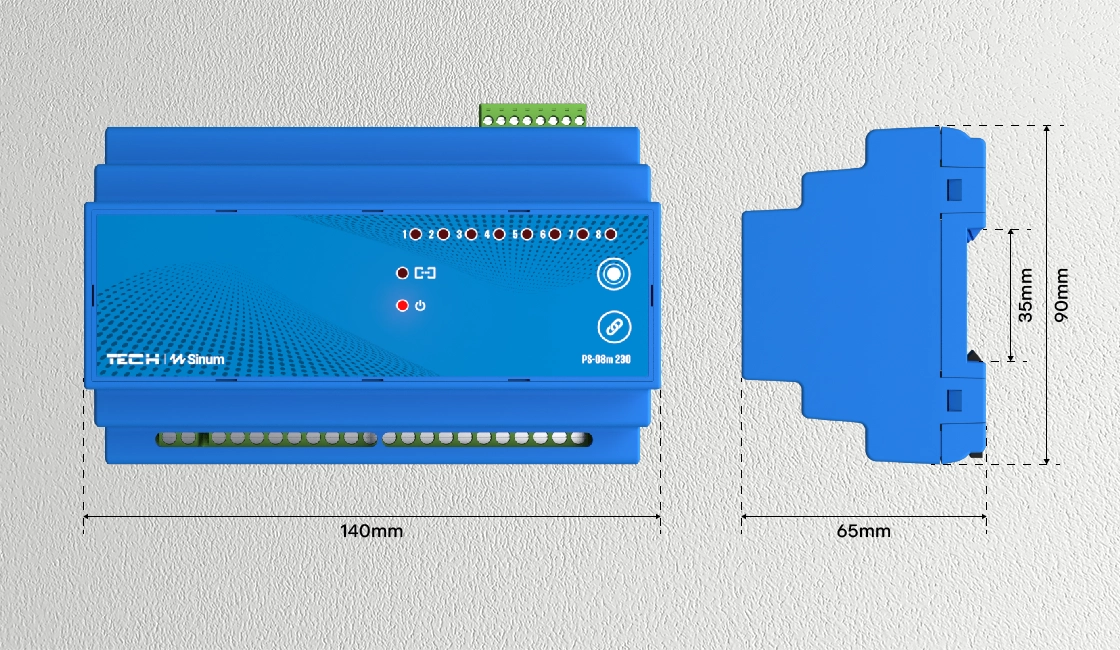

Dimensions Details
With the Sinum app, you can manage your system wherever and whenever you want. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy savings. Its intuitive interface allows you to easily create schedules, scenes, and monitor energy consumption. Additionally, the Sinum app offers real-time notifications and alerts, guaranteeing complete safety and comfort in use.
Devices designed and manufactured in Poland
Devices designed and manufactured in Poland
| Specification | Value |
| Communication | Wired TECH SBUS |
| Height | 89 mm |
| Width | 140 mm |
| Depth | 65 mm |
| Power Supply | 230 V AC |
| Power Consumption | 1 W |
| Operating Temperature | 5°C - 50°C |
| Number of Relay Outputs | 8 |
| Max Relay Load | 0.3 A |
