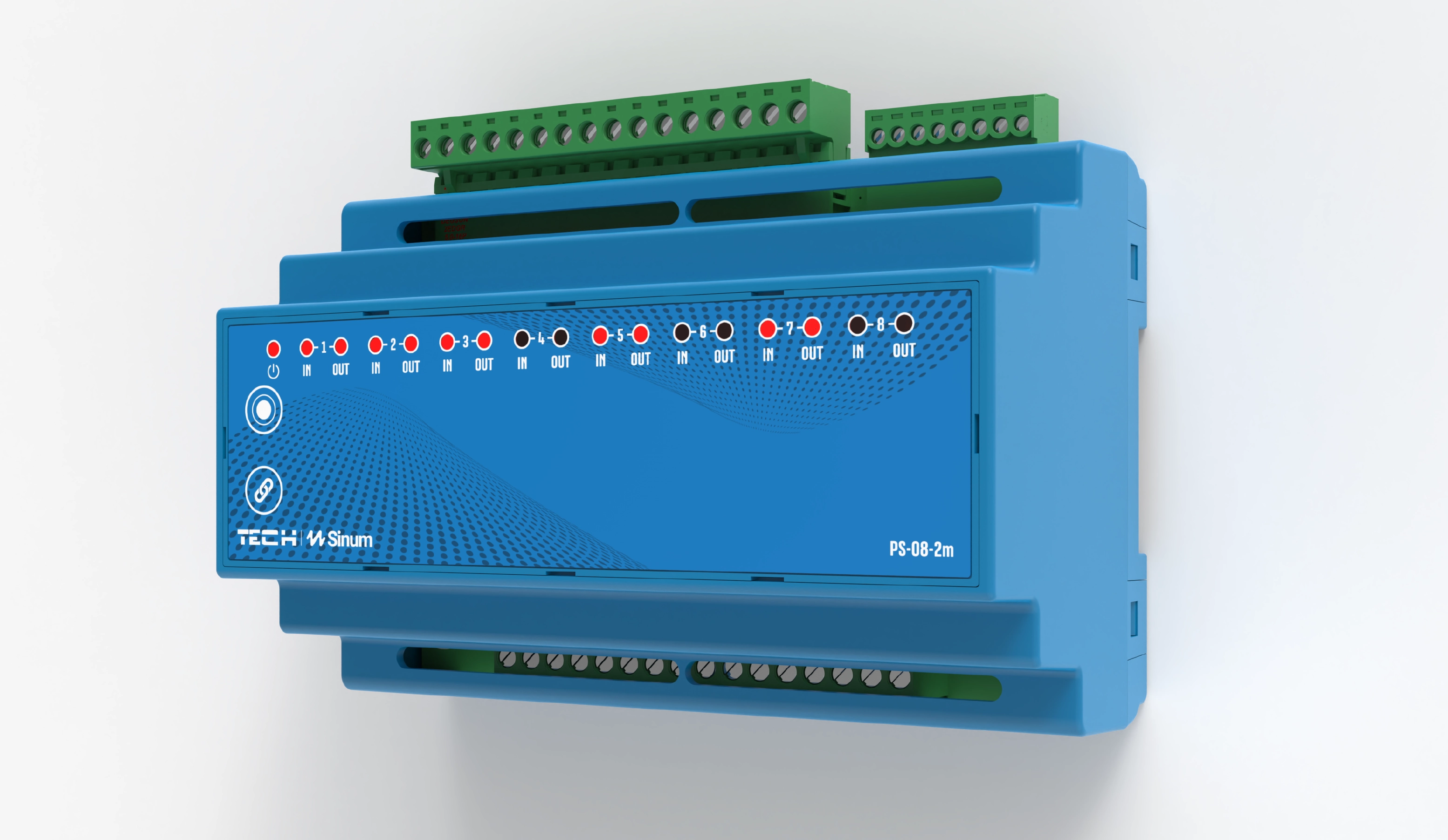

PS-08-2m
Device Description
- 8 independent voltage-free relay outputs
- 8 digital inputs
- wired Sinum SBUS communication
- manual output control
- DIN rail mounting
- 24 V DC power supply
The PS-08-2m is a module designed for lighting control within the Sinum system. It is equipped with 8 independent voltage-free relay outputs and 8 digital inputs, with each input linked to its corresponding relay output, allowing direct control of the assigned output.
Connection and Communication
Connection and Communication
The PS-08-2m communicates with the Sinum Control Unit via the wired TECH SBUS bus. After connecting the device, it must be added to the system through the Sinum Control Unit interface.
1 – Manual control button
2 – Registration button
3 – SBUS communication connector
4 – Digital inputs
5 – Voltage-free relay outputs IMPORTANT: Only one voltage type may be used across the entire terminal block: 24 V or 230 V.
Device Dimensions
Device Dimensions
The PS-08-2m features a compact design.
Dimensions
-
Dimensions: 140 × 90 × 65 mm
Made in Poland
Devices designed and manufactured in Poland
Made in Poland
Devices designed and manufactured in Poland
Product parameters
| Supply voltage | 24 V DC ±10% |
| Maximum power consumption | 4 W |
| Operating temperature | 5–50 °C |
| Maximum output load | 6 A (AC1)* / 200 W (LED) 2 A / 30 V (DC1)** |
| Permissible relative ambient humidity | <80% RH |
