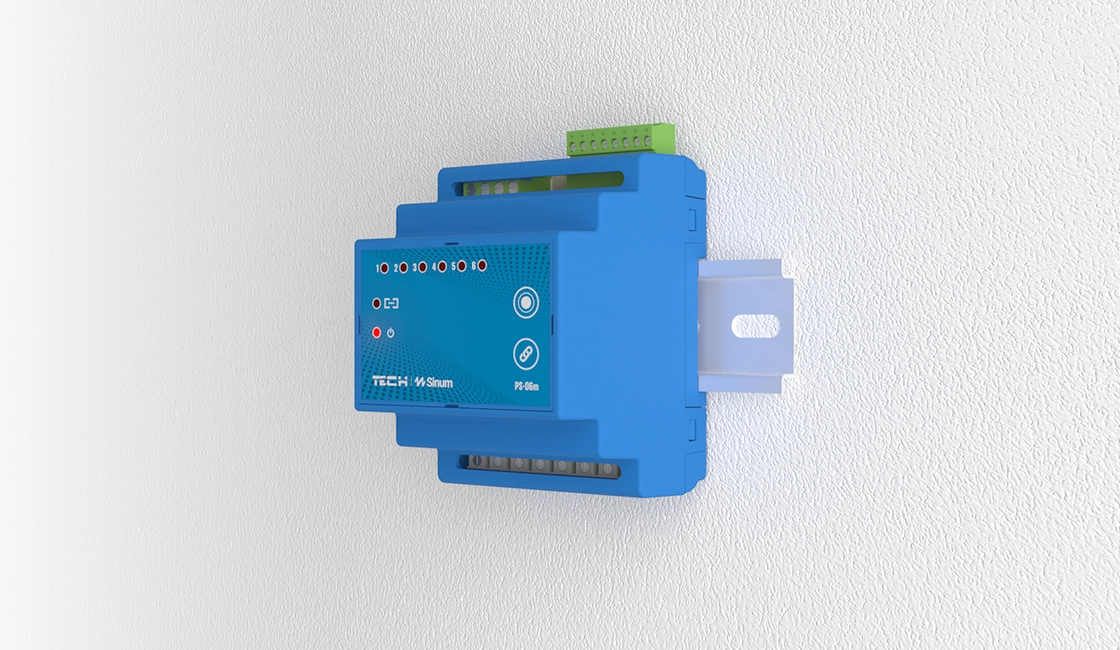

PS-06m

Device Description

• 6 relays for controlling 6 lighting/power circuits
• Wired communication via Sinum SBUS
• DIN rail mounting

The PS-06m is designed for those who like to keep everything neatly organized in one place — for example, inside a distribution cabinet. It features 6 relays (potential-free outputs) and is mounted on a TH35 DIN rail, allowing you to connect circuits or devices directly after the circuit breaker. It can control up to 6 devices.

The PS-06m communicates with the Sinum central unit via the TECH SBUS wired bus. Once connected, it allows independent control of each power or lighting point, both through the mobile app and manually via a wall switch.

After adding and programming the PS-06m in the Sinum central unit, you can perform remote control, create scenes and actions, and set schedules.

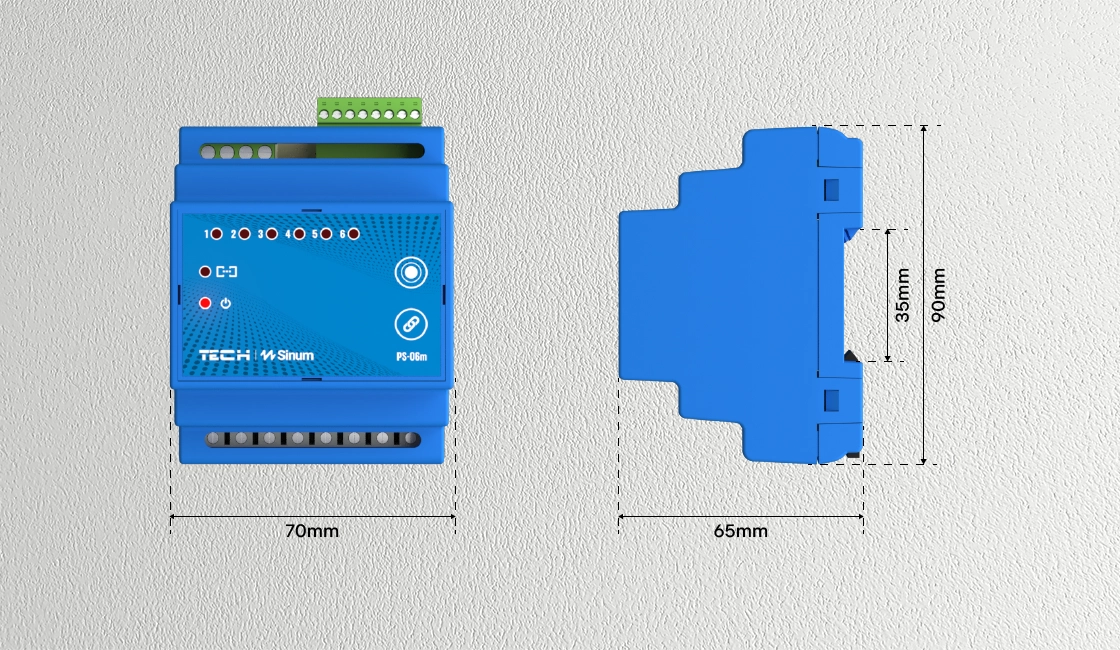

Device Dimensions

The relay modules are designed in a compact form to perfectly fit DIN rail mounting inside distribution cabinets. Thanks to their carefully selected dimensions, the devices fit seamlessly into standard distribution cabinets, ensuring a neat finish and perfect integration.

Dimension Details

• Dimensions: 70×90×65mm
• Mounting type: DIN rail (35mm) in distribution cabinets

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy savings. Its intuitive interface allows you to easily create schedules, scenarios, and monitor energy consumption. Additionally, the Sinum app delivers real-time notifications and alerts, guaranteeing complete safety and comfort.
