PS-02m

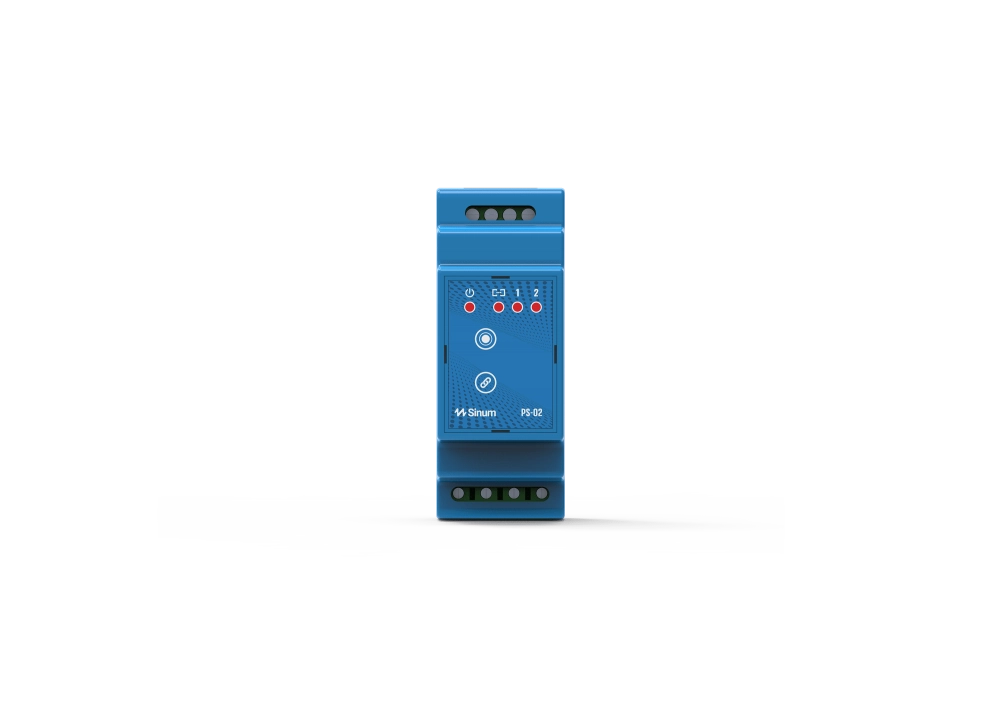

Wired Relay module for DIN rail PS-02m

Product description

Features:

  • 2 relays to control the 2 lighting circuits/power circuits
  • wired communication
  • mounting on a DIN rail

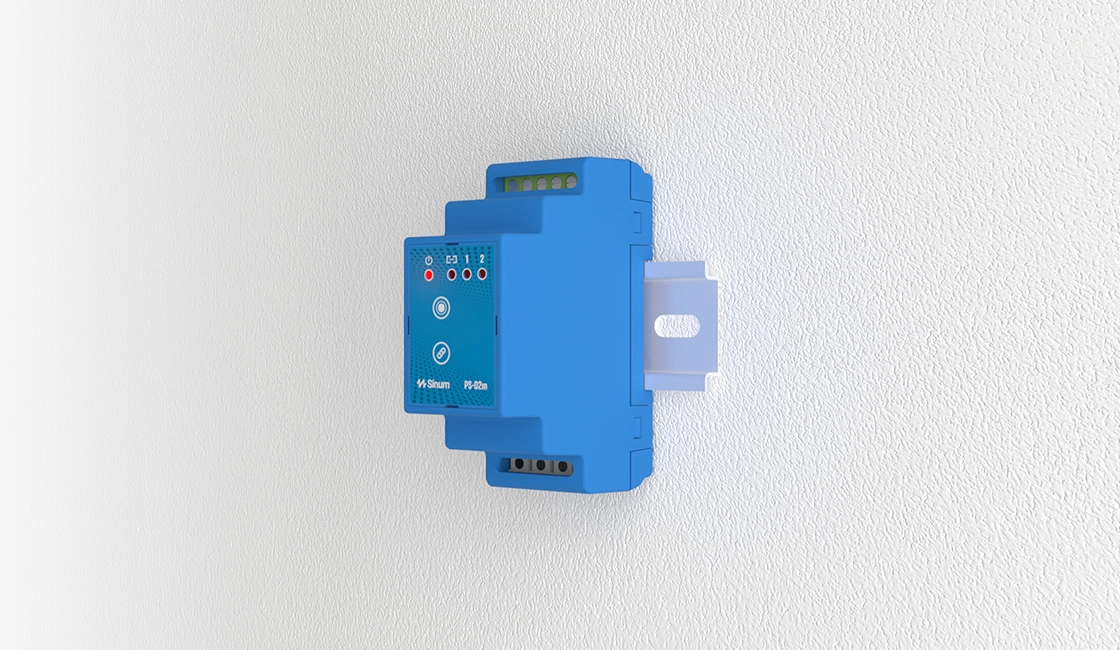

The PS-02m is a device dedicated to all those who like to have everything organized in one place – e.g. in a switch cabinet. PS-02m has 2 relays – voltage-free outputs and it is mounted on a TH35 rail, connecting to it light circuits, devices that we want to control. It is also possible to connect the control signal from the bell switch to it.

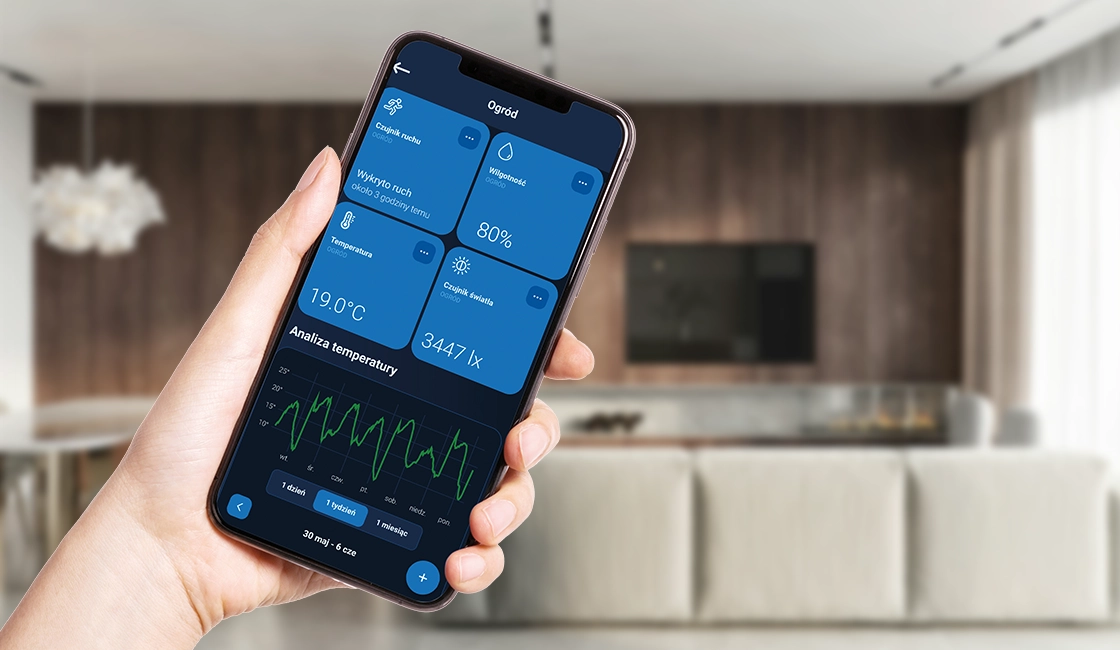

After connecting the PS-02m, we will be able to independently control a given power / lighting point, both using the mobile application as well as manually via the wall switch.

After adding and programming the PS-02m in the EH-01 central device, it is allows for remote control the temperature, set schedules, and perform actions and scenes.

Product parameters

Specification Value
Communication Wired TECH SBUS

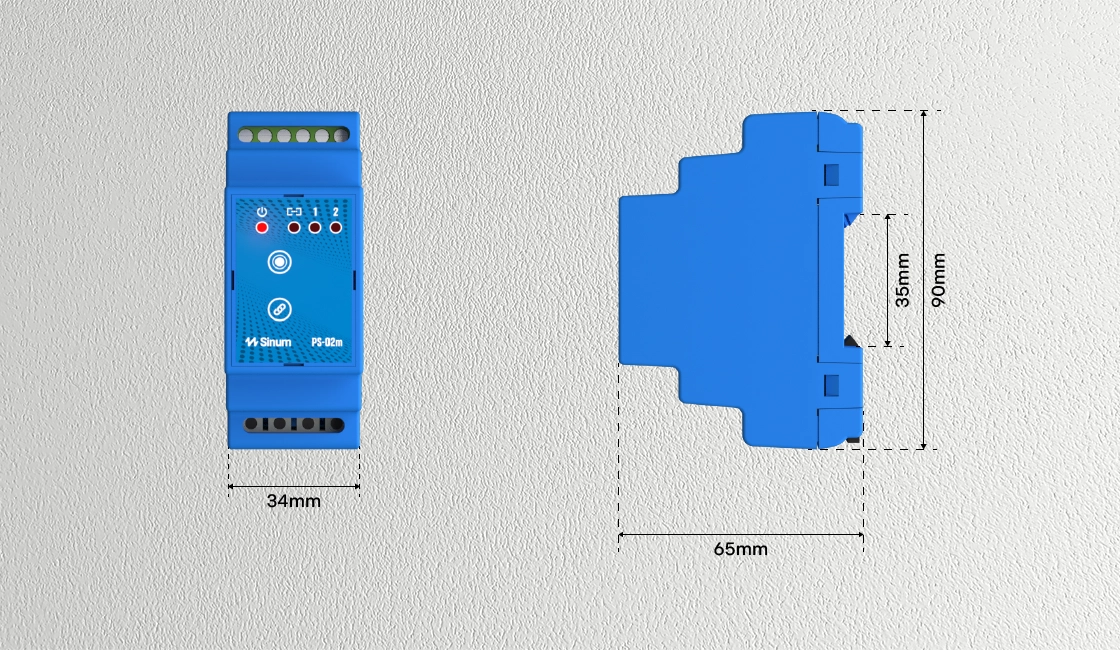

Height 89 mm
Width 35 mm
Depth 65 mm
Power Supply 24 V DC
Power Consumption 1 W
Operating Temperature 5°C - 50°C
Number of Relay Outputs 2
Max Relay Load 10 A
