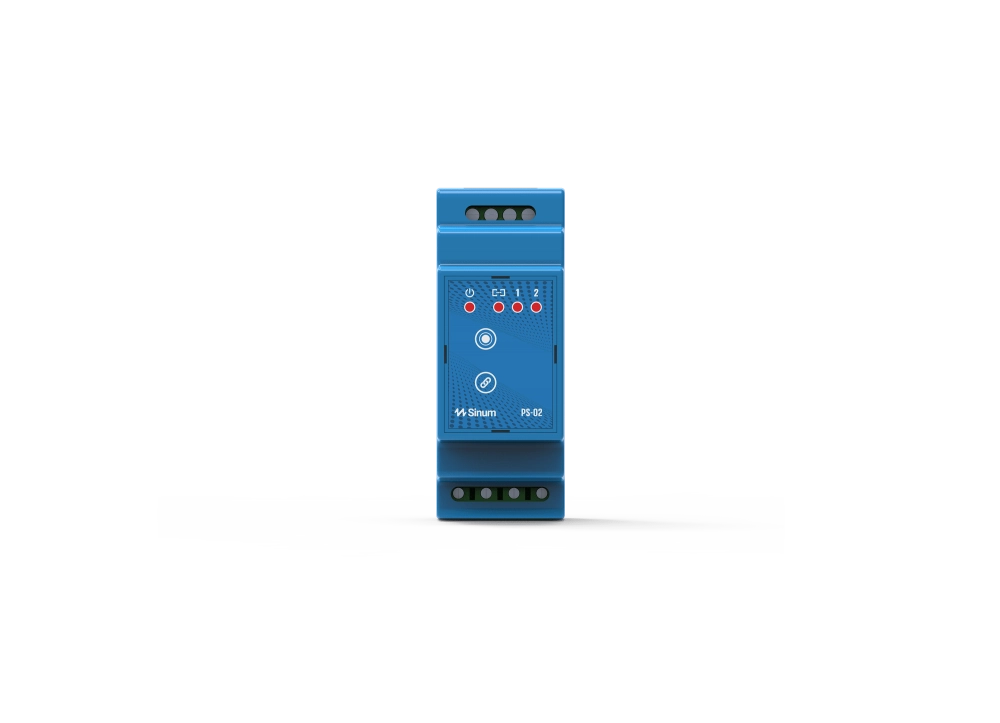

PS-02

Device Description

• 2 relays for controlling 2 lighting/power circuits
• wireless communication
• DIN TH35 rail mounting

The PS-02 is designed for those who prefer to keep everything organized in one place — for example, inside a distribution cabinet. It features 2 relays with potential-free outputs and is mounted on a TH35 rail, allowing you to connect lighting circuits or other devices you want to control. It can also be connected to a signal from a push-button wall switch.

The PS-02 communicates wirelessly with the Sinum central unit. Once connected, it enables independent control of a given power or lighting point, both via the mobile app and manually through a wall switch.

After adding and programming the PS-02 in the Sinum central unit, you can enjoy remote control, as well as the ability to create scenes, actions, and schedules.

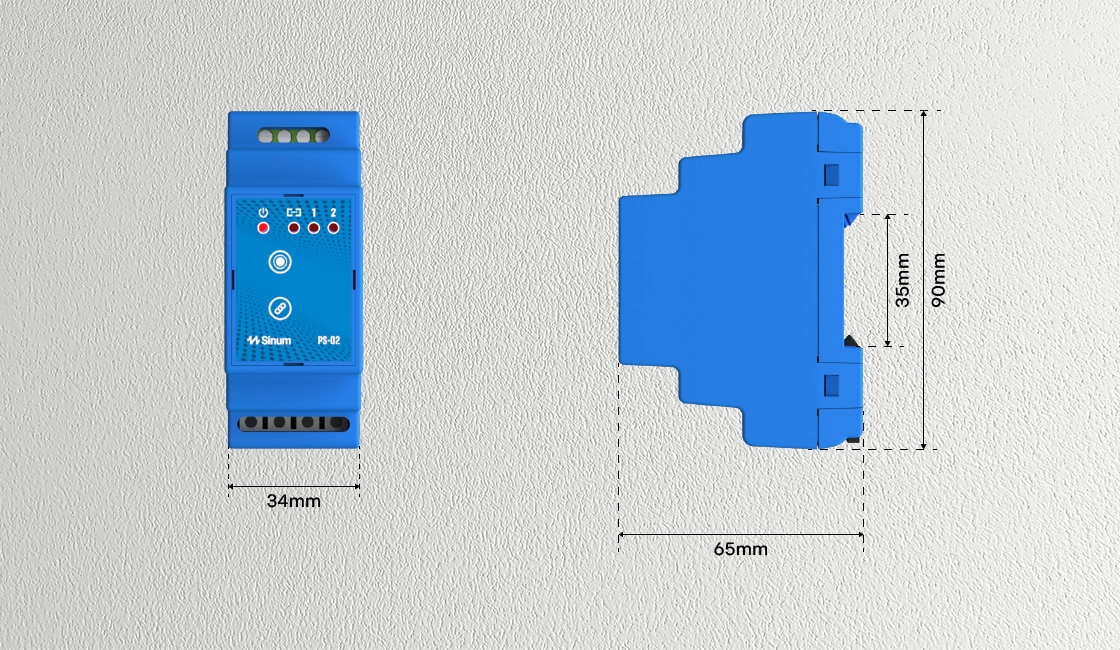

Device Dimensions

The relay modules are designed in a compact form to perfectly fit DIN rail mounting inside distribution cabinets. Thanks to carefully selected dimensions, the devices fit seamlessly into standard distribution cabinets, ensuring a neat finish and perfect alignment.

Dimension Details

• Dimensions: 34×90×65mm
• Mounting type: DIN rail (35mm) in distribution cabinets

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app gives you full control over lighting, temperature, blinds, and other household devices, ensuring convenience and energy savings. Its intuitive interface allows you to easily create schedules, scenarios, and monitor energy consumption. Additionally, the Sinum app provides real-time notifications and alerts, guaranteeing complete safety and user comfort.
