PPS-01 230

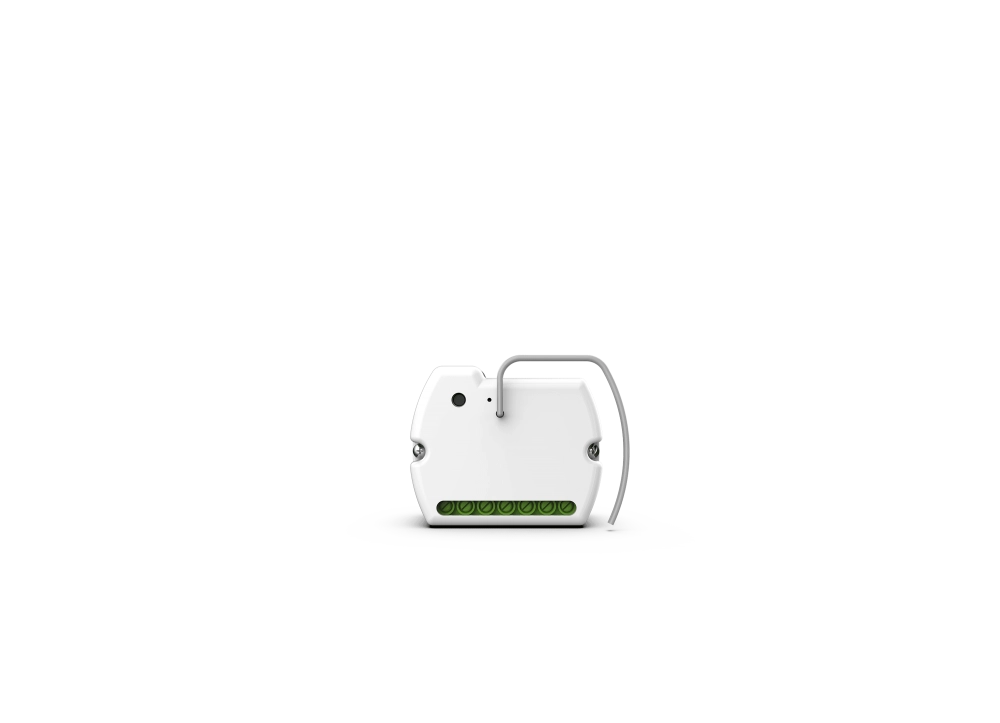

Relay module for an electrical box PPS-01 230V

Product description

Features:

  • 1 relay to control the 1 lighting circuits/power circuits
  • wireless communication
  • mounting in an electrical box

Do you already have switches that match the style of your interior but want to add some intelligence to them? Don't worry! With PPS-01 230, you can control devices remotely.

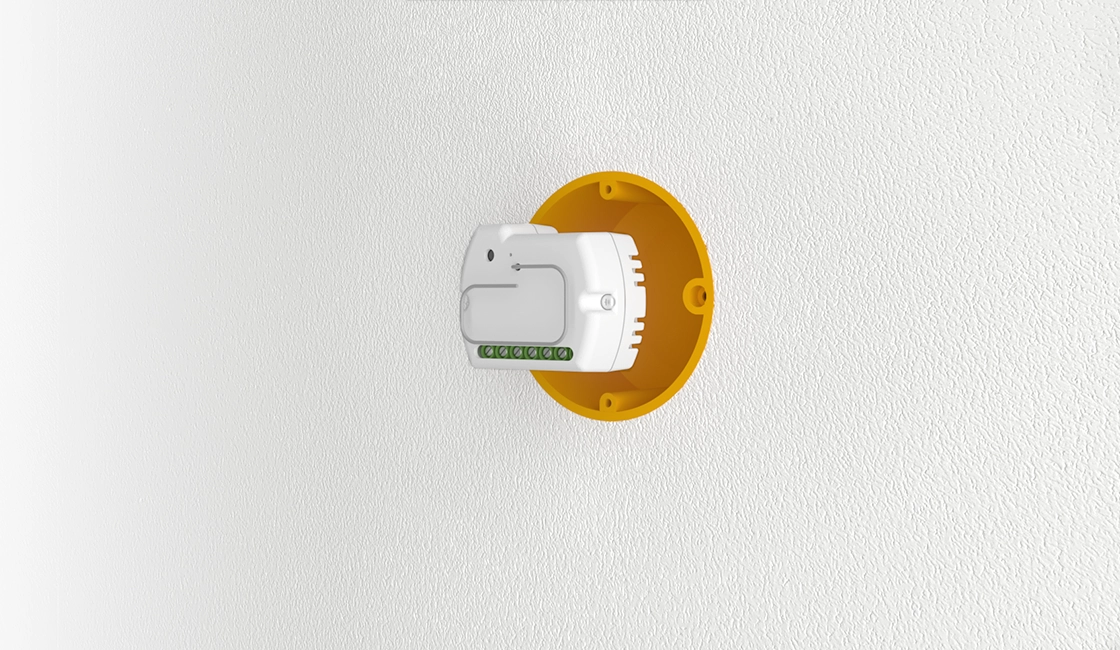

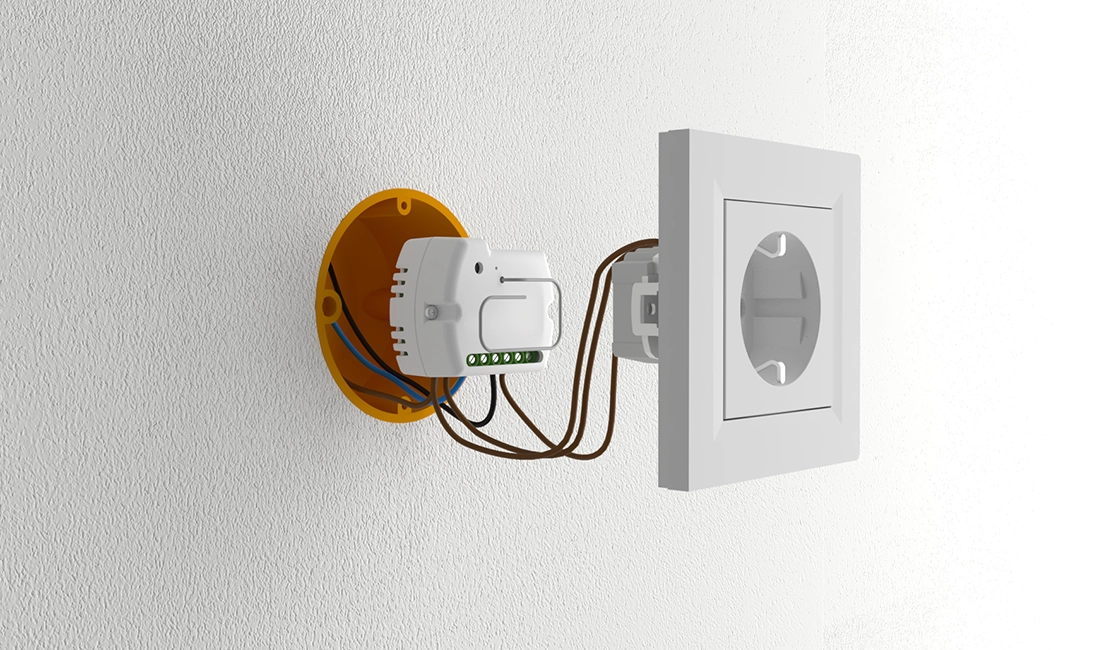

PPS-01 230 is a compact device that is placed in an electrical box, making it invisible. It communicates wirelessly with the EH-01 central unit. After connecting PPS-01 230, you will have the ability to independently control a specific power/lighting point, both through the mobile application and manually using a wall switch.

After adding and programming the switch in the Sinum central unit, you can remotely control it, add scenes, actions using the switch, and set schedules.

The only requirement for using PPS-02 is to have a neutral wire in addition to the phase wire in the electrical box.



Product parameters

Specification Value
Communication Wireless WTP 868MHz
Height 47 mm
Width 37 mm
Depth 30 mm
Power Supply 230 V AC
Power Consumption 1 W
Operating Temperature 5°C - 50°C
Number of Relay Outputs 1
Maximum Relay Load 16 A
