P-KL3

Device Description

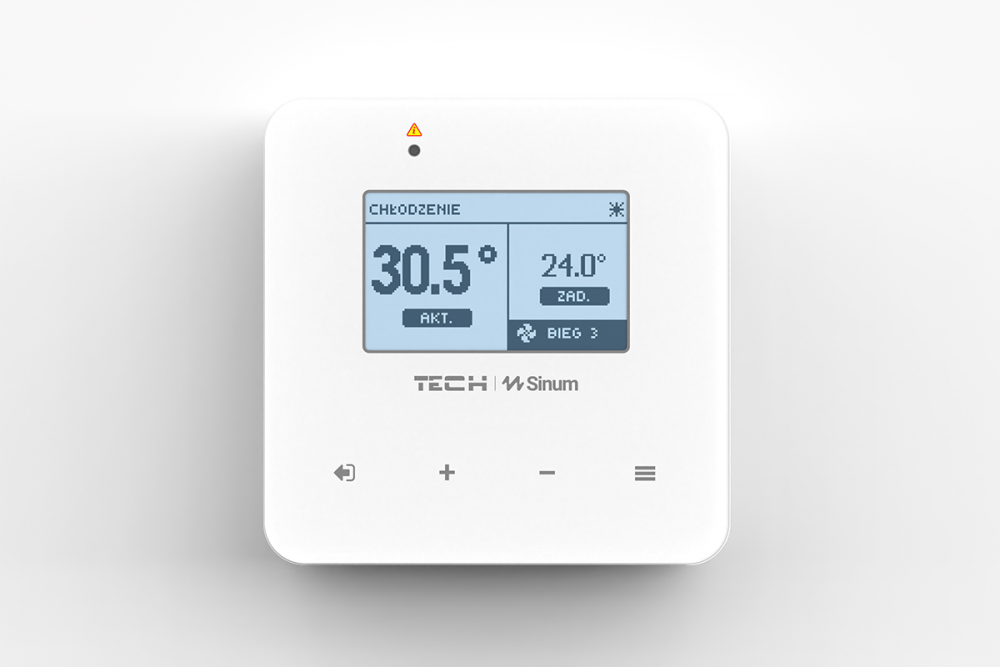

The P-KL3 control panel is a modern controller designed for convenient management of fan coil units operating with KL-01m 230 Sbus and KL-01 230 Modbus modules. Thanks to wired communication based on the Modbus protocol, the device ensures stable and reliable data exchange, providing precise control over system operating parameters.

Equipped with an integrated temperature and humidity sensor, the panel continuously monitors indoor environmental conditions, helping maintain optimal comfort for occupants. Its intuitive user interface allows for quick activation and deactivation of the module, easy adjustment of settings, and access to advanced configuration functions.

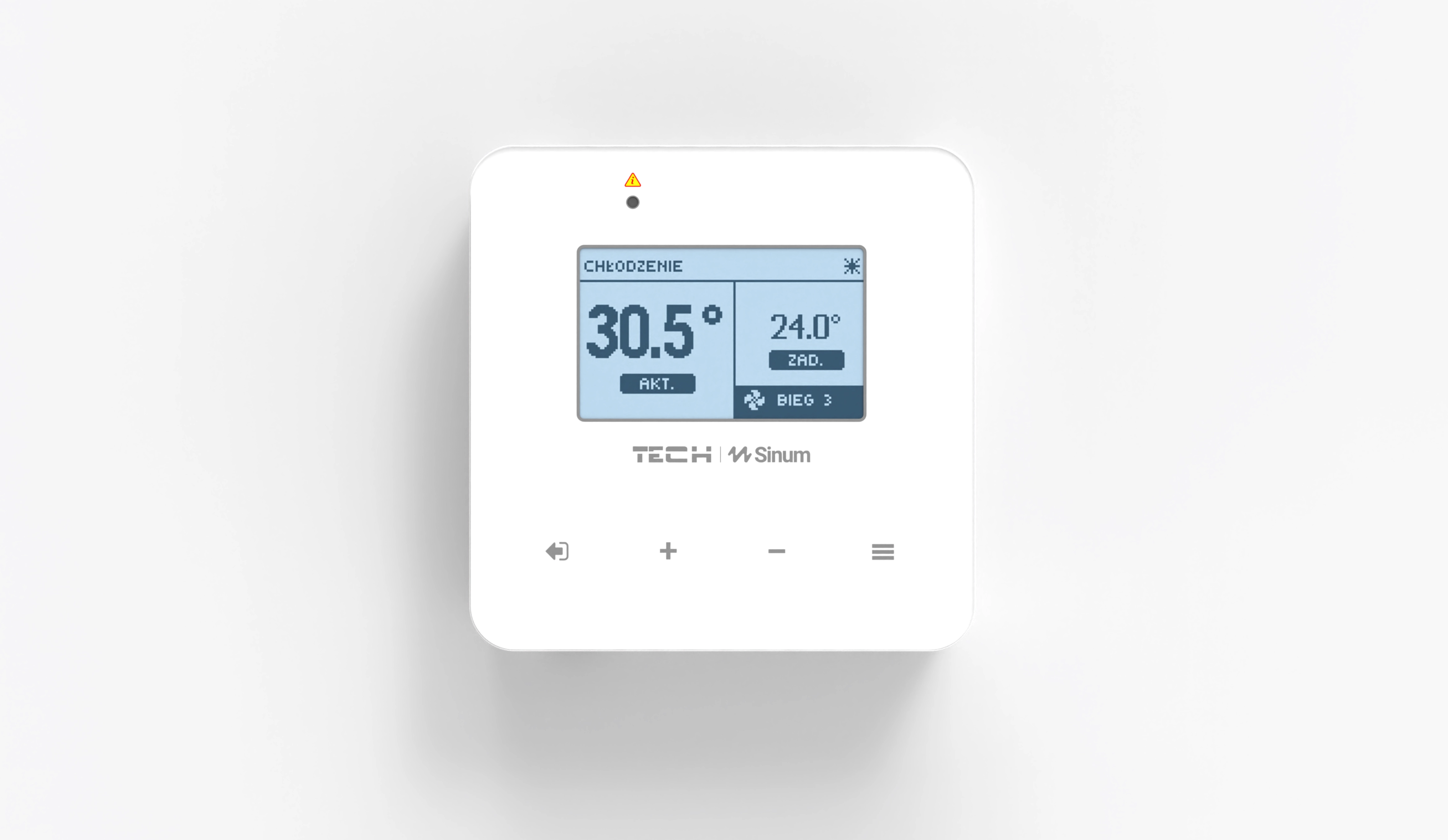

Clear and Easy-to-Read Display

Intuitive Operation and Quick Access to Functions

The user-friendly menu has been designed with everyday convenience in mind. The most important functions are accessible through a few simple screens, allowing quick and efficient system management without the need for additional devices.

Available menu sections:

• System On/Off
• Main Menu
• Basic Settings
• Advanced Settings
• Service Menu
• Operating Parameter Configuration

The range of available options can be automatically adjusted depending on the selected operating mode, system configuration, and the chosen method of fan and valve control. This ensures a tailored user experience and optimal system performance in a wide variety of HVAC applications.

Installation

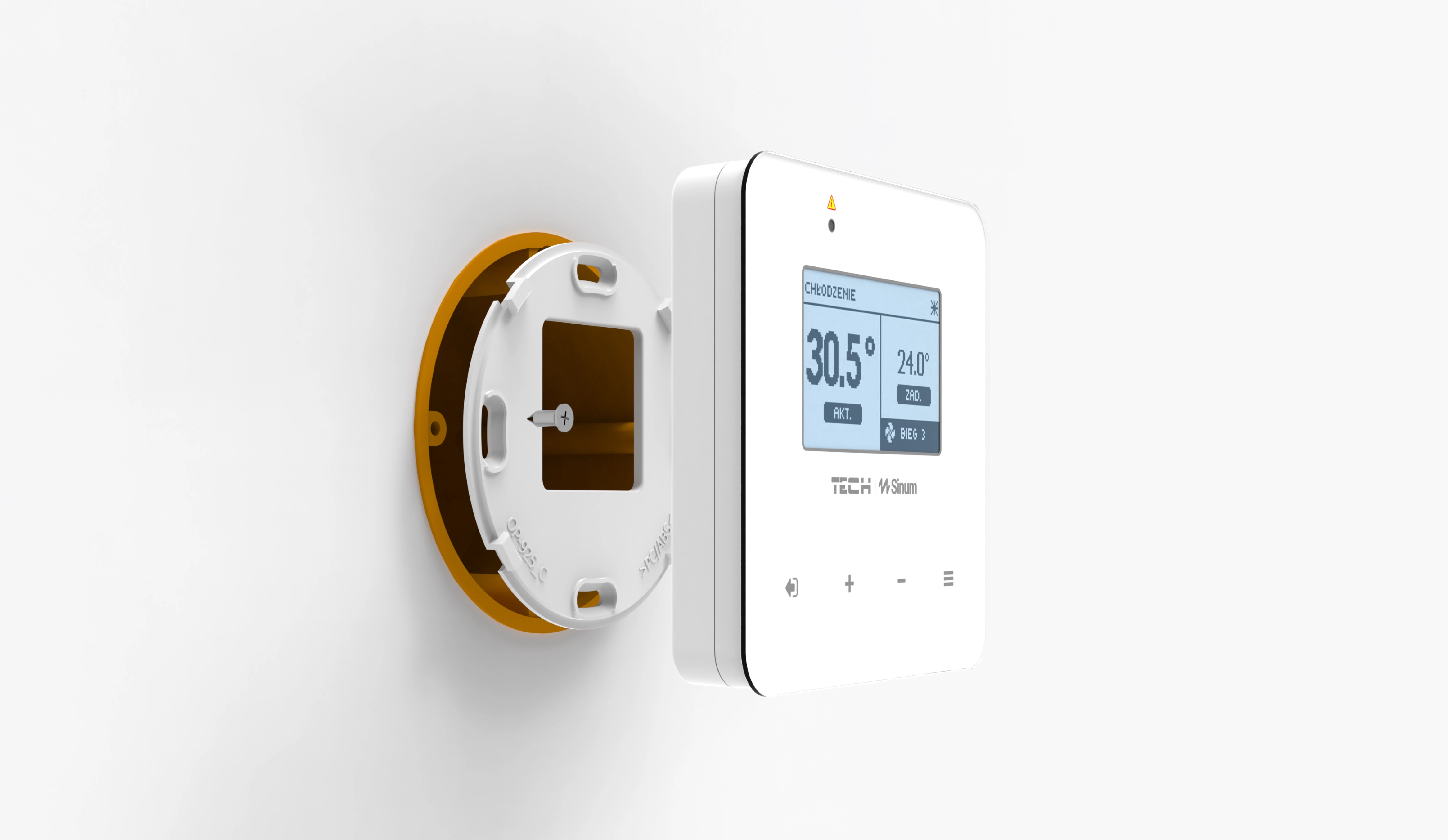

Our devices are designed with ease of installation in mind. Intended for surface-mounted installation, they can also be fitted onto a standard 60 mm wall mounting box for a cleaner, more convenient, and aesthetically pleasing appearance.

• Installation type: Surface-mounted
  Recommended wall box: Ø 60 mm

Thanks to its precisely engineered design, installation is quick and straightforward. The device blends seamlessly into a wide range of interior styles, combining modern aesthetics with practical functionality. The simplified installation process ensures a hassle-free setup and reliable operation from the very first use.

Power Supply and Communication

Power Supply and Communication - The rear side of the controller features a terminal connector designed for connecting:
12 V DC power supply – required for proper operation of the device.
SBUS communication lines (A, B) – enabling communication and connection with the system controller. This connection ensures reliable power delivery and stable data transmission, allowing seamless integration with the control system and efficient operation of the entire installation.

Device Dimensions

The Single Series devices have been designed with a compact form factor to ensure seamless integration into modern interiors. Carefully optimized dimensions allow the device to fit perfectly over standard wall mounting boxes, providing a clean appearance and a professional finish.

Dimensional Specifications

• Dimensions: 84,6×84,6×16,2mm
• Installation type: Surface-mounted (with the option of installation on a standard Ø 60mm wall box)

Remote Control

With the Sinum application, you can manage your system wherever you are and whenever you want. The application provides full control over lighting, temperature, blinds, and other household devices, ensuring both convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, automation scenarios, and monitor energy consumption. Additionally, the Sinum application offers real-time notifications and alerts, providing enhanced security, comfort, and peace of mind.
