P-KL1

Device Description

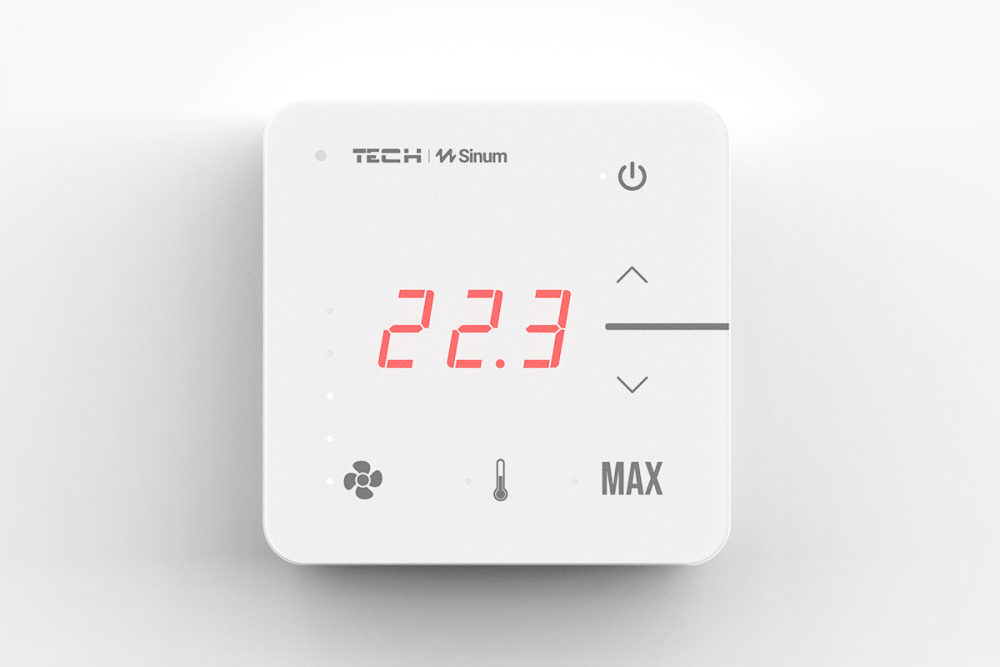

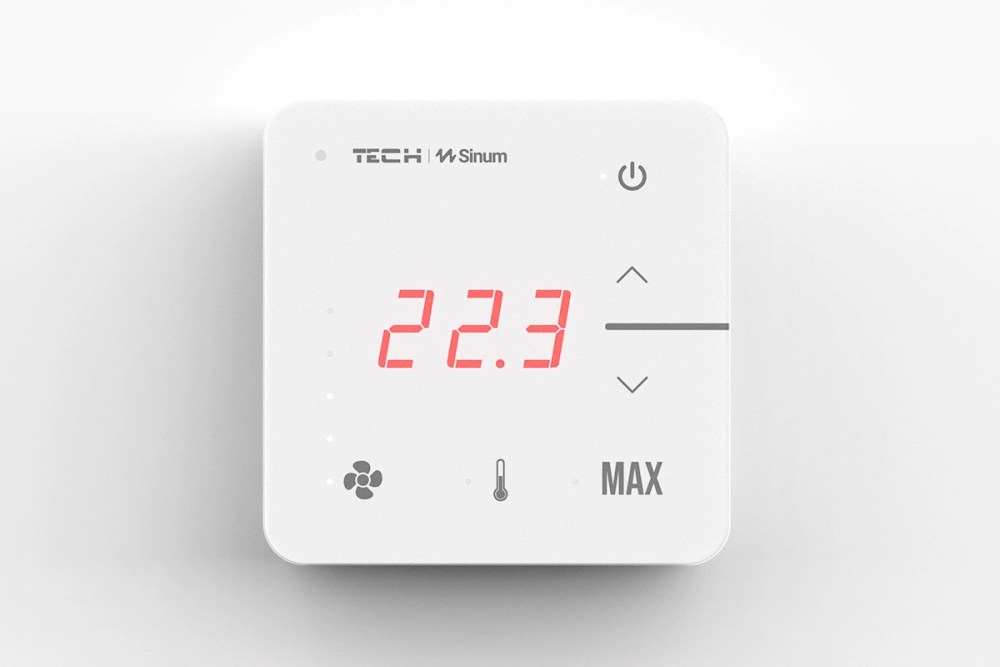

The P-KL1 panel is designed to control the operation of a fan coil unit via the KL-01m 230 Sbus module and the KL-01 230 Modbus module. The panel communicates with the module through a wired connection using the Modbus communication protocol. The device is equipped with a temperature and humidity sensor.

Connection and Communication

Registration – The button located on the back of the device is used to register the controller within the system. Pressing it initiates the pairing process with the central unit. Once the registration process is completed successfully, an appropriate message will appear on the controller display.

Power Supply and Communication – On the rear side of the controller there is a connector used for connecting:
12V power supply – required for proper device operation,
SBUS communication (A, B) – enabling connection with the system central unit.

Device Dimensions

Devices from the Single series have been designed in a compact form. Thanks to their precisely selected dimensions, the devices fit perfectly into standard installation boxes, ensuring an aesthetic finish and perfect fit.

Dimension Details

• Dimensions: 85×85x17mm
• Installation type: surface-mounted (with the option of installation on a 60mm electrical box)

Remote Control

With the Sinum application, you can manage your system wherever you are and whenever you want. The application provides full control over lighting, temperature, blinds, and other household devices, ensuring convenience and energy savings. The intuitive interface allows easy creation of schedules and scenarios, as well as energy consumption monitoring. Additionally, the Sinum application offers real-time notifications and alerts, ensuring complete safety and comfort of use.
