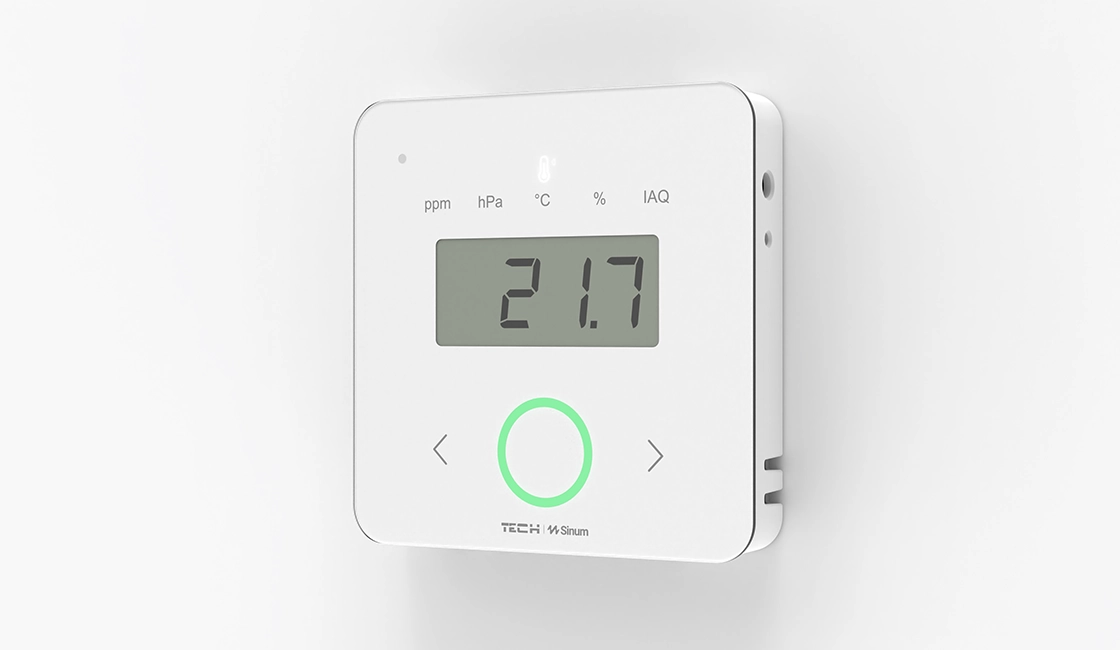

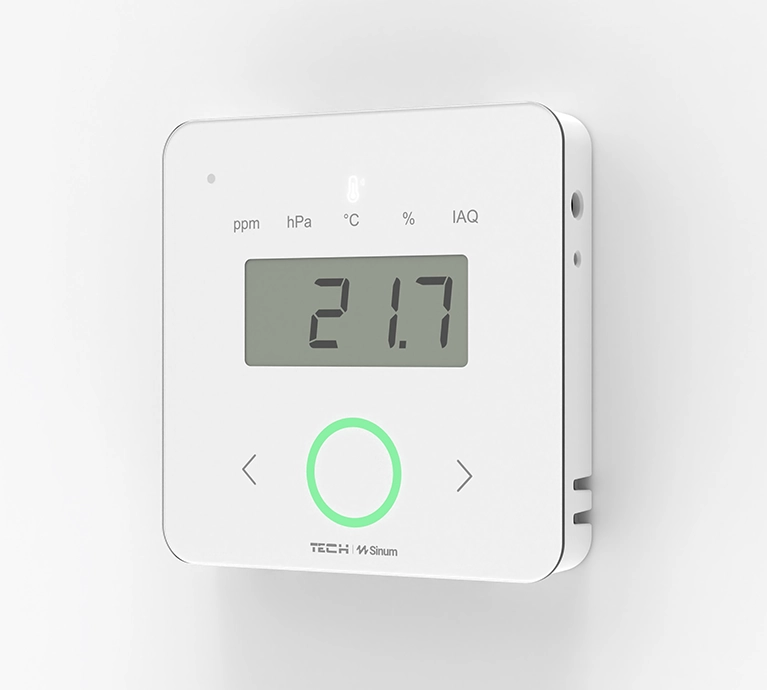

The MC-02 wired multisensor is a small and discreet device that houses up to six sensors. It is a room thermostat capable of measuring and displaying additional data such as:
The multisensor measures indoor air quality (IAQ), allowing you to continuously monitor conditions and maintain a healthy indoor climate.
The RGB air quality indicator changes color depending on the air quality—so you can immediately see when it’s time to ventilate the room.
The multisensor shows the following current information on its screen:
Everything you need to maintain a healthy indoor climate.
Our devices are designed for easy installation. They require flush-mounting in a standard 60mm electrical box, ensuring an elegant appearance and seamless integration with the wall.
Thanks to the precisely tailored design, installation is quick and straightforward, and our devices fit perfectly into any interior. The simple mounting process guarantees that you can enjoy modern design and functionality without unnecessary complications.

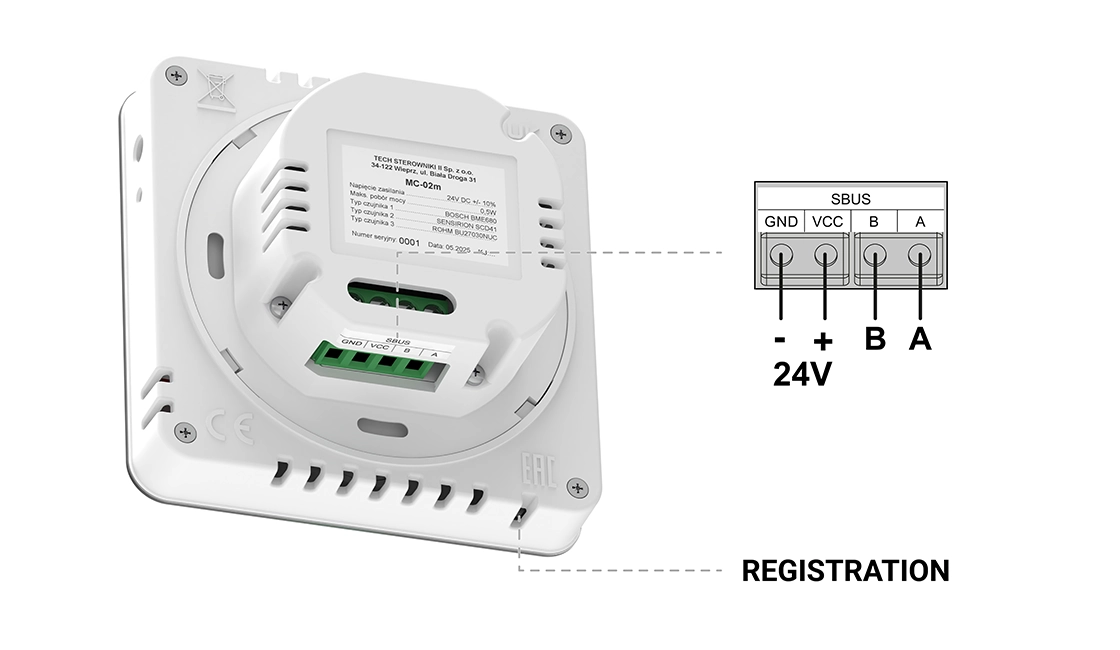

Registration - The button located on the back of the device is used to register the controller in the system. Pressing it initiates the pairing process with the central unit. After successful registration, a confirmation message will appear on the controller’s display.
Power and Communication - On the back of the controller, there is a connector for:

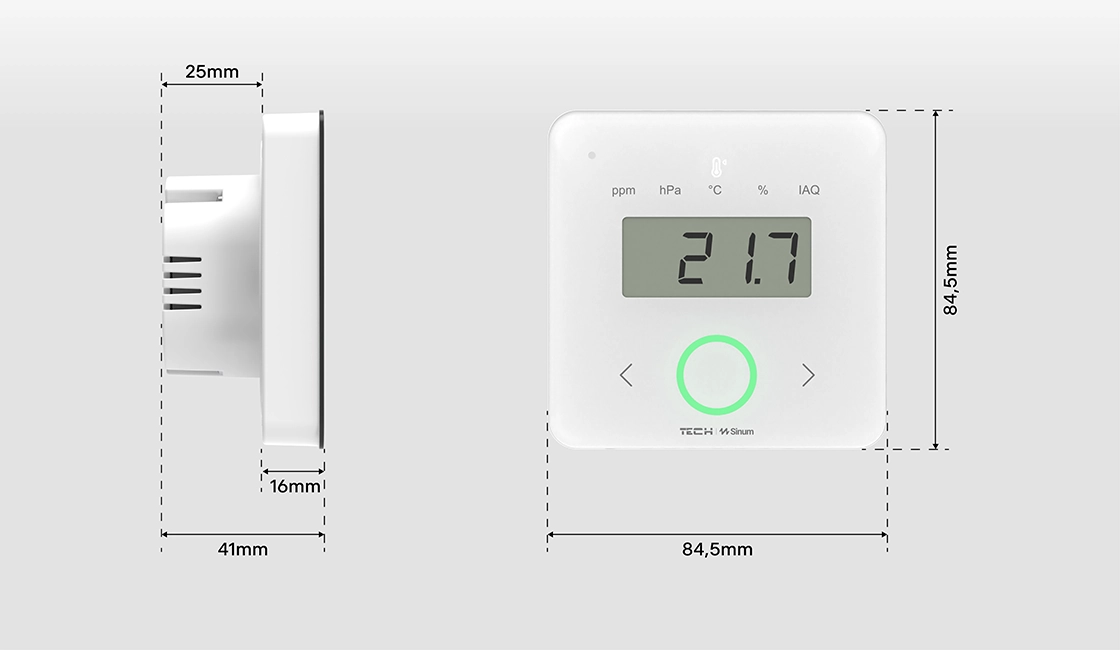

The MC-02 multisensor is designed to be compact. Its precisely chosen dimensions allow the device to fit perfectly into standard mounting boxes, ensuring a neat finish and seamless integration.
With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy savings. Its intuitive interface allows you to easily create schedules, scenarios, and monitor energy consumption. Additionally, the Sinum app offers real-time notifications and alerts, ensuring complete safety and comfort in your home.
| Parameter | Value |
|---|---|
| Communication | Wired Sinum SBUS |
| Height | 84 mm |
| Width | 84 mm |
| Depth | 16 mm |
| Power supply | 24V DC |
| Power consumption | 1 W |
| Operating temperature | 5° – 50° C |
Warranty cardDownload
