MC-02

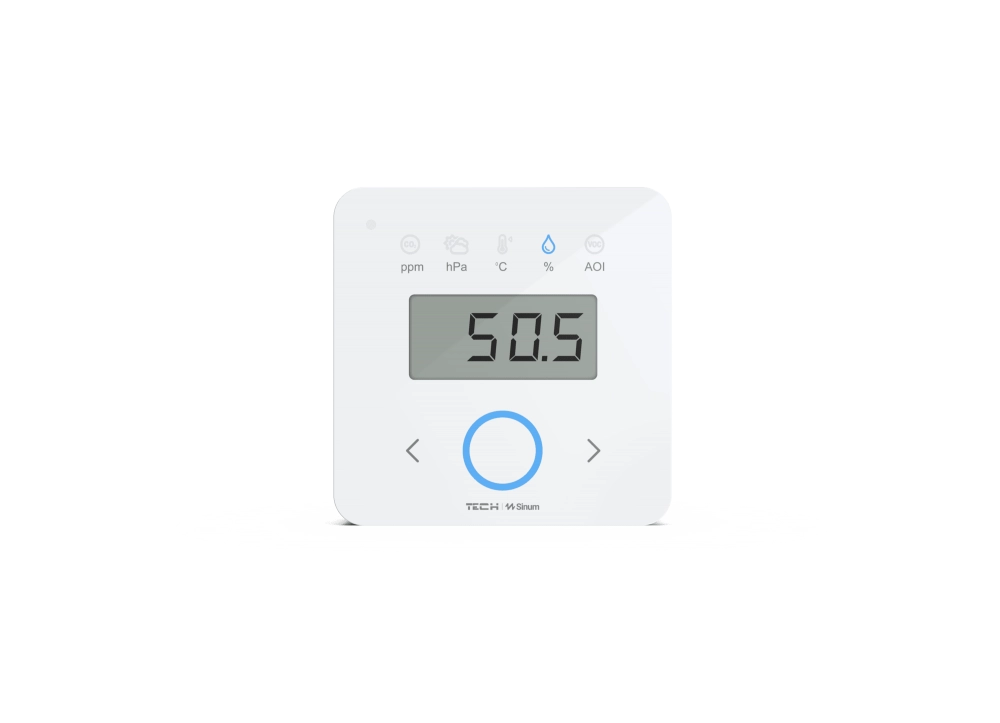

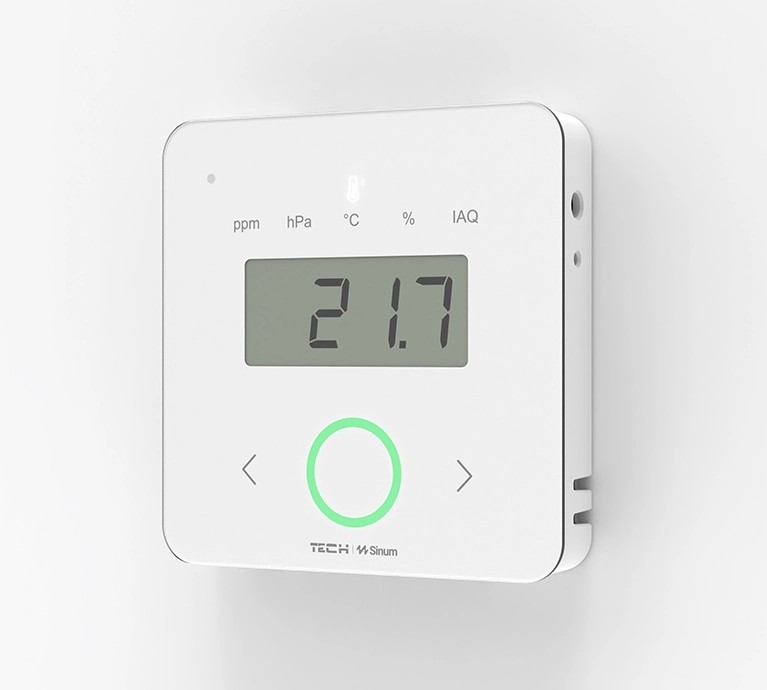

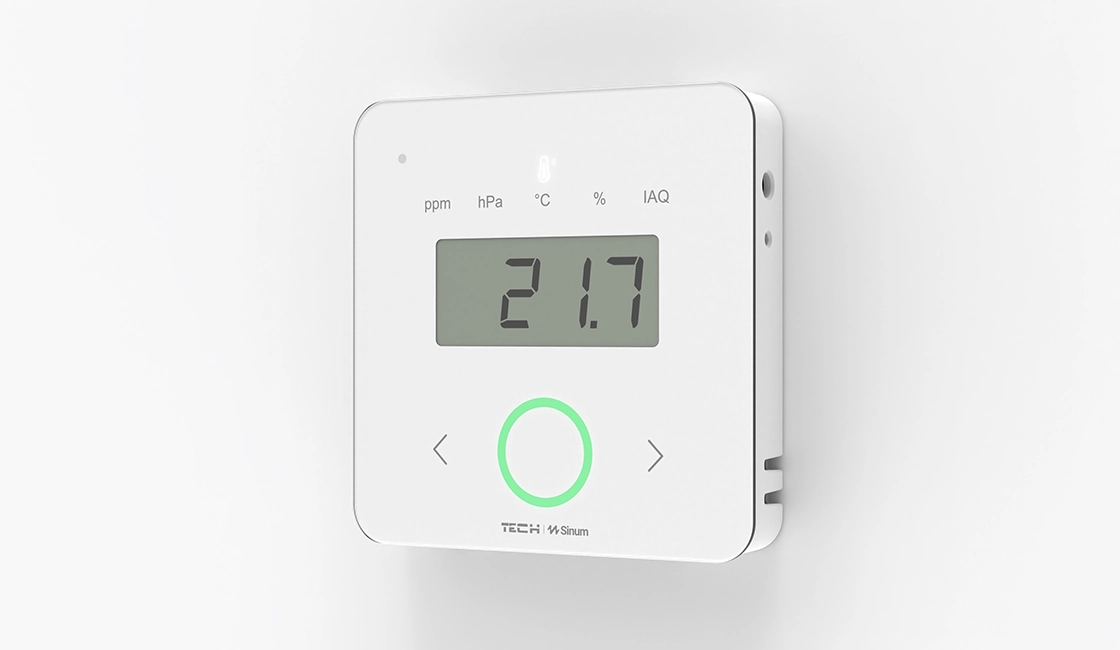

Wireless multisensor MC-02

Device Description

The wireless multisensor MC-02 is a compact and discreet device that integrates six sensors. It is a room controller capable of measuring and displaying additional data such as:

  • CO₂ concentration
  • Atmospheric pressure
  • Current temperature
  • Current humidity
  • Air quality

By connecting the MC-02 to the Sinum central unit, you can control other devices in your smart home. Each parameter can be used in specific automations or assigned to scenes. The device is mounted in a 60mm electrical box, powered by 230V 50 Hz, and communicates wirelessly with the Sinum central unit. The ring is backlit with an RGB LED, changing color according to the current air quality.

Air Quality Under Control in Your Home

Air Quality Under Control in Your Home

The multisensor measures indoor air quality (IAQ), allowing you to monitor conditions in real time and maintain a healthy indoor climate.

The RGB air quality indicator changes color depending on the air quality, so you can instantly see when it’s time to ventilate the room.

Clear Display with Key Data

Clear Display with Key Data

The multisensor shows real-time information on its screen:

  • CO2 concentration
  • Atmospheric pressure
  • Current temperature
  • Current humidity
  • Air quality

Everything you need to maintain a healthy indoor climate.

Flush-Mount Installation

Flush-Mount Installation

Our devices are designed for easy installation. They require flush mounting in a standard 60mm electrical box, ensuring an elegant appearance and seamless integration with the wall.

  • Mounting type: Flush-mount
  • Required box: 60mm diameter

Thanks to the precisely designed construction, installation is quick and straightforward, allowing the devices to blend perfectly with any interior. The simple mounting process ensures you can enjoy modern design and functionality without any unnecessary complications.

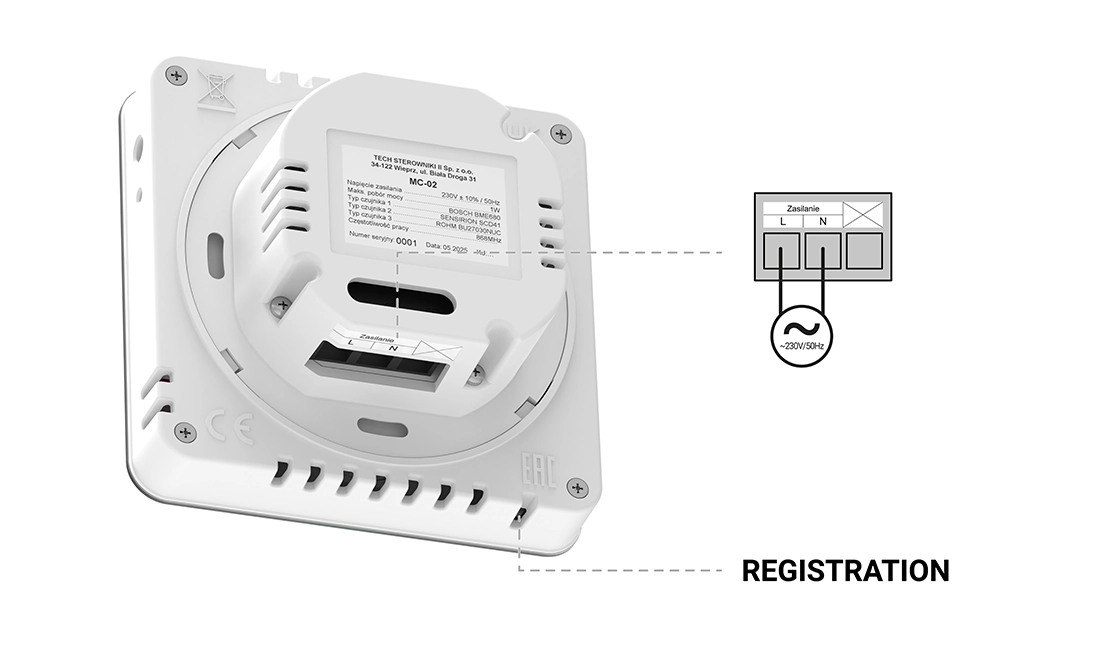

Connection and Communication

Connection and Communication

Registration - The button located on the back of the device is used to register the controller within the system. Pressing it initiates the pairing process with the central unit. Once registration is successfully completed, a confirmation message will appear on the controller’s display.

Power supply - ~230V 50Hz

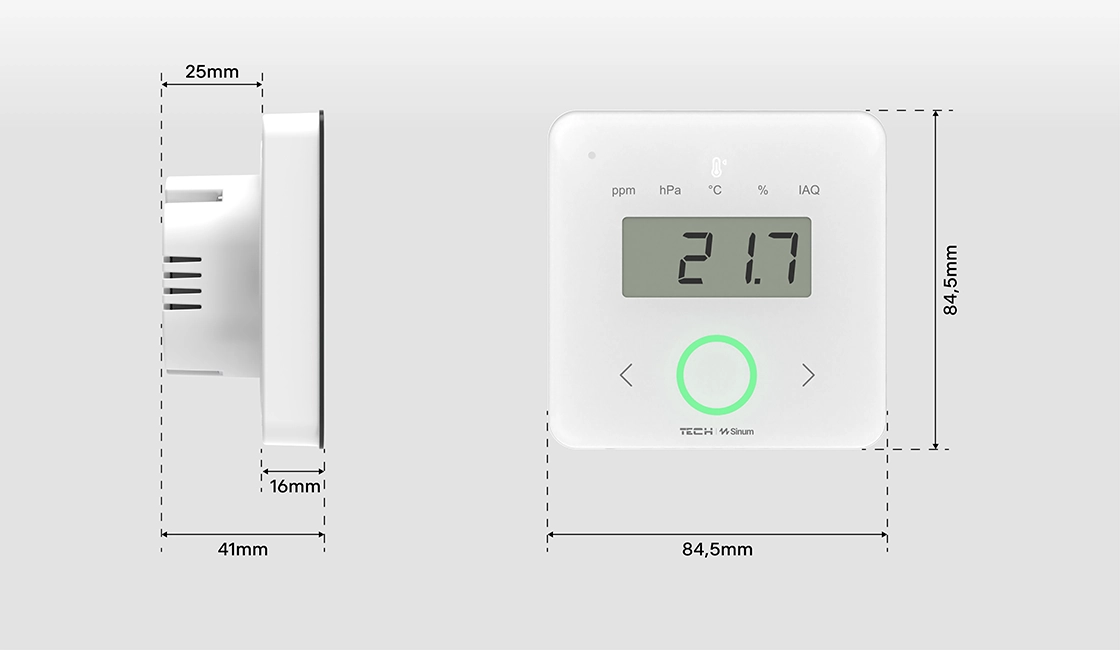

Device Dimensions

Device Dimensions

The MC-02 multisensor is designed in a compact form. Thanks to its carefully chosen dimensions, the device fits perfectly into standard mounting boxes, ensuring a neat finish and seamless integration.

Dimension Details:

  • Dimensions: 84.5x84.5x41mm
  • Mounting type: flush-mounted in a 60 mm diameter box

Remote Control

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy savings. Its intuitive interface allows for easy creation of schedules, scenarios, and energy usage monitoring. Additionally, the Sinum app offers real-time notifications and alerts, ensuring complete safety and comfort in your home.

Product parameters

Specification Value
Communication Wireless WTP 868MHz
Height 84 mm
Width 84 mm
Depth 16 mm
Power Supply 230 V AC
Power Consumption 1 W
Operating Temperature 5°C - 50°C

Files to download

Manuals

Warranty card
