KW-11m

Device Description

• 4x binary inputs
• 4x NTC sensor inputs
• 1x 1-wire input
• 2x 0–10V inputs

The Sinum system extension provides additional input options, including binary inputs, voltage-free contacts, NTC sensor inputs, and 0–10V inputs.

Connectivity with the Sinum EH-01 central unit is established via a wired connection using the Sinum SBUS bus.

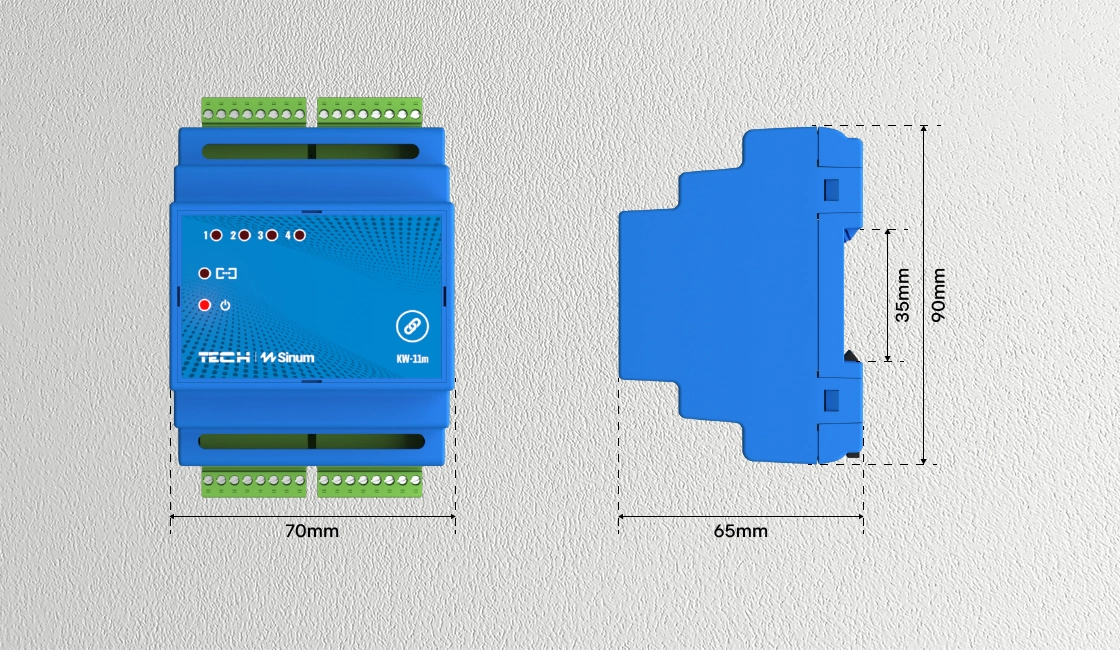

Device Dimensions

The relay modules are designed compactly to fit perfectly for DIN rail mounting in distribution cabinets. Thanks to their precise dimensions, the devices fit neatly into standard distribution cabinets, ensuring an aesthetic finish and perfect fit.

Detailed Dimensions

• Dimensions: 70 x 90 x 65 mm

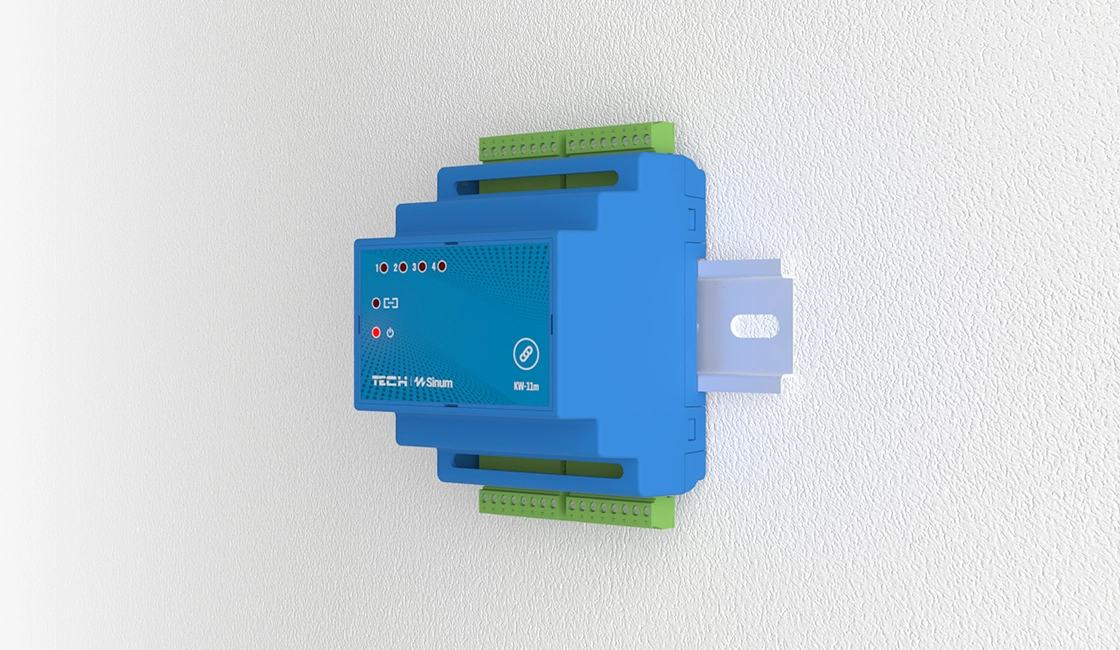

• Installation type: DIN rail (35 mm) mounting in distribution cabinets

Remote Control

With the Sinum app, you can manage your system anytime and anywhere. The app provides full control over lighting, temperature, blinds, and other home devices, ensuring convenience and energy efficiency. Its intuitive interface allows you to easily create schedules, automation scenarios, and monitor energy consumption.

Additionally, the Sinum app offers real-time notifications and alerts, providing complete security and comfort in everyday use.
